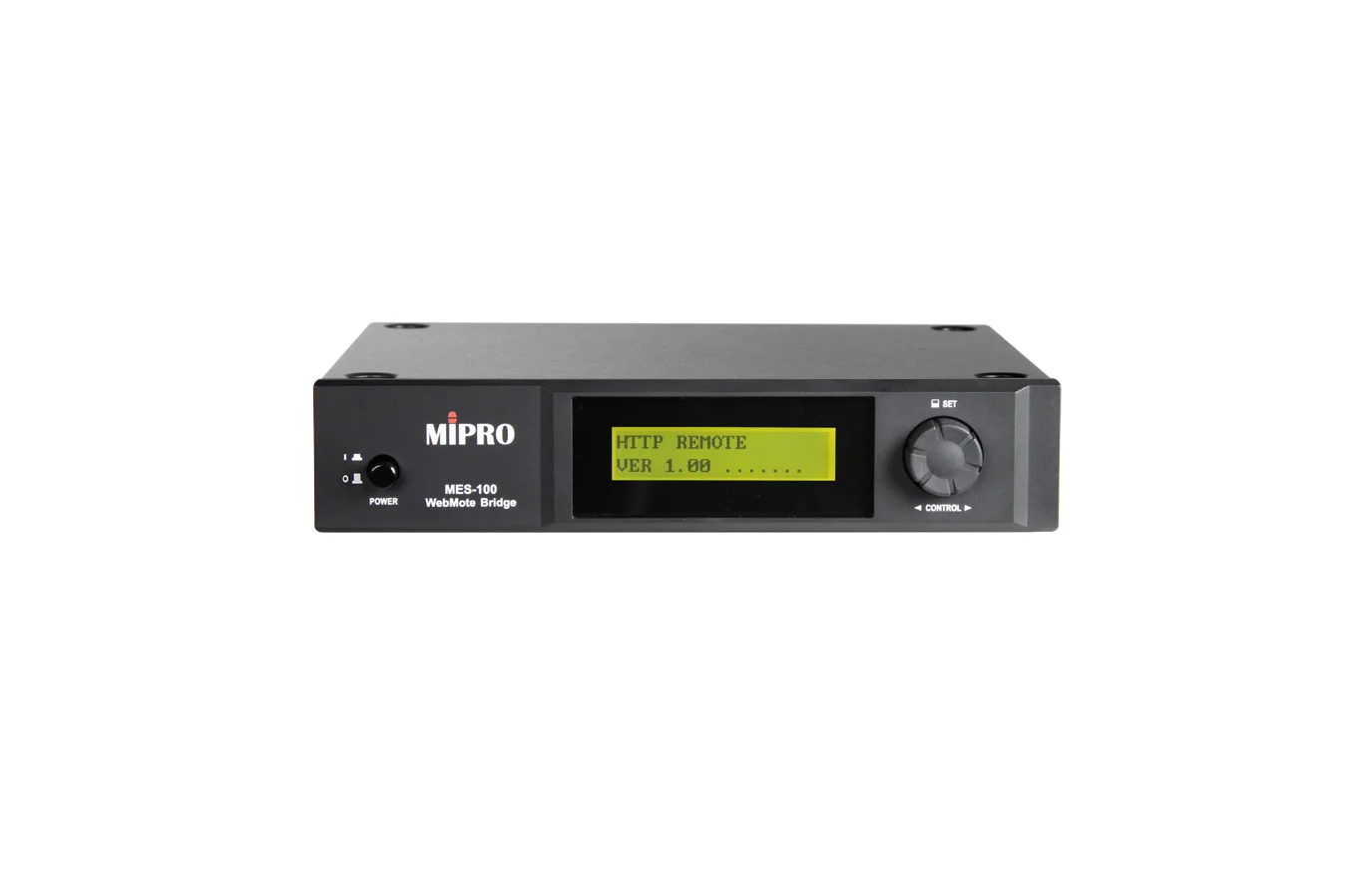

MES-100

WebMote Bridge

PRODUCT INQUIRY

FEATURES & SPECIFICATION

RELATED PRODUCTS & ACCESSORIES

PRODUCT SUPPORT

mes-100_1
mes-100-e_2
mes-100_1
mes-100-e_2

  • FEATURES & SPECIFICATION

  • RELATED PRODUCTS & ACCESSORIES

  • PRODUCT SUPPORT

    •

    FEATURES

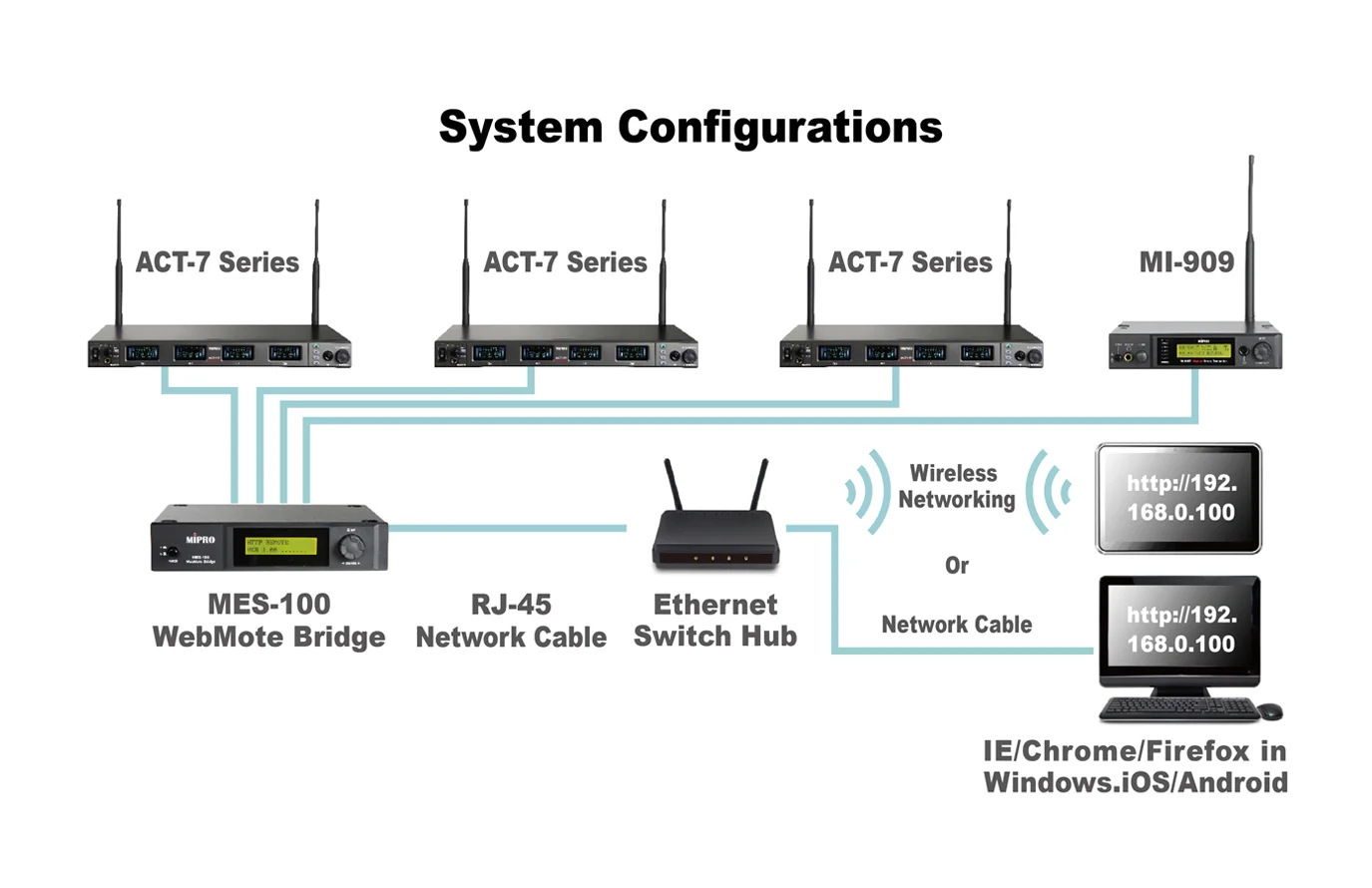

    • Designed for the ACT-BUS system, capable of simultaneously monitoring ACT-700 / ACT-800 / ACT-500 receivers and MI-909T / MI-58T / MI-58TD transmitters.
    • Converts monitoring data into a standard HTML5 web interface for intuitive operation without additional software installation.
    • Supports both wired and WiFi connections, compatible across Windows, iOS, Android, and Linux platforms.
    • Allows multiple device connections for centralized management and fast parameter configuration.
    • Provides USB or RS-232 adapter and connects to receivers via RJ-11 interface for simple and flexible installation.

    SPECIFICATION

    Model

    MES-100

    Name

    WebMote Bridge

    Functions

    Converts ACT-BUS data into web-based remote monitoring for enhanced transmission efficiency

    Accessories

    USB or RS-232 connector

    Connecting Interface

    RJ-11 connector (ACT-BUS)

    Network Interface

    RJ-45 Ethernet (10/100 Mbps)

    Power Input

    DC 12 – 15 V. External AC 100 – 240 V switching power supply

    Power Output

    DC 12 V / 0.5 A ( × 4)

    Dimensions

    210 × 44 × 162 mm (W × H × D)

    Weight

    Approx. 840 g

    RELATED PRODUCTS

  • All (8)

  • Wireless Systems (5)

  • IEM Systems (3)

    • act-828_s

    ACT-828

    UHF Digital Wideband Dual-Channel Receiver

    COMPARE

    act-848_s

    ACT-848

    UHF Digital Wideband Quad-Channel Receiver

    COMPARE

    act-727_s

    ACT-727

    UHF Analog Wideband Dual-Channel Receiver

    COMPARE

    act-747_s

    ACT-747

    UHF Analog Wideband Quad-Channel Receiver

    COMPARE

    mi-909t_s

    MI-909T

    UHF Digital Stereo Transmitter

    COMPARE

    mi-58t_s

    MI-58T

    5 GHz Digital Stereo Transmitter

    COMPARE

    mi-58td_s

    MI-58TD

    5 GHz Digital Stereo Transmitter

    COMPARE

    act-818_s

    ACT-818

    UHF Digital Wideband Single-Channel Receiver

    COMPARE

    RELATED VIDEOS

    Professional_Audio_Equipment_for_Stage_Application

    MIPRO Professional Audio Equipment for Stage Application

    DOWNLOADS

  • USER GUIDE

    •
    TITLE
    FILES
    SIZE
    DOWNLOAD
    MES-100
    WebMote Bridge Server (Ver.2023)
    883.88 KB
    MES-100
    WebMote Bridge Server (Ver.2025)
    1.04 MB
    MES-100
    WebMote Bridge Server
    4.73 MB
