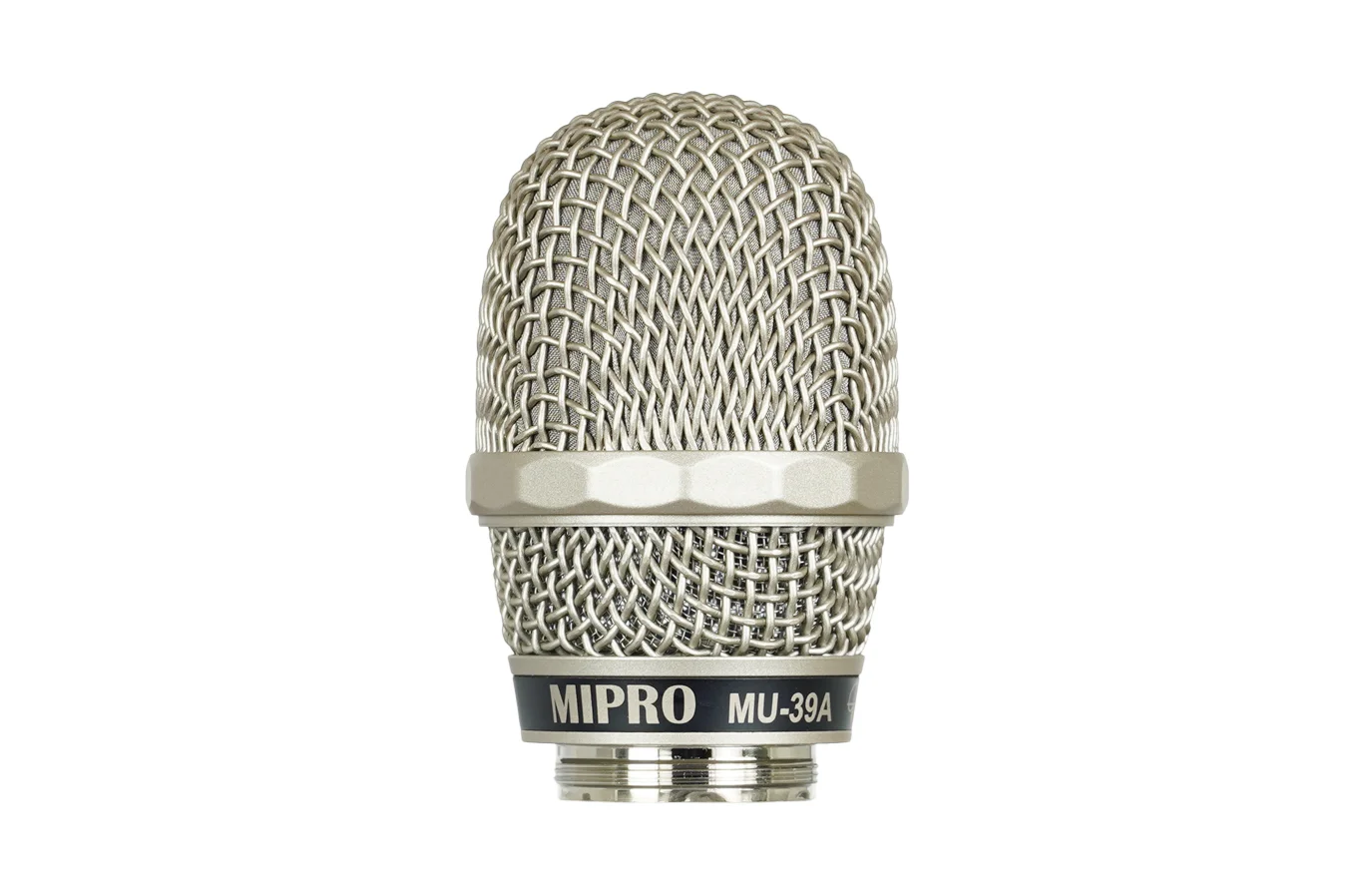

MU-39A

Supercardioid Dynamic Microphone Capsule Module

PRODUCT INQUIRY

FEATURES & SPECIFICATION

PRODUCT SUPPORT

Super_Cardioid

Supercardioid

Dynamic

Dynamic

mu-39a_1
mu-39a_1

  • FEATURES & SPECIFICATION

  • PRODUCT SUPPORT

    •

    FEATURES

    • Supercardioid polar pattern effectively minimizes side and rear pickup for superior feedback rejection.
    • Dynamic capsule module delivers natural, balanced sound with rich midrange, ideal for both speech and vocals.
    • Handles high sound pressure levels, ensuring stable and distortion-free performance for stage and everyday use.
    • Smooth frequency response provides clear mids with extended highs for natural, fatigue-free listening.
    • Protruding threaded lock ring specially designed for MIPRO dual-power handheld transmitters, ensuring secure and stable installation.
    • Durable modular design combines professional-grade reliability with an elegant appearance.

    SPECIFICATION

    Model

    MU-39A

    Name

    Supercardioid Dynamic Microphone Capsule Module

    Type

    Dynamic

    Polar Pattern

    Supercardioid

    Frequency Response

    50 Hz – 14 kHz

    Sensitivity

    -53 dBV/Pa

    Output Impedance

    600 Ω

    Compatible Models

    MIPRO ACT-800H and other handheld transmitters with the same threaded connector specification.

    Color

    Champagne gold / black

    Dimensions

    51 × 82 mm (Ø × L)

    Weight

    Approx. 159 g

    DOWNLOADS

  • SPEC SHEET

    •
    TITLE
    FILES
    SIZE
    DOWNLOAD
    MU-39A
    Supercardioid Dynamic Microphone Capsule Module (Ver.2024)
    224.57 KB
