MU-59A | Supercardioid Dynamic Microphone Capsule Module | MIPRO

Products
Accessories
Handheld Mic Capsules Modules
MU-59A
mu-59a_1
mu-59a_1

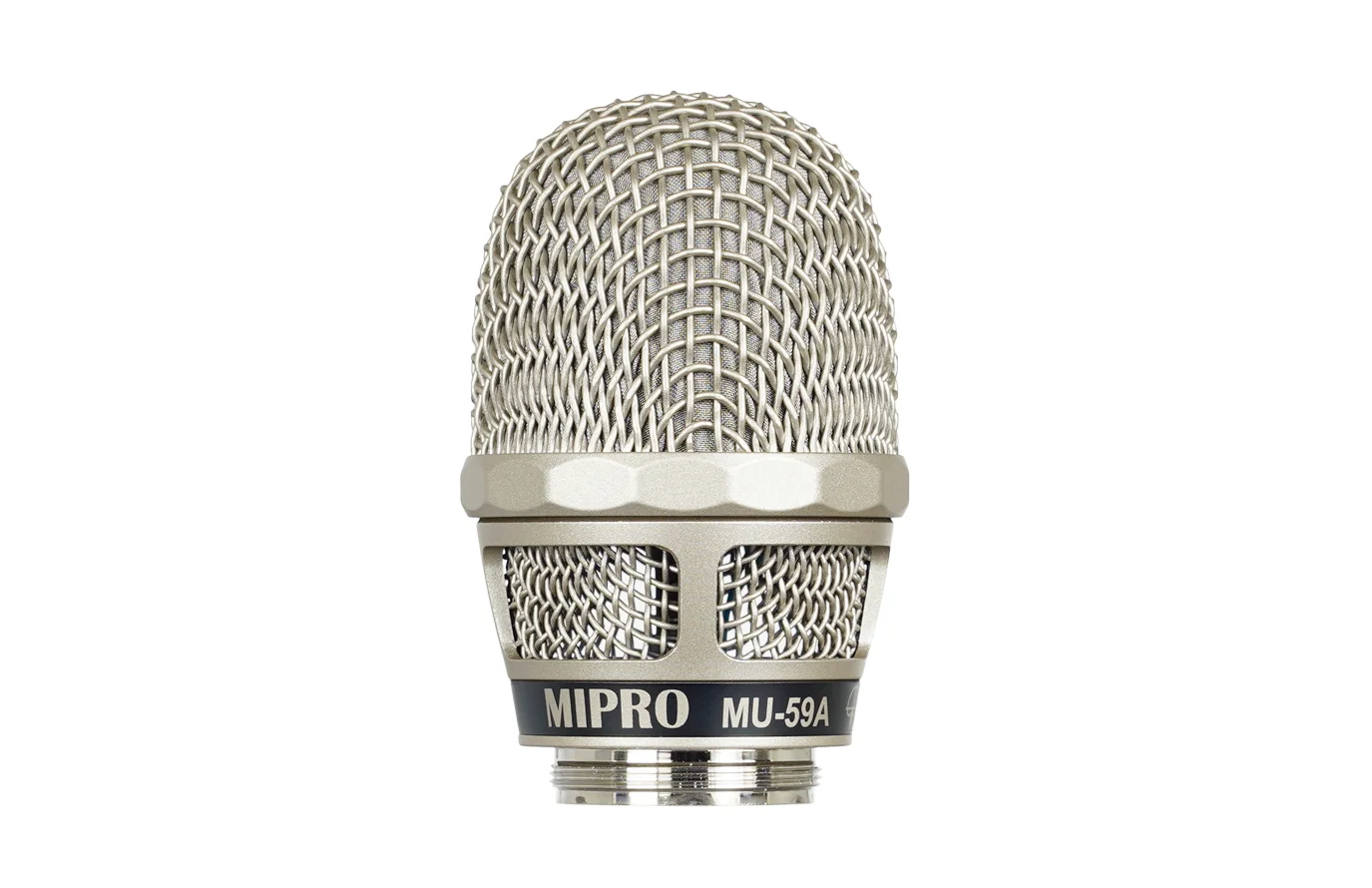

MU-59A

Supercardioid Dynamic Microphone Capsule Module

PRODUCT INQUIRY

FEATURES & SPECIFICATION

PRODUCT SUPPORT

Super_Cardioid

Supercardioid

Dynamic

Dynamic

mu-59a_1
mu-59a_1

  • FEATURES & SPECIFICATION

  • PRODUCT SUPPORT

    •

    FEATURES

    • Supercardioid polar pattern effectively reduces side and rear pickup, enhancing vocal separation and minimizing feedback.
    • Dynamic capsule module delivers a full-bodied midrange with clear highs, providing natural and powerful vocal projection.
    • Withstands extremely high sound pressure levels, ideal for lead vocals and instrument miking with stable, distortion-free performance.
    • Optimized frequency response highlights vocal clarity while preserving stage sound detail.
    • Protruding threaded lock ring specially designed for MIPRO dual-power handheld transmitters, ensuring secure and stable installation.
    • Durable modular design combines professional-grade reliability with an elegant appearance.

    SPECIFICATION

    Model

    MU-59A

    Name

    Supercardioid Dynamic Microphone Capsule Module

    Type

    Dynamic

    Polar Pattern

    Supercardioid

    Frequency Response

    50 Hz – 14 kHz

    Sensitivity

    -53 dBV/Pa

    Output Impedance

    600 Ω

    Compatible Models

    MIPRO ACT-800H and other handheld transmitters with the same threaded connector specification.

    Color

    Champagne gold / black

    Dimensions

    51 × 82 mm (Ø × L)

    Weight

    Approx. 169 g

    DOWNLOADS

  • SPEC SHEET

    •
    TITLE
    FILES
    SIZE
    DOWNLOAD
    MU-59A
    Supercardioid Dynamic Microphone Capsule Module (Ver.2024)
    234.82 KB
