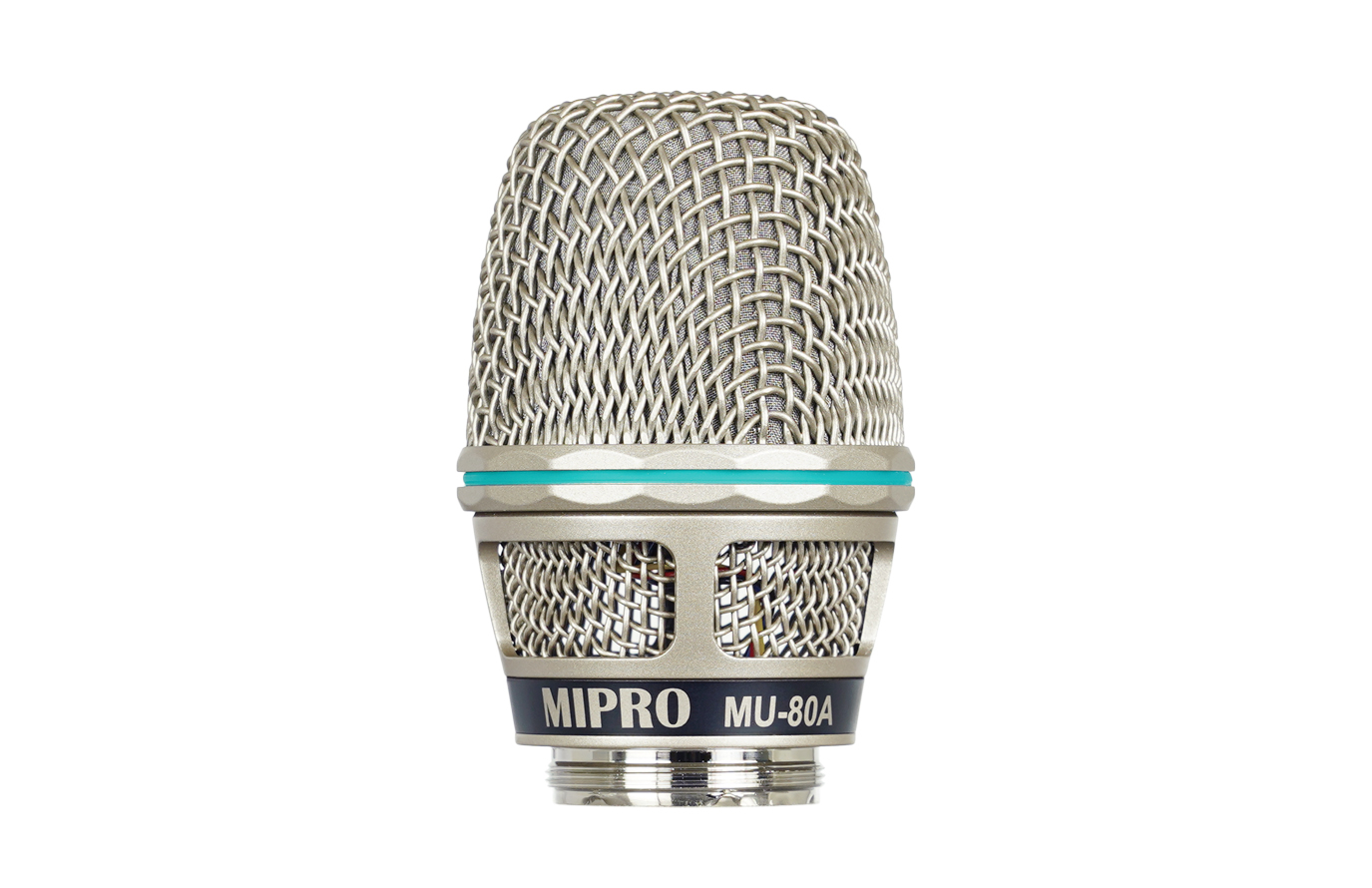

MU-80A

Cardioid Condenser Microphone Capsule Module

PRODUCT INQUIRY

FEATURES & SPECIFICATION

PRODUCT SUPPORT

Cardioid

Cardioid

Condenser

Condenser

mu-80a_1
mu-80a_1

  • FEATURES & SPECIFICATION

  • PRODUCT SUPPORT

    •

    FEATURES

    • Cardioid polar pattern reduces side and rear pickup, ideal for stage vocals and conference applications.
    • High-performance condenser capsule delivers natural sound quality and fast transient response, faithfully reproducing vocal details.
    • Wide dynamic range and SPL handling meet the demands of live performances and versatile applications.
    • Protruding threaded lock ring specially designed for MIPRO dual-power handheld transmitters, ensuring secure and stable installation.
    • Detachable upper and lower grille with multi-layer pop filter structure reduces plosives and allows easy cleaning.
    • Durable modular design ensures convenient installation and professional reliability.

    SPECIFICATION

    Model

    MU-80A

    Name

    Cardioid Condenser Microphone Capsule Module

    Type

    Condenser

    Polar Pattern

    Cardioid

    Frequency Response

    50 Hz – 19 kHz

    Sensitivity

    -53 dBV/Pa

    Max SPL

    149 dB SPL

    Compatible Models

    MIPRO ACT-800H and other handheld transmitters with the same threaded connector specification.

    Color

    Champagne gold / black

    Dimensions

    51 × 78 mm (Ø × L)

    Weight

    Approx. 142 g

    DOWNLOADS

  • SPEC SHEET

    •
    TITLE
    FILES
    SIZE
    DOWNLOAD
    MU-80A
    Cardioid Condenser Microphone Capsule Module (Ver.2024)
    235.3 KB
