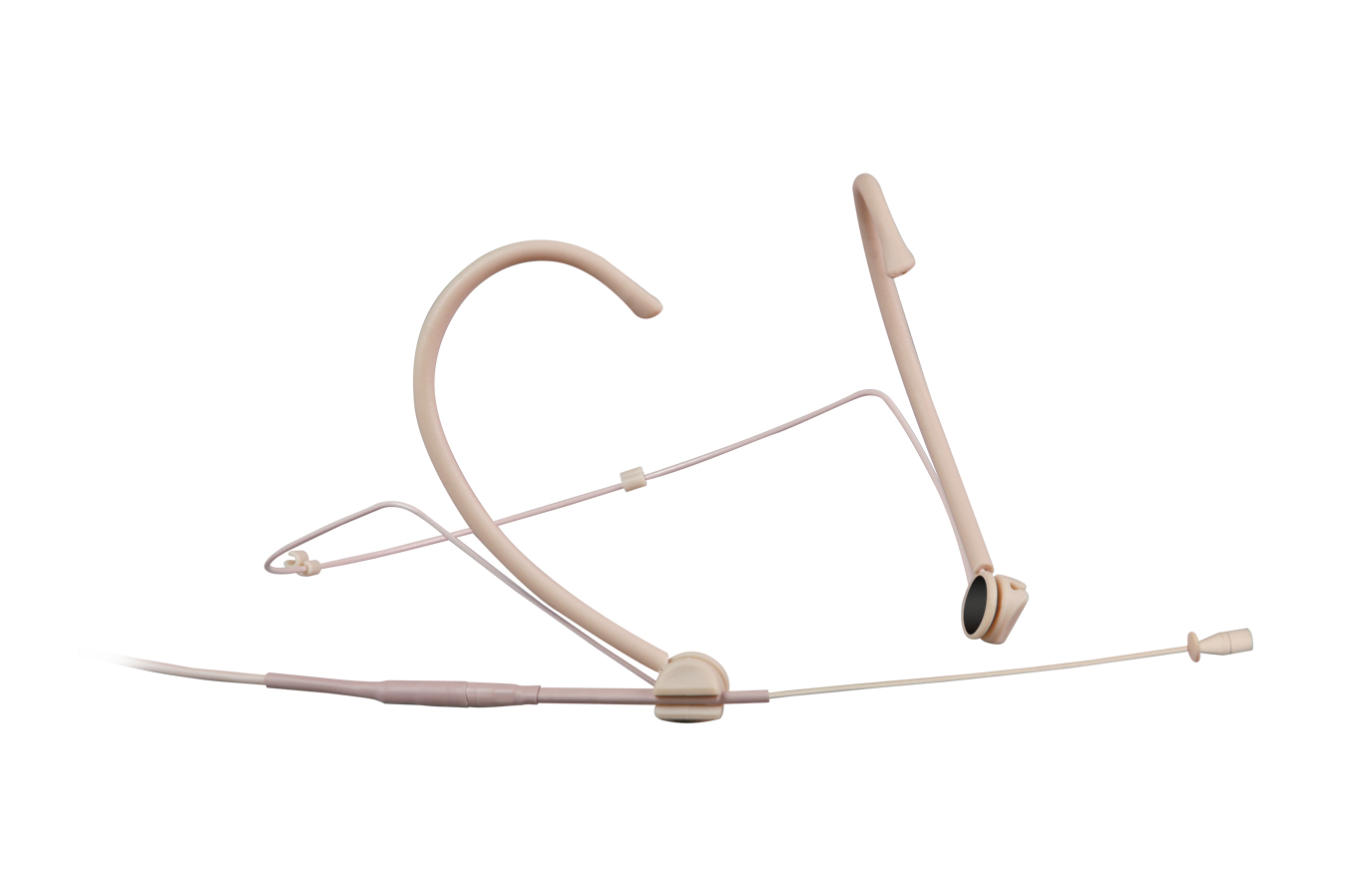

MU-23

Omnidirectional Headworn Microphone

PRODUCT INQUIRY

FEATURES & SPECIFICATION

PRODUCT SUPPORT

Omni_Antenna

Omnidirectional

Condenser

Condenser

4_Pin_Mini_XLR

4-Pin Mini XLR

mu-23_1
mu-23_1

  • FEATURES & SPECIFICATION

  • PRODUCT SUPPORT

    •

    FEATURES

    • Omnidirectional polar pattern with excellent off-axis response provides full-range pickup.
    • Dual-earhook frame design available in three sizes (L/M/S) offers lightweight comfort and stability.
    • Ultra-slim boom arm mounts on either side and allows full adjustment of length, direction, and angle.
    • Wide dynamic design delivers natural, clear vocals across an extended frequency range.
    • Sweat-repelling ring and replaceable foam windscreen protect the capsule and extend service life.

    SPECIFICATION

    Model

    MU-23

    Name

    Omnidirectional Headworn Microphone

    Type

    Condenser

    Polar Pattern

    Omnidirectional

    Capsule

    3.0 mm

    Sensitivity

    -56 dBV/Pa

    Frequency Response

    40 Hz – 20 kHz

    Max SPL

    138 dB

    Connector

    MIPRO 4-Pin Mini XLR

    Cable Length

    150 cm

    Color

    Beige

    Weight

    Approx. 23 g (frame included)

    DOWNLOADS

  • USER GUIDE

    •
    TITLE
    FILES
    SIZE
    DOWNLOAD
    Headworn Microphones
    MU-13 / MU-23 / MU-210 (Ver.2022)
    3.05 MB
    Headworn Microphones
    MU-13 / MU-23 / MU-210 (Ver.2023)
    1.4 MB
