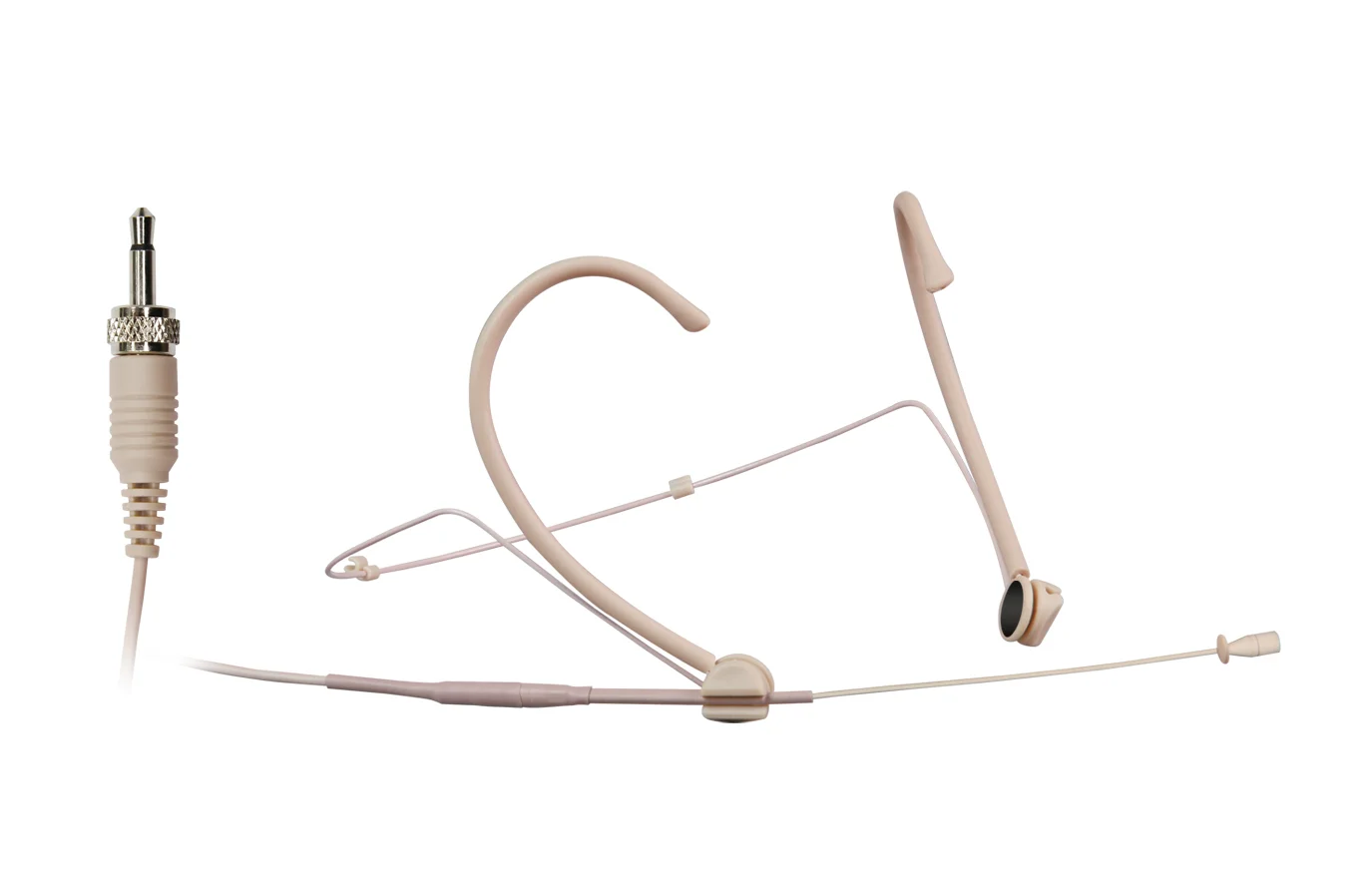

MU-23P

Omnidirectional Headworn Microphone

PRODUCT INQUIRY

FEATURES & SPECIFICATION

PRODUCT SUPPORT

Omni_Antenna

Omnidirectional

Condenser

Condenser

3.5_mm

3.5 mm

mu-23p_1
mu-23p_1

  • FEATURES & SPECIFICATION

  • PRODUCT SUPPORT

    •

    FEATURES

    • Omnidirectional polar pattern with excellent off-axis response provides full-range pickup.
    • Dual-earhook frame design available in three sizes (L/M/S) offers lightweight comfort and stability.
    • Ultra-slim boom arm mounts on either side and allows full adjustment of length, direction, and angle.
    • Wide dynamic design delivers natural, clear vocals across an extended frequency range.
    • Sweat-repelling ring and replaceable foam windscreen protect the capsule and extend service life.
    • Equipped with MIPRO 3.5 mm output connector, specially designed for MTG Series tour guide systems.

    SPECIFICATION

    Model

    MU-23P

    Name

    Omnidirectional Headworn Microphone

    Type

    Condenser

    Polar Pattern

    Omnidirectional

    Capsule Size

    3 mm

    Sensitivity

    -56 dBV/Pa

    Frequency Response

    40 Hz – 20 kHz

    Max SPL

    138 dB

    Connector

    MIPRO 3.5 mm TS (for MTG-100T / MTG-100Ta)

    Cable Length

    150 cm

    Color

    Beige

    Weight

    Approx. 23 g (frame included)

    DOWNLOADS

  • SPEC SHEET

    •
    TITLE
    FILES
    SIZE
    DOWNLOAD
    MU-23P
    Headworn Microphone (Ver.2024)
    148.98 KB
