AD-808

UHF 4-Channel Transmitting Antenna Combiner

PRODUCT INQUIRY

FEATURES & SPECIFICATION

RELATED PRODUCTS & ACCESSORIES

PRODUCT SUPPORT

UHF、ISM

UHF

ad-808_1
ad-808_2
ad-808_1
ad-808_2

  • FEATURES & SPECIFICATION

  • RELATED PRODUCTS & ACCESSORIES

  • PRODUCT SUPPORT

    •

    FEATURES

    • Integrates up to four UHF-band MI-909T transmitters into a single antenna output, simplifying antenna setup.
    • Built-in high-linearity broadband amplifier reduces intermodulation distortion and signal loss, enhancing audio stability and transmission range.
    • Minimizes interference and complexity from multiple antenna setups, ideal for professional stage and monitoring applications.

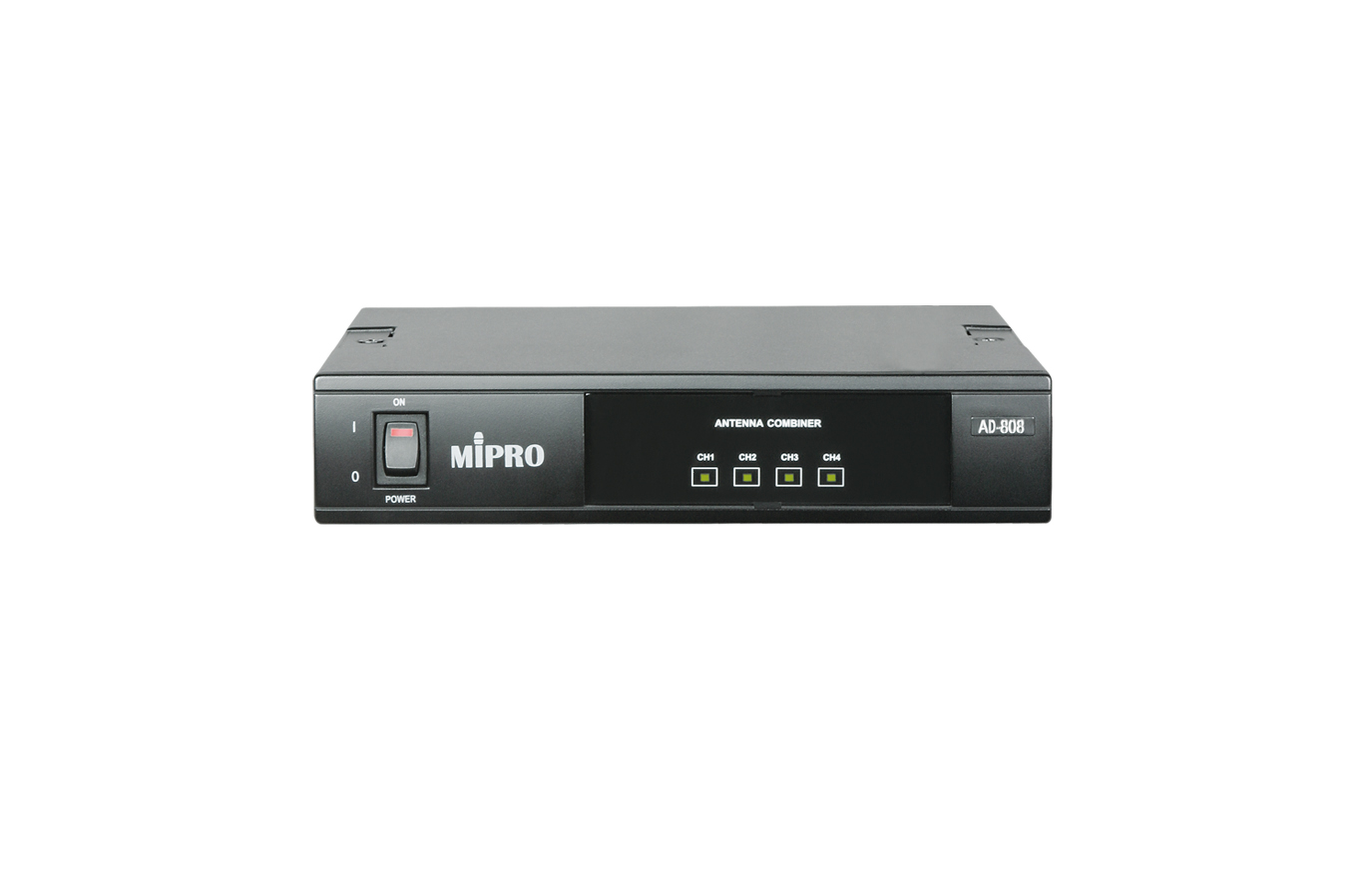

    • LED indicators on the front panel light up when input power reaches the specified level, allowing real-time status monitoring.

    SPECIFICATION

    Model

    AD-808

    Name

    UHF 4-Channel Transmitting Antenna Combiner

    Frequency Range

    UHF 470 – 960 MHz

    Gain

    0 dB ± 2 dB

    Max. RF Input Power

    20 dBm (100 mW)

    Intermodulation Distortion

    < –57 dBc

    System Impedance

    50 Ω

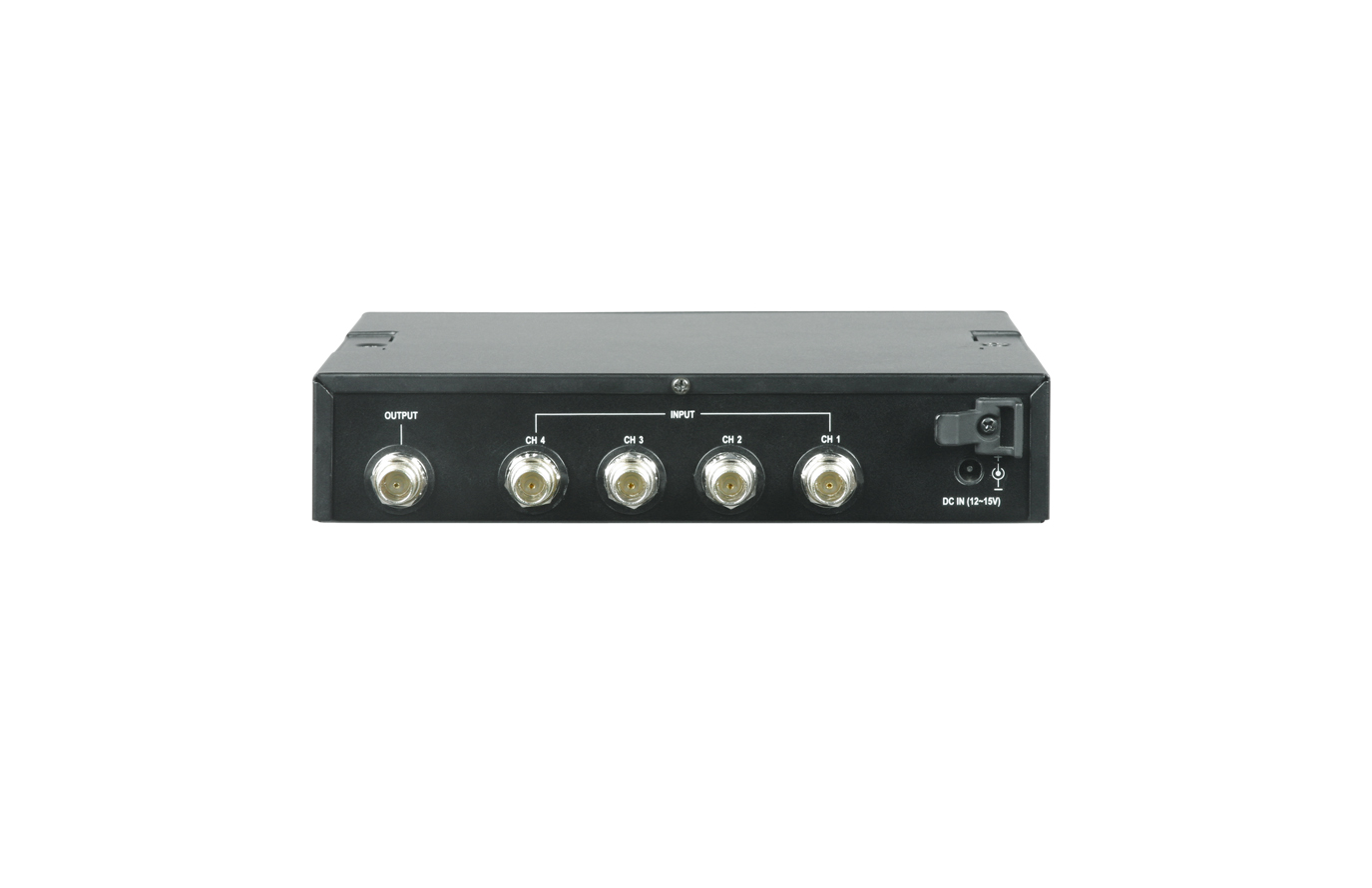

    Input Connectors

    TNC × 4

    Output Connectors

    TNC × 1

    Power Supply

    DC 12 – 15 V, AC 100 – 240 V

    Dimensions

    210 × 44 × 204 mm (W × H × D)

    Weight

    Approx. 1.1 kg

    RELATED PRODUCTS

  • All (2)

  • IEM Systems (1)

  • Tour Guide Systems (1)

    • mi-909t_s

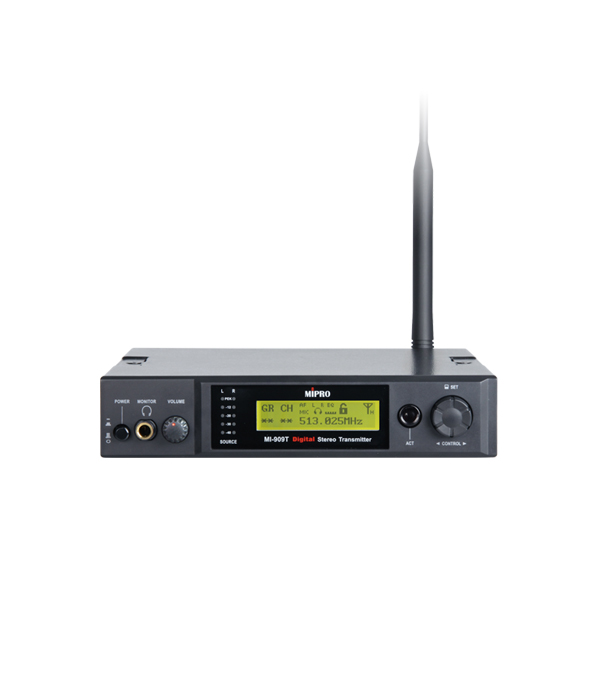

    MI-909T

    UHF Digital Stereo Transmitter

    COMPARE

    mts-100_s

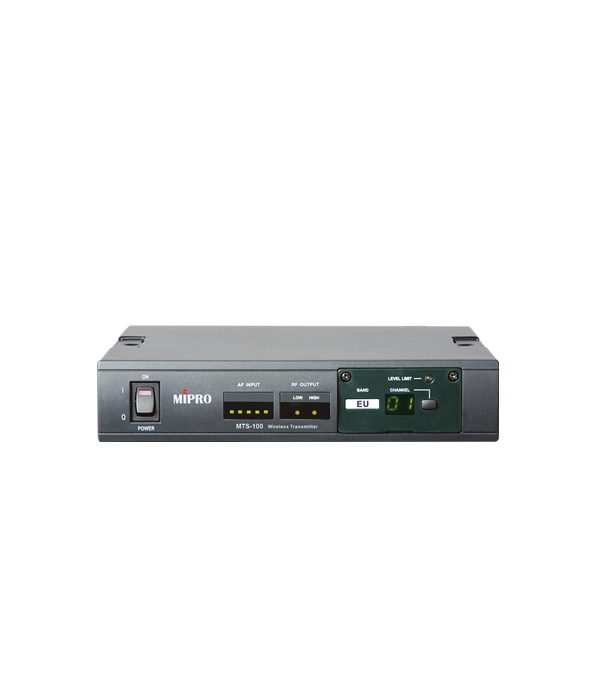

    MTS-100

    UHF Digital Interlinking Transmitter

    ACCESSORIES

  • All (1)

  • Rack Mount Kits (1)

    •
    fb-71_s

    FB-71

    Rack Mount Kits

    DOWNLOADS

  • USER GUIDE

  • SPEC SHEET

    •
    TITLE
    FILES
    SIZE
    DOWNLOAD
    AD-808
    UHF 4-channel Active Antenna Combiner (Ver.2022)
    1.1 MB
    AD-808
    UHF 4-channel Transmitting Antenna Combiner (Ver.2024)
    206.48 KB
