BC-100 II | Boundary Microphone Base | MIPRO

Products
Conference Systems
Boundary Microphone Base
BC-100 II
bc-100-II_1
bc-100-II_1

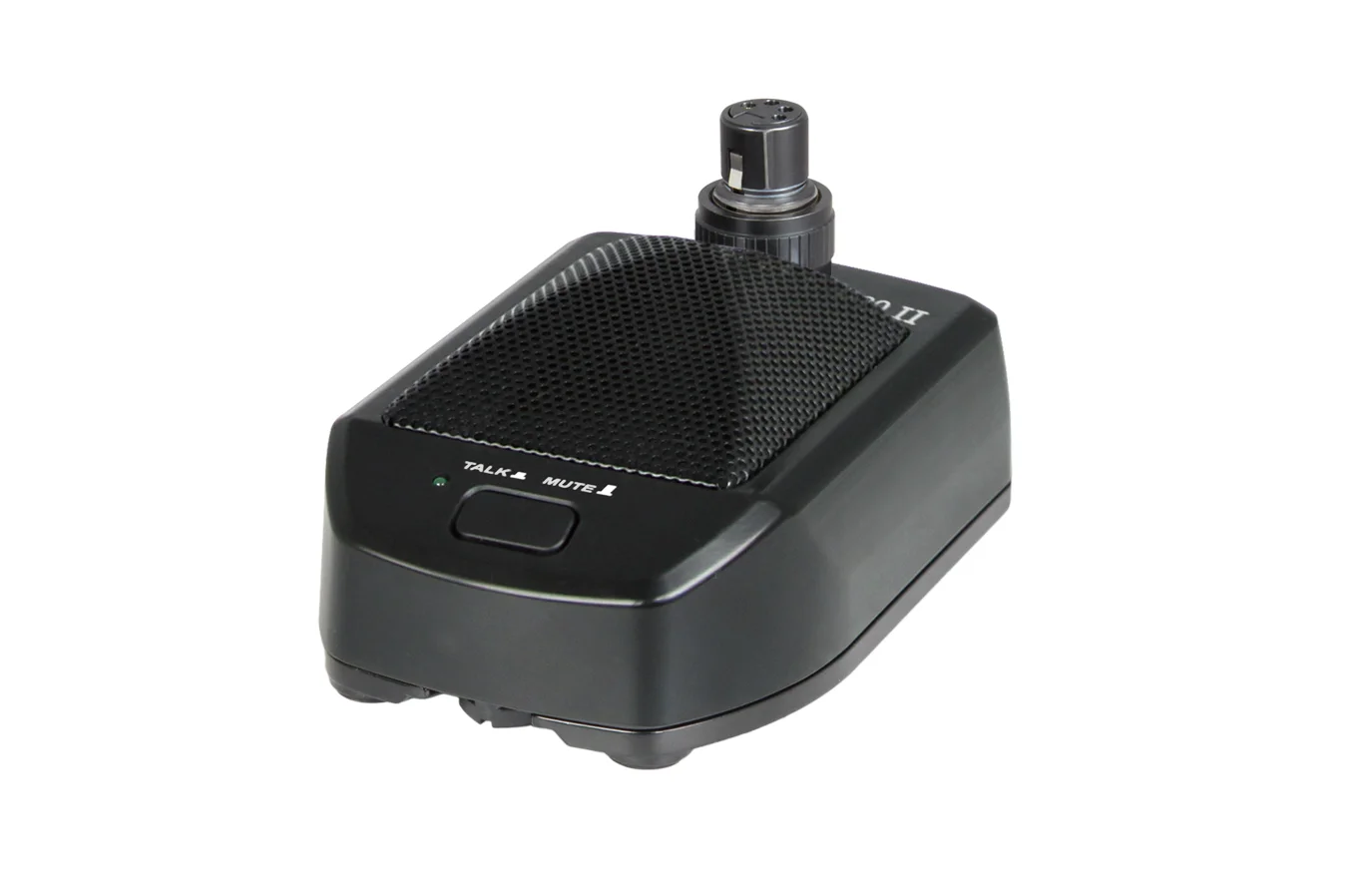

BC-100 II

Boundary Microphone Base

PRODUCT INQUIRY

FEATURES & SPECIFICATION

RELATED PRODUCTS & ACCESSORIES

PRODUCT SUPPORT

4_Pin_XLR

4-Pin XLR

LED

LED

bc-100-II_1
bc-100-II_1

  • FEATURES & SPECIFICATION

  • RELATED PRODUCTS & ACCESSORIES

  • PRODUCT SUPPORT

    •

    FEATURES

    • Built-in 10 mm cardioid condenser capsule enables direct use as a boundary microphone, ideal for conferences and presentations.
    • Compatible with MM Series 4-Pin gooseneck microphones, offering both wired and wireless transmission modes.
    • In wired mode, the base output connects to a mixer with phantom power for stable, high-quality audio output.
    • In wireless mode, the ACT-TC Series bodypack transmitter can be installed to convert into a wireless conference microphone, with direct charging on the base—no need to remove the transmitter.
    • TALK / MUTE buttons allow synchronized control of LED indicators on both the base and the gooseneck microphone for efficient speech management.
    • Metal base with anti-slip pads ensures stability and prevents wobbling during use.

    SPECIFICATION

    Model

    BC-100 II

    Name

    Boundary Microphone Base

    Boundary Microphone

    10 mm cardioid condenser microphone capsule module

    Input Jack

    MIPRO 4-Pin XLR, compatible with MM-206L / MM-205L / MM-204L gooseneck microphone (optional)

    Output Jack

    3-Pin XLR

    Control Interface

    TALK / MUTE button, Boundary / Gooseneck switch

    Wireless Function

    Supports ACT-TC series bodypack transmitters (optional)

    Power Supply

    DC 24 – 48 V phantom power (wired mode) ; one 18500 Li-ion battery (wireless mode)

    Charging Voltage

    DC 5 V / 1 A

    Dimensions

    100 × 78 × 150 mm (W × H × D)

    Weight

    Approx. 620 g

    RELATED PRODUCTS

  • All (3)

  • Conference Systems (3)

    • mm-204l_s

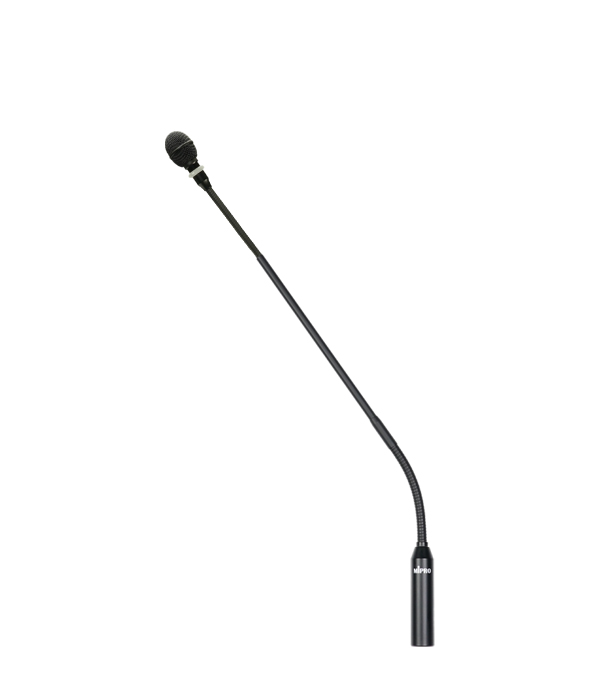

    MM-204L

    Gooseneck Microphone

    COMPARE

    mm-205l_s

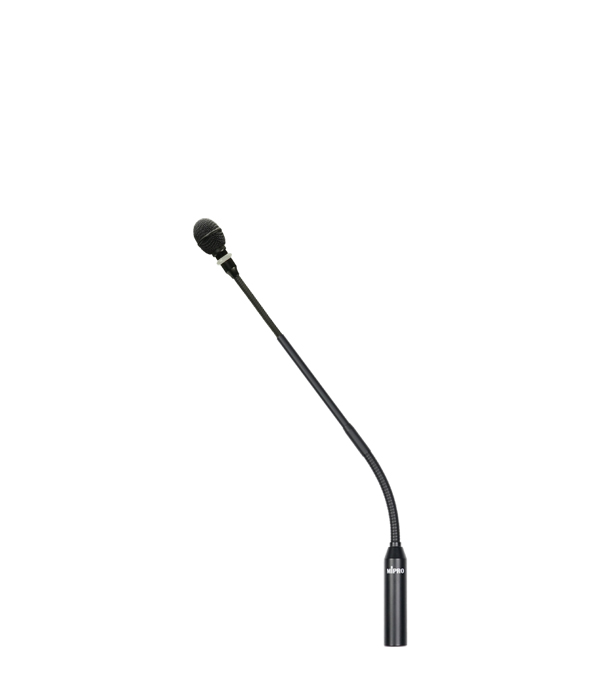

    MM-205L

    Gooseneck Microphone

    COMPARE

    mm-206l_s

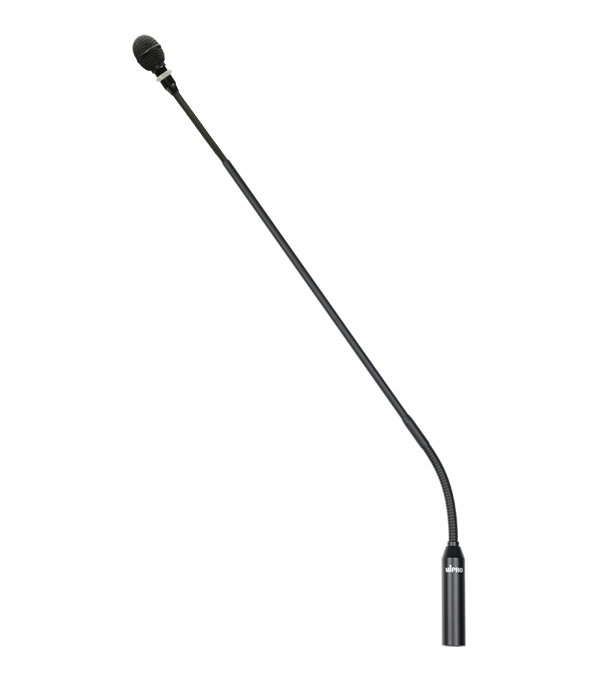

    MM-206L

    Gooseneck Microphone

    COMPARE

    RELATED VIDEOS

    Wireless_Conference_Microphones

    Wireless Conference Microphones

    DOWNLOADS

  • USER GUIDE

  • SPEC SHEET

    •
    TITLE
    FILES
    SIZE
    DOWNLOAD
    BC Series
    BC-100 II / BC-100T II / BC-100DT II / BC-24T II / BC-58T II Conference Microphone Bases (Ver.2023)
    7.77 MB
    BC-100 II
    Multi-Functional Boundary Microphone Base (Ver.2025)
    6.06 MB
    BC-100 II
    Boundary Microphone Base (Ver.2025)
    368.07 KB
