BC-100T II | UHF Gooseneck Microphone Transmitter Base | MIPRO

COMPARE

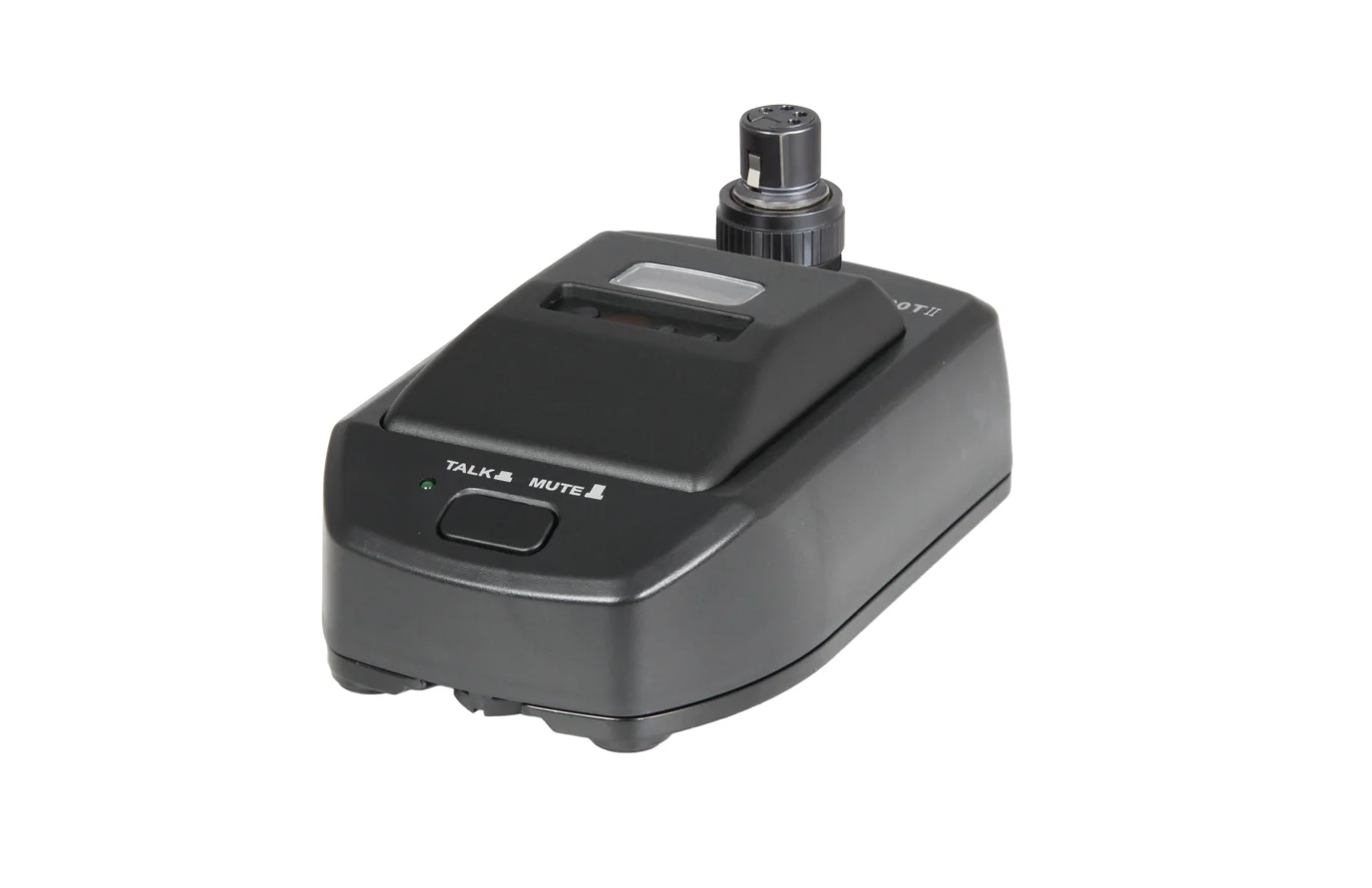

BC-100T II

UHF Gooseneck Microphone Transmitter Base

FEATURES & SPECIFICATION

RELATED PRODUCTS & ACCESSORIES

PRODUCT SUPPORT

Analog

UHF

24 MHz

Li-ion

4-Pin XLR

LED

  • FEATURES & SPECIFICATION

  • RELATED PRODUCTS & ACCESSORIES

  • PRODUCT SUPPORT

  • FEATURES

    • Compatible with MM Series 4-Pin gooseneck microphones, offering both wired and wireless transmission modes.
    • In wired mode, the XLR output connects to a mixer with phantom power for direct audio output.
    • Wireless mode features a built-in UHF narrowband transmitter module (24 MHz bandwidth) designed for use with ACT-300 / 500 Series receivers.
    • Equipped with a built-in 18500 lithium-ion battery, rechargeable via DC 5 V or replaceable with a spare battery.
    • AF gain adjustment range from -12 to +12 dB in 6 dB steps.
    • TALK / MUTE button with speech status indication synchronizes the LED indicators on both the base and the gooseneck microphone.
    • Metal base with anti-slip pads ensures stability and prevents wobbling during use.

    SPECIFICATION

    Model

    BC-100T II

    Name

    UHF Gooseneck Microphone Transmitter Base

    Frequency Range

    UHF 480 – 934 MHz

    Compatible Receivers

    ACT-300/500 Series

    Input Jack

    MIPRO 4-Pin XLR, compatible with MM-206L / MM-205L / MM-204L gooseneck microphone (optional)

    Output Jack

    3-Pin XLR

    Display

    Backlit LCD showing channel, battery level and menu

    Control Interface

    TALK / MUTE button, ACT sync sensor, setting buttons

    Audio Control

    AF Gain

    Gain Setting

    -12 to +12 dB, 6 dB steps

    RF Power Output

    10 mW / 50 mW switchable (country dependent)

    Power Supply

    DC 24 – 48 V phantom power (wired mode) ; one 18500 Li-ion battery (wireless mode)

    Charging Voltage

    DC 5 V / 1 A

    Dimensions

    100 × 78 × 150 mm (W × H × D)

    Weight

    Approx. 710 g

    RELATED PRODUCTS

  • All (10)

  • Wireless Systems (7)

  • Conference Systems (3)

  • ACT-515

    UHF Analog Single-Channel Receiver

    COMPARE

    ACT-525

    UHF Analog Dual-Channel Receiver

    COMPARE

    ACT-545

    UHF Analog Quad-Channel Receiver

    COMPARE

    ACT-311

    UHF Analog Single-Channel Receiver

    COMPARE

    ACT-312

    UHF Analog Dual-Channel Receiver

    COMPARE

    ACT-323

    UHF Analog Dual-Channel Receiver

    COMPARE

    ACT-343

    UHF Analog Quad-Channel Receiver

    COMPARE

    MM-204L

    Gooseneck Microphone

    COMPARE

    MM-205L

    Gooseneck Microphone

    COMPARE

    MM-206L

    Gooseneck Microphone

    COMPARE

    DOWNLOADS

  • USER GUIDE

  • SPEC SHEET

  • TITLE
    FILES
    SIZE
    DOWNLOAD
    BC Series
    BC-100 II / BC-100T II / BC-100DT II / BC-24T II / BC-58T II Conference Microphone Bases (Ver.2023)
    7.77 MB
    BC-T Series
    BC-100WT / BC-100T II / BC-100DT II UHF Gooseneck Microphone Transmitter Bases (Ver.2025)
    4.67 MB
    BC-100T II
    UHF Gooseneck Microphone Transmitter Base (Ver.2025)
    280.86 KB
