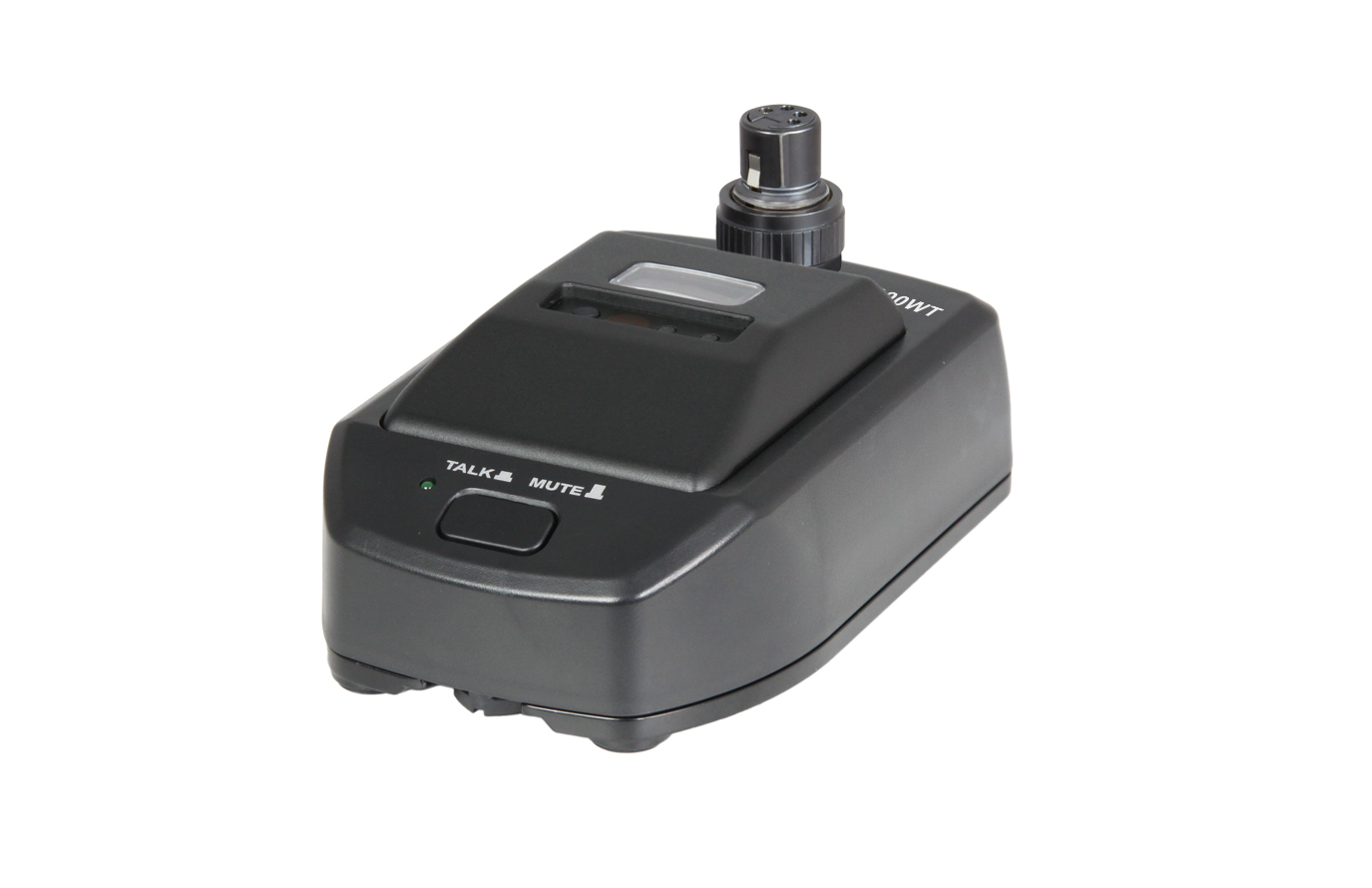

BC-100WT | UHF Gooseneck Microphone Transmitter Base | MIPRO

Products
Conference Systems
UHF BC-T Series
BC-100WT
bc-100wt_1
bc-100wt_1

COMPARE

BC-100WT

UHF Gooseneck Microphone Transmitter Base

PRODUCT INQUIRY

FEATURES & SPECIFICATION

RELATED PRODUCTS & ACCESSORIES

PRODUCT SUPPORT

analog

Analog

UHF、ISM

UHF

Bandwidth

72 MHz

Li-ion_Battery

Li-ion

4_Pin_XLR

4-Pin XLR

LED

LED

bc-100wt_1
bc-100wt_1

  • FEATURES & SPECIFICATION

  • RELATED PRODUCTS & ACCESSORIES

  • PRODUCT SUPPORT

    •

    FEATURES

    • Compatible with MM Series 4-Pin gooseneck microphones, offering both wired and wireless transmission modes.
    • In wired mode, the XLR output connects to a mixer with phantom power for direct audio output.
    • Wireless mode features a built-in UHF wideband transmitter module (72 MHz bandwidth) designed for use with ACT-700 Series receivers.
    • Equipped with a built-in 18500 lithium-ion battery, rechargeable via DC 5 V or replaceable with a spare battery.
    • AF gain adjustment range from -12 to +12 dB in 6 dB steps.
    • TALK / MUTE button with speech status indication synchronizes the LED indicators on both the base and the gooseneck microphone.
    • Metal base with anti-slip pads ensures stability and prevents wobbling during use.

    SPECIFICATION

    Model

    BC-100WT

    Name

    UHF Gooseneck Microphone Transmitter Base

    Frequency Range

    UHF 480 – 934 MHz

    Compatible Receivers

    ACT-700 Series

    Input Jack

    MIPRO 4-Pin XLR, compatible with MM-206L / MM-205L / MM-204L gooseneck microphone (optional)

    Output Jack

    3-Pin XLR

    Display

    Backlit LCD showing channel, battery level and menu

    Control Interface

    TALK / MUTE button, ACT sync sensor, setting buttons

    Audio Control

    AF Gain

    Gain Setting

    -12 to +12 dB, 6 dB steps

    RF Power Output

    10 mW / 50 mW switchable (country dependent)

    Power Supply

    DC 24 – 48 V phantom power (wired mode) ; one 18500 Li-ion battery (wireless mode)

    Charging Voltage

    DC 5 V / 1 A

    Dimensions

    100 × 78 × 150 mm (W × H × D)

    Weight

    Approx. 710 g
