MI-580R

5 GHz Digital Stereo Bodypack Receiver

OVERVIEW

PRODUCT INQUIRY

FEATURES & SPECIFICATION

RELATED PRODUCTS & ACCESSORIES

PRODUCT SUPPORT

Digital

Digital

UHF、ISM

ISM

Frequency_Range

5.8 GHz

VFD

LCD

ACT_Sync

ACT Sync

DSP

DSP

EQ

EQ

Level_Indicator

Level Indicator

3.5_mm

3.5 mm

USB-C

USB-C

Engineer_Mode

Engineer Mode

mi-580r_1
mi-580r_2
mi-580r_3
mi-580r_4
mi-580r_1
mi-580r_2
mi-580r_3
mi-580r_4

  • FEATURES & SPECIFICATION

  • RELATED PRODUCTS & ACCESSORIES

  • PRODUCT SUPPORT

    •

    FEATURES

    • Ultra-compact reinforced polymer housing for durability and portability.
    • Operates in the ISM 5 GHz band for superior interference resistance and stable, high-quality audio reception.
    • True diversity reception technology enhances signal reliability.
    • Supports STEREO and MIXED monitoring modes for flexible use.
    • 4-band EQ for tailored tonal adjustments.
    • Outstanding stereo separation (>100 dB) for immersive and detailed sound.
    • 3.5 mm stereo earphone jack compatible with MIPRO professional monitoring earphones and most commercial models.

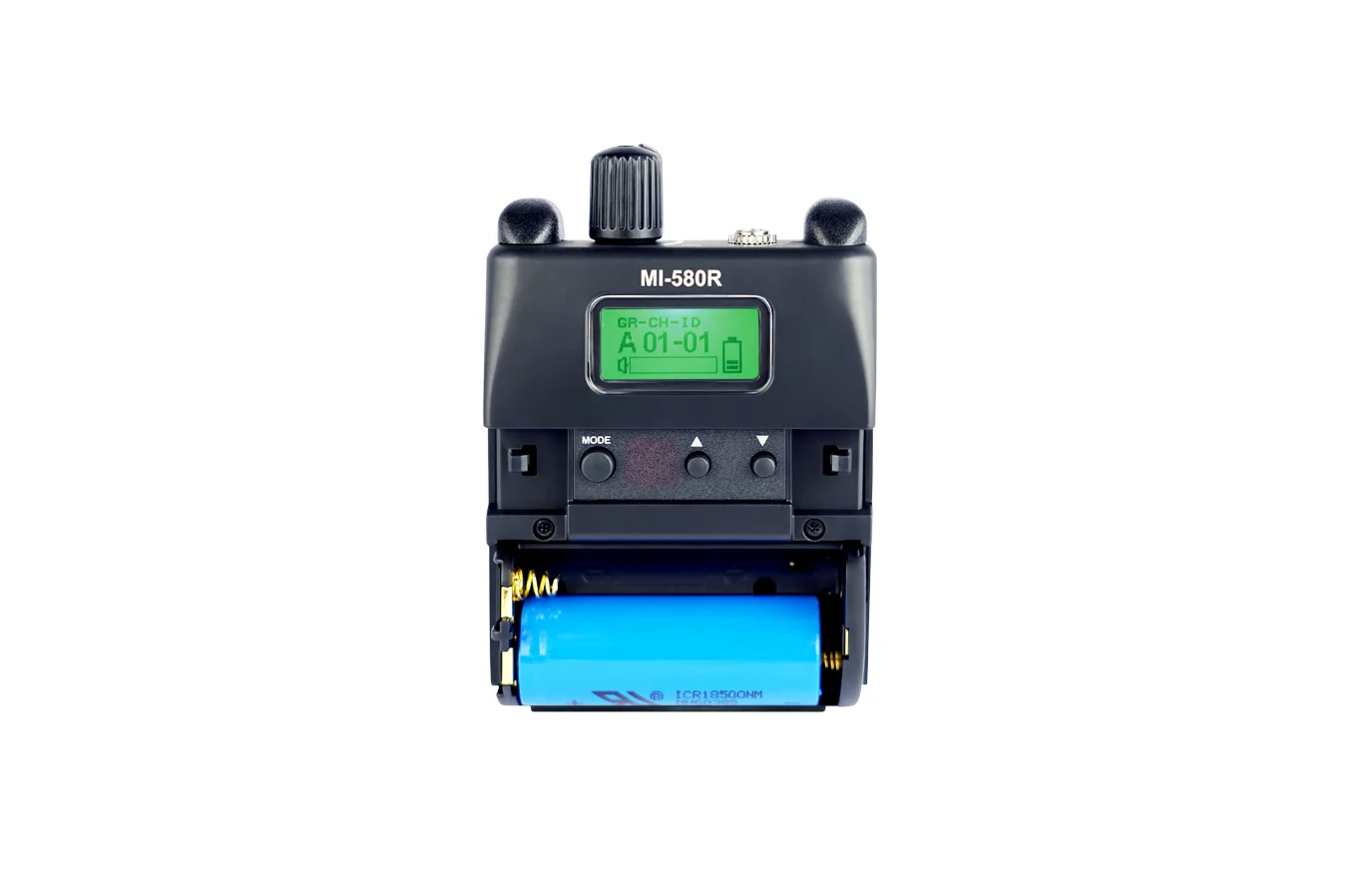

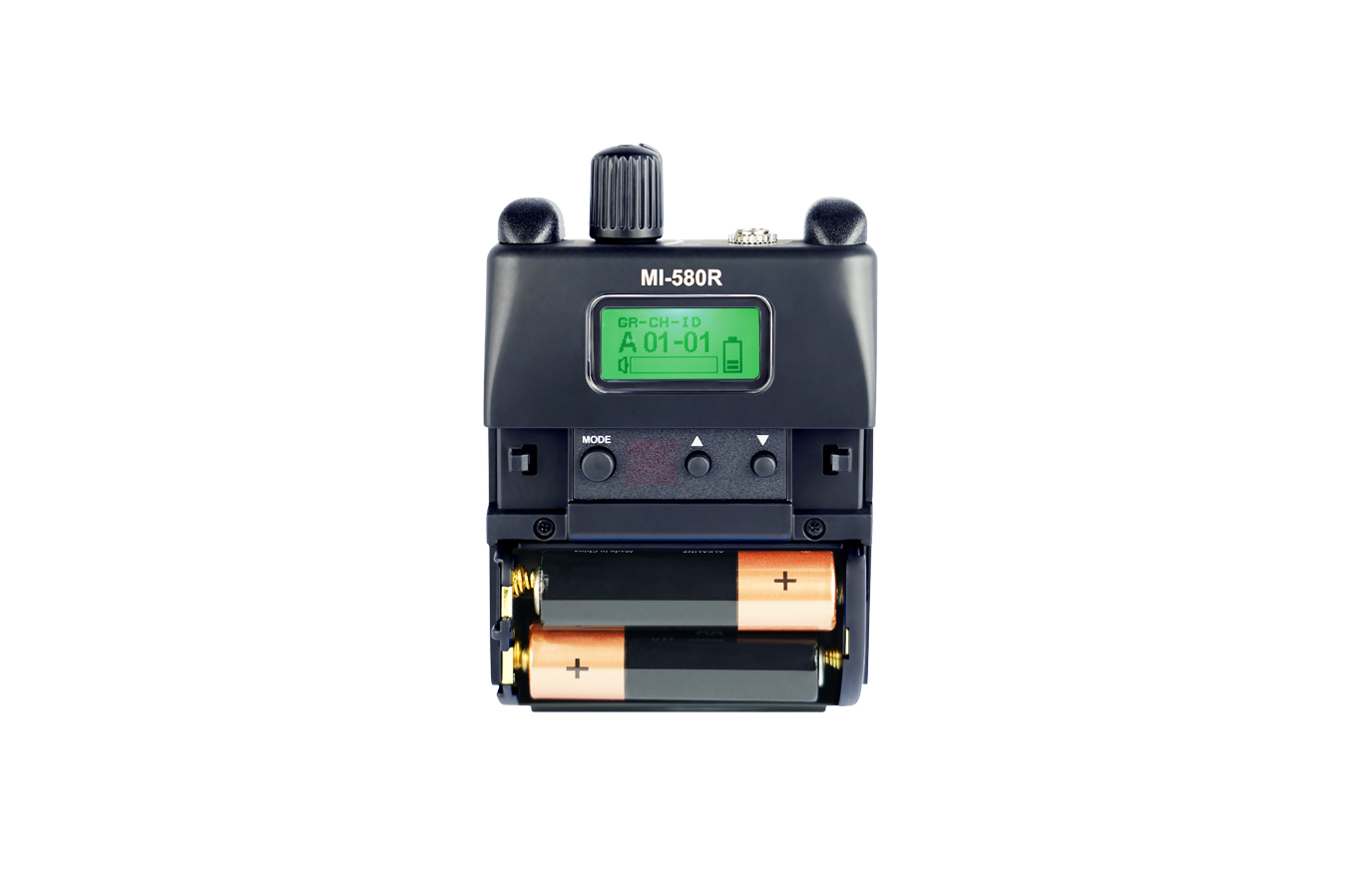

    • Patented battery compartment accommodates AA or Li-ion batteries, with USB Type-C charging, safety protection, and no need for a dedicated charging dock.

    SPECIFICATION

    Model

    MI-580R

    Name

    5 GHz Digital Stereo Bodypack Receiver

    Housing

    Reinforced plastic

    Display

    Backlit graphic LCD

    Control Interface

    ACT sync sensor, setting buttons and volume control

    Frequency Range

    ISM 5.8 GHz

    Receiving Mode

    True diversity

    Audio Mode

    STEREO / MIXED

    L / R Balance Adjustment

    Allows shifting the stereo output toward the left or right channel.

    ENG Mode

    Yes, up to 16 sets (requires transmitter setup)

    EQ

    FLAT / LO-CUT / LO-BOT / HI-BOT

    Frequency Response

    20 Hz – 23 kHz (stereo)

    Dynamic Range

    ≥ 109 dBA (system)

    Stereo Separation

    > 100 dB

    THD

    < 0.1% @ 1 kHz

    Latency

    Approx. 1.8 ms (group B)

    Sensitivity

    5 μV (S/N > 100 dB)

    Output Power

    Left/Right × 100 mW @ 16 Ω

    Earphone Jack

    3.5 mm TRS

    Power Supply

    One 18500 Li-ion battery or two AA alkaline

    Battery Charging

    USB Type-C

    Operating Time

    > 8 hours

    Accessories

    E-9 / E-8S (optional)

    Dimensions

    63 × 95 × 25 mm (W × H × D)

    Weight

    Approx. 160 g

    ACCESSORIES

  • All (2)

  • Earphones & Headphones (1)

  • Rechargeable Batteries (1)

    •
    e-8s_s

    E-8S

    Standard In-Ear Stereo Earphones

    mb-5_s

    MB-5

    18500 Li-ion Battery

    RELATED VIDEOS

    MI-58_Series_Digital_Wireless_IEM_System

    MI-58 Series Digital Wireless IEM System
    MI-58_Series_Band_Practice

    MI-58 Digital Wireless IEM System with Band Practice
    MI-58_Series_Live_Performance

    MI-58 Digital Wireless IEM System with Live Performance
    MI-58_Series_Solo_Performance

    MI-58 Digital Wireless IEM System with Solo Performance

    DOWNLOADS

  • USER GUIDE

  • SPEC SHEET

    •
    TITLE
    FILES
    SIZE
    DOWNLOAD
    MI-580R
    Digital Stereo Bodypack Receiver (Ver.2023)
    2.83 MB
    MI-580R
    Digital Stereo Bodypack Receiver (Ver.2024)
    2.69 MB
    MI-580R
    5 GHz Digital Stereo Bodypack Receiver (Ver.2024)
    210.61 KB
