MT-24A | 2.4 GHz Digital Interlinking Transmitter | MIPRO

Products
Interlinking Transmitters
ISM Series
MT-24A
mt-24a_1
mt-24a_1

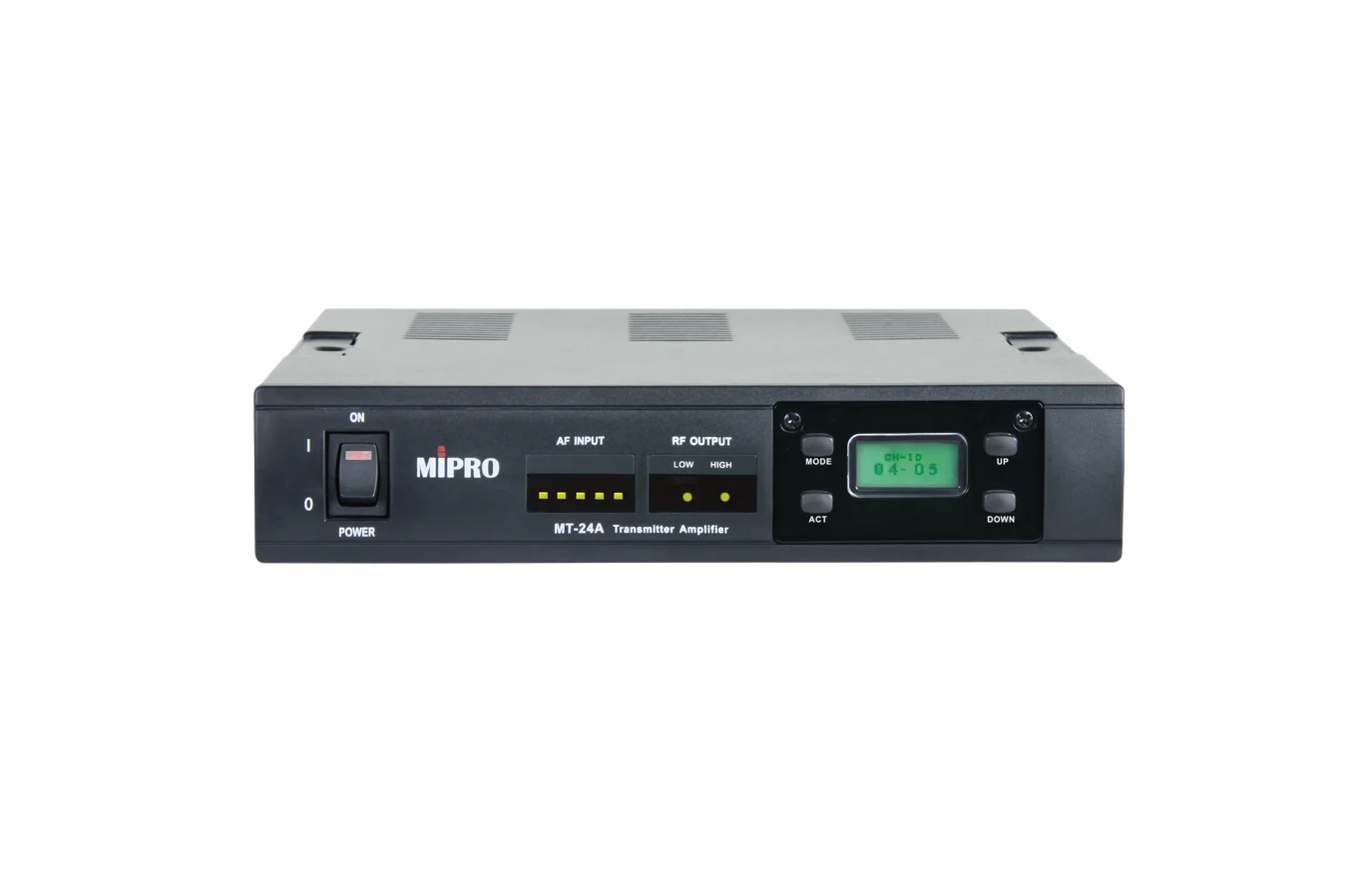

MT-24A

2.4 GHz Digital Interlinking Transmitter

PRODUCT INQUIRY

FEATURES & SPECIFICATION

RELATED PRODUCTS & ACCESSORIES

PRODUCT SUPPORT

Digital

Digital

UHF、ISM

ISM

Frequency_Range

2.4 GHz

VFD

LCD

mt-24a_1
mt-24a_1

  • FEATURES & SPECIFICATION

  • RELATED PRODUCTS & ACCESSORIES

  • PRODUCT SUPPORT

    •

    FEATURES

    • Converts audio into 2.4 GHz wireless signals for use with ACT-2400 Series, MRM-24, or ACT-24R receivers.
    • Provides 12 channels and 16 ID codes for flexible operation.
    • Selectable low power (<10 mW) and high power (<100 mW) modes meet different transmission distance requirements.
    • 48 V phantom power supports condenser microphones and other professional audio devices.
    • Supports both XLR and 6.3 mm combo audio inputs for versatile connectivity.
    • Ideal for multi-zone broadcasting, guided tours, audio extension, and other wireless transmission applications.

    SPECIFICATION

    Model

    MT-24A

    Name

    2.4 GHz Digital Interlinking Transmitter

    Chassis

    Half-rack (9.5") metal chassis

    Display

    AF input meters, High / Low RF power, channel number

    Control Interface

    Setting buttons, ACT sync button, phantom power on/off, RF power output switch

    Frequency Range

    ISM 2.4 GHz

    Channels

    Preset 12 channels and 16 ID codes

    Modulation Type

    Digital modulation

    RF Power Output

    LOW: < 100 mW, HIGH: < 500 mW (country dependent)

    Audio Control

    Gain, Sensitivity (MIC / LINE)

    Phantom Power

    +48V

    Audio Input

    XLR / 6.3 mm TRS combo socket

    Antenna

    50 Ω TNC female

    Power Supply

    DC 12–15 V. External AC 100–240 V switching power supply

    Dimensions

    210 × 44 × 203 mm (W × H × D)

    Weight

    Approx. 1.1 kg

    RELATED PRODUCTS

  • All (5)

  • Wireless Systems (4)

  • Tour Guide Systems (1)

    • act-2401_s

    ACT-2401

    2.4 GHz Digital Single-Channel Receiver

    COMPARE

    act-2402_s

    ACT-2402

    2.4 GHz Digital Dual-Channel Receiver

    COMPARE

    act-2412a_s

    ACT-2412A

    2.4 GHz Digital Dual-Channel Receiver

    COMPARE

    act-2414a_s

    ACT-2414A

    2.4 GHz Digital Quad-Channel Receiver

    COMPARE

    act-24r_s

    ACT-24R

    2.4 GHz Digital Receiver

    ACCESSORIES

  • All (1)

  • Rack Mount Kits (1)

    •
    fb-71_s

    FB-71

    Rack Mount Kits

    DOWNLOADS

  • USER GUIDE

  • SPEC SHEET

    •
    TITLE
    FILES
    SIZE
    DOWNLOAD
    MT-24A
    2.4 GHz Digital Interlinking Transmitter (Ver.2021)
    3.17 MB
    MT-24A
    2.4 GHz Digital Interlinking Transmitter (Ver.2024)
    201.73 KB
