ACT-24R | 2.4 GHz Digital Receiver | MIPRO

Products
Tour Guide Systems
2.4G Series
ACT-24R
act-24r_1
act-24r_1

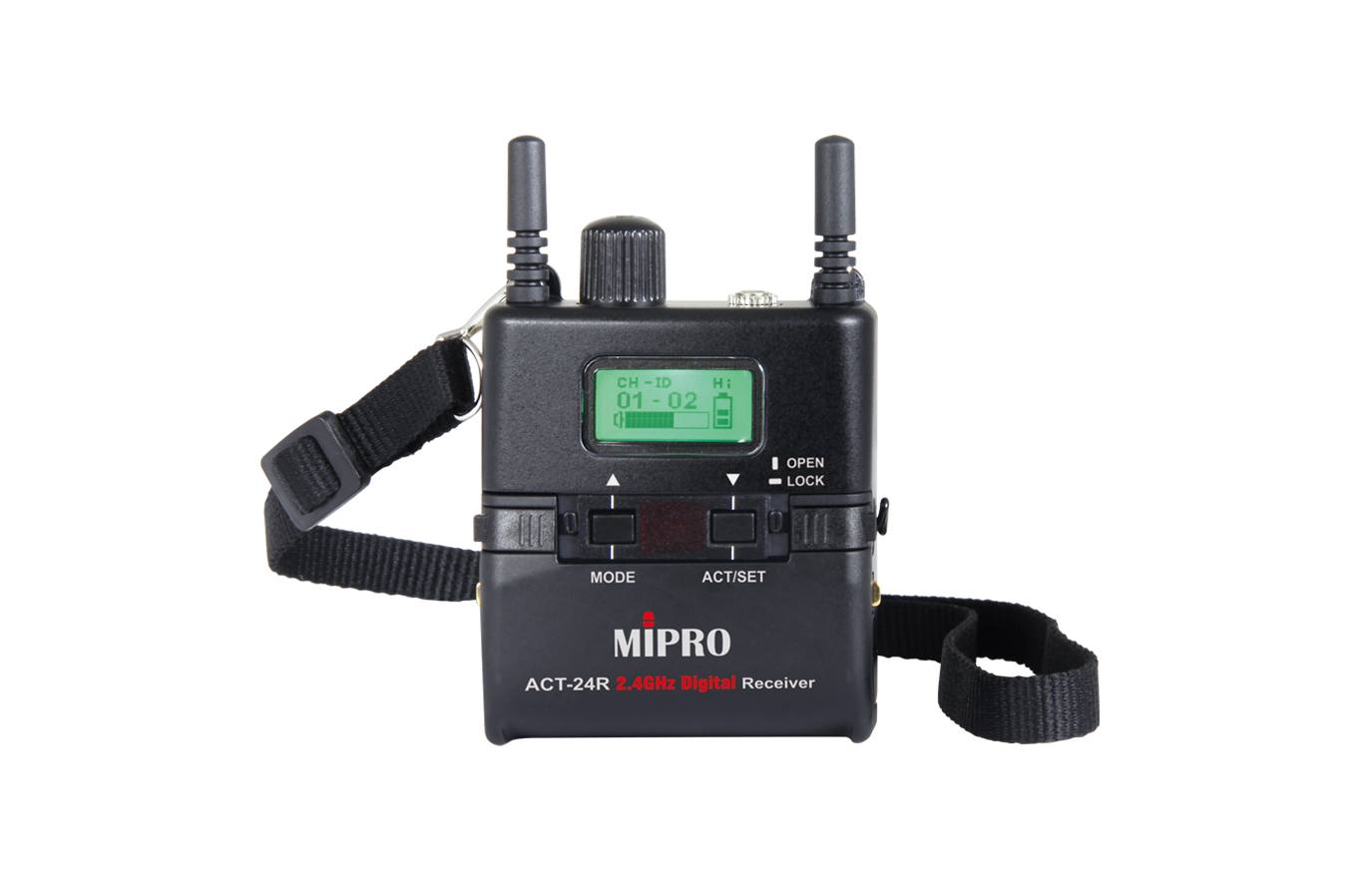

ACT-24R

2.4 GHz Digital Receiver

PRODUCT INQUIRY

FEATURES & SPECIFICATION

PRODUCT SUPPORT

Digital

Digital

rx-mode

True Diversity

UHF、ISM

ISM

Frequency_Range

2.4 GHz

VFD

LCD

ACT_Sync

ACT Sync

3.5_mm

3.5 mm

Li-ion_Battery

Li-ion

act-24r_1
act-24r_1

  • FEATURES & SPECIFICATION

  • PRODUCT SUPPORT

    •

    FEATURES

    • Employs digital wireless transmission technology to deliver stable and clear tour reception quality.
    • Preloaded with 12 channels for quick switching, ideal for one-to-many tour guide applications.
    • True diversity receiving design significantly enhances reception stability and anti-interference performance.
    • Equipped with 3.5 mm stereo headphone jack for natural, clear sound and comfortable listening.
    • Built-in 18500 lithium battery supports long operating hours and convenient charging via dedicated charging dock.
    • Backlit LCD screen with simple control interface for intuitive and quick setup.
    • Low transmission latency under 4 ms and a dynamic range up to 106 dBA ensure synchronized sound with rich detail.
    • Lightweight design with neck strap for easy carrying, ideal for tours, teaching, conferences, and similar applications.

    SPECIFICATION

    Model

    ACT-24R

    Name

    2.4 GHz Digital Receiver

    Frequency Range

    ISM 2.4 GHz

    Channels

    12 preset channels

    Receiving Mode

    True diversity

    Earphone Jack

    3.5 mm stereo

    Dynamic Range

    ≥ 106 dBA

    Latency

    < 4 ms

    Display

    Backlit LCD

    Control Interface

    MODE / SET buttons, volume control, ACT sync button

    Power Supply

    One 18500 Li-ion battery

    Optional Accessories

    Earphones, charging docks

    Dimensions

    63 × 85 × 26 mm (W × H × D)

    Weight

    Approx. 84 g

    DOWNLOADS

  • USER GUIDE

  • SPEC SHEET

    •
    TITLE
    FILES
    SIZE
    DOWNLOAD
    ACT-24R
    2.4 GHz Digital Receiver (Ver.2022)
    4.09 MB
    ACT-24R
    2.4 GHz Digital Receiver (Ver.2024)
    206.29 KB
