ACT-500H

UHF Analog Handheld Transmitter

FEATURES & SPECIFICATION

RELATED PRODUCTS & ACCESSORIES

PRODUCT SUPPORT

Analog

UHF

24 MHz

LCD

ACT Sync

AA

Li-ion

USB-C

  • FEATURES & SPECIFICATION

  • RELATED PRODUCTS & ACCESSORIES

  • PRODUCT SUPPORT

  • FEATURES

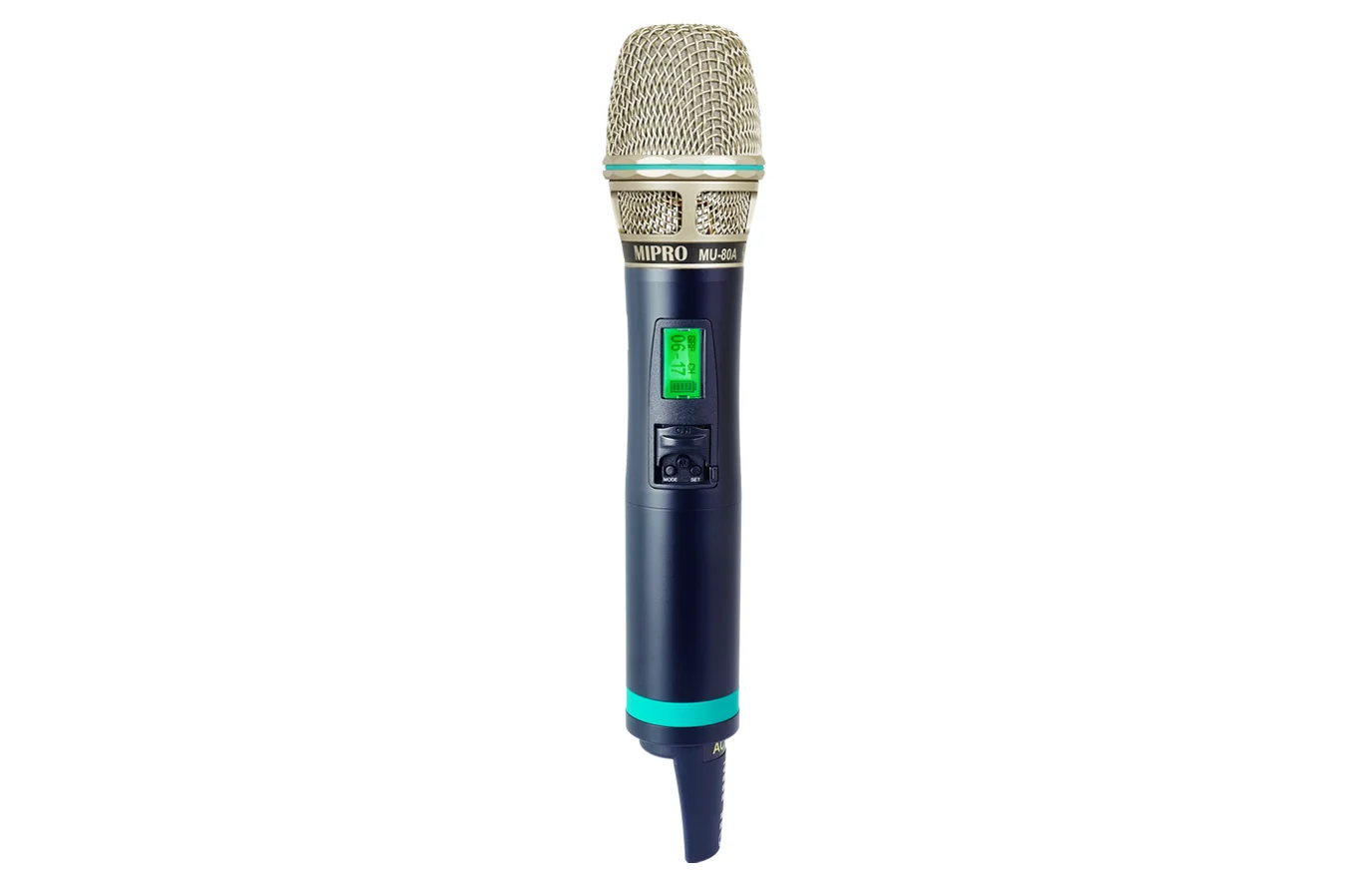

    • MIPRO’s analog narrowband handheld transmitter designed for use with ACT-500 Series receivers, delivering clear and stable audio performance.

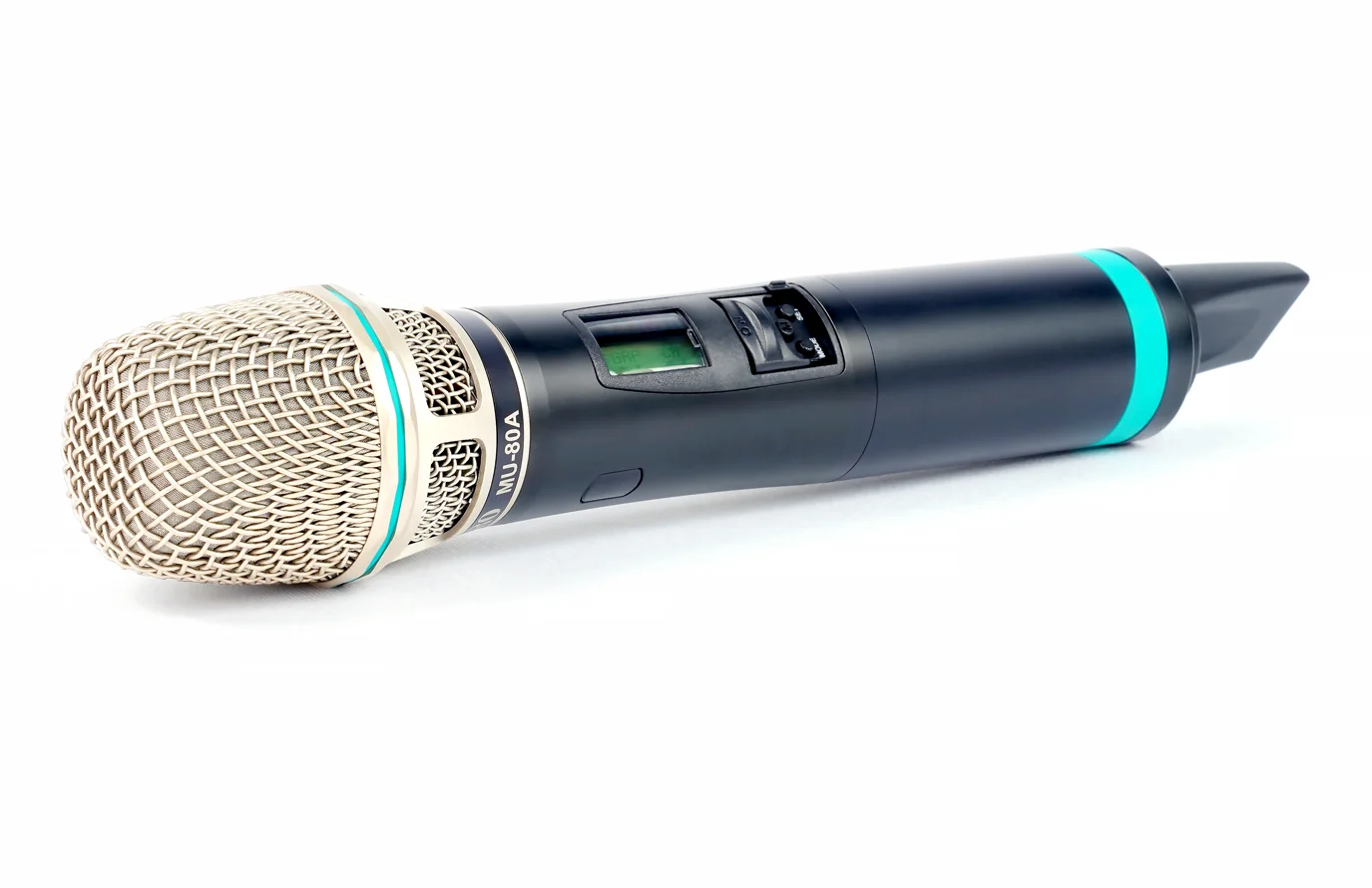

    • Ergonomic matte black metal housing offers a comfortable grip and ultra-low handling noise, with a professional and refined appearance.

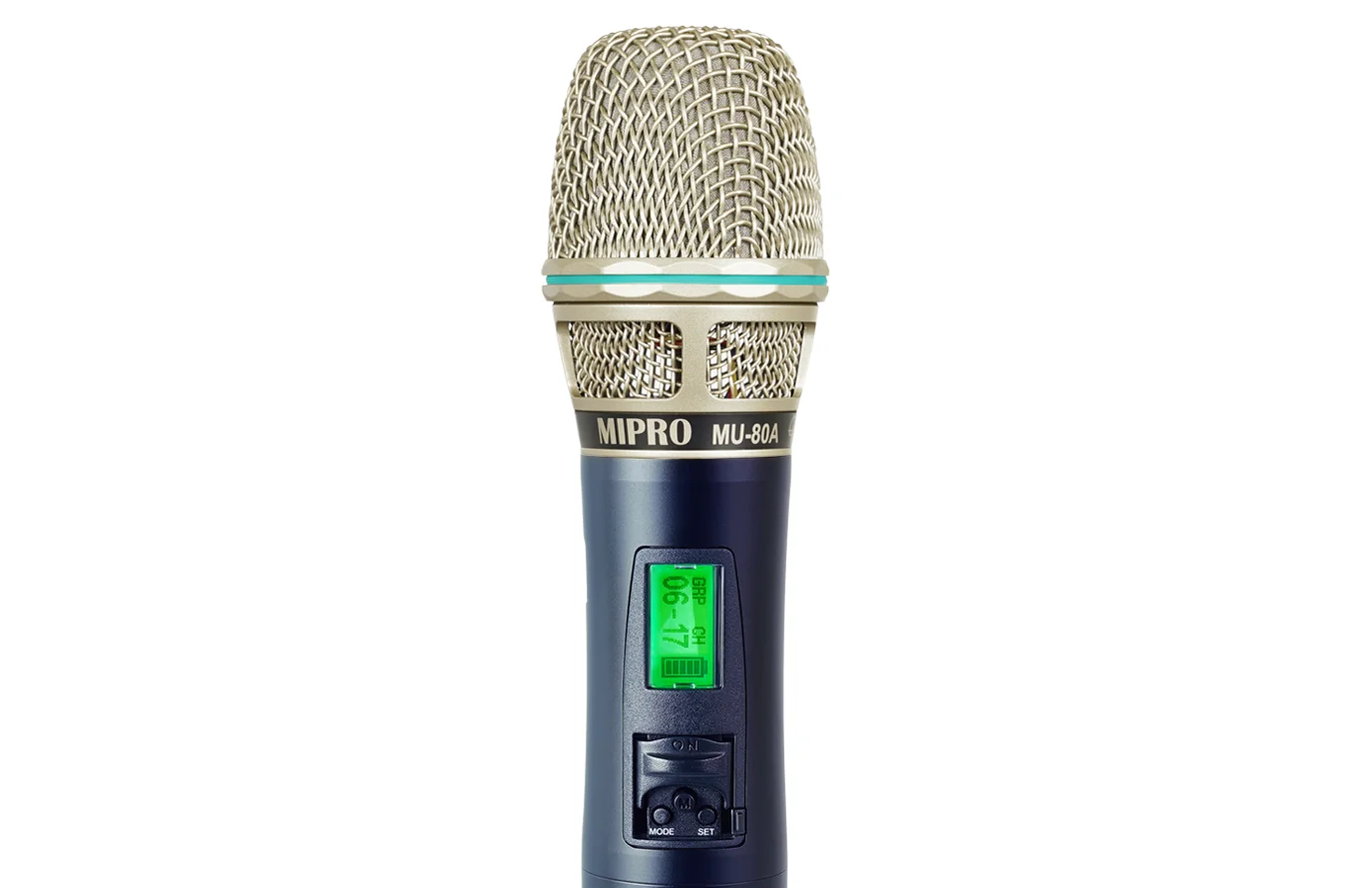

    • Patented multifunction control module integrates the power switch, mute, setting keys, LCD display, and locking slider to prevent accidental operation.
    • Equipped with a uniquely designed capsule module—removable upper grille for cleaning and threaded lower grille for impact and noise protection.
    • Standard with MU-80A supercardioid condenser capsule module; supports interchangeable MIPRO condenser or dynamic capsule modules and compatible ones from other brands.
    • Supports essential functions including mute mode, input sensitivity, and RF output power with intuitive and clear operation.
    • Five-stage gain adjustment enhances input level control for improved audio capture.
    • Incorporates MIPRO’s exclusive ACT™ function for fast and accurate frequency synchronization.

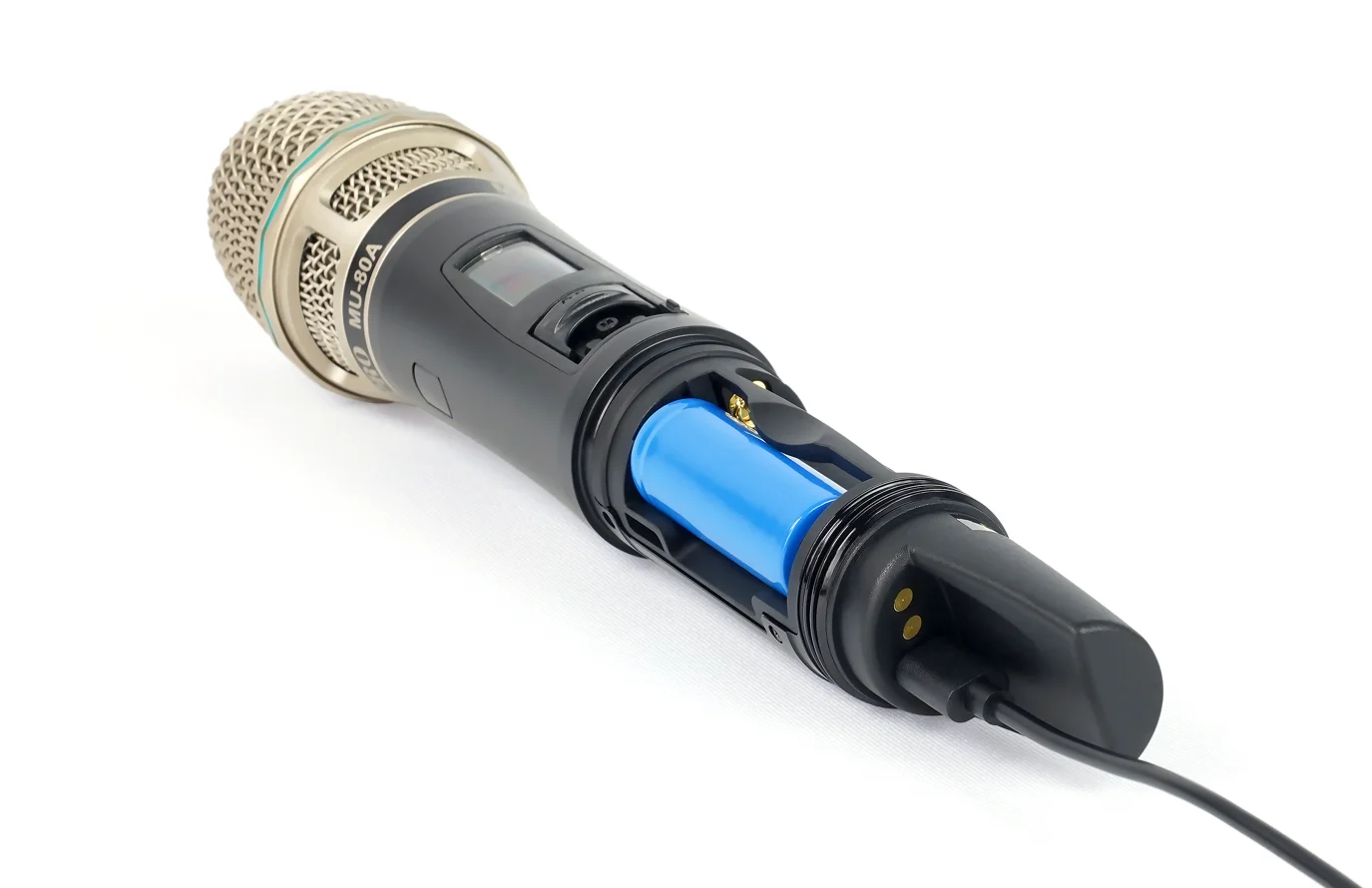

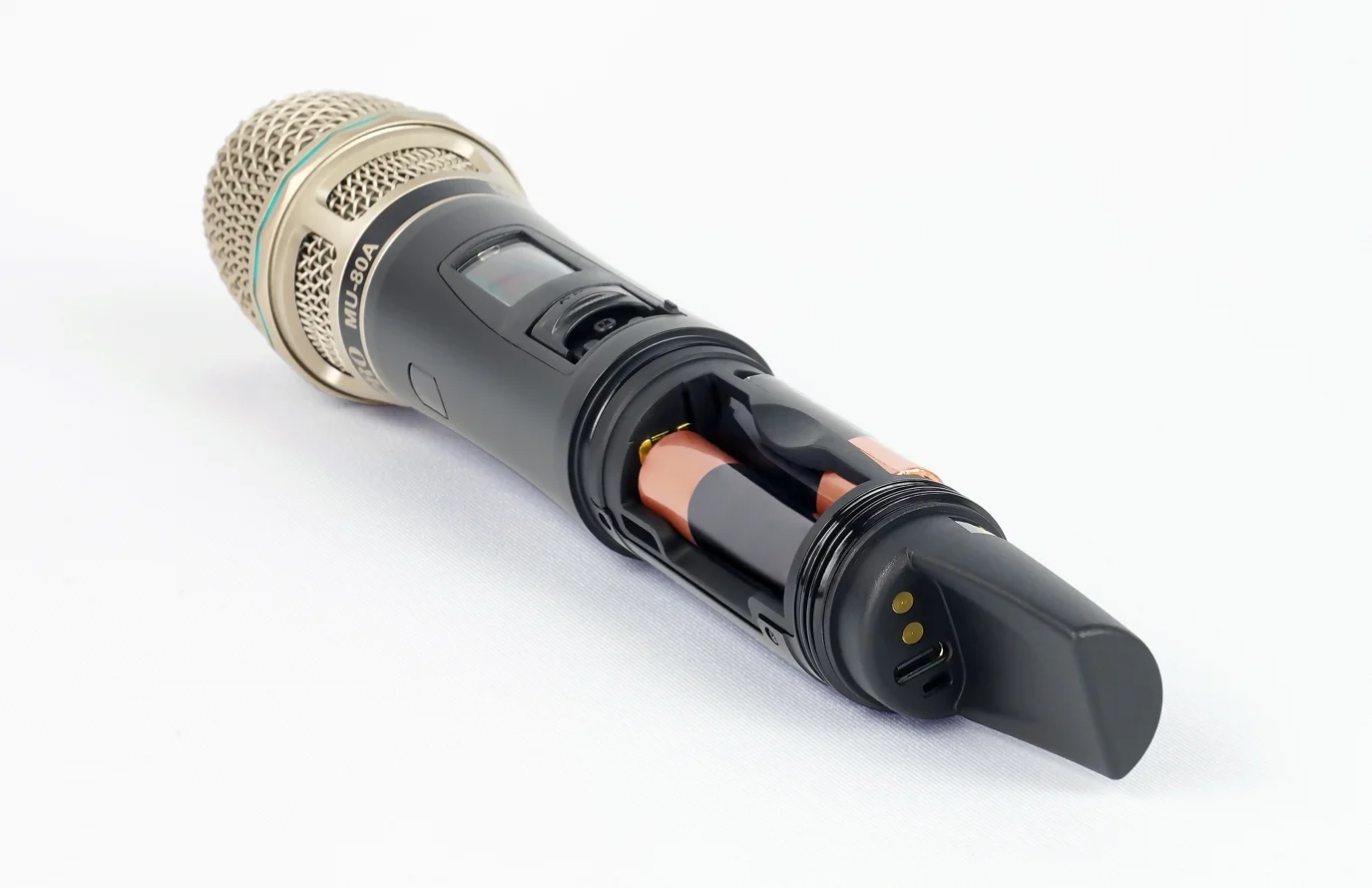

    • Patented dual-purpose battery compartment allows switching between AA and rechargeable Li-ion batteries for added flexibility.
    • Built-in USB Type-C charging port and contacts with foolproof protection support cable and cradle charging.

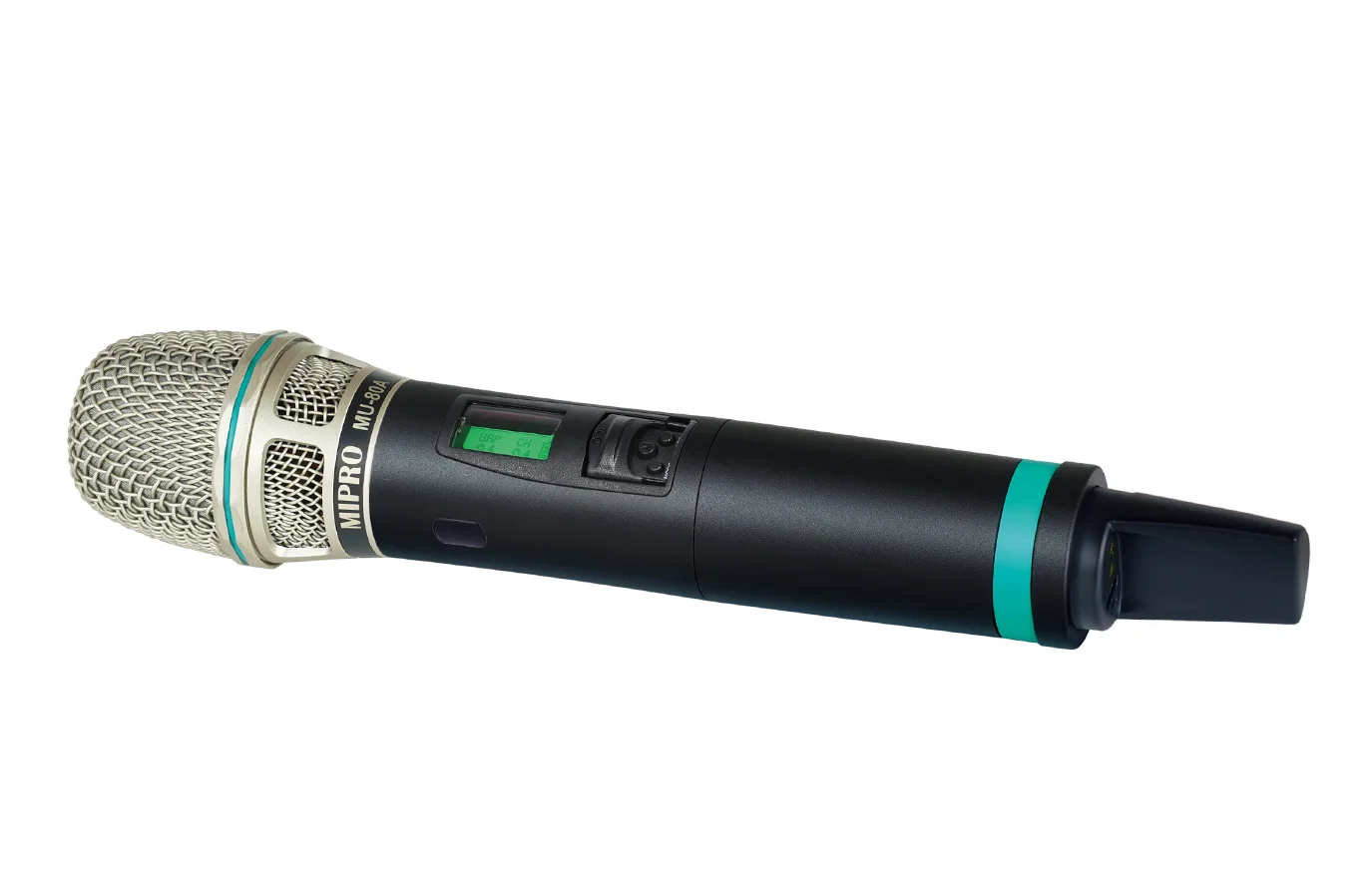

    • Lower housing features a replaceable color-coded ID ring for channel identification. A patented antenna cover houses a high-efficiency wideband transmitting antenna.

    SPECIFICATION

    Model

    ACT-500H

    Name

    UHF Analog Handheld Transmitter

    Frequency Range

    UHF 480–934 MHz (country dependent)

    Bandwidth

    24 MHz

    Display

    Backlit LCD displays channel, battery status and setting menu

    Control Interface

    ACT sync sensor, setting buttons and mute button

    Mic. Capsule Modules

    MU-80A condenser or other compatible capsule modules

    Audio Control

    AF Gain

    Gain Setting

    -6 dB to +6 dB / 3 dB per segment

    RF Power Output

    10 mW / 50 mW switchable (country dependent)

    Power Supply

    One 18500 Li-ion battery or two AA alkaline

    Battery Charging

    MP-800 / MP-820 charging dock or USB Type-C

    Dimensions

    51 × 272 mm (Ø × L)

    Weight

    Approx. 320 g
