ACT-800H

UHF Digital Wideband Handheld Transmitter

FEATURES & SPECIFICATION

RELATED PRODUCTS & ACCESSORIES

PRODUCT SUPPORT

Digital

UHF

72 MHz

LCD

ACT Sync

Encryption

AA

Li-ion

USB-C

  • FEATURES & SPECIFICATION

  • RELATED PRODUCTS & ACCESSORIES

  • PRODUCT SUPPORT

  • FEATURES

    • MIPRO’s premium digital handheld transmitter is designed for use with the ACT-800 Series receivers, ensuring seamless digital performance and compatibility.
    • Champagne gold ergonomic metal housing provides a comfortable grip, ultra-low handling noise, and a luxurious professional appearance.
    • Patented multifunction control module integrates the power switch, mute, setting keys, LCD display, and a locking slider to prevent accidental operation.
    • Equipped with a uniquely designed capsule module—removable upper grille for cleaning and threaded lower grille for protection against impact, rolling, and pop noise.
    • Standard with MU-90A supercardioid condenser capsule module; supports interchangeable MIPRO condenser or dynamic capsule modules and compatible ones from other brands.
    • Supports advanced settings including mute mode, input sensitivity, low-cut filter, audio limiter, and RF output power with a clear and readable display.
    • Three-stage gain adjustment improves audio pickup and ensures optimal input level across various vocal applications.
    • Incorporates MIPRO’s exclusive ACT™ function for fast and accurate frequency synchronization.

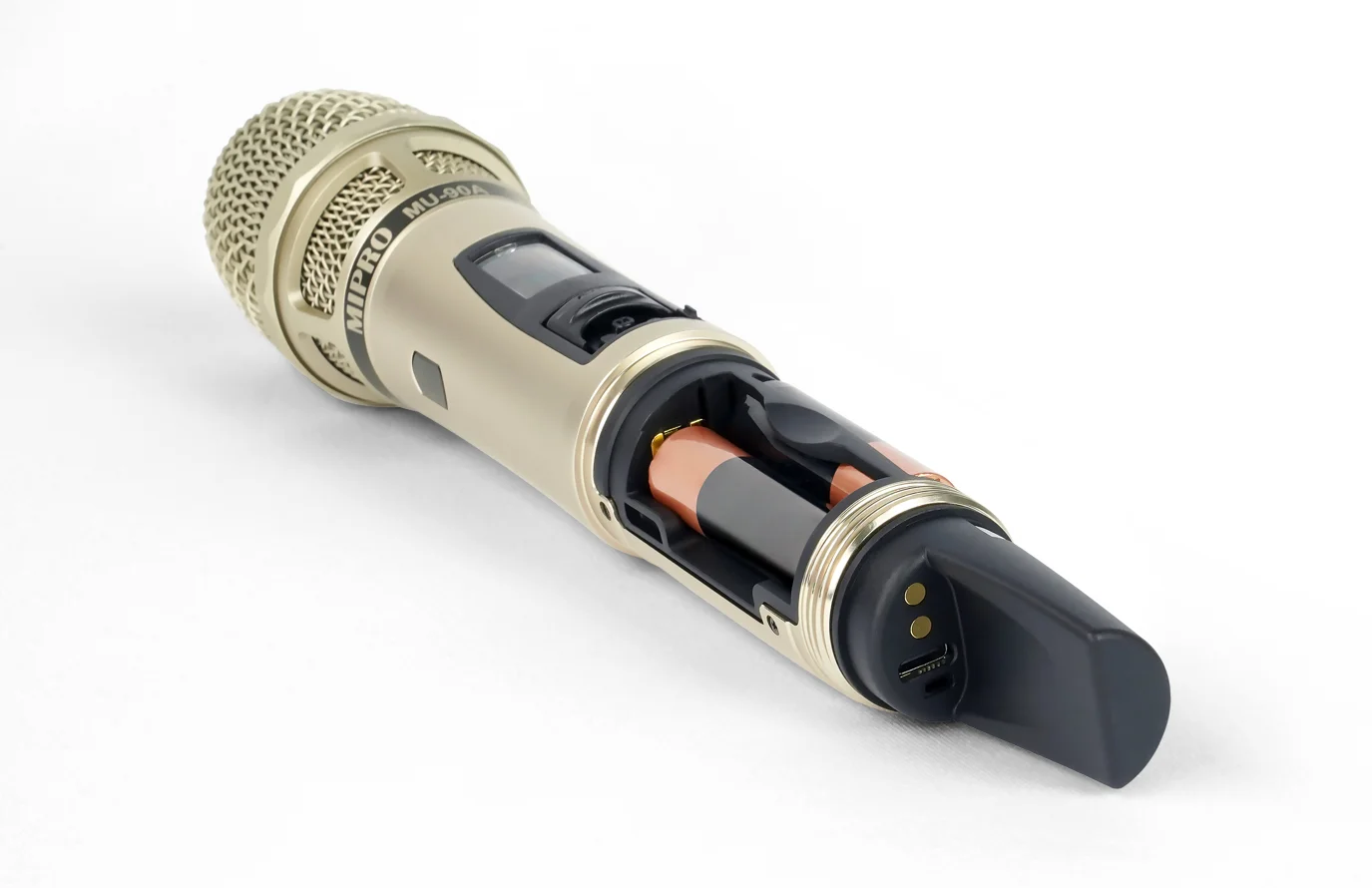

    • Patented dual-purpose battery compartment allows quick switching between AA and rechargeable Li-ion batteries.

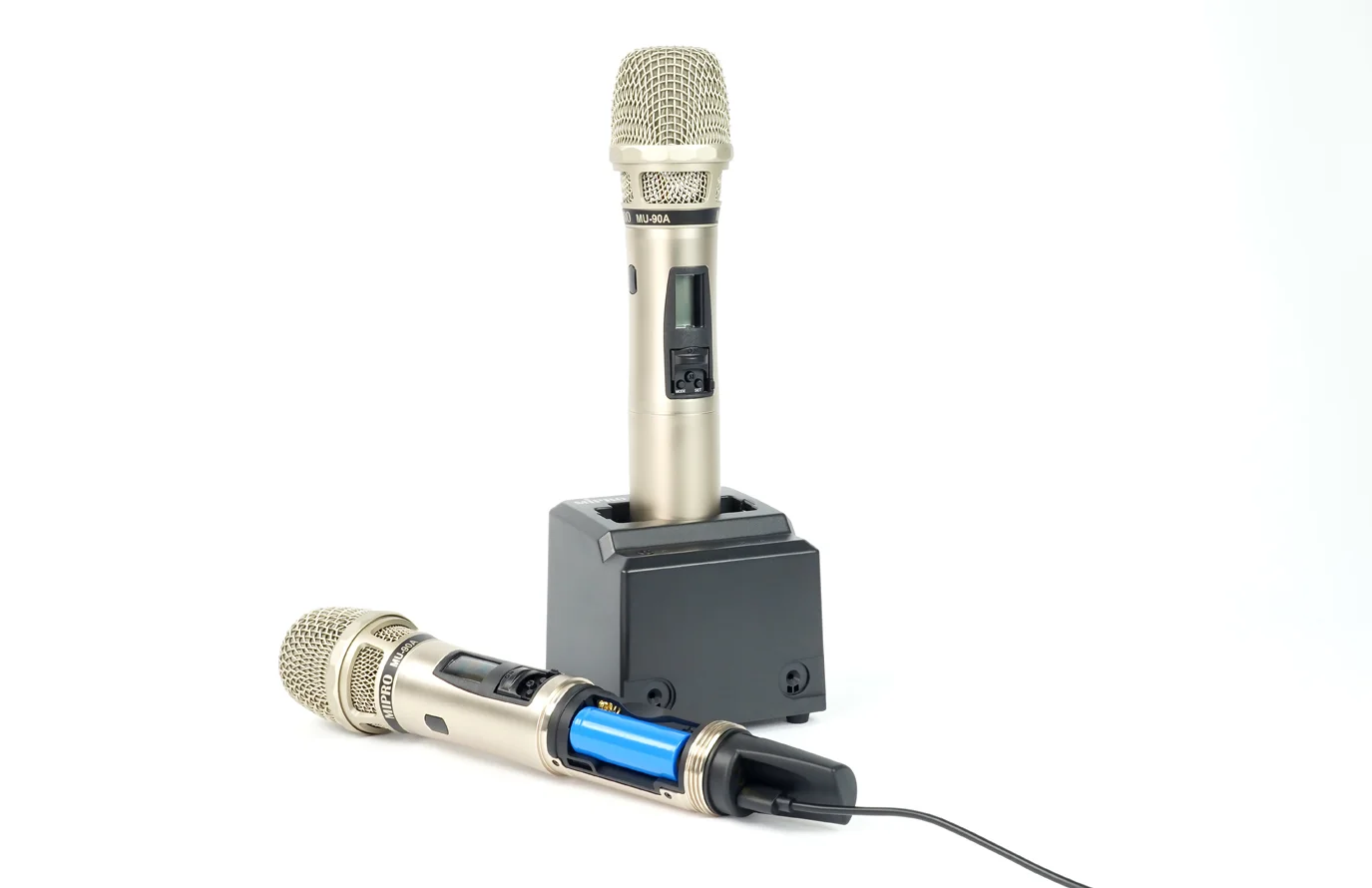

    • Built-in USB Type-C charging port and charging contacts with foolproof protection circuitry support cable and drop-in charging.
    • Lower housing features a replaceable color-coded ID ring for channel identification. A patented antenna cover houses a high-efficiency wideband transmitting antenna.

    SPECIFICATION

    Model

    ACT-800H

    Name

    UHF Digital Wideband Handheld Transmitter

    Frequency Range

    UHF 480–934 MHz (country dependent)

    Bandwidth

    72 MHz

    Display

    Backlit LCD displays channel, battery status, AF signal levels and setting menu

    Control Interface

    ACT sync sensor, setting buttons and mute button

    Encryption

    256-bit

    Mic. Capsule Modules

    MU-90A condenser or other compatible capsule modules

    Audio Control

    AF Gain, Low Cut, and AF Limiter

    Gain Setting

    0 dB to +6 dB / 3 dB per segment

    RF Power Output

    10 mW / 50 mW switchable (country dependent)

    Power Supply

    One 18500 Li-ion battery or two AA alkaline

    Battery Charging

    MP-800 / MP-820 charging dock or USB Type-C

    Dimensions

    51 × 272 mm (Ø × L)

    Weight

    Approx. 331 g
