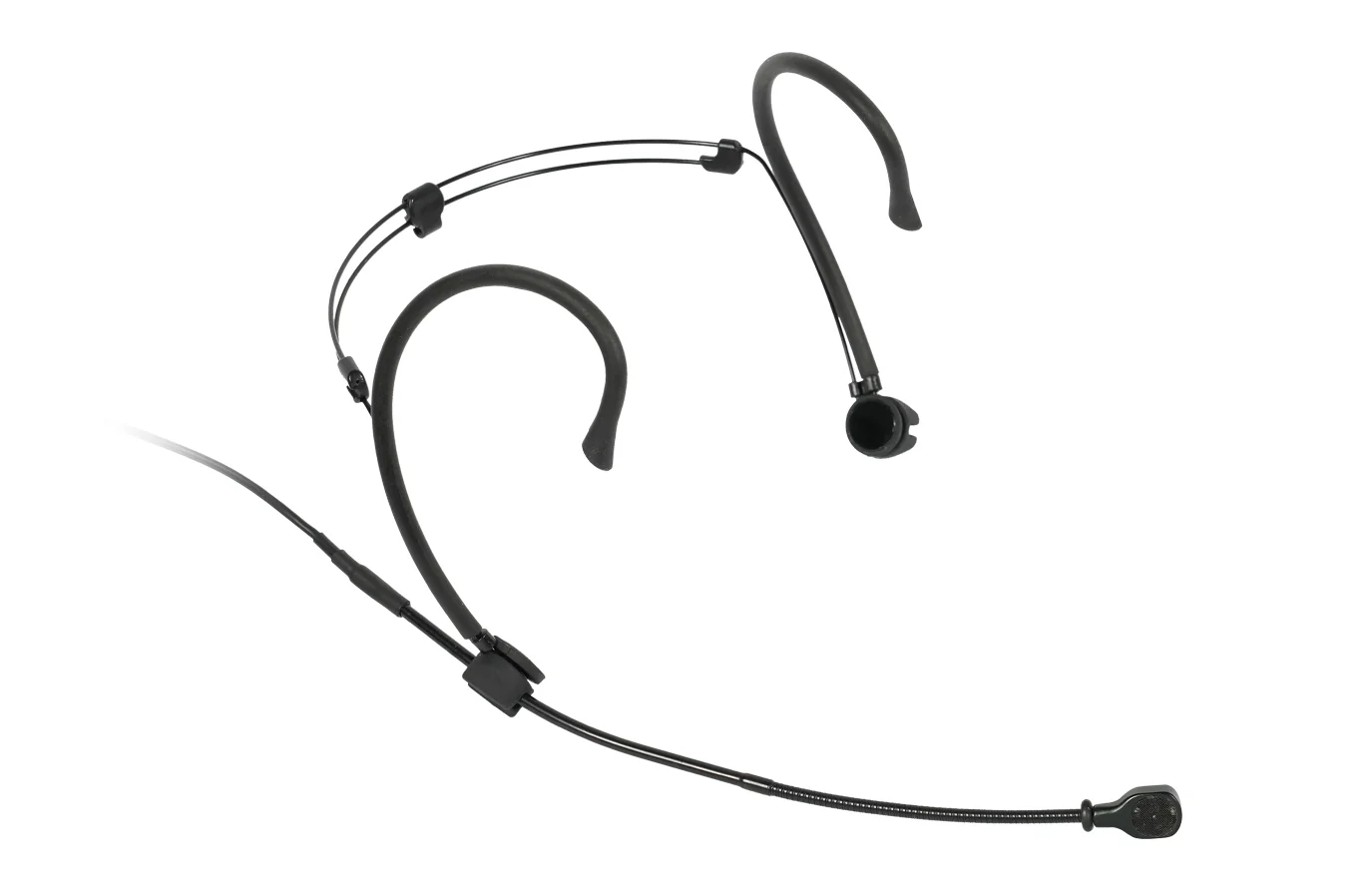

MU-506H | Unidirectional Headworn Microphone | MIPRO

Products
Accessories
Headworn Mics
MU-506H
mu-506h_1
mu-506h_1

MU-506H

Unidirectional Headworn Microphone

PRODUCT INQUIRY

FEATURES & SPECIFICATION

PRODUCT SUPPORT

Cardioid

Unidirectional

Condenser

Condenser

4_Pin_Mini_XLR

4-Pin Mini XLR

mu-506h_1
mu-506h_1

  • FEATURES & SPECIFICATION

  • PRODUCT SUPPORT

    •

    FEATURES

    • Cardioid polar pattern effectively suppresses ambient noise, delivering clear and focused sound.
    • Dual-earhook and adjustable frame design provide stable, comfortable fit for stage or active use.
    • Wide dynamic range and low distortion faithfully reproduce natural vocals.
    • Detachable capsule mounts on either side and allows full adjustment of length, direction, and angle.
    • Sweat-repelling ring and replaceable foam windscreen protect the capsule and extend service life.

    SPECIFICATION

    Model

    MU-506H

    Name

    Unidirectional Headworn Microphone

    Type

    Condenser

    Polar Pattern

    Cardioid

    Capsule Size

    6 mm

    Sensitivity

    -49 dBV/Pa

    Frequency Response

    50 Hz – 18 kHz

    Max SPL

    135 dB

    Connector

    MIPRO 4-Pin Mini XLR

    Cable Length

    150 cm

    Color

    Black

    Weight

    Approx. 24 g (frame included)

    DOWNLOADS

  • USER GUIDE

  • SPEC SHEET

    •
    TITLE
    FILES
    SIZE
    DOWNLOAD
    Headworn Microphones
    MU-506H / MU-506HS Headworn Microphone (Ver.2023)
    1.39 MB
    MU-506H
    Unidirectional Headworn Microphone (Ver.2024)
    203.11 KB
