ACT-58H | 5 GHz Digital Handheld Transmitter | MIPRO

ACT-58H

5 GHz Digital Handheld Transmitter

FEATURES & SPECIFICATION

PRODUCT SUPPORT

Digital

ISM

5.8 GHz

LED

ACT Sync

AA

  • FEATURES & SPECIFICATION

  • PRODUCT SUPPORT

  • FEATURES

    • Handheld transmitter for MIPRO’s 5 GHz digital series receivers and wireless PA systems, ideal for compact performances and meetings.
    • Sleek and ergonomic design provides a comfortable grip and professional look.
    • High-rigidity multi-layer all-metal grille with removable upper grille and internally threaded lower grille for durability, pop protection, and clear sound.
    • Standard with MU-80 cardioid condenser capsule module; supports interchangeable MIPRO condenser or dynamic capsule modules.

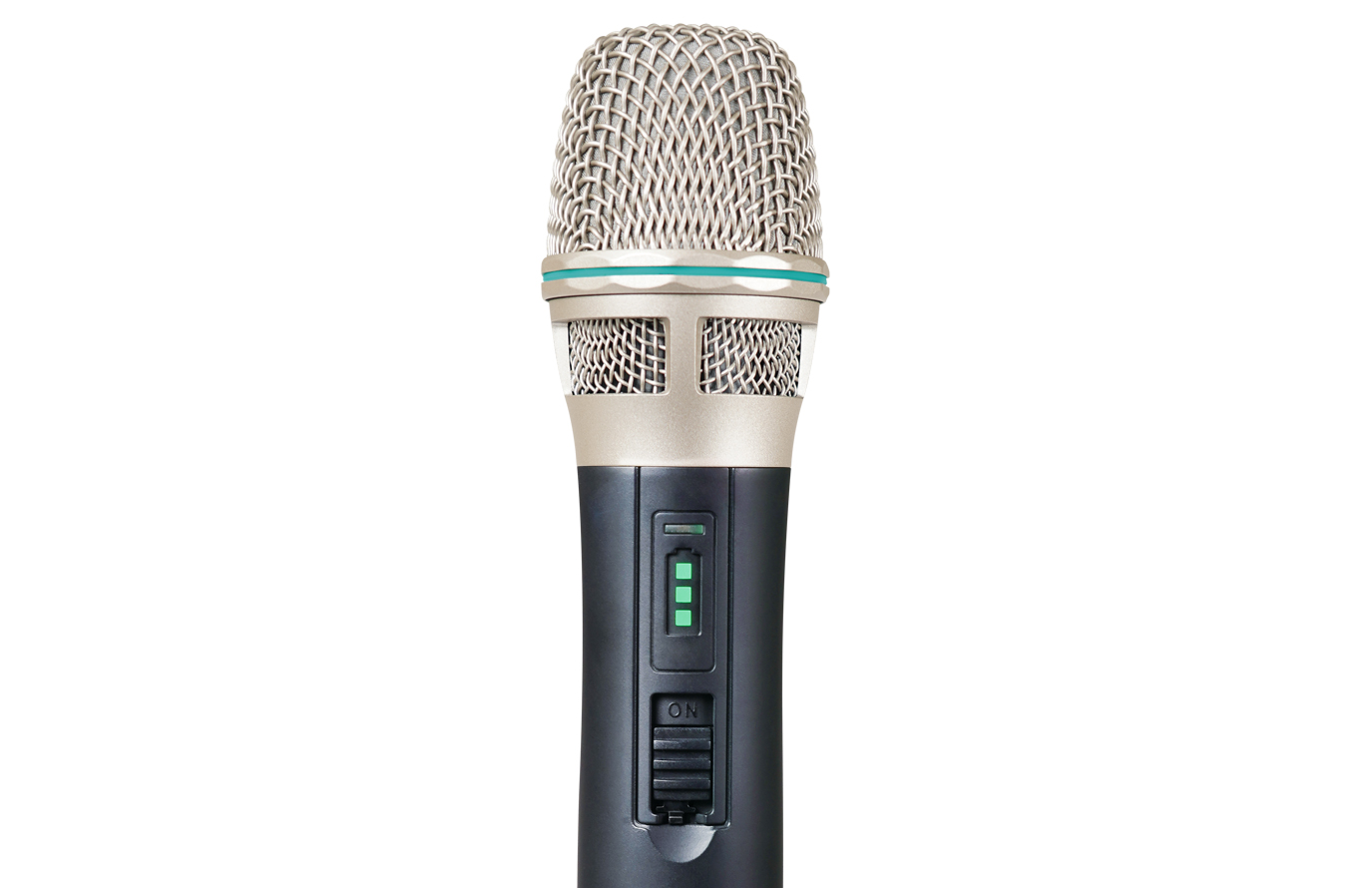

    • Upper housing includes an LED indicator showing battery status and wake-up function for clear status monitoring.
    • Incorporates MIPRO’s exclusive ACT™ function for quick and accurate frequency synchronization.
    • Supports unique “Auto Wake-Up” feature that instantly activates the transmitter from mute standby when moved. Requires ACT-5800 Series receiver activation.
    • Simplified battery compartment powered by AA batteries for convenient replacement.
    • Lower housing includes a replaceable color-coded ID ring and built-in high-efficiency antenna for a clean, functional design.

    SPECIFICATION

    Model

    ACT-58H

    Name

    5 GHz Digital Handheld Transmitter

    Frequency Range

    ISM 5.8 GHz

    Bandwidth

    125 MHz

    Display

    LED displays three-segment battery levels. A wake-up status indicator.

    Control Interface

    ACT sync sensor

    Mic. Capsule Modules

    MU-80 condenser or other compatible capsule modules

    RF Power Output

    20 mW (country dependent)

    Power Supply

    2 × AA alkaline

    Dimensions

    51 × 257 mm (Ø × L)

    Weight

    Approx. 240 g

    DOWNLOADS

  • DOC

  • USER GUIDE

  • TITLE
    FILES
    SIZE
    DOWNLOAD
    ACT-58H
    5 GHz Digital Handheld Transmitter
    394.47 KB
    Handheld Microphones
    ACT-52H / ACT-33H / ACT-32H / ACT-31H / ACT-24H / ACT-58H (Ver.2022)
    2.65 MB
    Handheld Microphones
    ACT-24H / ACT-58H / ACT-52H / ACT-33H / ACT-32H / ACT-32HR / ACT-31H (Ver.2019)
    2.83 MB
