AT-24

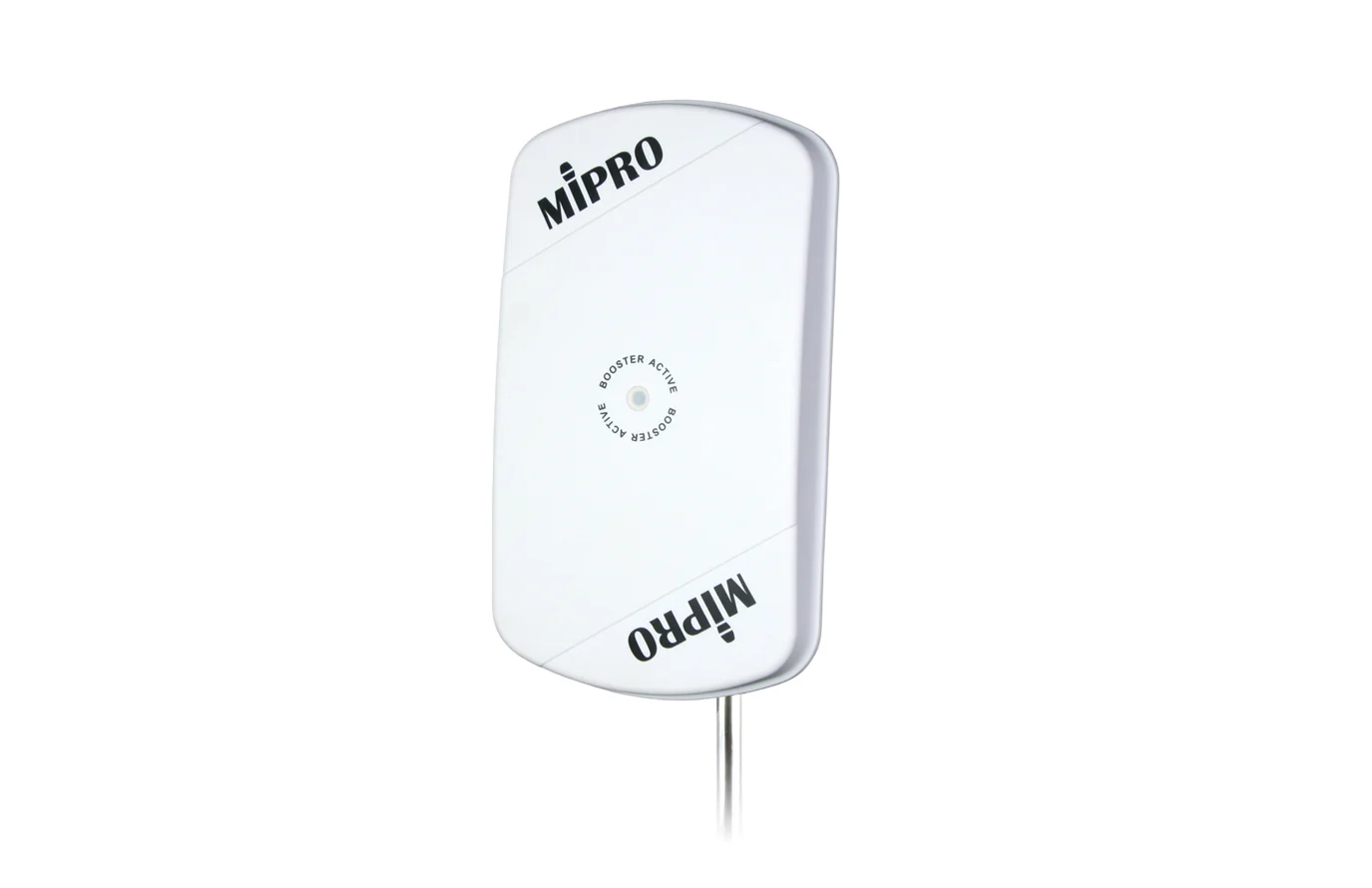

2.4 GHz Quasi-Circularly Polarized Directional Antenna

PRODUCT INQUIRY

DETAILS

The AT-24 is a 2.4 GHz directional antenna with 10 dBi gain and quasi-circular polarization, providing stable mid-to-long-range wireless transmission. Its built-in 12 dB booster enhances reception sensitivity for classrooms, conference spaces, and monitoring systems.

The AT-24 is a 2.4 GHz directional antenna with 10 dBi gain and quasi-circular polarization, providing stable mid-to-long-range wireless transmission. Its built-in 12 dB booster enhances reception sensitivity for classrooms, conference spaces, and monitoring systems.

FEATURES & SPECIFICATION

RELATED PRODUCTS & ACCESSORIES

PRODUCT SUPPORT

UHF、ISM

ISM

Frequency_Range

2.4 GHz

at-24_1
at-24_1

  • FEATURES & SPECIFICATION

  • RELATED PRODUCTS & ACCESSORIES

  • PRODUCT SUPPORT

    •

    FEATURES

    • Patented directional design with quasi-circular polarization and 10 dBi gain for stable mid-to-long distance 2.4 GHz transmission.
    • Excellent directivity and uniform radiation pattern reduce interference and signal loss, enhancing transmission efficiency.
    • Built-in 12 dB fixed-gain booster powered by receiver bias voltage to enhance signal reception sensitivity.
    • Compatible with the MPB-24 antenna booster for flexible deployment in various indoor and outdoor environments.

    SPECIFICATION

    Model

    AT-24

    Name

    2.4 GHz Quasi-Circularly Polarized Directional Antenna

    Frequency Range

    ISM 2.4 GHz

    Antenna Gain

    10 dBi

    Type

    Directional

    Booster

    Built-in 12 dB booster

    Connectors

    TNC × 1 (TX/RX)

    Power Supply

    DC 10 – 24 V

    Impedance

    50 Ω

    Dimensions

    271 × 90 × 156 mm (W × H × D)

    Weight

    Approx. 950 g

    RELATED PRODUCTS

  • All (1)

  • Antenna Systems (1)

    • mpb-24_s

    MPB-24

    2.4 GHz Antenna Booster

    ACCESSORIES

  • All (3)

  • Cables & Adapters (1)

  • Stands & Mounts (2)

    •
    fag-10_s

    FAG-10

    Antenna Cable

    ms-30_s

    MS-30

    Tripod Stand

    ms-90_s

    MS-90

    Antenna and Speaker Mounting Bracket

    DOWNLOADS

  • SPEC SHEET

  • USER GUIDE

    •
    TITLE
    FILES
    SIZE
    DOWNLOAD
    AT-24
    2.4 GHz Quasi-Circularly Polarized Directional Antenna (Ver.2024)
    203.08 KB
    External Antennas
    AT-24 / AT-58 (Ver.2022)
    4.23 MB
