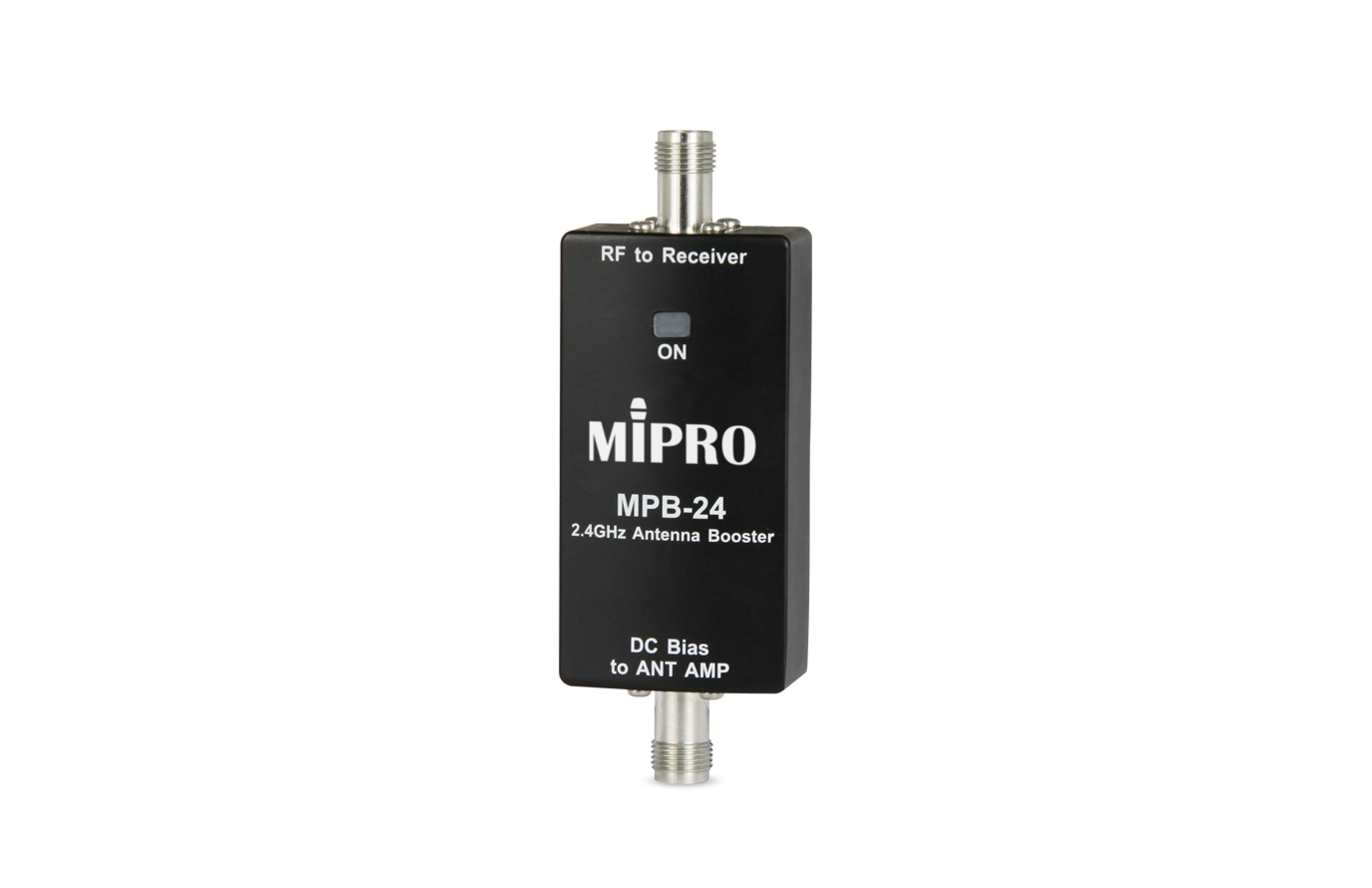

MPB-24

2.4 GHz Antenna Booster

PRODUCT INQUIRY

DETAILS

The MPB-24 is a 2.4 GHz antenna booster with fixed 12 dB gain, compensating cable loss and improving reception sensitivity for stable wireless transmission.

The MPB-24 is a 2.4 GHz antenna booster with fixed 12 dB gain, compensating cable loss and improving reception sensitivity for stable wireless transmission.

FEATURES & SPECIFICATION

RELATED PRODUCTS & ACCESSORIES

PRODUCT SUPPORT

UHF、ISM

ISM

Frequency_Range

2.4 GHz

mpb-24_1
mpb-24_1

  • FEATURES & SPECIFICATION

  • RELATED PRODUCTS & ACCESSORIES

  • PRODUCT SUPPORT

    •

    FEATURES

    • Designed for the 2.4 GHz frequency band, providing a fixed gain of approximately 20 dB to compensate for signal loss over long cables.
    • Powered via bias voltage from the receiver's antenna port and supports external antenna connections for flexible installation.
    • Durable aluminum housing offers excellent heat dissipation and water resistance, ensuring system stability and durability.

    SPECIFICATION

    Model

    MPB-24

    Name

    2.4 GHz Antenna Booster

    Frequency Range

    ISM 2.4 GHz

    Gain

    Approx. 20 dB (Fixed)

    Input Connector

    1 × TNC

    Output Connector

    1 × TNC

    System Impedance

    50 Ω

    Power Supply

    DC 12 – 24 V

    Power Output

    DC 12 – 24 V (equals to the bias)

    Dimensions

    41 × 80 × 24 mm (W × H × D)

    Weight

    Approx. 260 g

    RELATED PRODUCTS

  • All (1)

  • Antenna Systems (1)

    • at-24_s

    AT-24

    2.4 GHz Quasi-Circularly Polarized Directional Antenna

    COMPARE

    ACCESSORIES

  • All (3)

  • Cables & Adapters (3)

    •
    fag-10_s

    FAG-10

    Antenna Cable

    fau-10_s

    FAU-10

    Antenna Cable

    fau-20_s

    FAU-20

    Antenna Cable

    DOWNLOADS

  • USER GUIDE

  • SPEC SHEET

    •
    TITLE
    FILES
    SIZE
    DOWNLOAD
    Antenna Boosters
    MPB-24 / MPB-58 (Ver.2022)
    1.53 MB
    MPB-24
    2.4 GHz Antenna Booster (Ver.2024)
    195 KB
