AD-90S

UHF Wideband RF Power Splitter

PRODUCT INQUIRY

FEATURES & SPECIFICATION

PRODUCT SUPPORT

UHF、ISM

UHF

ad-90s_1
ad-90s_2
ad-90s_1
ad-90s_2

  • FEATURES & SPECIFICATION

  • PRODUCT SUPPORT

    •

    FEATURES

    • Covers UHF 470 – 960 MHz frequency range, providing stable transmission power distribution.
    • Works with MI-909T, MT-92A, and MTS-100 transmitters to split one output signal into up to four antennas.
    • High output power ensures reliable long-distance transmission after signal distribution.

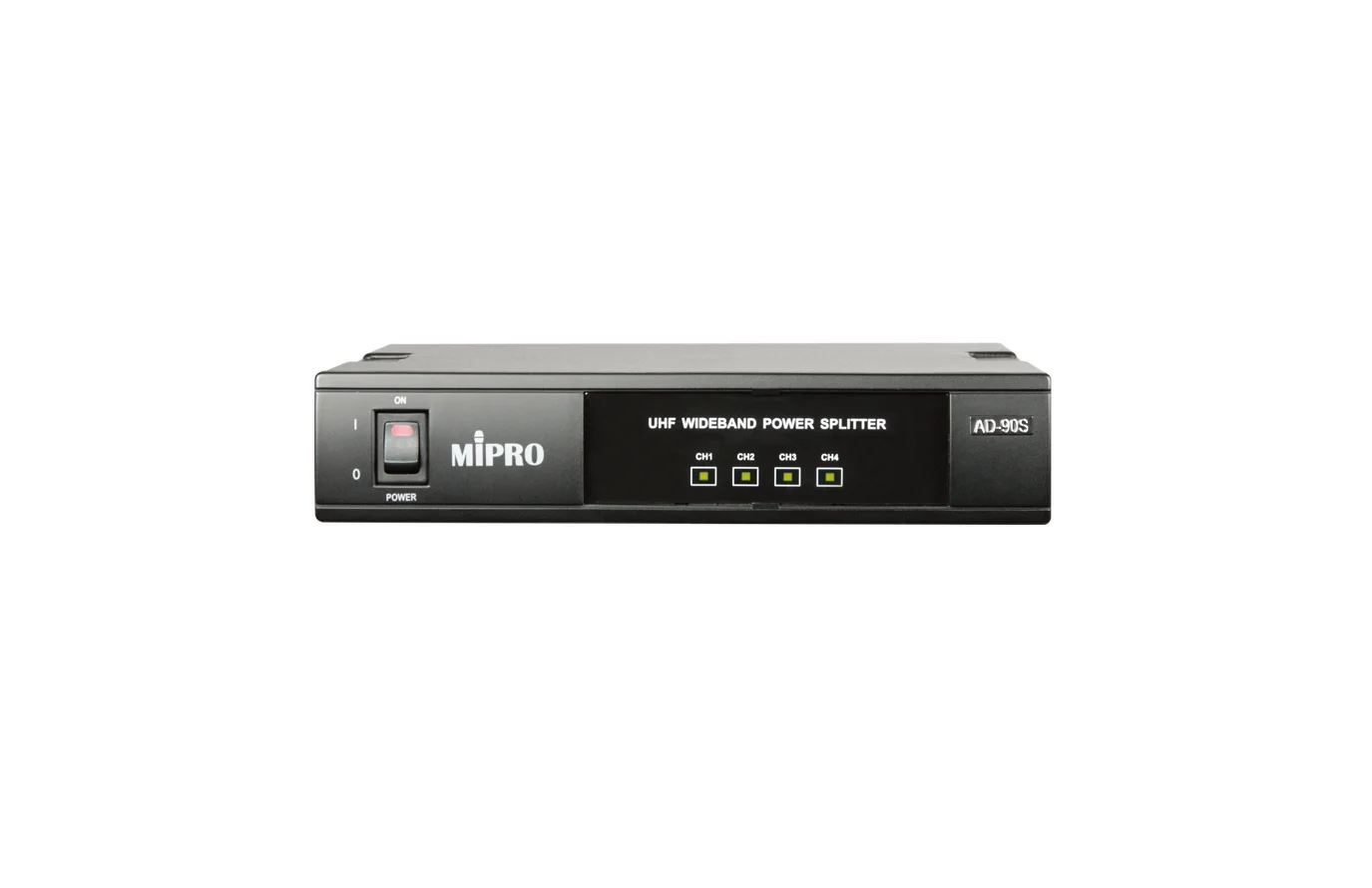

    • Front panel LED indicators light up when input signal reaches the designated level, enabling real-time transmission status monitoring.

    SPECIFICATION

    Model

    AD-90S

    Name

    UHF Wideband RF Power Splitter

    Frequency Range

    UHF 470 – 960 MHz

    Gain

    0 – 2 dB

    Max. RF Power Output

    26 dBm (400 mW)

    System Impedance

    50 Ω

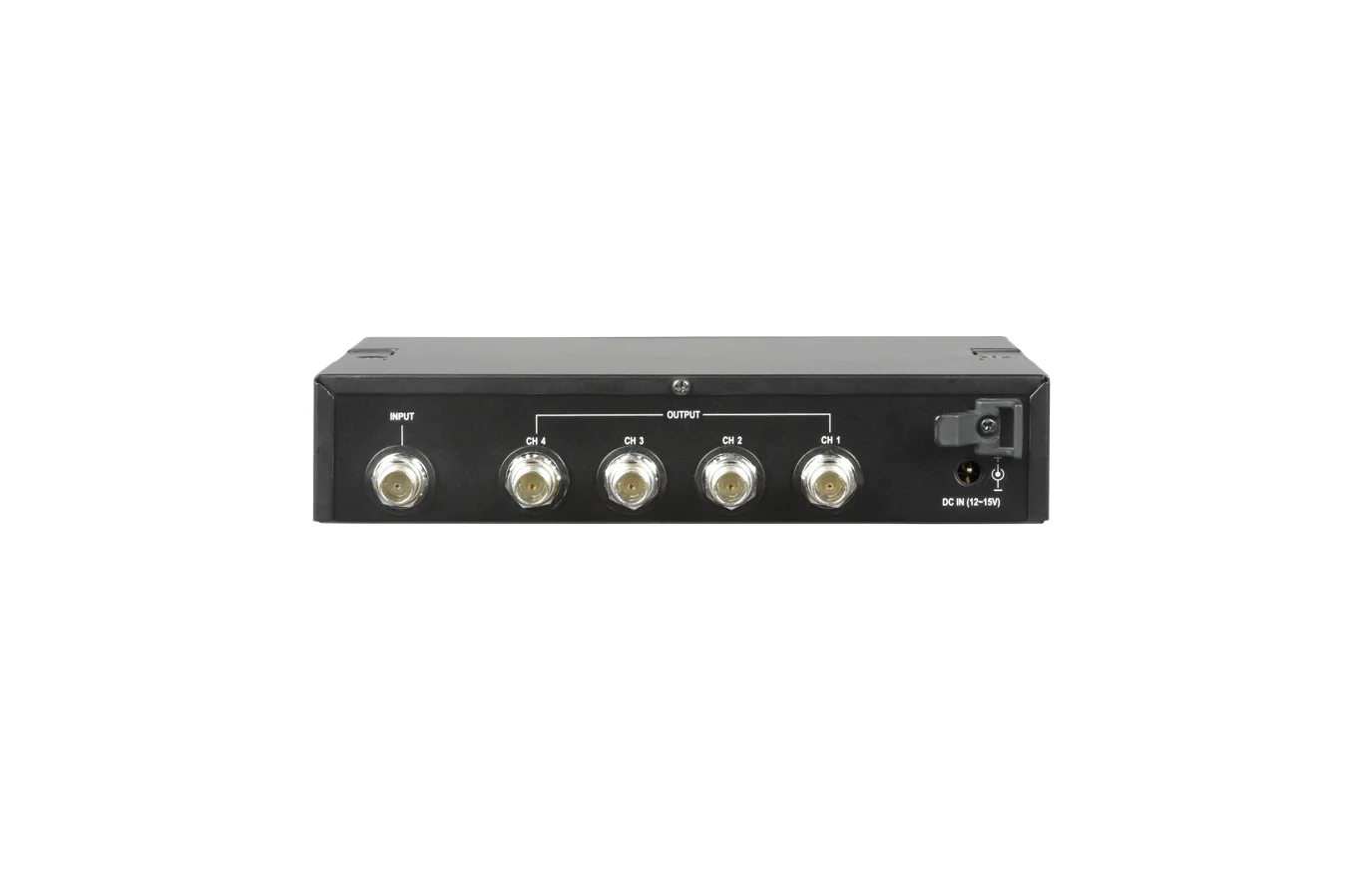

    Input Connector

    TNC × 1

    Output Connector

    TNC × 4

    Power Supply

    DC 12 – 15 V, AC 100 – 240 V

    Dimensions

    210 × 44 × 204 mm (W × H × D)

    Weight

    Approx. 1.1 kg

    DOWNLOADS

  • SPEC SHEET

    •
    TITLE
    FILES
    SIZE
    DOWNLOAD
    AD-90S
    UHF Wideband RF Power Splitter (Ver.2024)
    205.61 KB
