MI-24R | 2.4 GHz Digital Stereo Bodypack Receiver | MIPRO

Products
IEM Systems
MI-24 Series
MI-24R
mi-24r_1
mi-24r_1

COMPARE

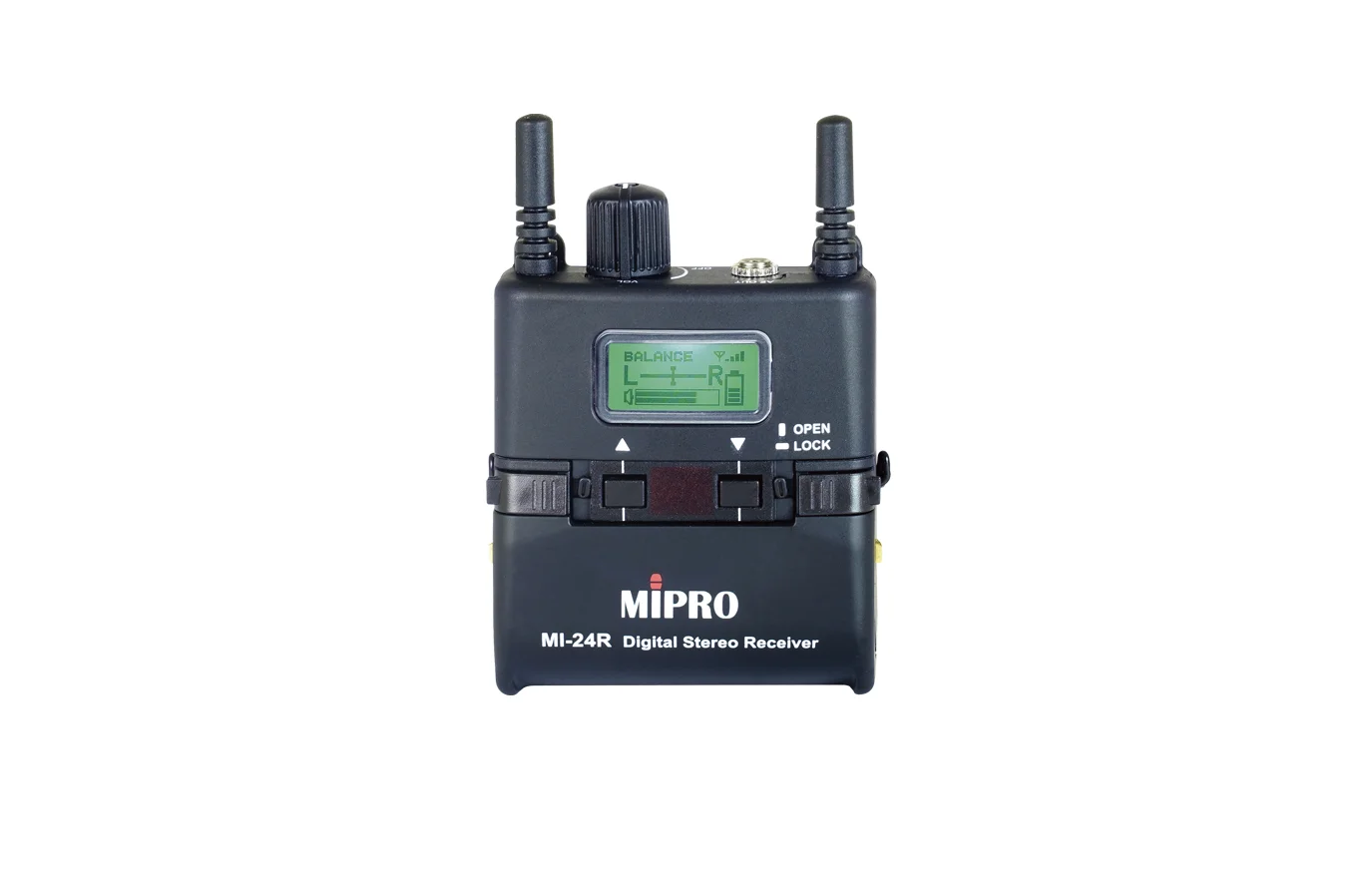

MI-24R

2.4 GHz Digital Stereo Bodypack Receiver

PRODUCT INQUIRY

FEATURES & SPECIFICATION

RELATED PRODUCTS & ACCESSORIES

PRODUCT SUPPORT

Digital

Digital

rx-mode

True Diversity

UHF、ISM

ISM

Frequency_Range

2.4 GHz

VFD

LCD

ACT_Sync

ACT Sync

DSP

DSP

EQ

EQ

Level_Indicator

Level Indicator

3.5_mm

3.5 mm

mi-24r_1
mi-24r_1

  • FEATURES & SPECIFICATION

  • RELATED PRODUCTS & ACCESSORIES

  • PRODUCT SUPPORT

    •

    FEATURES

    • Ultra-compact reinforced polymer housing for reliable durability and easy portability.
    • Operates in the ISM 2.4 GHz band for stable transmission and license-free use worldwide.
    • True diversity reception technology ensures consistent, interference-free performance.
    • Offers STEREO and MIXED audio modes to suit different monitoring needs.
    • Built-in 4-band EQ and four selectable EARDRIVE earphone output modes for precise tonal shaping and optimal drive for various earphone types.
    • Exceptional stereo separation (>100 dB) for clear spatial definition and rich sound layers.
    • 3.5 mm stereo earphone jack compatible with MIPRO professional monitoring earphones and most commercial models.
    • Powered by a built-in 18500 Li-ion battery, with over 8 hours of runtime and recharge via MP-8 charging dock.

    SPECIFICATION

    Model

    MI-24R

    Name

    2.4 GHz Digital Stereo Bodypack Receiver

    Housing

    Reinforced plastic

    Display

    Backlit graphic LCD

    Control Interface

    ACT sync sensor, setting buttons and volume control

    Frequency Range

    ISM 2.4 GHz

    Receiving Mode

    True diversity

    Audio Mode

    STEREO / MIXED

    L / R Balance Adjustment

    Allows shifting the stereo output toward the left or right channel.

    EQ

    FLAT / LO-CUT / LO-BOT / HI-BOT

    Listening Mode

    NORM / LIVE / PRO / EXTRA

    Frequency Response

    20 Hz – 23 kHz (stereo)

    Dynamic Range

    ≥ 109 dBA (system)

    Stereo Separation

    > 100 dB

    THD

    < 0.1% @ 1 kHz

    Latency

    < 3.5 ms

    Sensitivity

    5 μV (S/N > 100 dB)

    Output Power

    Left/Right × 100 mW @ 16 Ω

    Earphone Jack

    3.5 mm TRS

    Power Supply

    One 18500 Li-ion battery

    Battery Charging

    MP-8 charging dock

    Operating Time

    > 8 hours

    Accessories

    E-9 / E-8S earphones (optional)

    Dimensions

    63 × 85 × 26 mm (W × H × D )

    Weight

    Approx. 82 g

    ACCESSORIES

  • All (3)

  • Earphones & Headphones (1)

  • Rechargeable Batteries (1)

  • Chargers & Storage Cases (1)

    •
    e-8s_s

    E-8S

    Standard In-Ear Stereo Earphones

    mb-5_s

    MB-5

    18500 Li-ion Battery

    mp-8_s

    MP-8

    Single-slot Charger

    DOWNLOADS

  • SPEC SHEET

    •
    TITLE
    FILES
    SIZE
    DOWNLOAD
    MI-24R
    2.4 GHz Digital Stereo Bodypack Receiver (Ver.2024)
    206.62 KB
