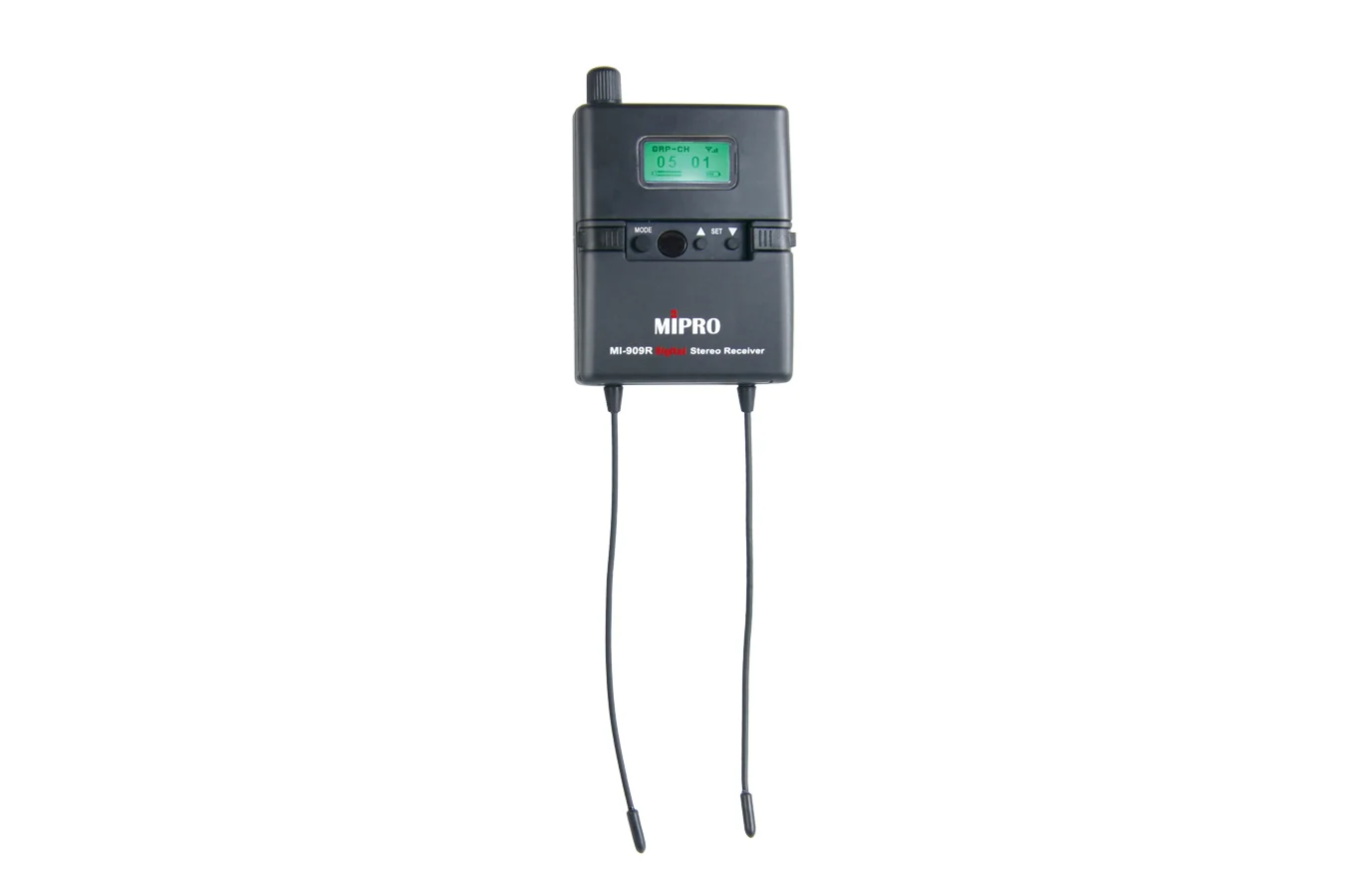

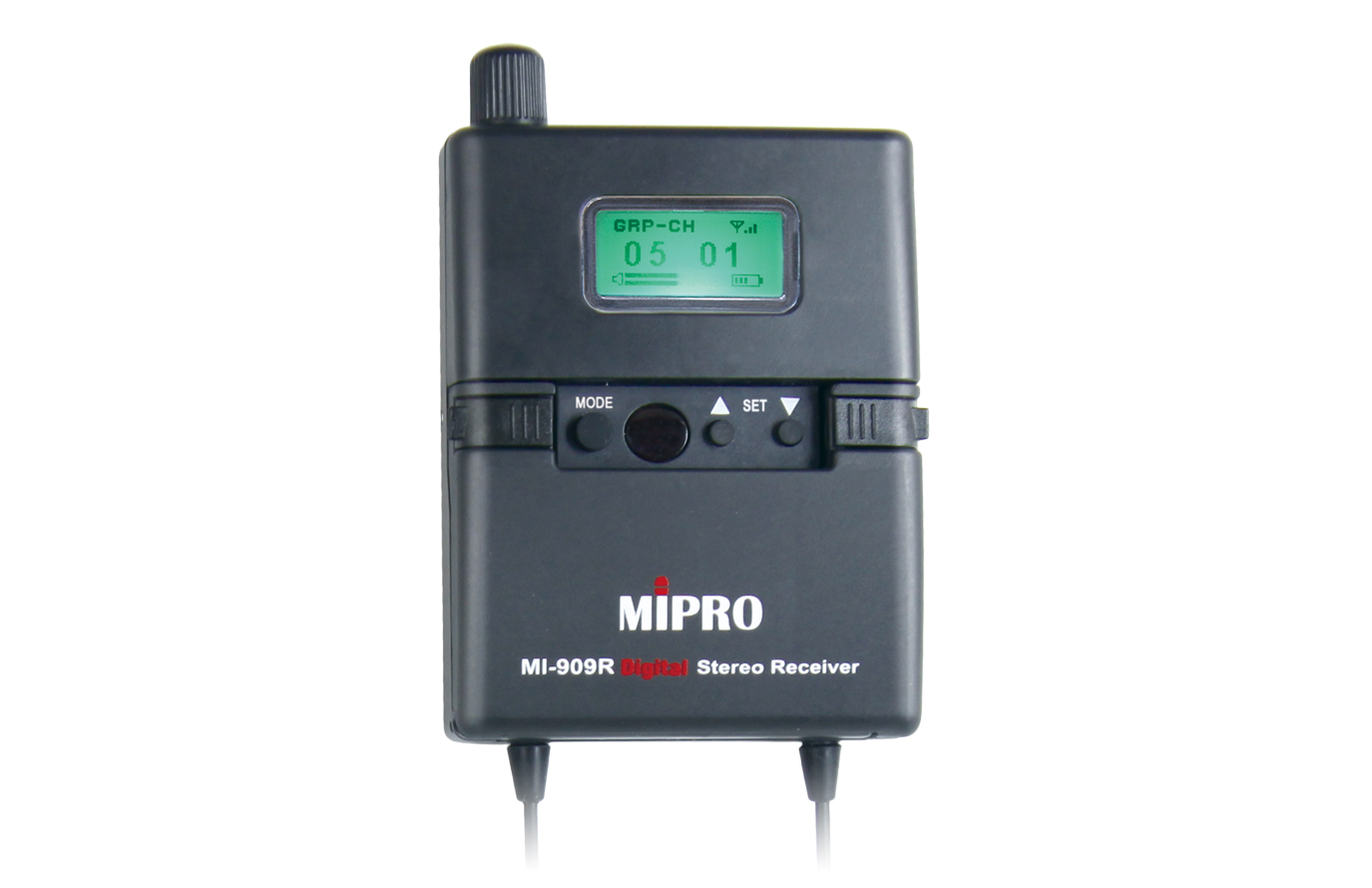

MI-909R

UHF Digital Stereo Bodypack Receiver

PRODUCT INQUIRY

FEATURES & SPECIFICATION

RELATED PRODUCTS & ACCESSORIES

PRODUCT SUPPORT

Digital

Digital

rx-mode

Digital Diversity

UHF、ISM

UHF

VFD

LCD

ACT_Sync

ACT Sync

DSP

DSP

EQ

EQ

3.5_mm

3.5 mm

TEC

TEC Nominee

mi-909r_1
mi-909r_2
mi-909r_1
mi-909r_2

  • FEATURES & SPECIFICATION

  • RELATED PRODUCTS & ACCESSORIES

  • PRODUCT SUPPORT

    •

    FEATURES

    • Featuring an ultra-light magnesium alloy frame with reinforced polymer housing, the MI-909R combines exceptional durability with effortless portability—ideal for demanding professional environments.
    • Integrated digital encryption technology ensures secure transmission and robust resistance to interference.
    • Dual-antenna design with digital diversity reception delivers outstanding signal stability and reliability.
    • Supports stereo, mono (L/R), and mixed monitoring modes to meet diverse stage and studio requirements.
    • Built-in 4-band EQ for precise tonal shaping according to venue acoustics and personal preference.
    • Clear, intuitive interface enables fast and efficient setup.
    • Preloaded with 16 frequency groups and 216 channels, with user selection from up to 2,560 available frequencies.
    • 3.5 mm stereo earphone jack compatible with MIPRO professional monitoring earphones and most commercially available models.

    SPECIFICATION

    Model

    MI-909R

    Name

    UHF Digital Stereo Bodypack Receiver

    Housing

    Composite of various matrial

    Display

    Backlit graphic LCD

    Control Interface

    ACT sync sensor, setting buttons and volume control

    Frequency Range

    UHF 470 – 639 MHz / 705 – 960 MHz (country dependent)

    Receiving Mode

    Digital diversity

    Audio Mode

    STEREO / MONO-L / MONO-R / MIXED

    L / R Balance Adjustment

    Allows shifting the stereo output toward the left or right channel.

    EQ

    FLAT / LO-CUT / HI-BST / LC&HB

    Frequency Response

    20 Hz – 15 kHz (stereo)

    Dynamic Range

    ≥ 95 dBA

    Stereo Separation

    > 90 dB

    THD

    Approx. < 0.1% @ 1 kHz

    Latency

    < 6 ms

    Sensitivity

    10 μV (S/N > 90 dB)

    Output Power

    Left/Right × 120 mW @ 16 Ω

    Earphone Jack

    3.5 mm TRS

    Power Supply

    Two AA alkaline

    Operating Time

    Approx. 6 to 8 hours

    Accessories

    E-9 / E-8S earphones (optional)

    Dimensions

    63 × 82 × 23 mm (W × H × D)

    Weight

    Approx. 95 g

    ACCESSORIES

  • All (1)

  • Earphones & Headphones (1)

    •
    e-8s_s

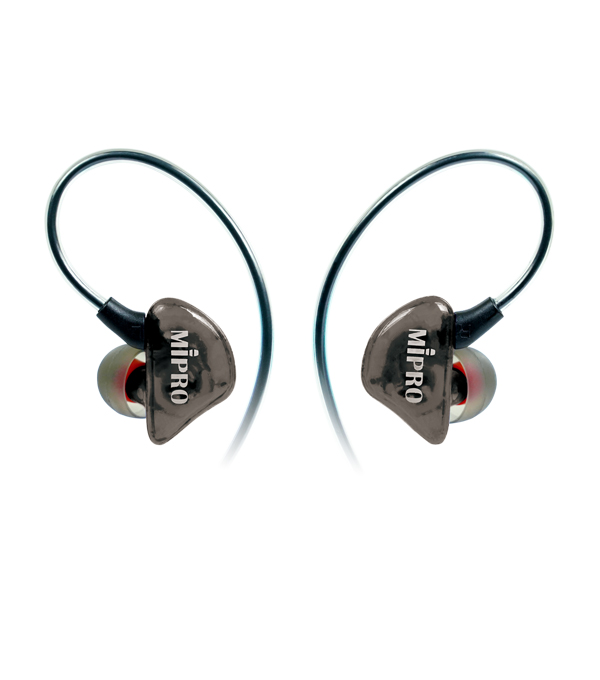

    E-8S

    Standard In-Ear Stereo Earphones

    RELATED VIDEOS

    MI-909_Series_Digital_Wireless_IEM_System

    MI-909 Wireless Digital IEM System
    MI-909_Series_Educational Videos

    Educational Videos | MI-909T / MI-909R

    DOWNLOADS

  • BROCHURE

  • USER GUIDE

  • SPEC SHEET

  • DOC

    •
    TITLE
    FILES
    SIZE
    DOWNLOAD
    MI-909 Series
    Digital Wireless Stereo IEM System (MI-909R / MI-909T)
    3.1 MB
    MI-909R
    UHF Digital Stereo Bodypack Receiver (Ver.2024)
    2.95 MB
    MI-909R
    UHF Digital Stereo Bodypack Receiver (Ver.2024)
    244.45 KB
    MI-909R
    UHF Digital Stereo Bodypack Receiver
    378.18 KB
