MA-101C

Cabled Megaphone

FEATURES & SPECIFICATION

RELATED PRODUCTS & ACCESSORIES

PRODUCT SUPPORT

Li-ion

  • FEATURES & SPECIFICATION

  • RELATED PRODUCTS & ACCESSORIES

  • PRODUCT SUPPORT

  • FEATURES

    • Equipped with a Class-AB amplifier driving a 5-inch full-range speaker, delivering clear and powerful output for speech and gatherings.

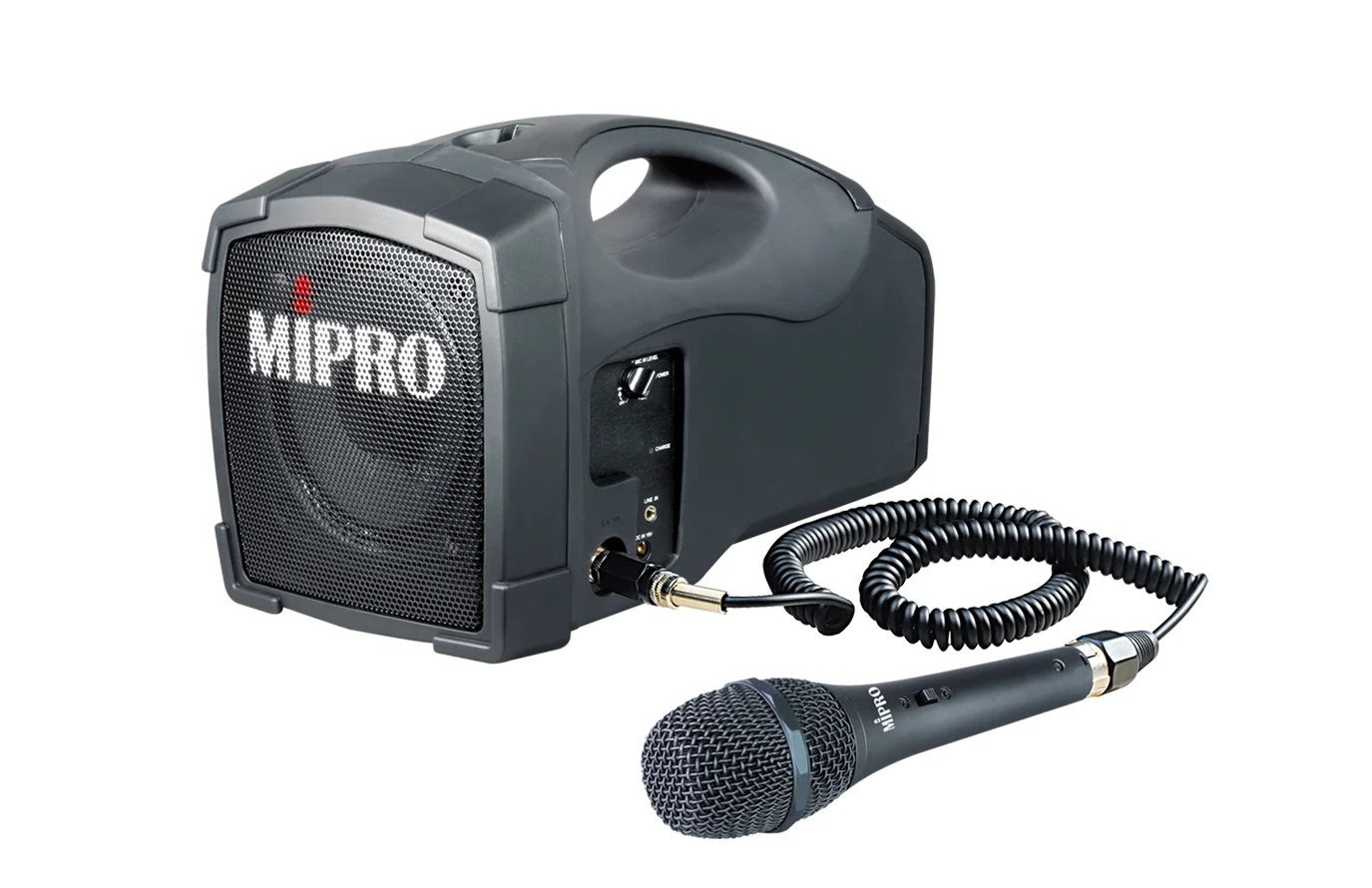

    • Comes standard with the MM-107 wired microphone for simple plug-and-play operation, ensuring clear voice transmission.
    • Supports multiple audio inputs with MIC IN (6.3 mm) and LINE IN (3.5 mm), allowing simultaneous connection of microphones and external sources.
    • Built-in LED indicators display power and charging status for convenient battery monitoring.
    • Operates on AC power or built-in rechargeable battery, providing over 8 hours of continuous use per charge, ideal for long-duration events.
    • Durable housing design supports shoulder-worn use or installation on the MS-30 speaker stand, suitable for both indoor and outdoor applications.

    SPECIFICATION

    Model

    MA-101C

    Name

    Cabled Megaphone

    Max SPL

    107 dB SPL

    Speaker System

    5" full range

    Output Power

    45 W RMS, 76 W Peak

    Frequency Response

    125 Hz – 18 kHz

    Amplifier

    Class AB

    Built-in Features

    MM-107 wired microphone

    Audio Inputs

    MIC IN (6.3 mm) ; LINE IN (3.5 mm)

    Power Supply

    DC (19 – 24 V) socket for external AC (100 – 240 V) power supply

    Battery Type

    Built-in one Li-ion battery pack (MB-30)

    Battery Indicator

    Single LED indicator for power and charging status

    Standby Time

    Up to 8 hours

    Accessories

    SC-100 carry bag, MS-30 tripod stand (optional)

    Dimensions

    160 × 178 × 285 mm (W × H × D)

    Weight

    Approx. 3.1 kg (battery included)

    ACCESSORIES

  • All (3)

  • Rechargeable Batteries (1)

  • Stands & Mounts (1)

  • Carrying Bags & Dust Covers (1)

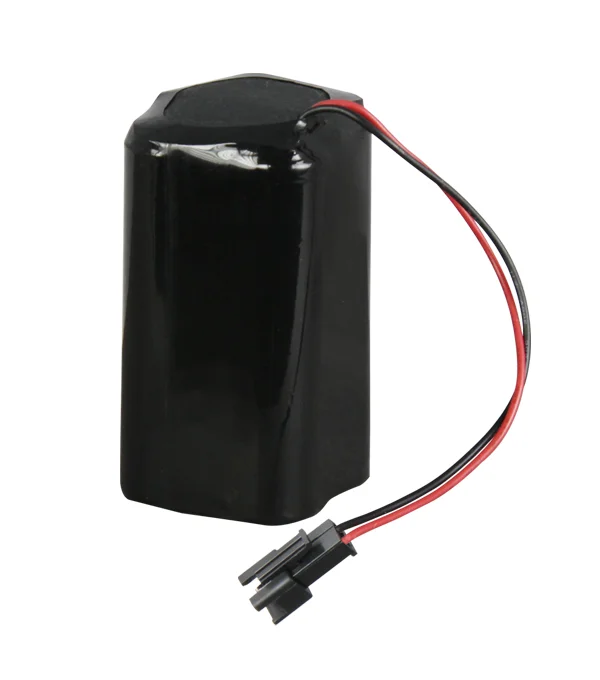

  • MB-25

    Li-ion Battery Pack

    MS-30

    Tripod Stand

    SC-100

    Carrying Bag

    DOWNLOADS

  • USER GUIDE

  • SPEC SHEET

  • TITLE
    FILES
    SIZE
    DOWNLOAD
    MA-101C
    Cabled Megaphone (Ver.2023)
    4.39 MB
    MA-101C
    Cabled Megaphone (Ver.2024)
    4.06 MB
    MA-101C
    Cabled Megaphone (Ver.2025)
    429.11 KB
