MA-505

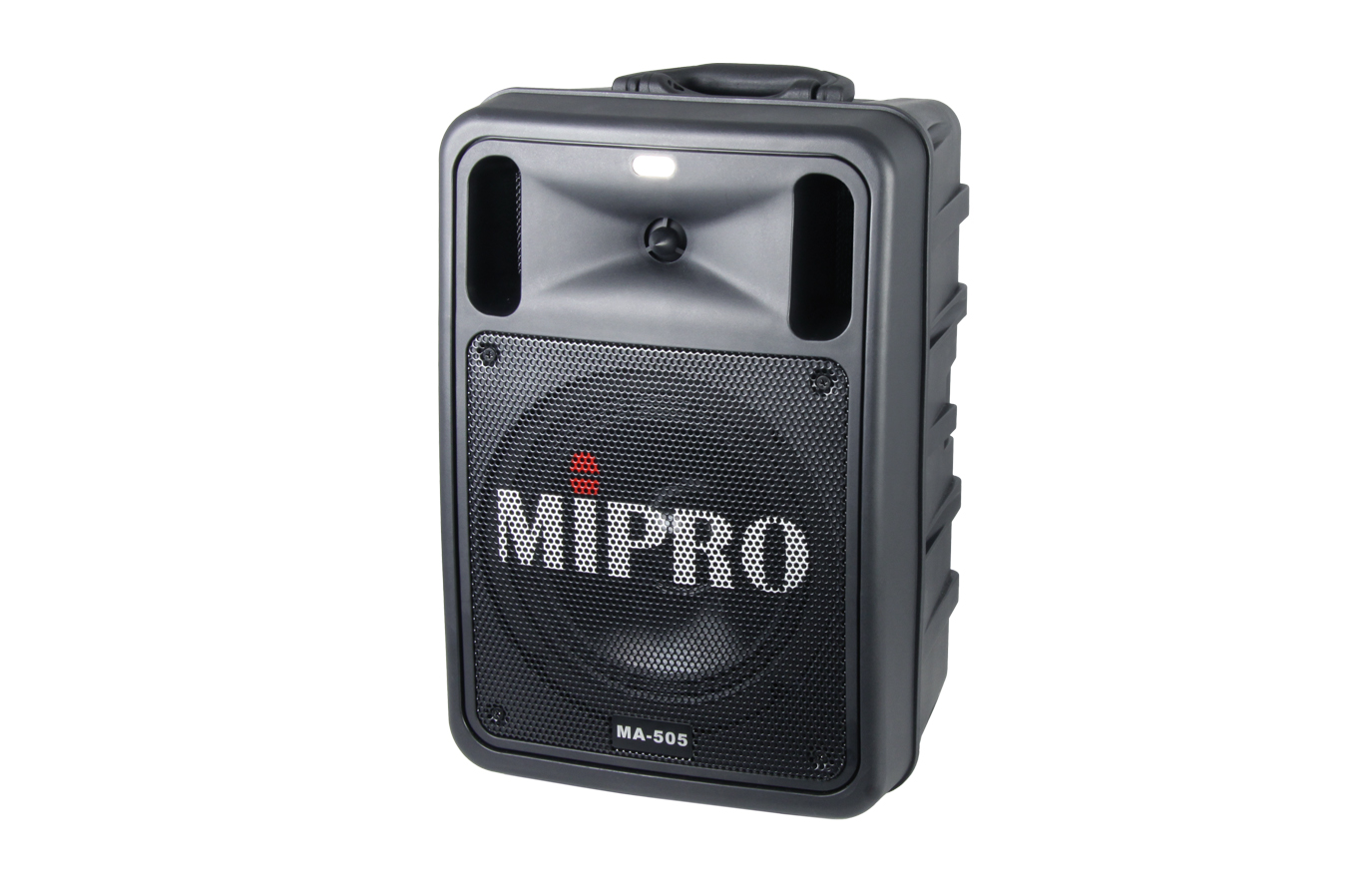

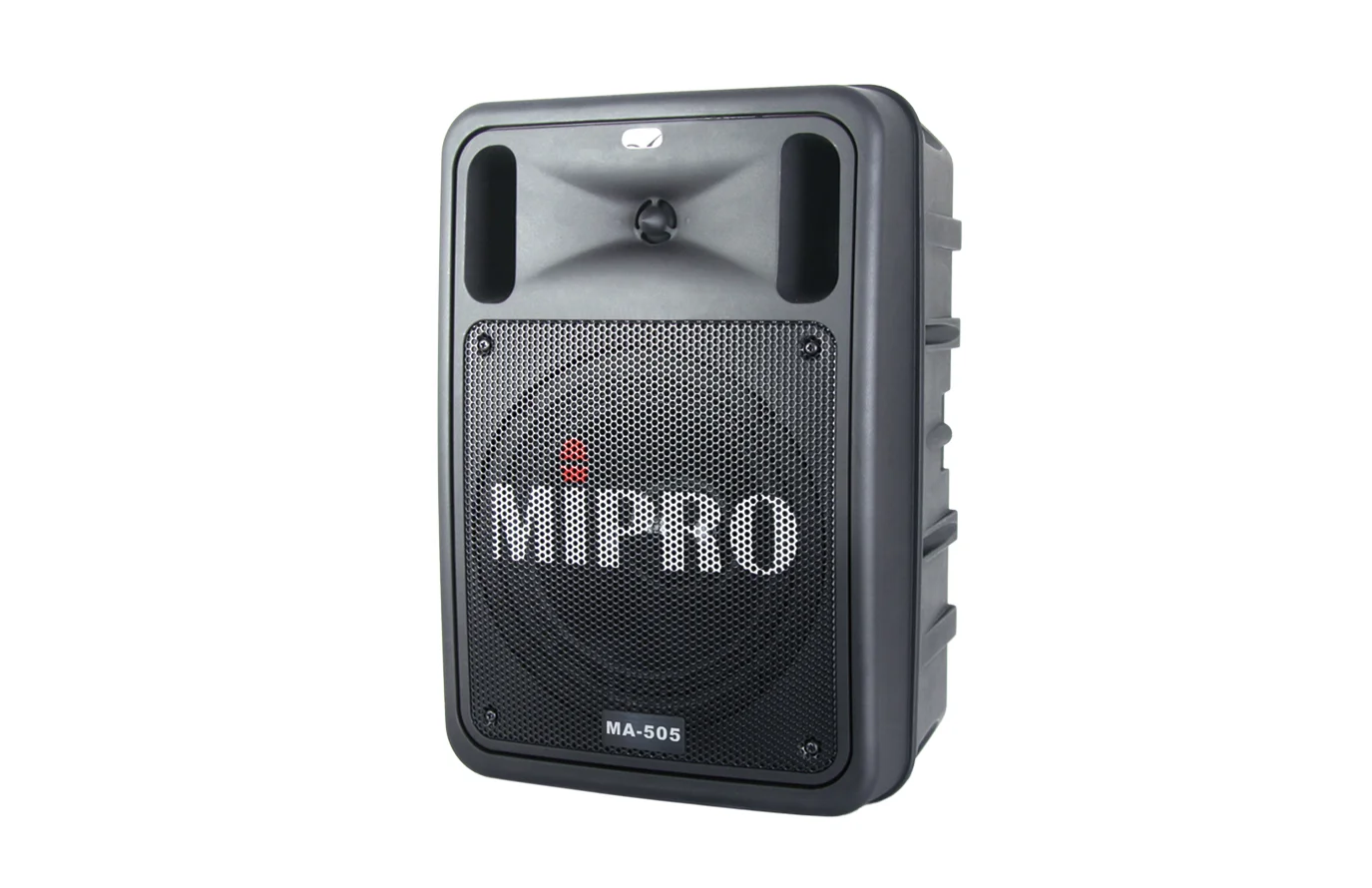

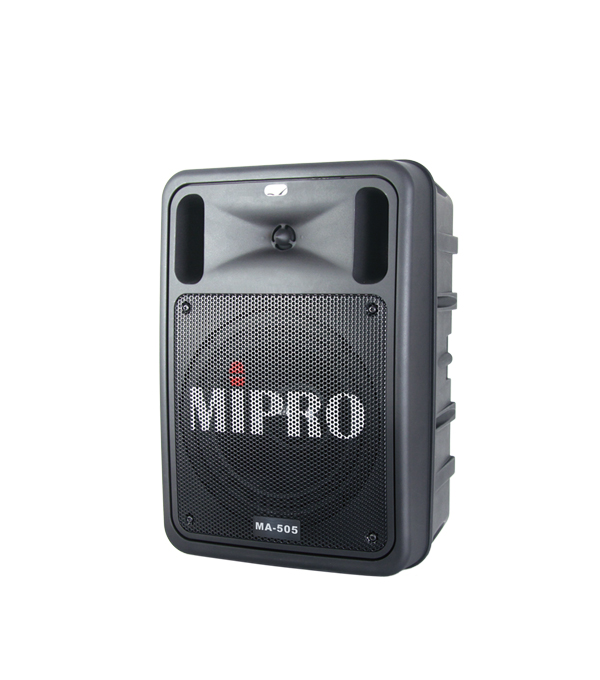

Portable Wireless PA System

PRODUCT INQUIRY

FEATURES & SPECIFICATION

RELATED PRODUCTS & ACCESSORIES

PRODUCT SUPPORT

UHF、ISM

UHF

UHF、ISM

ISM

SD

SD

VOP

VOP

Li-ion_Battery

Li-ion

Record

Record

CD_Player

CD Player

Bluetooth

Bluetooth

USB

USB

Alarm

Alarm

Echo

ECHO

Taiwan

Taiwan Excellence

ma-505_1
ma-505_2
ma-505_3
ma-505_1
ma-505_2
ma-505_3

  • FEATURES & SPECIFICATION

  • RELATED PRODUCTS & ACCESSORIES

  • PRODUCT SUPPORT

    •

    FEATURES

    • High-efficiency Class-D amplifier with two-way speaker system delivers clear sound and powerful output, ideal for small to medium-sized indoor and outdoor events.

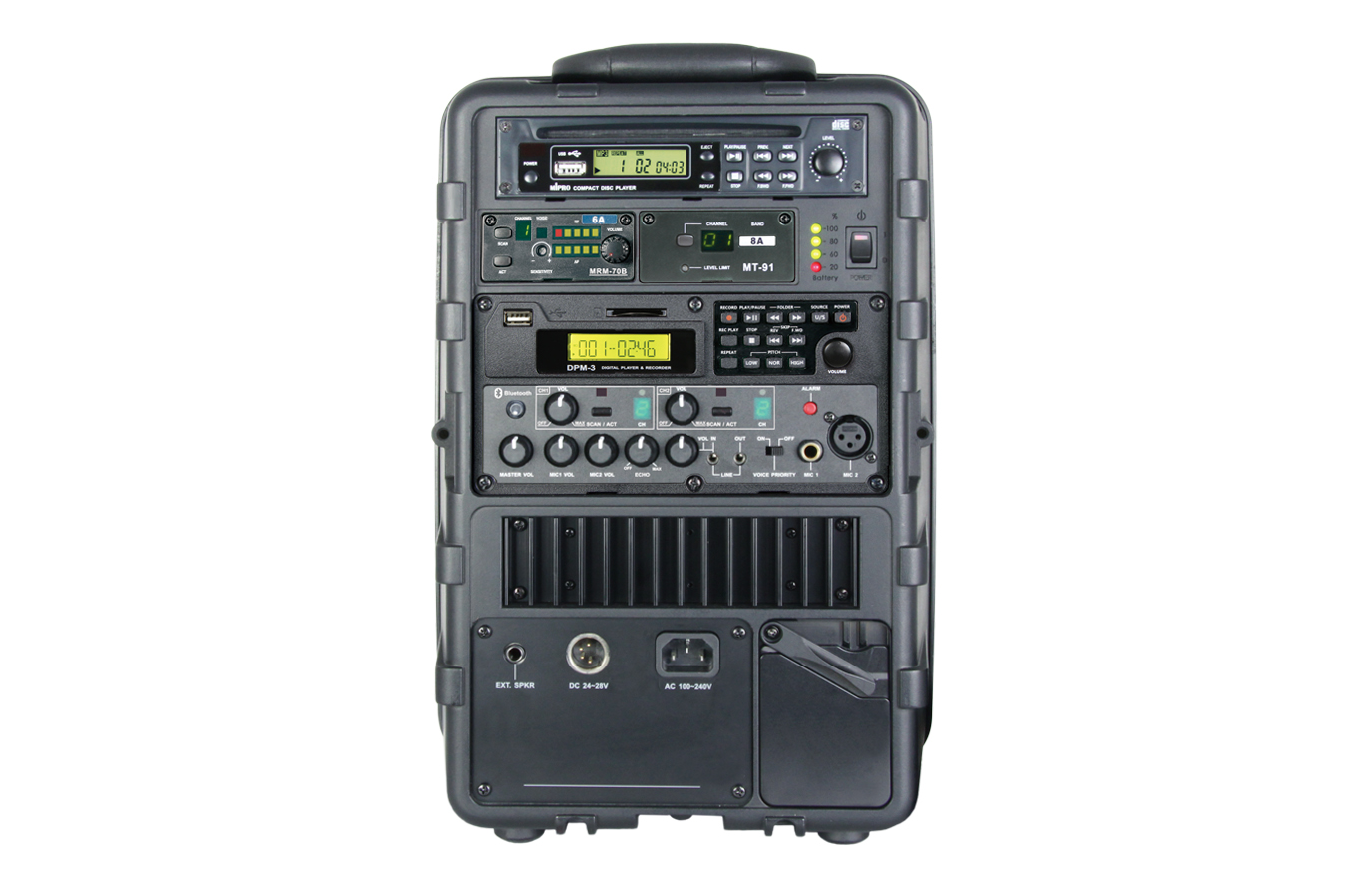

    • Modular design supports receiver, transmitter, and player modules, with independent volume control for external sources and wired microphones.
    • Receiver module offers multiple frequency band options and can be expanded to up to 4 sets to meet multi-microphone requirements.
    • Built-in Bluetooth and TWS stereo technology ensure stable wireless connectivity and stereo music playback.
    • Optional player modules include CD, USB, and SD recorder/player for diverse music sources.
    • External speaker output allows connection to the MA-505EXP passive speaker, or use with an optional transmitter module to link another MA-505 for wider coverage.
    • Lightweight design with carrying handle and tripod mount for flexible setup options.
    • Features Voice Priority (VOP) and siren functions, ideal for tours, teaching, and emergency announcements.
    • Supports both AC power and rechargeable battery operation for long-lasting performance.

    SPECIFICATION

    Model

    MA-505

    Name

    Portable Wireless PA System

    Max SPL

    105 dB SPL

    Speaker System

    1" Tweeter & 8" Woofer (Passive Crossover)

    Output Power

    145 W RMS, 248 W peak

    Frequency Response

    70 Hz – 14 kHz

    Amplifier

    Class D

    Audio Processing

    Tone, Echo control on mics

    Built-in Features

    VOP, alarm siren

    Audio Inputs

    MIC IN (XLR & 6.3 mm), LINE IN (3.5 mm)

    Audio Outputs

    LINE OUT (3.5 mm), EXT SP. (6.3 mm)

    Receiver Module

    UHF / 2.4 GHz / 5 GHz, up to 4 (optional)

    Transmitter Module

    UHF / 2.4 GHz / 5 GHz (optional)

    Player Module

    Bluetooth, CD/USB/SD player & recorder (optional)

    Power Supply

    AC 100 – 240 V or DC 24 – 32 V

    Battery Type

    Built-in one Li-ion battery pack (MB-35)

    Battery Indicator

    4-level LED indicator for battery level and charging status

    Standby Time

    Up to 8 hours

    Accessories

    SC-505 dust cover, MS-70 tripod stand (optional)

    Dimensions

    275 × 406 × 225 mm (W × H × D)

    Weight

    Approx. 8 kg (battery included)

    ACCESSORIES

  • All (13)

  • Transmitter Modules for Portable PA (3)

  • Receiver Modules for Portable PA (3)

  • Playback Modules for Portable PA (3)

  • Extension Speakers (1)

  • Rechargeable Batteries (1)

  • Stands & Mounts (1)

  • Carrying Bags & Dust Covers (1)

    •
    mtm-24_s

    MTM-24

    2.4 GHz Digital Interlinking Transmitter Module

    mtm-58_s

    MTM-58

    5 GHz Digital Interlinking Transmitter Module

    mtm-91_s

    MTM-91

    UHF Analog Interlinking Transmitter Module

    mrm-24_s

    MRM-24

    2.4 GHz Digital Receiver Module

    mrm-58_s

    MRM-58

    5 GHz Digital Receiver Module

    mrm-70_s

    MRM-70

    UHF Analog Receiver Module

    cdm-2_s

    CDM-2

    CD/USB Playback Module

    cdm-3a_s

    CDM-3A

    CD/USB Recording & Playback Module

    dpm-3p_s

    DPM-3P

    SD/USB Digital Recording & Playback Module

    ma-505exp_s

    MA-505EXP

    Passive Extension Speaker

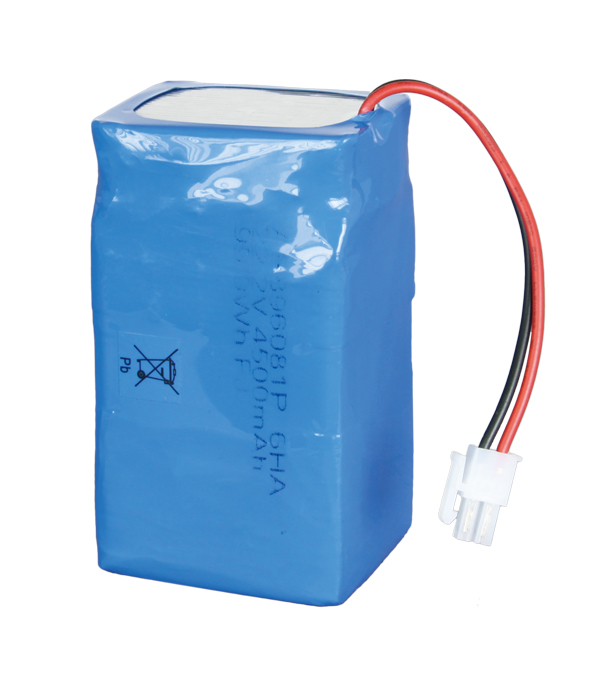

    mb-35_s

    MB-35

    Li-ion Battery Pack

    ms-70_s

    MS-70

    Tripod Speaker Stand

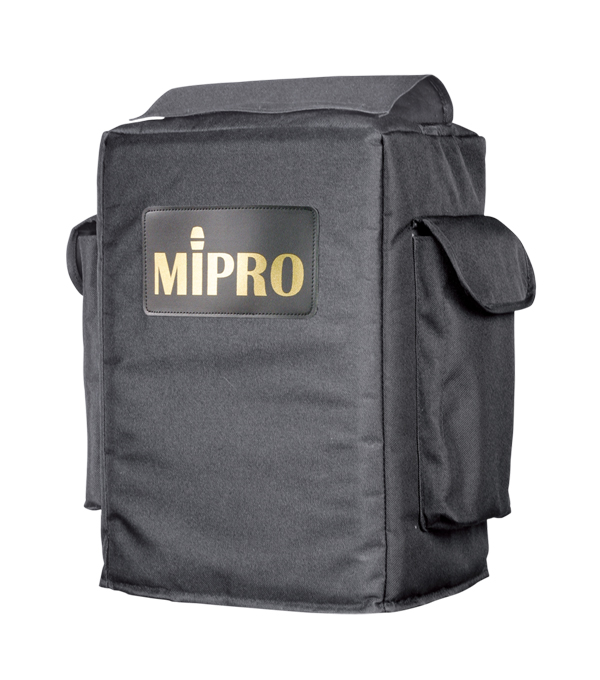

    sc-505_s

    SC-505

    Dust Cover

    RELATED VIDEOS

    MA-505_Portable_Wireless_PA_System

    MA-505 Portable Wireless PA System

    DOWNLOADS

  • USER GUIDE

  • SPEC SHEET

  • DOC

    •
    TITLE
    FILES
    SIZE
    DOWNLOAD
    MA-505
    Portable Wireless PA System (Ver.2022)
    9.39 MB
    MA-505
    Portable Wireless PA System (Ver.2024)
    361.39 KB
    MA-505
    Portable Wireless PA System
    388.8 KB
