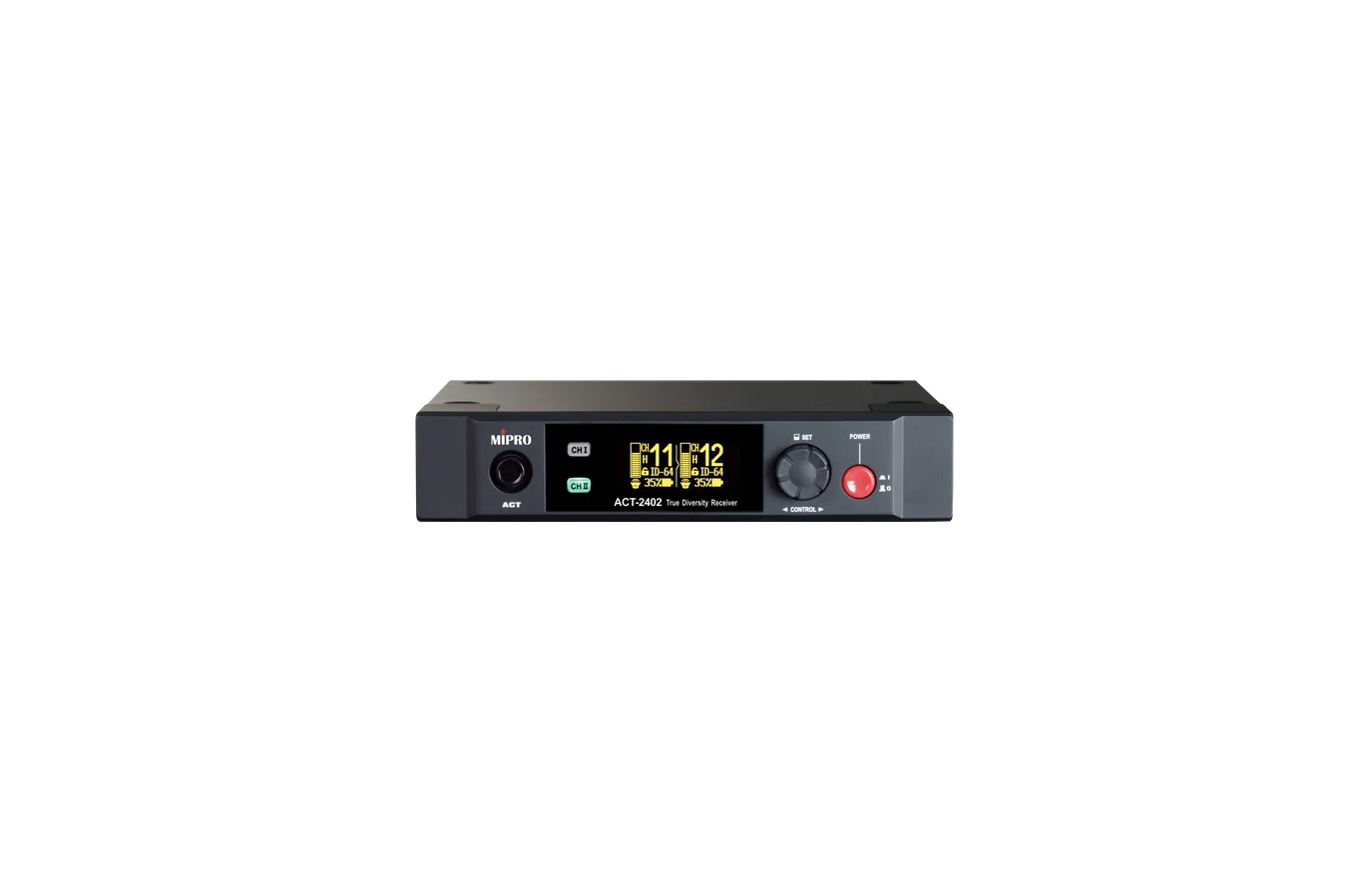

ACT-2402 | 2.4 GHz Digital Dual-Channel Receiver | MIPRO

COMPARE

ACT-2402

2.4 GHz Digital Dual-Channel Receiver

FEATURES & SPECIFICATION

RELATED PRODUCTS & ACCESSORIES

PRODUCT SUPPORT

Digital

True Diversity

ISM

2.4 GHz

OLED

ACT Sync

TEC Nominee

  • FEATURES & SPECIFICATION

  • RELATED PRODUCTS & ACCESSORIES

  • PRODUCT SUPPORT

  • FEATURES

    • Half-rack metal chassis design with dual external antenna connectors on the rear panel and antenna cascading ports for flexible system expansion.
    • Equipped with a proprietary control panel and high-contrast graphic OLED display, offering sharp visuals and wide-angle viewing with no blind spots.
    • Operates in the ISM 2.4 GHz band with 12 non-interfering selectable channels, effectively avoiding interference from UHF wireless systems.
    • Channel Scan function detects RF signal strength across channels to help identify the least congested options for improved stability.
    • Integrates MIPRO’s patented Auto Scan and ACT frequency synchronization technologies for quick and accurate frequency pairing.
    • Built-in true diversity receiving technology with dual tuners ensures extended range and uninterrupted reception.
    • Utilizes 44.1 kHz / 24-bit digital audio sampling to deliver wide frequency response, high dynamic range, and clear, detailed sound.
    • Provides XLR balanced and 6.3 mm unbalanced audio outputs with adjustable output levels from -10 to +20 dB. Each channel can be output independently or mixed.
    • Powered by an external AC 100 – 240 V switching power supply for reliable operation across varying voltage conditions.
    • Compatible with ACT-240 series handheld and bodypack transmitters, and supports other MIPRO 2.4 GHz transmitters.
    • Proudly developed and manufactured in Taiwan, offering outstanding quality, performance, and value.

    SPECIFICATION

    Model

    ACT-2402

    Name

    2.4 GHz Digital Dual-Channel Receiver

    Channel

    Dual

    Chassis

    Half-rack (9.5") metal chassis

    Frequency Range

    ISM 2.4 GHz

    Bandwidth

    83.5 MHz

    Receiving Mode

    True diversity

    Display

    Graphic OLED

    Control Interface

    ACT sync button, channel selection buttons and rotary knob

    Sensitivity

    12 dBμV @ S/N > 100 dB

    Frequency Response

    20 Hz–20 kHz

    Dynamic Range

    > 117 dBA

    Latency

    < 4.0 ms

    EQ

    Lo-Cut / Flat

    Audio Processing

    44.1 kHz / 24-bit sample rate

    Audio Outputs

    Balanced XLR for independent output; Unbalanced 1/4" (6.3 mm) for independent and mixed output; Output level adjustable from -10 to +20 dB

    Antenna

    Built-in

    Power Supply

    DC 12–15 V. External AC 100–240 V switching power supply

    Dimensions

    210 × 44 × 162 mm (W × H × D)

    Weight

    Approx. 0.8 kg
