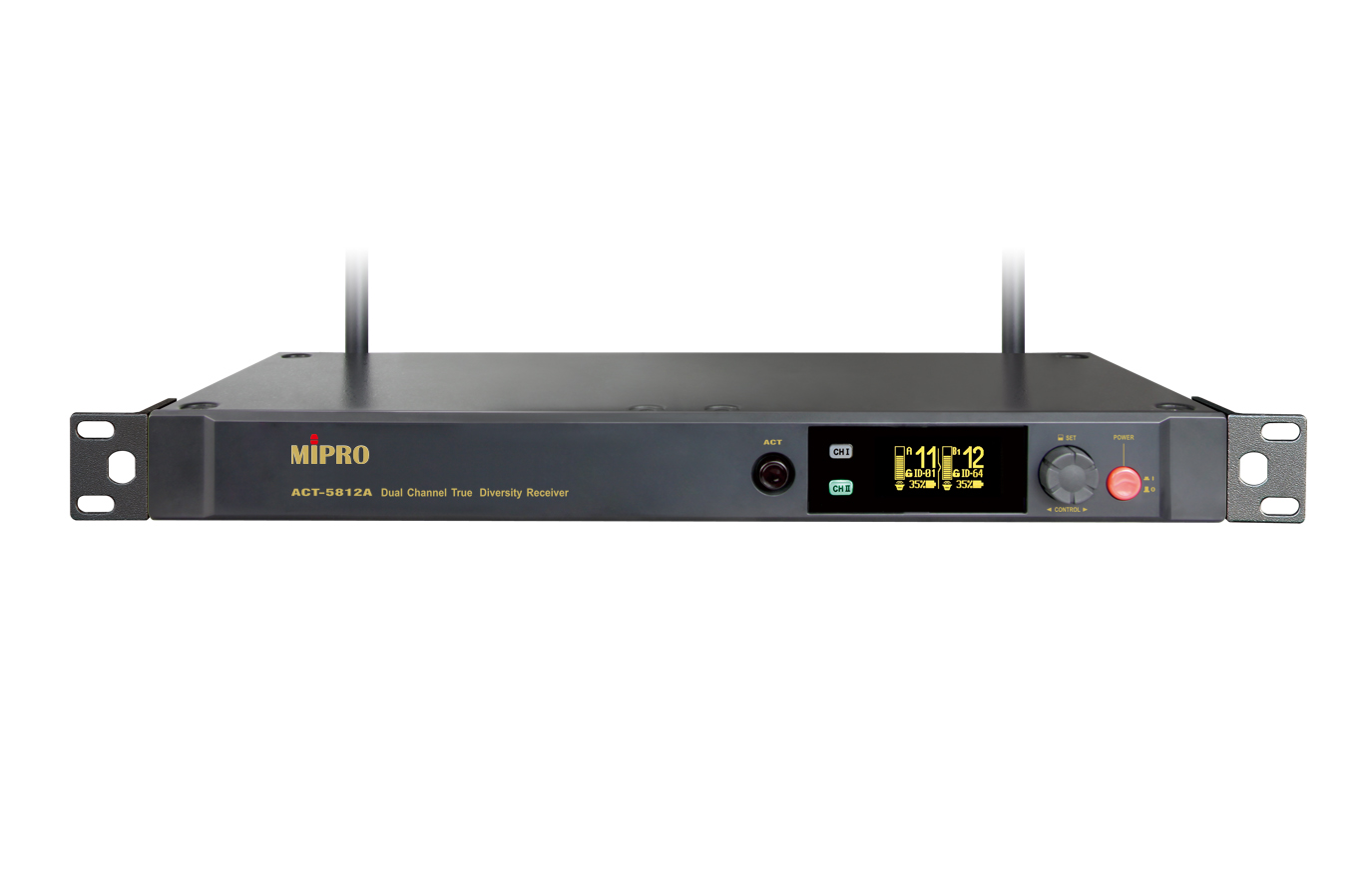

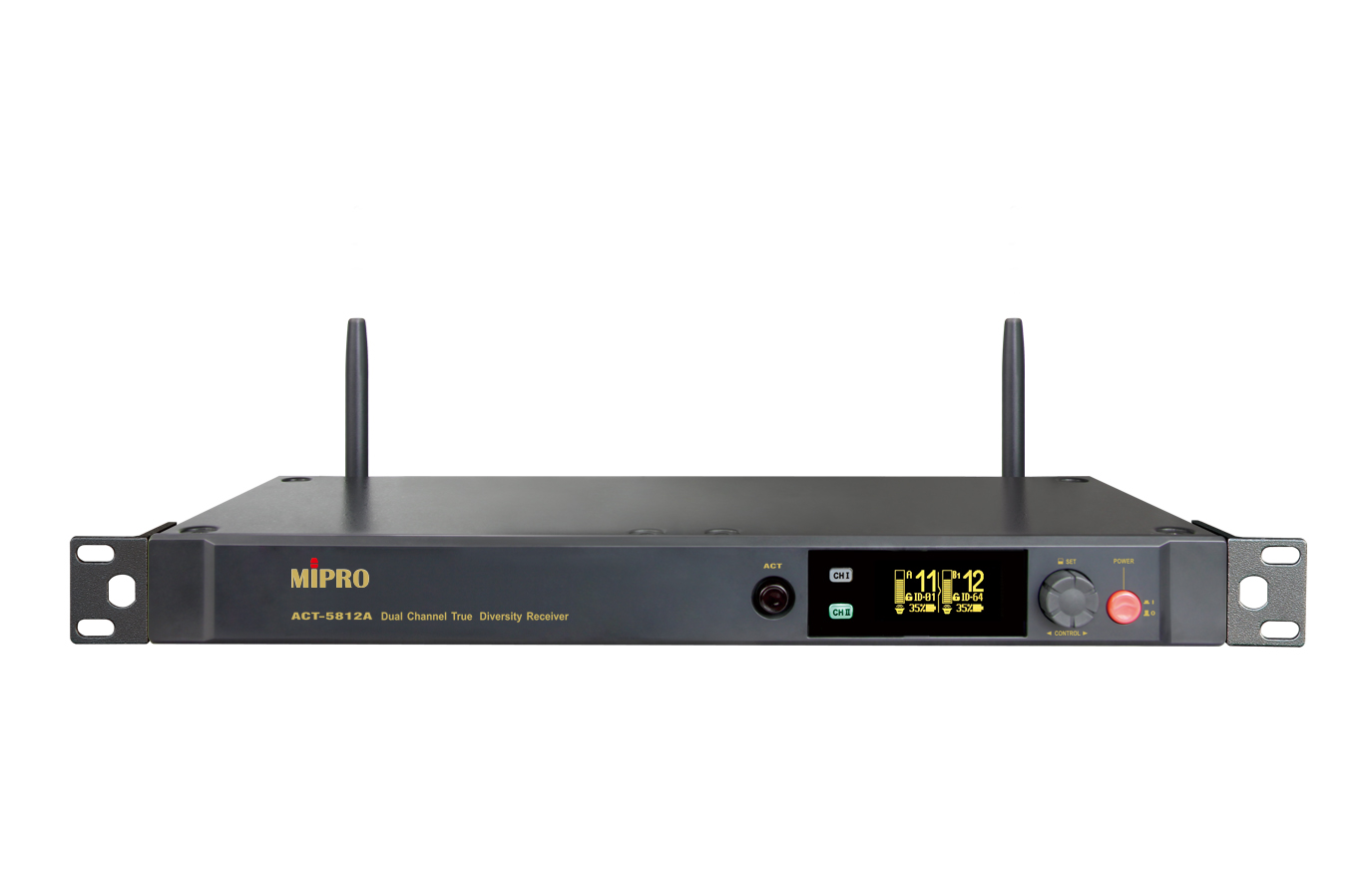

ACT-5812A

5.8 GHz Digital Dual-Channel Receiver

FEATURES & SPECIFICATION

RELATED PRODUCTS & ACCESSORIES

PRODUCT SUPPORT

Digital

True Diversity

ISM

5.8 GHz

OLED

ACT Sync

  • FEATURES & SPECIFICATION

  • RELATED PRODUCTS & ACCESSORIES

  • PRODUCT SUPPORT

  • FEATURES

    • Full-rack metal chassis design with dual external antenna connectors on the rear panel and antenna cascading ports for expanded system configurations.
    • Equipped with MIPRO’s exclusive control panel and high-contrast graphic OLED display, offering excellent clarity and wide viewing angles.
    • Operates in the ISM 5 GHz band, effectively avoiding interference from UHF, 2.4 GHz, and Wi-Fi devices.
    • Features dual frequency groups: Group A provides 12 channels; Group B is divided into B1 and B2, each offering 12 channels—for a total of 24 selectable channels.
    • Each channel supports 64 standard IDs and 1 special ID for simultaneous multi-room operation without interference.
    • Channel Scan function detects RF signal strength to help identify channels with minimal interference for enhanced stability.
    • Combines MIPRO’s patented Auto Scan and ACT frequency synchronization technologies for fast and accurate frequency pairing.
    • Built-in true diversity receiving technology with dual tuners ensures uninterrupted signal reception. Group B offers ultra-low latency of just 1.5 ms.
    • Uses 48 kHz / 24-bit digital audio sampling to deliver wide frequency response, high dynamic range, and detailed, natural sound quality.
    • Provides XLR balanced and 6.3 mm unbalanced audio outputs with adjustable output level from -10 to +20 dB. Each channel can be output independently or mixed.
    • Antenna connectors provide booster bias voltage and are compatible with MIPRO’s professional antenna systems for extended range and improved signal stability.
    • Powered by an external AC 100 – 240 V switching power supply for consistent performance under varying voltage conditions.
    • Compatible with ACT-580 series handheld and bodypack transmitters, and supports other MIPRO 5 GHz series transmitters.
    • Proudly developed and manufactured in Taiwan, delivering exceptional quality, high performance, and outstanding value.

    SPECIFICATION

    Model

    ACT-5812A

    Name

    5.8 GHz Digital Dual-Channel Receiver

    Channel

    Dual

    Chassis

    Full-rack (19") metal chassis

    Frequency Range

    ISM 5.8 GHz

    Bandwidth

    125 MHz

    Receiving Mode

    True diversity

    Display

    Graphic OLED

    Control Interface

    ACT sync button, channel selection buttons and rotary knob

    Sensitivity

    12 dBμV @ S/N > 100 dB

    Frequency Response

    18 Hz–23 kHz

    Dynamic Range

    > 120 dBA

    Latency

    < 1.5 ms (Group B)

    EQ

    Lo-Cut / Flat

    Audio Processing

    48 kHz / 24-bit  sample rate

    Audio Outputs

    Balanced XLR for independent output; Unbalanced 1/4" (6.3 mm) for independent and mixed output; Output level adjustable from -10 to +20 dB

    Antenna

    50 Ω TNC female connectors provide bias for boosters. TNC connectors for daisy chain

    Power Supply

    DC 12–15 V. External AC 100–240 V switching power supply

    Dimensions

    420 × 44 × 162 mm (W × H × D)

    Weight

    Approx. 1.4 kg
