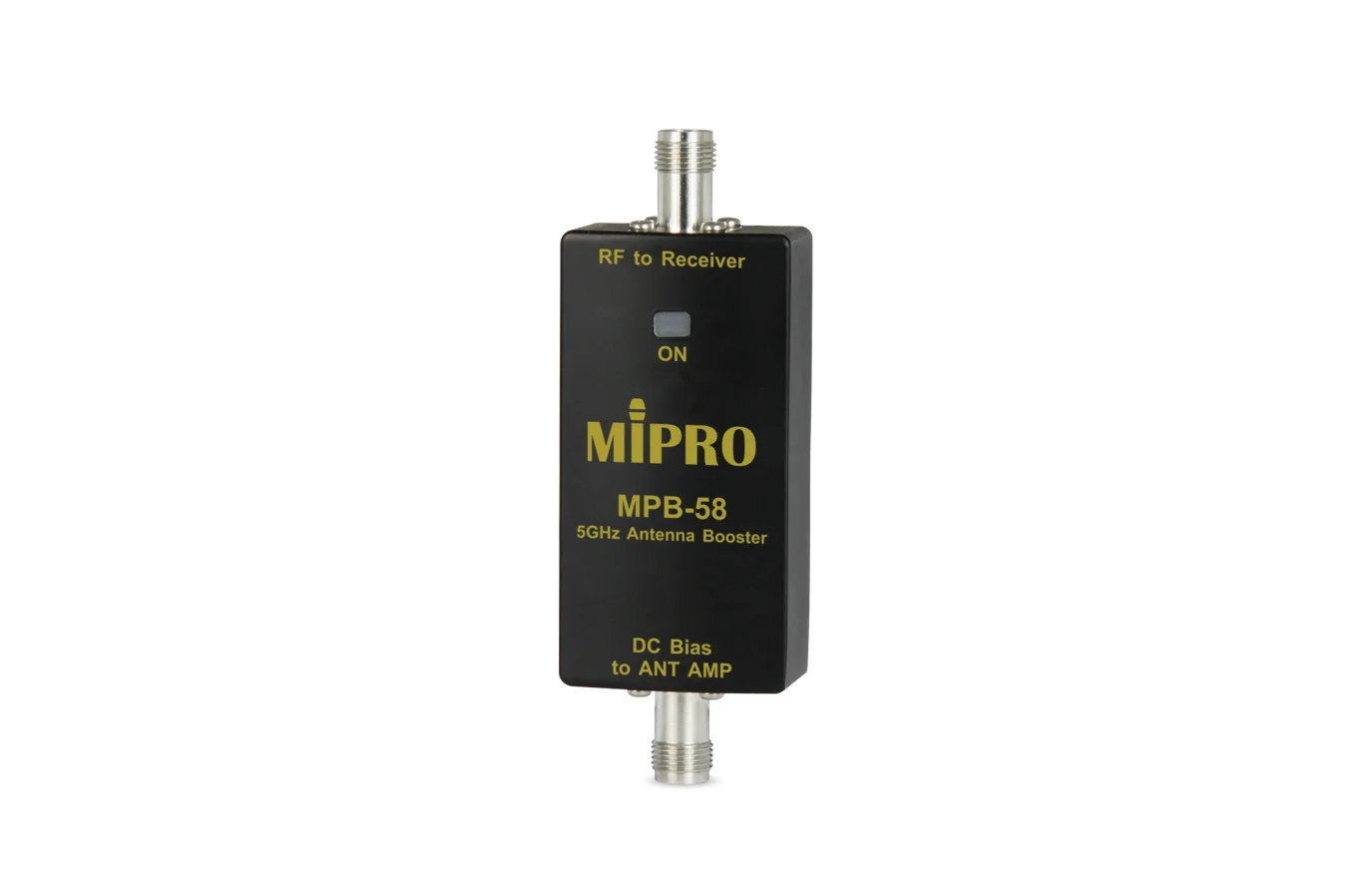

MPB-58

5 GHz Antenna Booster

PRODUCT INQUIRY

DETAILS

The MPB-58 is a 5 GHz antenna booster offering a fixed 20 dB gain, compensating cable loss to improve reception range and stability when used with receivers and the AT-58.

The MPB-58 is a 5 GHz antenna booster offering a fixed 20 dB gain, compensating cable loss to improve reception range and stability when used with receivers and the AT-58.

FEATURES & SPECIFICATION

RELATED PRODUCTS & ACCESSORIES

PRODUCT SUPPORT

UHF、ISM

ISM

Frequency_Range

5.8 GHz

mpb-58_1
mpb-58_1

  • FEATURES & SPECIFICATION

  • RELATED PRODUCTS & ACCESSORIES

  • PRODUCT SUPPORT

    •

    FEATURES

    • Designed for the 5 GHz frequency band, delivering a fixed gain of approximately 20 dB to offset signal loss from long cable runs.
    • Powered via bias voltage from the receiver's antenna port and supports external antenna connections for versatile deployment.
    • Aluminum alloy housing ensures superior heat dissipation and waterproof performance, enhancing system reliability.

    SPECIFICATION

    Model

    MPB-58

    Name

    5 GHz Antenna Booster

    Frequency Range

    ISM 5.8 GHz

    Gain

    Approx. 20 dB (Fixed)

    Input Connector

    1 × TNC

    Output Connector

    1 × TNC

    System Impedance

    50 Ω

    Power Supply

    DC 12 – 24 V

    Power Output

    DC 12 – 24 V (equals to the bias)

    Dimensions

    41 × 80 × 24 mm (W × H × D)

    Weight

    Approx. 260 g

    RELATED PRODUCTS

  • All (1)

  • Antenna Systems (1)

    • at-58_s

    AT-58

    5 GHz Multi-function Directional Log Antenna

    COMPARE

    ACCESSORIES

  • All (3)

  • Cables & Adapters (3)

    •
    fag-10_s

    FAG-10

    Antenna Cable

    fau-10_s

    FAU-10

    Antenna Cable

    fau-20_s

    FAU-20

    Antenna Cable

    DOWNLOADS

  • USER GUIDE

  • SPEC SHEET

    •
    TITLE
    FILES
    SIZE
    DOWNLOAD
    Antenna Boosters
    MPB-24 / MPB-58 (Ver.2022)
    1.53 MB
    MPB-58
    5 GHz Antenna Booster (Ver.2024)
    194.92 KB
