MU-70 | Cardioid Condenser Microphone Capsule Module | MIPRO

Products
Accessories
Handheld Mic Capsules Modules
MU-70
mu-70_1
mu-70_1

MU-70

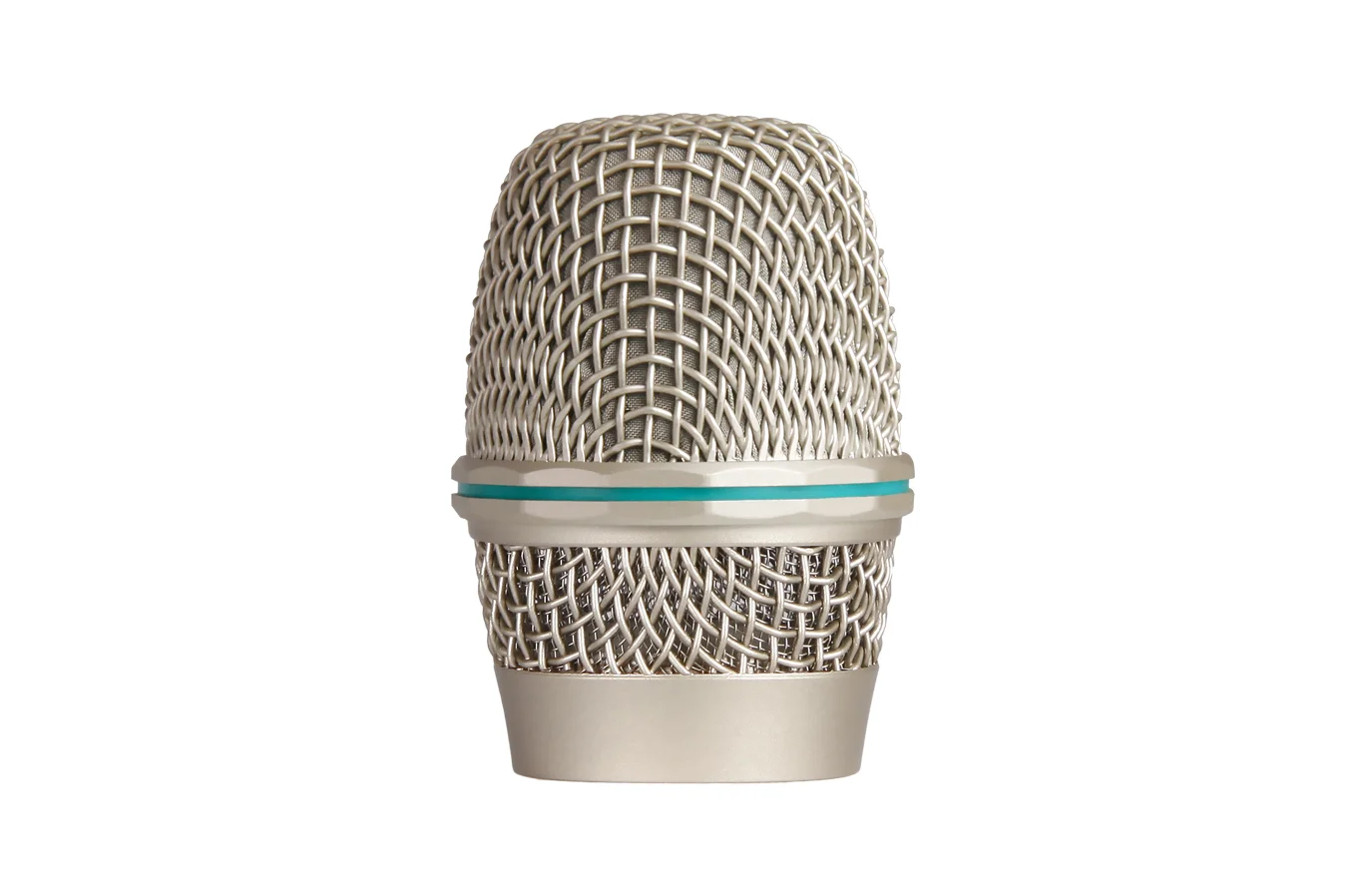

Cardioid Condenser Microphone Capsule Module

PRODUCT INQUIRY

DETAILS

Cardioid condenser microphone capsule with natural, sensitive pickup, smooth frequency response, and switchable sensitivity. Well-suited for live vocals and conference settings requiring consistent, intelligible sound.

Cardioid condenser microphone capsule with natural, sensitive pickup, smooth frequency response, and switchable sensitivity. Well-suited for live vocals and conference settings requiring consistent, intelligible sound.

FEATURES & SPECIFICATION

Cardioid

Cardioid

Condenser

Condenser

mu-70_1
mu-70_1

  • FEATURES & SPECIFICATION

    •

    FEATURES

    • Cardioid polar pattern reduces side and rear pickup, suitable for stage vocals and conference applications.
    • High-performance condenser capsule delivers natural tonal quality and fast transient response, faithfully reproducing vocal details.
    • Built-in sensitivity switch adapts flexibly to different volume levels and environments.
    • Smooth frequency response provides clear mids and extended highs, enhancing vocal presence.
    • Detachable upper and lower grille with multi-layer pop filter structure reduces plosives and allows easy cleaning.
    • Durable modular design ensures convenient installation and professional reliability.

    SPECIFICATION

    Model

    MU-70

    Name

    Cardioid Condenser Microphone Capsule Module

    Type

    Condenser

    Polar Pattern

    Cardioid

    Frequency Response

    50 Hz – 18 kHz

    Sensitivity

    -53 dBV/Pa (0 dB / -6 dB switchable)

    Max SPL

    149 dB SPL

    Compatible Models

    MIPRO ACT-32H and other handheld transmitters with the same threaded connector specification. MIPRO MM Series wired microphpones.

    Color

    Champagne gold / black

    Dimensions

    51 × 75 mm (Ø × L)

    Weight

    Approx. 151 g
