MU-80

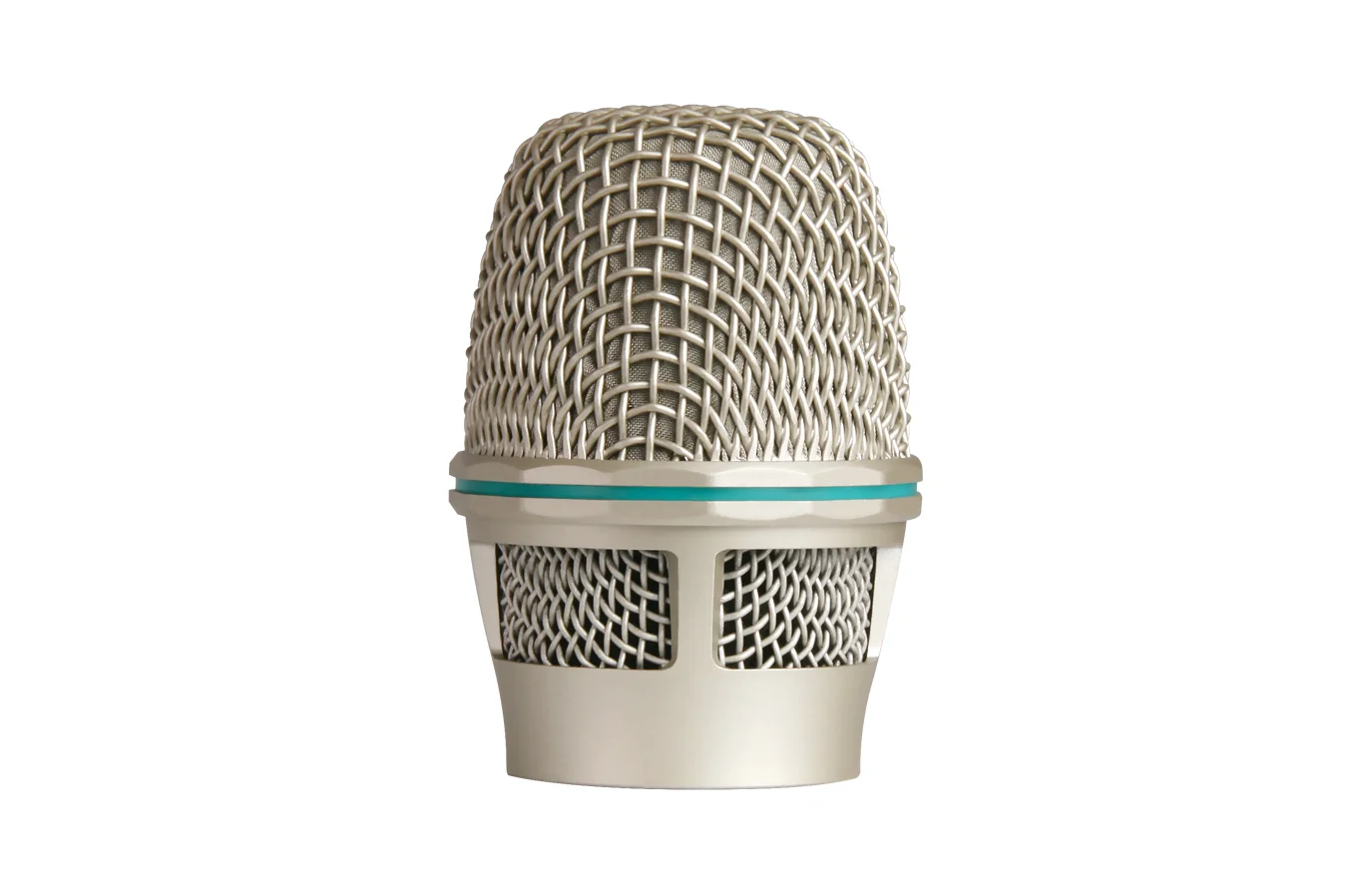

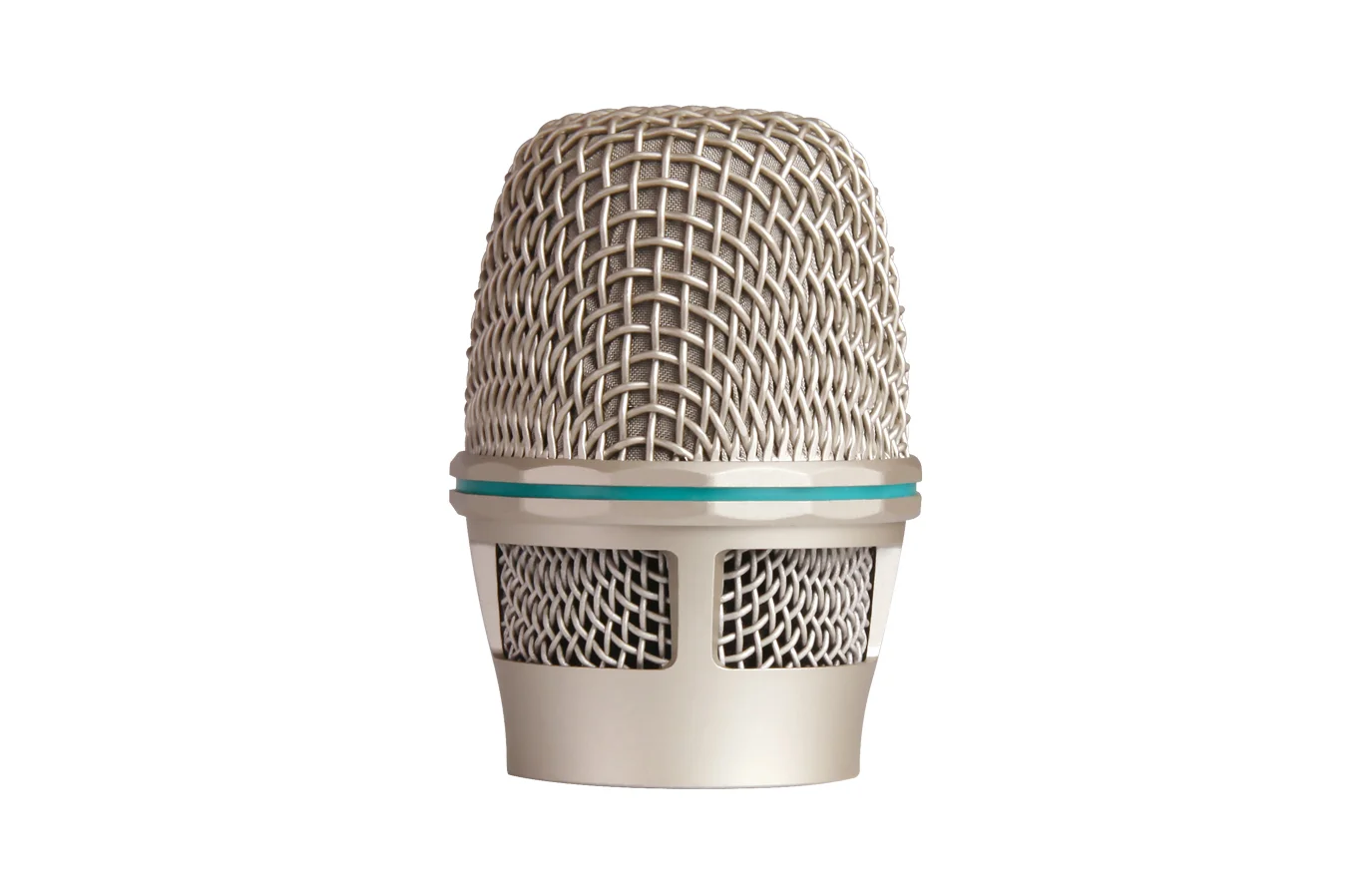

Cardioid Condenser Microphone Capsule Module

PRODUCT INQUIRY

DETAILS

Cardioid condenser microphone capsule with natural sensitivity, smooth frequency response, and switchable sensitivity for flexible use. Suitable for stage vocals, speech, and conference applications where clarity and consistency are essential.

Cardioid condenser microphone capsule with natural sensitivity, smooth frequency response, and switchable sensitivity for flexible use. Suitable for stage vocals, speech, and conference applications where clarity and consistency are essential.

FEATURES & SPECIFICATION

Cardioid

Cardioid

Condenser

Condenser

mu-80_1
mu-80_1

  • FEATURES & SPECIFICATION

    •

    FEATURES

    • Cardioid polar pattern reduces side and rear pickup, ideal for stage vocals and conference applications.
    • High-performance condenser capsule delivers natural sound quality and fast transient response, faithfully reproducing vocal details.
    • Built-in sensitivity switch adapts flexibly to different volume levels and environments.
    • Smooth frequency response provides natural mids with enhanced highs, making vocals clearer and more vibrant.
    • Detachable upper and lower grille with multi-layer pop filter structure reduces plosives and allows easy cleaning.
    • Durable modular design ensures convenient installation and professional reliability.

    SPECIFICATION

    Model

    MU-80

    Name

    Cardioid Condenser Microphone Capsule Module

    Type

    Condenser

    Polar Pattern

    Cardioid

    Frequency Response

    50 Hz – 19 kHz

    Sensitivity

    -53 dBV/Pa (0 dB / -6 dB switchable)

    Max SPL

    149 dB SPL

    Compatible Models

    MIPRO ACT-32H and other handheld transmitters with the same threaded connector specification. MIPRO MM Series wired microphpones.

    Color

    Champagne gold / black

    Dimensions

    51 × 75 mm (Ø × L)

    Weight

    Approx. 139 g
