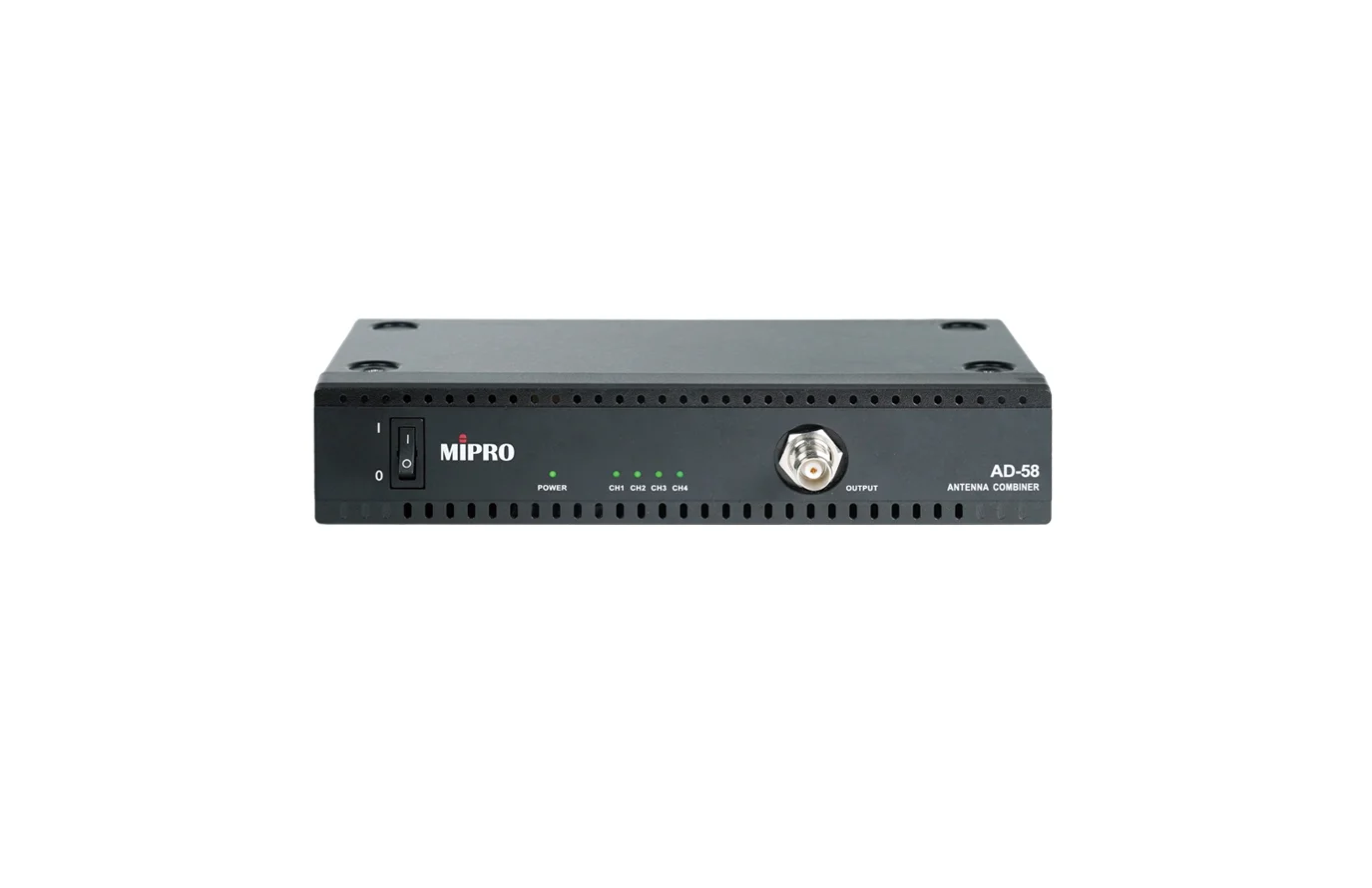

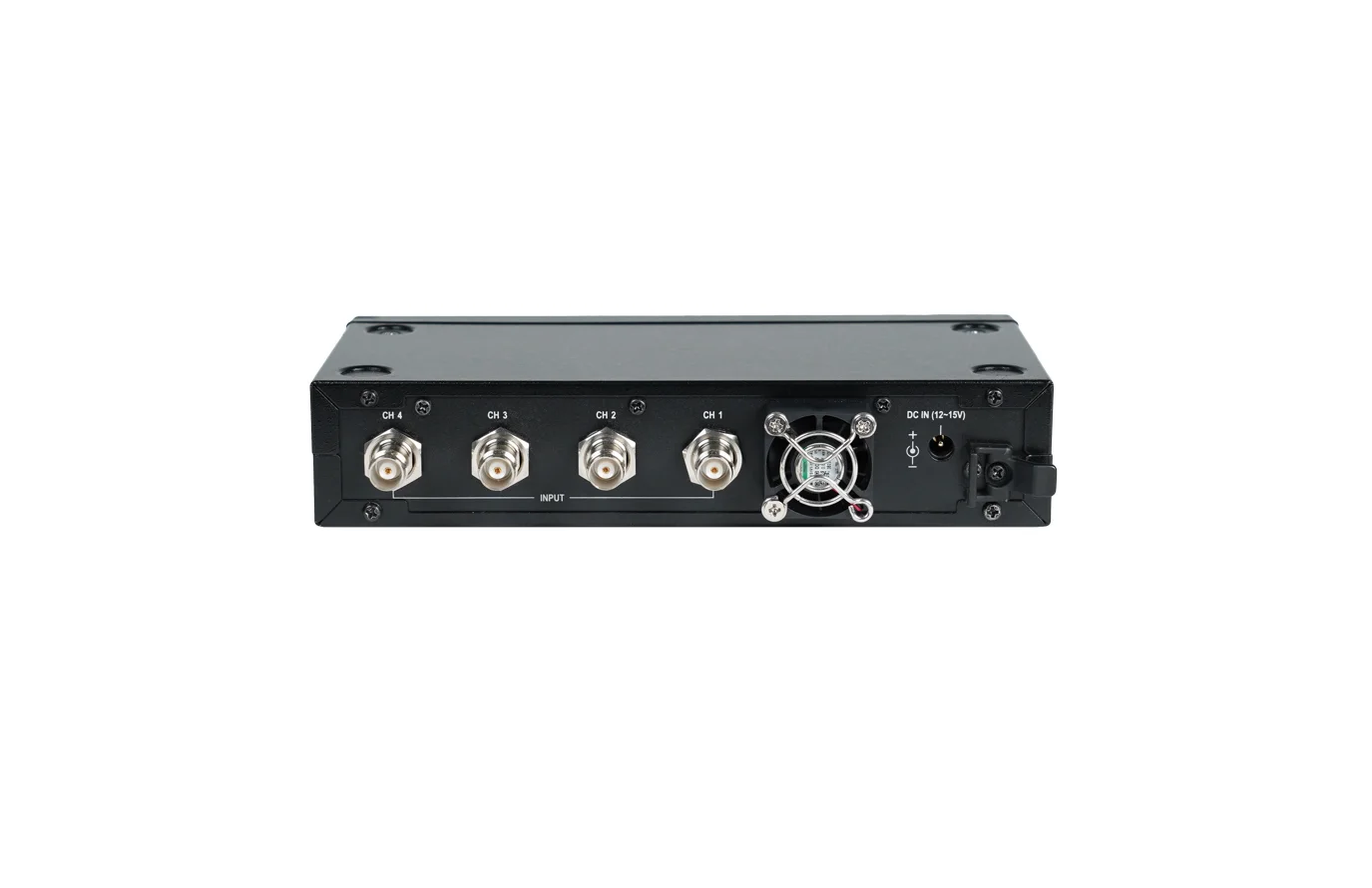

AD-58

5 GHz 4-Channel Transmitting Antenna Combiner

PRODUCT INQUIRY

DETAILS

The AD-58 is a 5 GHz combiner that merges up to four MI-58 transmitters into a single antenna output. With a built-in 10 dB amplifier and overload indicators, it simplifies installation and ensures clean, interference-free IEM transmission.

The AD-58 is a 5 GHz combiner that merges up to four MI-58 transmitters into a single antenna output. With a built-in 10 dB amplifier and overload indicators, it simplifies installation and ensures clean, interference-free IEM transmission.

FEATURES & SPECIFICATION

RELATED PRODUCTS & ACCESSORIES

PRODUCT SUPPORT

UHF、ISM

ISM

Frequency_Range

5 GHz

ad-58_1
ad-58_2
ad-58_1
ad-58_2

  • FEATURES & SPECIFICATION

  • RELATED PRODUCTS & ACCESSORIES

  • PRODUCT SUPPORT

    •

    FEATURES

    • Combines up to four 5 GHz MI-58T / MI-58TD transmitters into a single antenna output, streamlining antenna infrastructure.
    • Built-in high-linearity amplifier reduces signal loss and intermodulation distortion, ensuring clear and stable output quality.
    • Reduces interference from multiple antennas and simplifies adjustments, enhancing multi-channel transmission stability and reliability.

    SPECIFICATION

    Model

    AD-58

    Name

    5 GHz 4-Channel Transmitting Antenna Combiner

    Frequency Range

    ISM 5.6 – 5.9 GHz

    Gain

    10 dB

    Max. RF Input Power

    < 13 dBm (Approx. 20 mW)

    Intermodulation Distortion

    > 55 dBc

    System Impedance

    50 Ω

    Input Connectors

    4 × TNC

    Output Connectors

    1 × TNC

    Power Supply

    DC 12 – 15 V, AC 100 – 240 V

    Dimensions

    210 × 44 × 101 mm (W × H × D)

    Weight

    Approx. 840 g

    RELATED PRODUCTS

  • All (2)

  • IEM Systems (2)

    • mi-58t_s

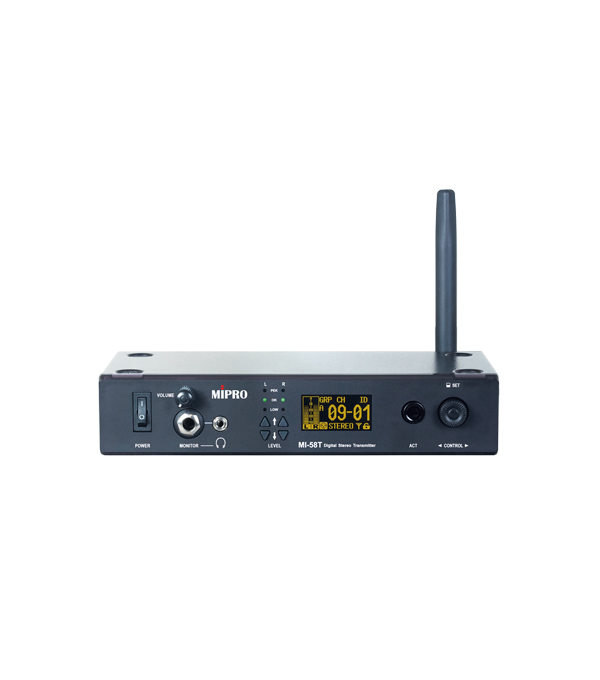

    MI-58T

    5 GHz Digital Stereo Transmitter

    COMPARE

    mi-58td_s

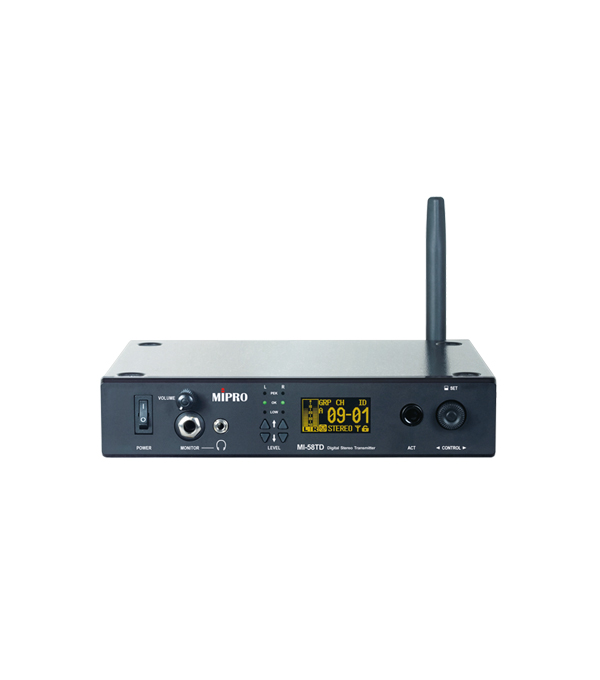

    MI-58TD

    5 GHz Digital Stereo Transmitter

    COMPARE

    DOWNLOADS

  • USER GUIDE

  • SPEC SHEET

    •
    TITLE
    FILES
    SIZE
    DOWNLOAD
    AD-58
    ISM 4-Channel Active Antenna Combiner (Ver.2025)
    1.71 MB
    AD-58
    5 GHz 4-channel Transmitting Antenna Combiner (Ver.2025)
    295.53 KB
