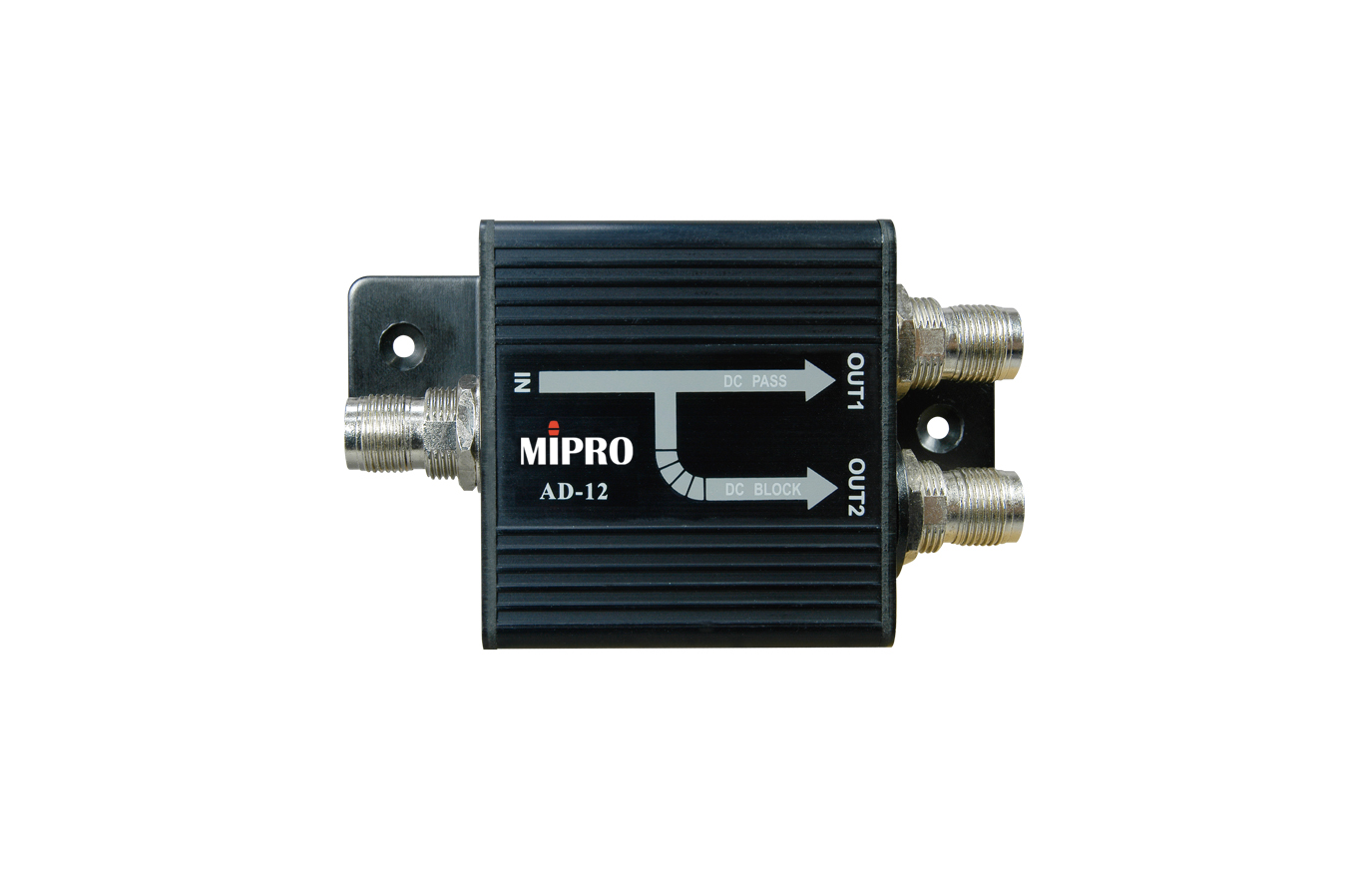

AD-12

UHF Passive Antenna Divider / Combiner

PRODUCT INQUIRY

DETAILS

The AD-12 is a passive UHF antenna divider/combiner supporting 1-to-2 or 2-to-1 configurations for multi-receiver systems.

The AD-12 is a passive UHF antenna divider/combiner supporting 1-to-2 or 2-to-1 configurations for multi-receiver systems.

FEATURES & SPECIFICATION

PRODUCT SUPPORT

UHF、ISM

UHF

ad-12_1
ad-12_1

  • FEATURES & SPECIFICATION

  • PRODUCT SUPPORT

    •

    FEATURES

    • Distributes one antenna signal to two receivers, or combines two antenna signals into one receiver, offering flexible configurations for multi-channel reception.
    • Compatible with MPB-30 booster and MP-10 power supply to integrate long-distance antenna signals and minimize cable loss.
    • Passive distribution and power isolation design reduce ground loop noise and enhance system stability.

    SPECIFICATION

    Model

    AD-12

    Name

    UHF Passive Antenna Divider / Combiner

    Frequency Range

    UHF 470 – 1000 MHz

    Gain

    N/A (Attenuation typ. < 3.5 dB)

    Max. RF Input Power

    30 dBm (1 W)

    System Impedance

    50 Ω

    Input Connectors

    TNC × 1

    Output Connectors

    TNC × 2

    Dimensions

    55 × 90 × 25 mm (W × H × D)

    Weight

    Approx. 110 g

    DOWNLOADS

  • SPEC SHEET

    •
    TITLE
    FILES
    SIZE
    DOWNLOAD
    AD-12
    UHF Passive Antenna Divider / Combiner (Ver.2024)
    195.75 KB
