MI-58R | 5 GHz Digital Stereo Bodypack Receiver | MIPRO

Products
IEM Systems
MI-58 Series
MI-58R
mi-58r_1
mi-58r_1

COMPARE

MI-58R

5 GHz Digital Stereo Bodypack Receiver

OVERVIEW

PRODUCT INQUIRY

DETAILS

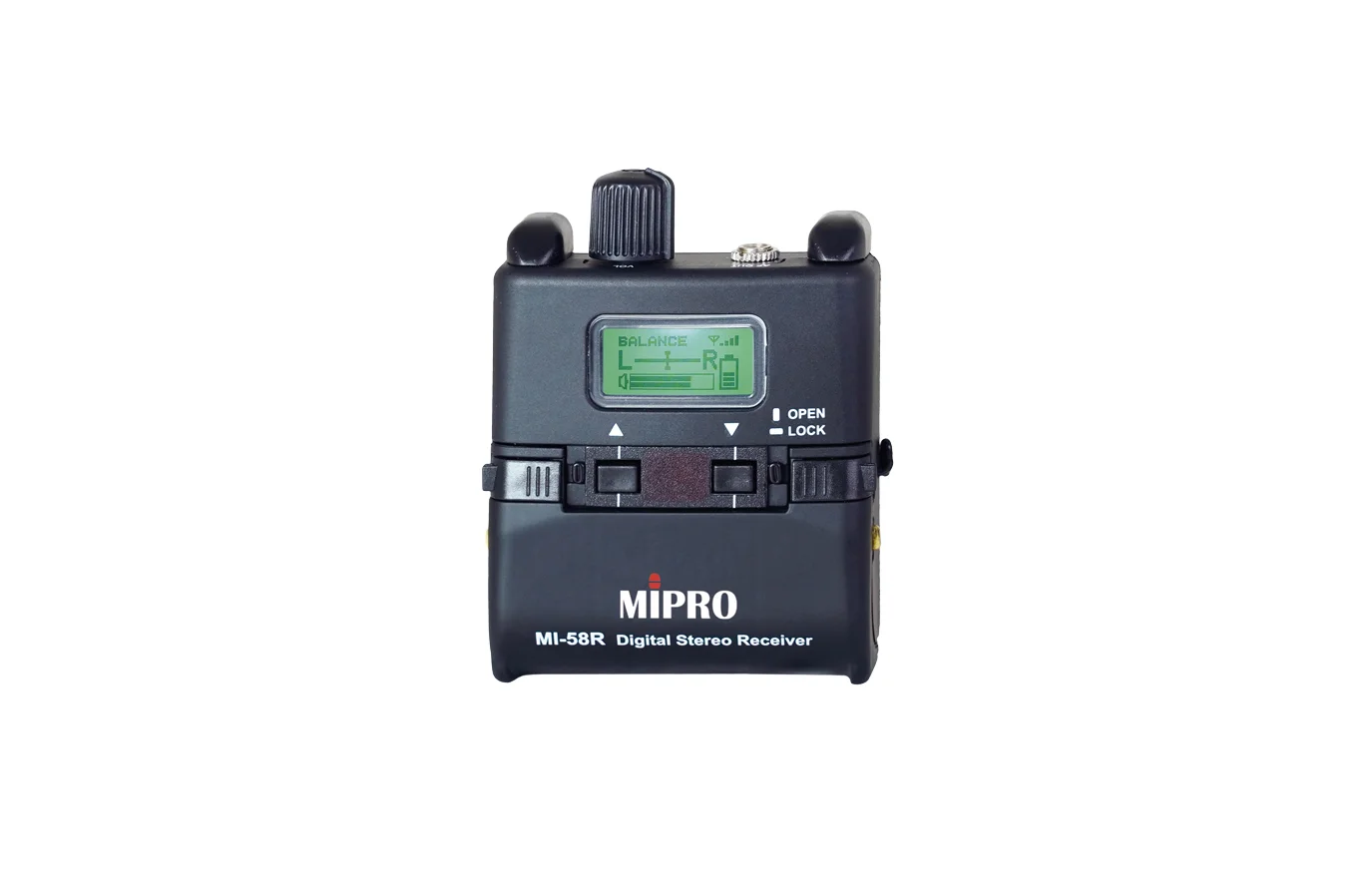

The MI-58R is a 5.8 GHz digital in-ear monitor receiver with low-latency transmission supporting Stereo and Mixed modes. It integrates a 18500 Li-ion battery with a charging dock, offering a lightweight solution for rehearsals and performances.

The MI-58R is a 5.8 GHz digital in-ear monitor receiver with low-latency transmission supporting Stereo and Mixed modes. It integrates a 18500 Li-ion battery with a charging dock, offering a lightweight solution for rehearsals and performances.

FEATURES & SPECIFICATION

RELATED PRODUCTS & ACCESSORIES

PRODUCT SUPPORT

Digital

Digital

rx-mode

True Diversity

UHF、ISM

ISM

Frequency_Range

5.8 GHz

VFD

LCD

ACT_Sync

ACT Sync

DSP

DSP

EQ

EQ

Level_Indicator

Level Indicator

3.5_mm

3.5 mm

Engineer_Mode

Engineer Mode

mi-58r_1
mi-58r_1

  • FEATURES & SPECIFICATION

  • RELATED PRODUCTS & ACCESSORIES

  • PRODUCT SUPPORT

    •

    FEATURES

    • Ultra-compact reinforced polymer housing for outstanding durability and easy portability.
    • Operates in the ISM 5 GHz band, delivering stable, high-fidelity wireless reception with excellent interference resistance.
    • True diversity reception technology ensures consistent signal stability and reliability.
    • Offers STEREO and MIXED audio modes to meet diverse monitoring requirements.
    • 4-band EQ for fine-tuning tonal performance to suit venues or personal preferences.
    • Exceptional stereo separation (>100 dB) delivers precise spatial imaging and rich audio detail.
    • 3.5 mm stereo earphone jack compatible with MIPRO professional monitoring earphones and most standard earphones.
    • Powered by a built-in 18500 Li-ion battery, with over 8 hours of operation and recharge via MP-8 charging dock.

    SPECIFICATION

    Model

    MI-58R

    Name

    5 GHz Digital Stereo Bodypack Receiver

    Housing

    Reinforced plastic

    Display

    Backlit graphic LCD

    Control Interface

    ACT sync sensor, setting buttons and volume control

    Frequency Range

    ISM 5.8 GHz

    Receiving Mode

    True diversity

    Audio Mode

    STEREO / MIXED

    L / R Balance Adjustment

    Allows shifting the stereo output toward the left or right channel.

    ENG Mode

    Yes, up to 16 sets (requires transmitter setup)

    EQ

    FLAT / LO-CUT / LO-BOT / HI-BOT

    Frequency Response

    20 Hz – 23 kHz (stereo)

    Dynamic Range

    ≥ 109 dBA (system)

    Stereo Separation

    > 100 dB

    THD

    < 0.1% @ 1 kHz

    Latency

    Approx. 1.8 ms (group B)

    Sensitivity

    5 μV (S/N > 100 dB)

    Output Power

    Left/Right × 100 mW @ 16 Ω

    Earphone Jack

    3.5 mm TRS

    Power Supply

    One 18500 Li-ion battery

    Battery Charging

    MP-8 charging dock

    Operating Time

    > 8 hours

    Accessories

    E-9 / E-8S earphones (optional)

    Dimensions

    63 × 85 × 26 mm (W × H × D)

    Weight

    Approx. 75 g

    ACCESSORIES

  • All (3)

  • Earphones & Headphones (1)

  • Rechargeable Batteries (1)

  • Chargers & Storage Cases (1)

    •
    e-8s_s

    E-8S

    Standard In-Ear Stereo Earphones

    mb-5_s

    MB-5

    18500 Li-ion Battery

    mp-8_s

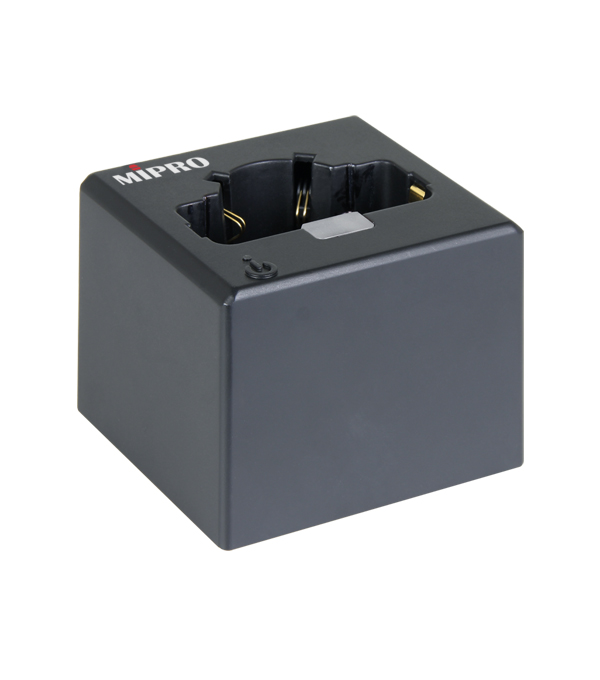

    MP-8

    Single-slot Charger

    RELATED VIDEOS

    MI-58_Series_Digital_Wireless_IEM_System

    MI-58 Series Digital Wireless IEM System
    MI-58_Series_Band_Practice

    MI-58 Digital Wireless IEM System with Band Practice
    MI-58_Series_Live_Performance

    MI-58 Digital Wireless IEM System with Live Performance
    MI-58_Series_Solo_Performance

    MI-58 Digital Wireless IEM System with Solo Performance

    DOWNLOADS

  • USER GUIDE

  • SPEC SHEET

    •
    TITLE
    FILES
    SIZE
    DOWNLOAD
    MI-58R
    Digital Stereo Bodypack Receiver
    2.47 MB
    MI-58R
    5 GHz Digital Stereo Bodypack Receiver (Ver.2024)
    222.24 KB
