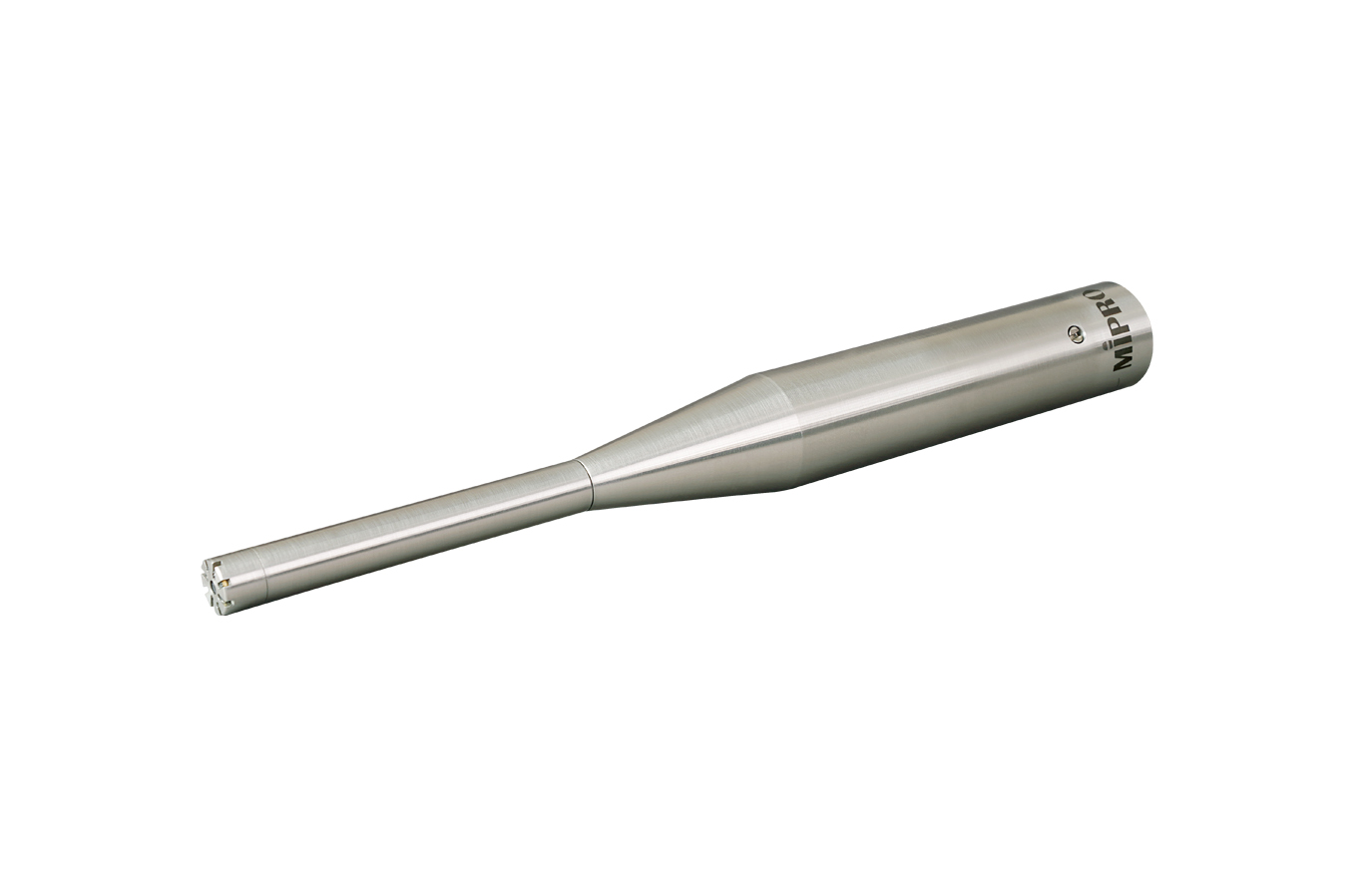

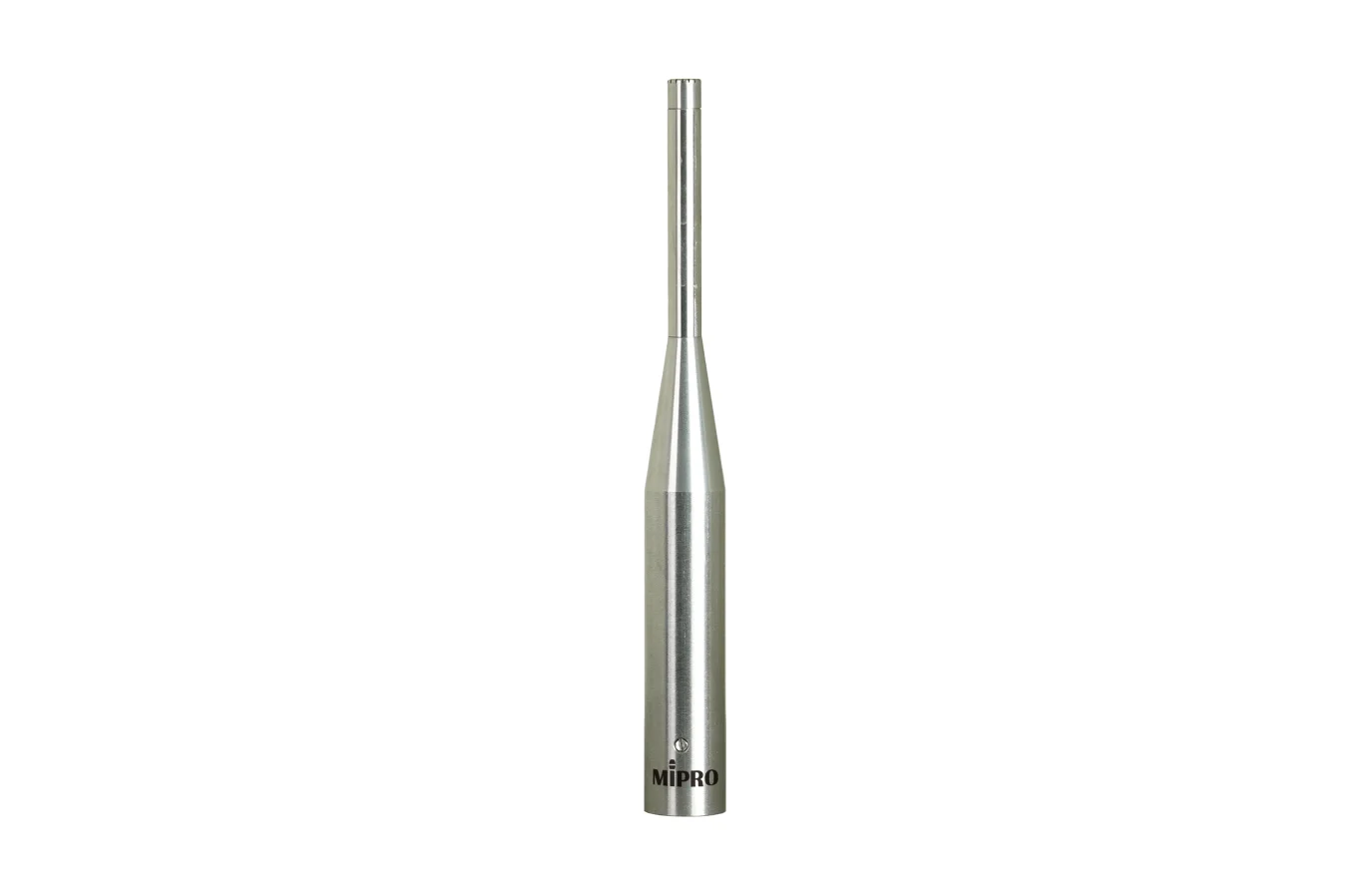

MM-100

Omnidirectional Measurement Microphone

PRODUCT INQUIRY

DETAILS

The MM-100 is an omnidirectional measurement microphone featuring a flat frequency response and a high signal-to-noise ratio, making it suitable for acoustic measurements and analysis. Its stainless-steel construction ensures long-term durability and stability.

The MM-100 is an omnidirectional measurement microphone featuring a flat frequency response and a high signal-to-noise ratio, making it suitable for acoustic measurements and analysis. Its stainless-steel construction ensures long-term durability and stability.

FEATURES & SPECIFICATION

RELATED PRODUCTS & ACCESSORIES

PRODUCT SUPPORT

Omni_Antenna

Omnidirectional

Condenser

Condenser

3_Pin_XLR

3-Pin XLR

mm-100_1
mm-100_2
mm-100_1
mm-100_2

  • FEATURES & SPECIFICATION

  • RELATED PRODUCTS & ACCESSORIES

  • PRODUCT SUPPORT

    •

    FEATURES

    • Omnidirectional condenser capsule captures environmental sound with precision, ideal for professional acoustic measurement and various instruments.
    • Wide, flat frequency response ensures accurate reproduction across the full audio spectrum.
    • High sensitivity and low self-noise deliver clear, detailed audio.
    • Durable stainless-steel body suitable for all professional applications.

    SPECIFICATION

    Model

    MM-100

    Name

    Omnidirectional Measurement Microphone

    Polar Pattern

    Omnidirectional

    Capsule Type

    Condenser

    Frequency Response

    20 Hz – 20 kHz

    Sensitivity

    -36 ± 1 dBV/Pa @ 1 kHz

    Residual Noise

    < 18 dBA SPL

    S/N Ratio

    > 75 dB @ 94 dB SPL

    Max SPL

    125 dB SPL

    Dynamic Range

    >120 dB

    Output Impedance

    200 Ω

    Output Jack

    3-Pin XLR

    Power Supply

    +12 – 48V phantom power, 2 mA

    Housing & Construction

    All stainless

    Dimensions

    19 × 168 mm (Ø × L)

    Weight

    Approx. 110 g

    RELATED PRODUCTS

  • All (2)

  • Wireless Systems (2)

    • ta-80_s

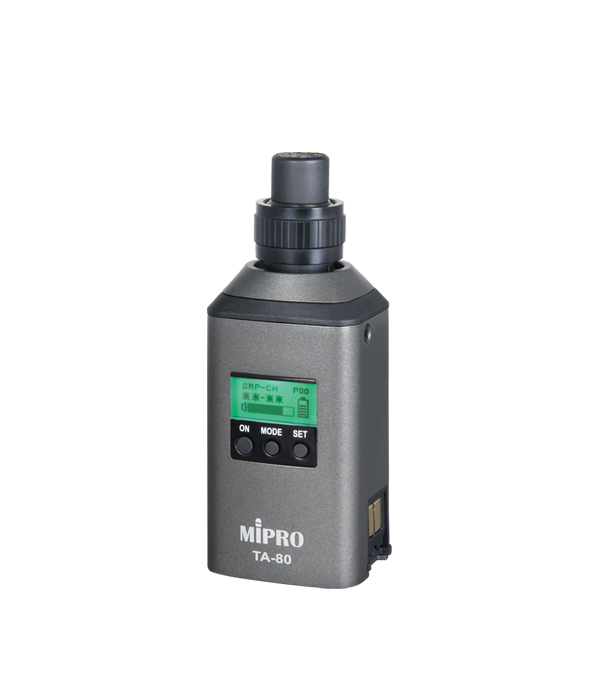

    TA-80

    UHF Digital Plug-on Transmitter

    ta-58_s

    TA-58

    5 GHz Digital Plug-on Transmitter

    DOWNLOADS

  • SPEC SHEET

    •
    TITLE
    FILES
    SIZE
    DOWNLOAD
    MM-100
    Omnidirectional Measurement Microphone (Ver.2024)
    229.71 KB
