MI-58TD | 5 GHz Digital Stereo Transmitter | MIPRO

COMPARE

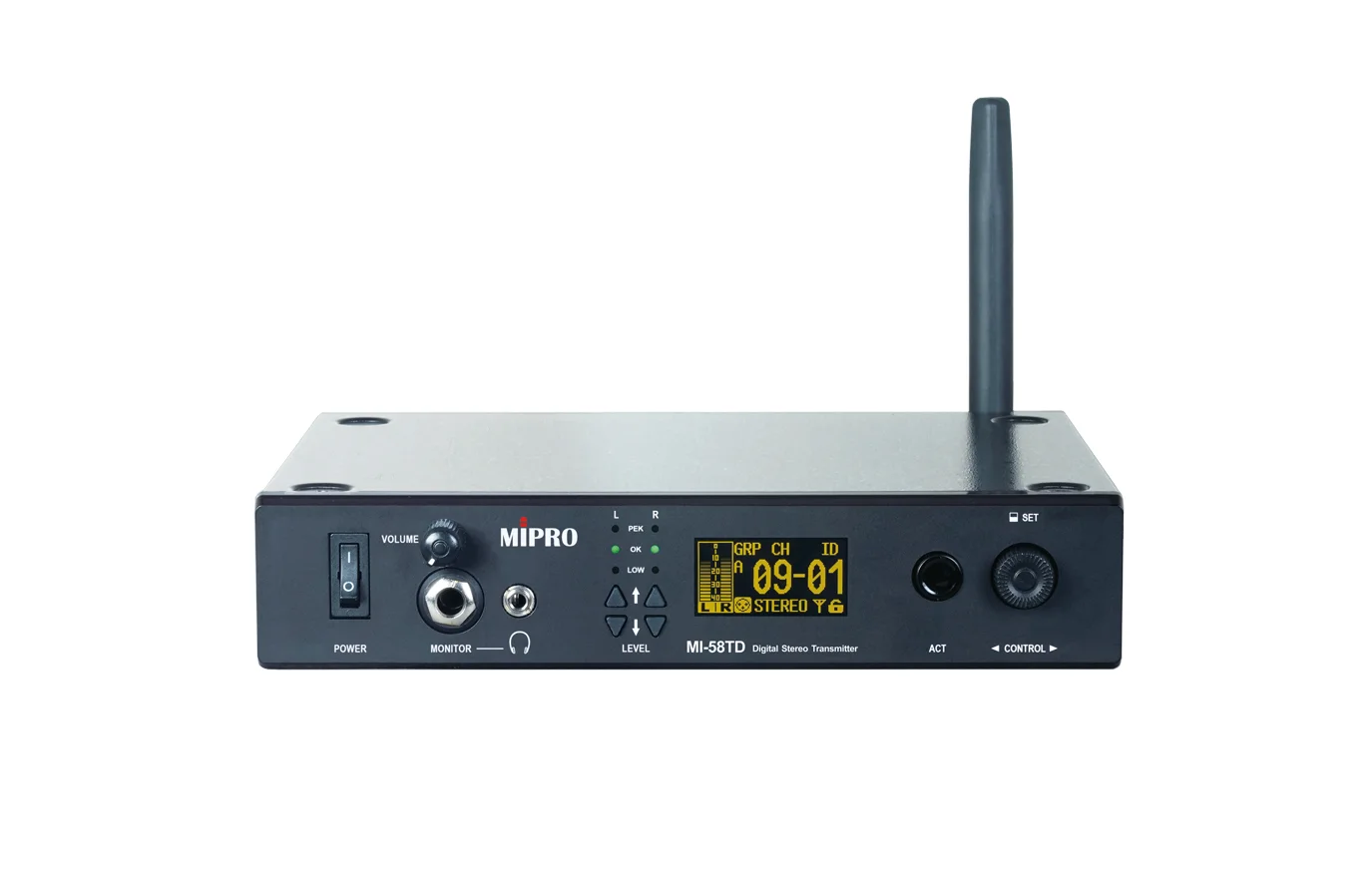

MI-58TD

5 GHz Digital Stereo Transmitter

FEATURES & SPECIFICATION

RELATED PRODUCTS & ACCESSORIES

PRODUCT SUPPORT

Digital

ISM

5.8 GHz

OLED

ACT Sync

ACT-BUS

Dante

Level Indicator

Engineer Mode

  • FEATURES & SPECIFICATION

  • RELATED PRODUCTS & ACCESSORIES

  • PRODUCT SUPPORT

  • FEATURES

    • Offering all the features of the MI-58T with added Dante networking, the MI-58TD is purpose-built for integrated AV environments.
    • Operates in the ISM 5 GHz band with high-efficiency digital modulation, ensuring stable, interference-resistant audio transmission.
    • Dual-group design: Group A with 12 channels, and Group B with subgroups B1 and B2, each offering 12 channels for flexible deployment.
    • Each channel supports 64 user IDs and one encrypted ID for secure, interference-free multi-system operation.
    • OLED display and jog wheel provide intuitive control, with a lock function to avoid accidental changes.
    • XLR / 6.3 mm combo input supports balanced and unbalanced sources; 6.3 mm LOOP OUT enables signal pass-through to other devices.
    • 6.3 mm and 3.5 mm headphone outputs with adjustable volume for direct monitoring.
    • Pairs with the AD-58 antenna combiner and external antennas to maximize coverage and signal reliability.
    • Built-in Dante interface simplifies integration with digital audio networks, reducing cabling complexity and enabling multi-unit connectivity.

    SPECIFICATION

    Model

    MI-58TD

    Name

    5 GHz Digital Stereo Transmitter

    Chassis

    Half-rack (9.5") metal chassis

    Display

    Graphic OLED

    Control Interface

    Rotary knob, ACT sync button, earphone volume control, AF input gain setting buttons

    Frequency Response

    20 Hz – 23 kHz (stereo)

    Channels

    Group A presets 12 channels. Group B presets 12 channels for each subgroup B1 & B2.

    Encryption

    64 ID codes and 1 encrypted ID are allowed to be set for each channel.

    ENG Mode

    Yes, up to 16 sets (requires receiver setup)

    Modulation Type

    Digital modulation

    Audio Sampling

    48 kHz / 24-bit

    RF Power Output

    < 25 mW (country dependent)

    Dynamic Range

    ≥ 109 dBA (system)

    THD

    < 0.1% @1 kHz

    Max. Input Level

    +24 dBu

    Audio Inputs

    2 × XLR / 6.3 mm TRS combo socket

    Audio Outputs

    2 × 6.3 mm TRS (Loop Out)

    Earphone Jacks

    1 × 6.3 mm and 1 × 3.5 mm TRS

    Network Interface

    Dante

    Management Interface

    RJ-11 × 2

    Antenna Output

    50Ω TNC female connector

    Power Supply

    DC 12–15 V. External AC 100–240 V switching power supply

    Dimensions

    210 × 44 × 162 mm (W × H × D)

    Weight

    Approx. 860 g

    RELATED PRODUCTS

  • All (2)

  • Antenna Systems (2)

  • AT-58

    5 GHz Multi-function Directional Log Antenna

    COMPARE

    AD-58

    5 GHz 4-Channel Transmitting Antenna Combiner

    ACCESSORIES

  • All (3)

  • Control & Interface Solutions (1)

  • Cables & Adapters (1)

  • Rack Mount Kits (1)

  • MES-100

    WebMote Bridge

    FB-71

    Rack Mount Kits

    FBC-72

    Rear-to-Front Cables

    DOWNLOADS

  • USER GUIDE

  • DOC

  • SPEC SHEET

  • TITLE
    FILES
    SIZE
    DOWNLOAD
    IEM Transmitters
    MI-58T / MI-58TD 5.8 GHz Digital Stereo Transmitter (Ver.2023)
    5.41 MB
    IEM Transmitters
    MI-58T / MI-58TD 5.8 GHz Digital Stereo Transmitter
    5.79 MB
    IEM Transmitters
    MI-58T / MI-58TD 5 GHz Digital Stereo Transmitter
    524.75 KB
    MI-58TD
    5 GHz Digital Stereo Transmitter (Ver.2024)
    316.97 KB
