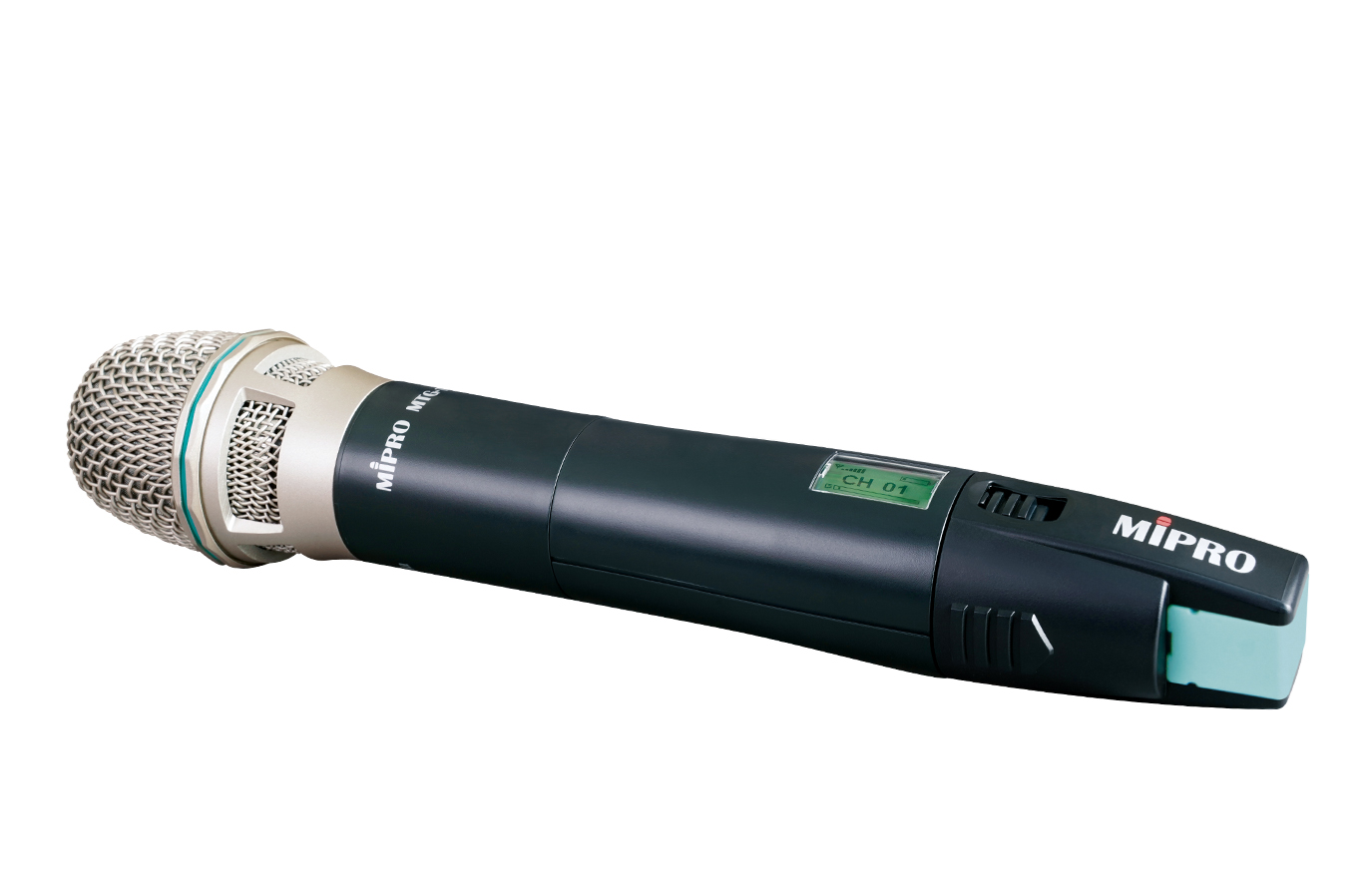

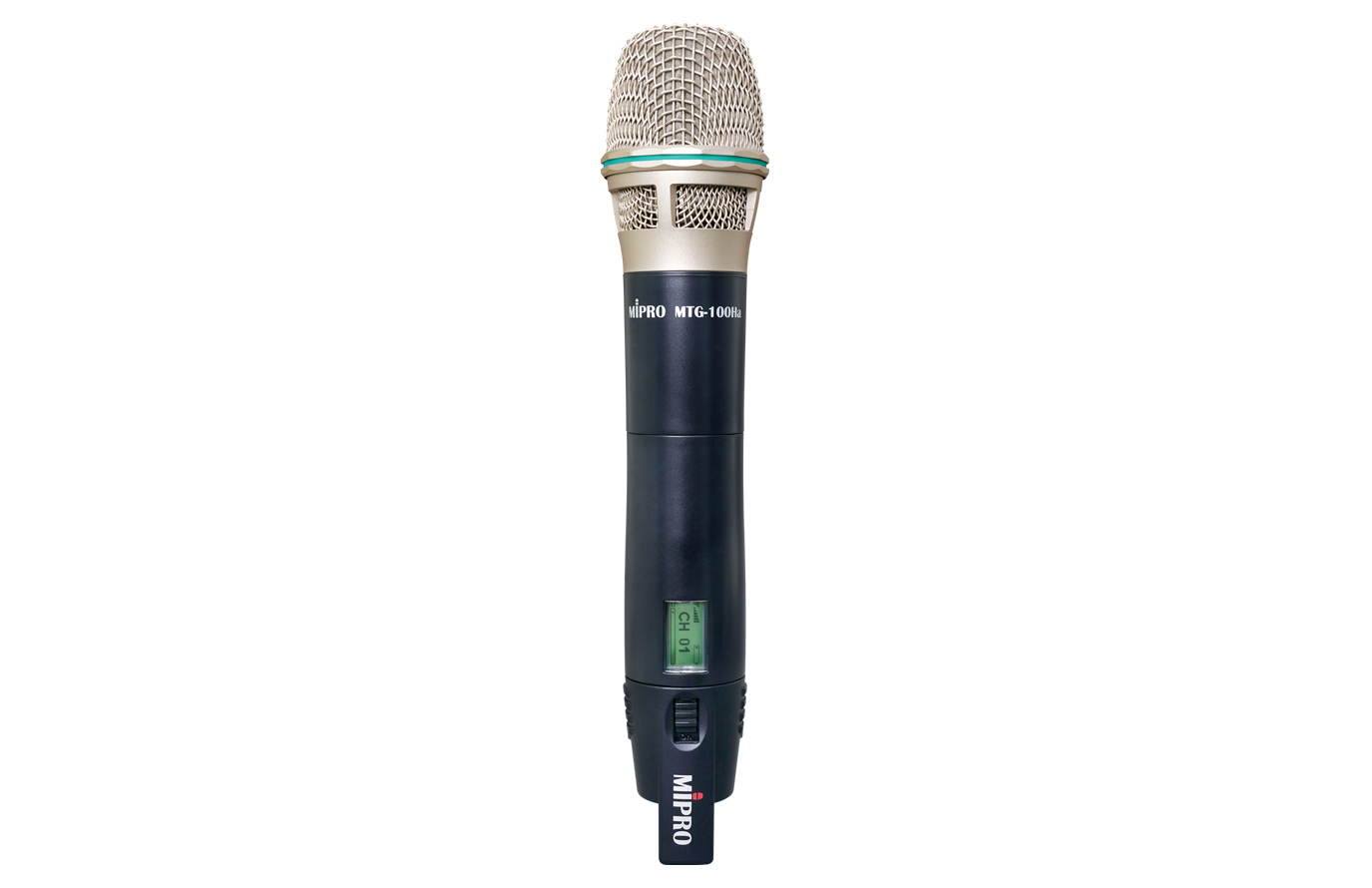

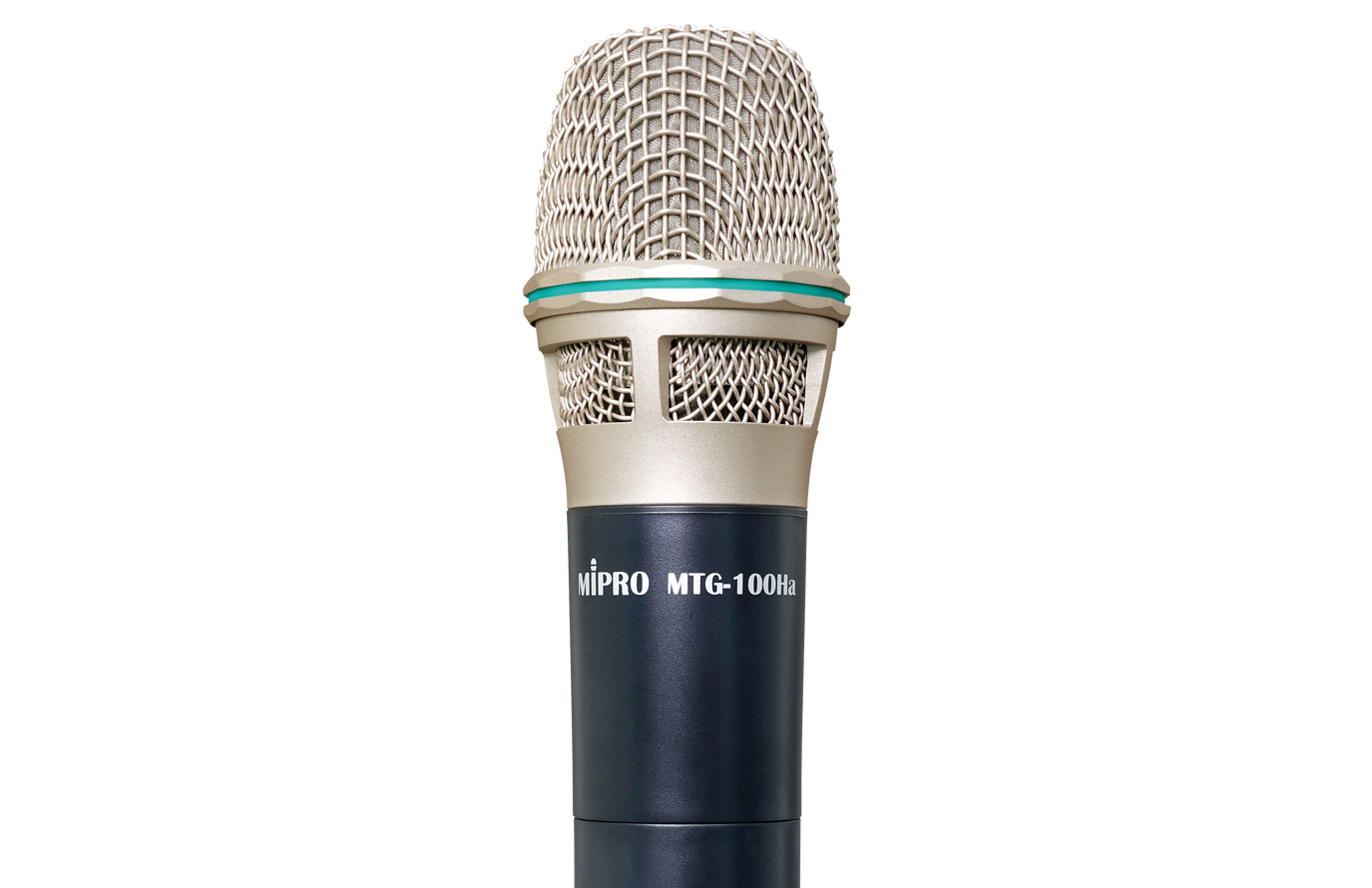

MTG-100Ha

UHF Digital Handheld Transmitter

PRODUCT INQUIRY

FEATURES & SPECIFICATION

RELATED PRODUCTS & ACCESSORIES

PRODUCT SUPPORT

Digital

Digital

UHF、ISM

UHF

VFD

LCD

ACT_Sync

ACT Sync

AA_Battery

AA

mtg-100ha_1
mtg-100ha_2
mtg-100ha_3
mtg-100ha_1
mtg-100ha_2
mtg-100ha_3

  • FEATURES & SPECIFICATION

  • RELATED PRODUCTS & ACCESSORIES

  • PRODUCT SUPPORT

    •

    FEATURES

    • Handheld wireless microphone design delivers clear and natural vocal reproduction.
    • Backlit LCD displays battery and channel information.
    • Operates in 863 – 865 MHz and 926 – 928 MHz international standard bands, compliant with regulations in most countries for license-free use.
    • Equipped with channel selection, gain, and sensitivity adjustment for fine-tuned output levels.
    • Mute button with enable/disable function via internal settings for flexible operation.
    • Provides 16 preset channels, allowing at least three systems to operate simultaneously without interference.
    • Compatible with MTG-100R / MTG-100Ra receivers.

    SPECIFICATION

    Model

    MTG-100Ha

    Name

    UHF Digital Handheld Transmitter

    Frequency Range

    863–865 MHz, 926–928 MHz (country dependent)

    Channels

    16 preset channels

    Modulation Type

    Digital modulation (encryption and interference-resistant)

    RF Power Output

    <10 mW ( High / Mid / Low switchable)

    Display

    Backlit LCD

    Control Interface

    MODE / SET buttons, mute button

    Mic. Capsule Modules

    MU-80 condenser or other compatible capsule modules

    Gain Setting

    -12 to +9 dB / 3 dB per segment

    Power Supply

    2 AA alkaline

    Dimensions

    51 × 258 mm (Ø × L)

    Weight

    Approx. 260 g

    ACCESSORIES

  • All (6)

  • Handheld Mic Capsules Modules (5)

  • Mic Color ID Accessories (1)

    •
    mu-90_s

    MU-90

    Supercardioid Condenser Microphone Capsule Module

    mu-80_s

    MU-80

    Cardioid Condenser Microphone Capsule Module

    mu-70_s

    MU-70

    Cardioid Condenser Microphone Capsule Module

    mu-59_s

    MU-59

    Supercardioid Dynamic Microphone Capsule Module

    mu-39_s

    MU-39

    Supercardioid Dynamic Microphone Capsule Module

    sw-20_s

    SW-20

    Foam Windscreen

    DOWNLOADS

  • BROCHURE

  • SPEC SHEET

    •
    TITLE
    FILES
    SIZE
    DOWNLOAD
    MTG-100 Series
    Digital Wireless Tour Guide System (MTG-100T / MTG-100Ta / MTG-100R / MTG-100Ra / MTG-100Ha / MTG-100C-4 / MTG-100C-12 / MTG-100C-28 / MTG-100C-CR)
    17.92 MB
    MTG-100Ha
    UHF Digital Handheld Transmitter (Ver.2024)
    172.23 KB
