ACT-545

UHF Analog Quad-Channel Receiver

FEATURES & SPECIFICATION

RELATED PRODUCTS & ACCESSORIES

PRODUCT SUPPORT

Analog

True Diversity

UHF

24 MHz

LCD

ACT Sync

ACT-BUS

Dante

  • FEATURES & SPECIFICATION

  • RELATED PRODUCTS & ACCESSORIES

  • PRODUCT SUPPORT

  • FEATURES

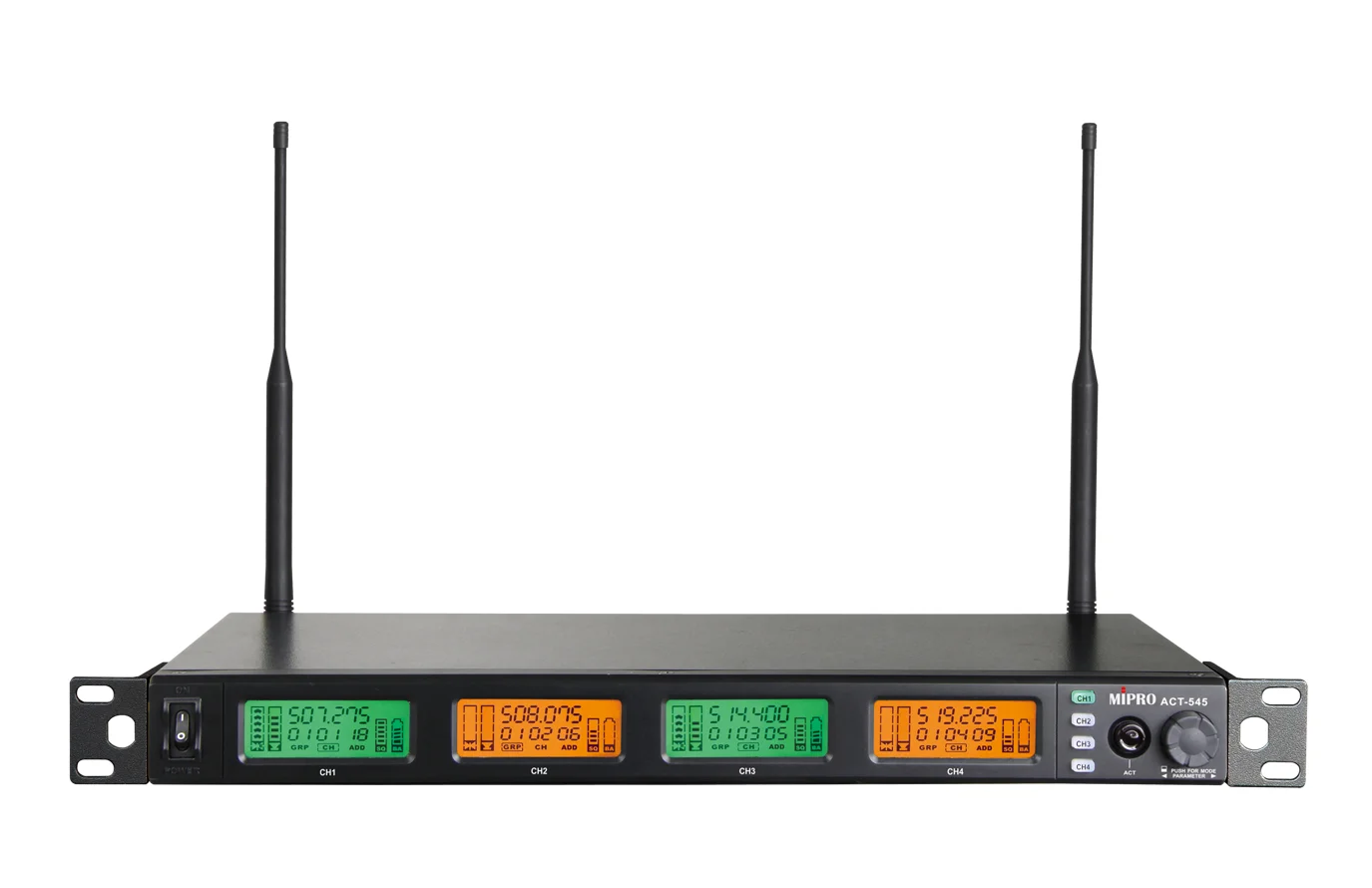

    • Constructed with a rugged metal chassis. The front panel features a dual-color backlit LCD, rotary dial, and channel selection buttons. Display color changes automatically during reception to clearly differentiate between active and standby channels.
    • Equipped with a MIPRO-designed 24 MHz narrowband receiving circuit that reduces noise interference and increases the number of usable channels.
    • Built-in true diversity reception technology ensures stable, uninterrupted long-distance reception.
    • Pioneering dual-squelch system combines pilot tone and noise lock control. Includes a noise indicator and adjustable SQ sensitivity to extend range or reduce interference.
    • Supports Auto Scan and ACT frequency synchronization for fast and accurate frequency setup.
    • Preset with 6 frequency groups totaling 80 channels. A 7th user-defined group allows selection of 16 channels from 961 available frequencies.
    • Each channel’s audio can be output independently or mixed. Features three selectable gain levels to ensure optimal transmitter sensitivity and dynamic range while avoiding distortion.
    • Optional Dante digital audio interface available.
    • Compatible with MIPRO Wireless Console software for PC-based frequency analysis, automatic setup, and interference monitoring to streamline system management.
    • Antenna connectors provide booster bias and support MIPRO’s professional antenna systems for enhanced reception range and signal stability.
    • Powered by an external AC 100 – 240 V switching power supply for stable operation across variable voltages.
    • Compatible with ACT-500 series handheld and bodypack transmitters, and also supports the BC-100T gooseneck microphone transmitter for a wide range of professional applications.
    • Proudly developed and manufactured in Taiwan. Offers excellent quality, professional-grade performance, and outstanding cost-effectiveness.

    SPECIFICATION

    Model

    ACT-545

    Name

    UHF Analog Quad-Channel Receiver

    Channel

    Quad

    Chassis

    Full-rack (19") metal chassis

    Frequency Range

    UHF 480–934 MHz (country dependent)

    Bandwidth

    24 MHz

    Receiving Mode

    True diversity

    Display

    Two-color backlit LCD

    Control Interface

    ACT sync button, channel selection buttons and rotary knob

    Sensitivity

    6 dBμV @ S/N > 80 dB

    Frequency Response

    50 Hz–18 kHz

    Dynamic Range

    > 111 dBA

    Audio Outputs

    Balanced XLR for independent output and mixed XLR & 1/4" (6.3 mm) output with three-level gain: +16 / 0 / -6 dB (balanced), +10 / 0 / -6 dB (unbalanced)

    Network Interface

    Dante or AVB (optional)

    Management Interface

    RJ-11 × 2 for PC software control (requires MIPRO DVU adapter)

    Antenna

    Detachable. 50Ω TNC female connector provides bias for the MIPRO antenna systems.

    Power Supply

    DC 12–15 V. External AC 100–240 V switching power supply

    Dimensions

    420 × 44 × 219 mm (W × H × D)

    Weight

    Approx. 2.4 kg
