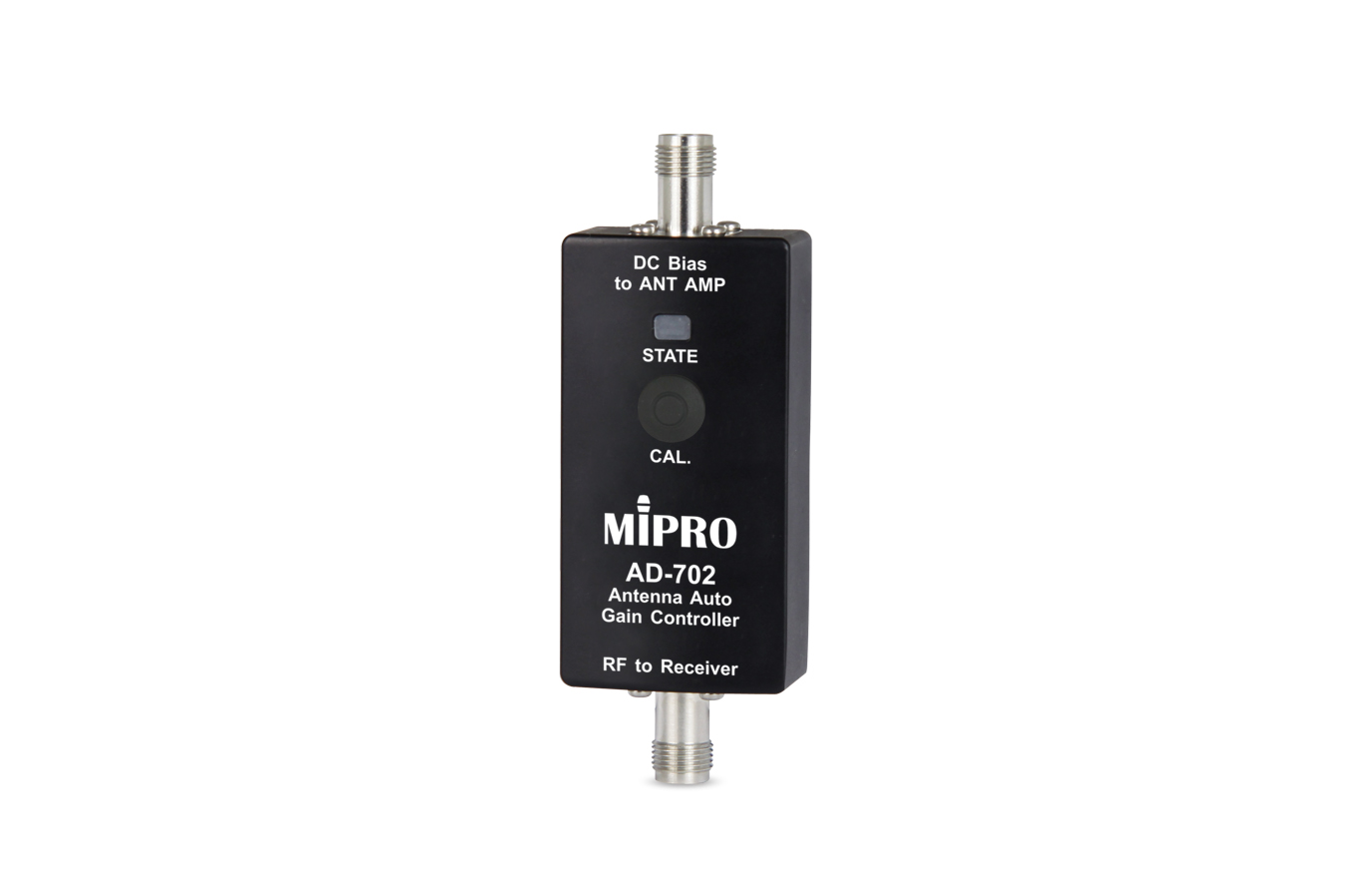

AD-702

UHF Wideband Single-Channel Auto Gain Controller

PRODUCT INQUIRY

DETAILS

The AD-702 automatically detects cable loss and adjusts booster gain to maintain stable RF signal levels, suitable for a wide range of wireless installation setups.

The AD-702 automatically detects cable loss and adjusts booster gain to maintain stable RF signal levels, suitable for a wide range of wireless installation setups.

FEATURES & SPECIFICATION

PRODUCT SUPPORT

UHF、ISM

UHF

ad-702_1
ad-702_1

  • FEATURES & SPECIFICATION

  • PRODUCT SUPPORT

    •

    FEATURES

    • Automatically detects cable loss and compensates with appropriate gain to ensure stable reception and optimal signal strength.
    • Prevents reception distortion caused by excessive booster gain, reducing interference and system instability.
    • One-touch calibration with LED indicators provides clear and intuitive operation.
    • Can be used independently or paired with MPB-30 booster to fine-tune overall gain for different cable lengths.
    • Durable aluminum housing offers excellent heat dissipation and interference resistance for professional environments.

    SPECIFICATION

    Model

    AD-702

    Name

    UHF Wideband Single-Channel Auto Gain Controller

    Frequency Range

    UHF 470 – 850 MHz

    Gain

    -1 dB ± 0.5 dB

    System Impedance

    50 Ω

    Input Connector

    TNC × 1

    Output Connecter

    TNC × 1

    Antenna Input Bias

    DC 8 – 15 V (equals to the input voltage)

    Loss Compensation

    Automatically compensates for cable loss

    Power Supply

    DC 8 – 15 V

    Dimensions

    41 × 80 × 24 mm (W × H × D)

    Weight

    Approx. 226 g

    DOWNLOADS

  • SPEC SHEET

    •
    TITLE
    FILES
    SIZE
    DOWNLOAD
    AD-702
    UHF Wideband Single-channel Auto Gain Controller (Ver.2024)
    198.38 KB
