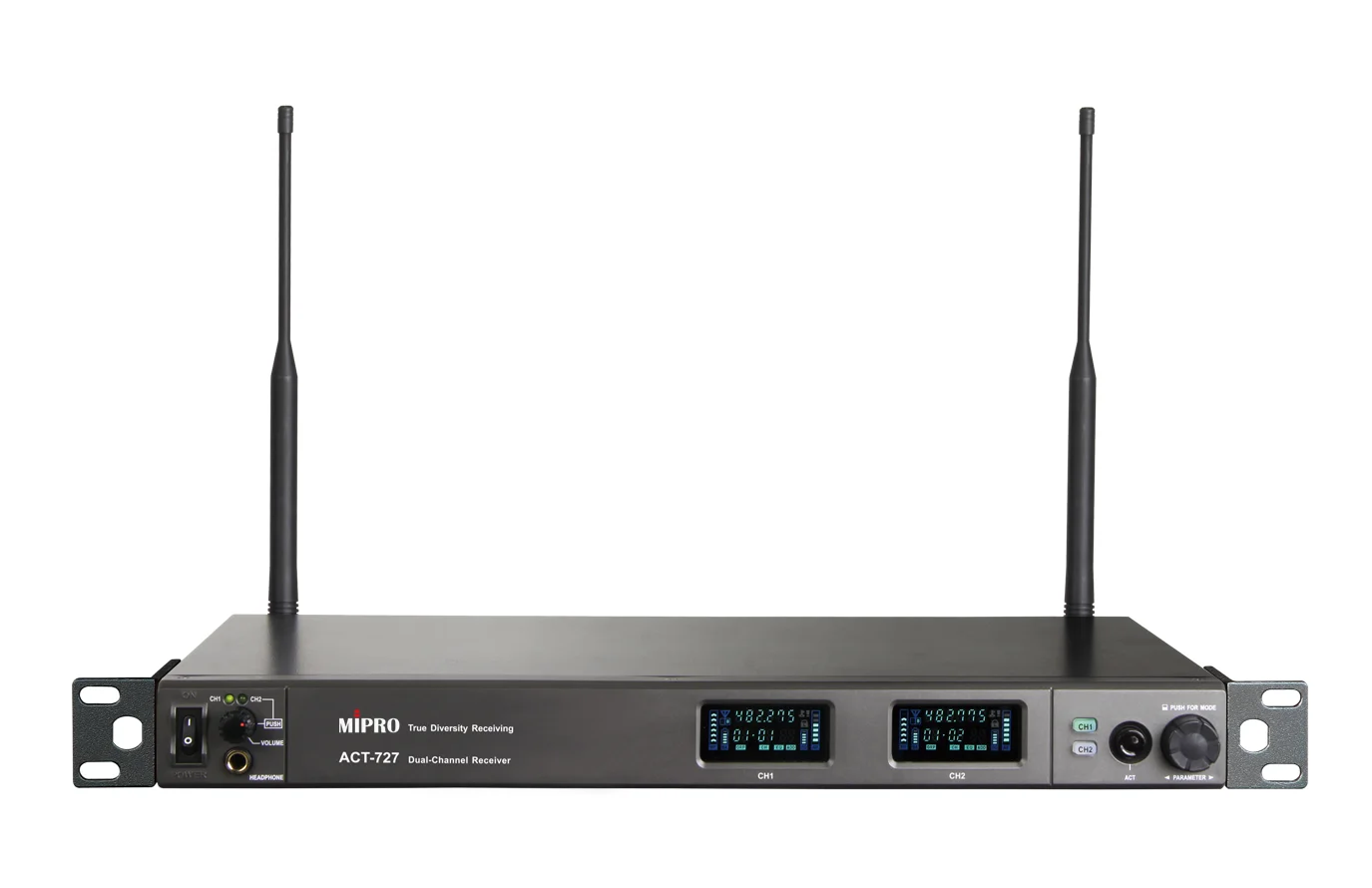

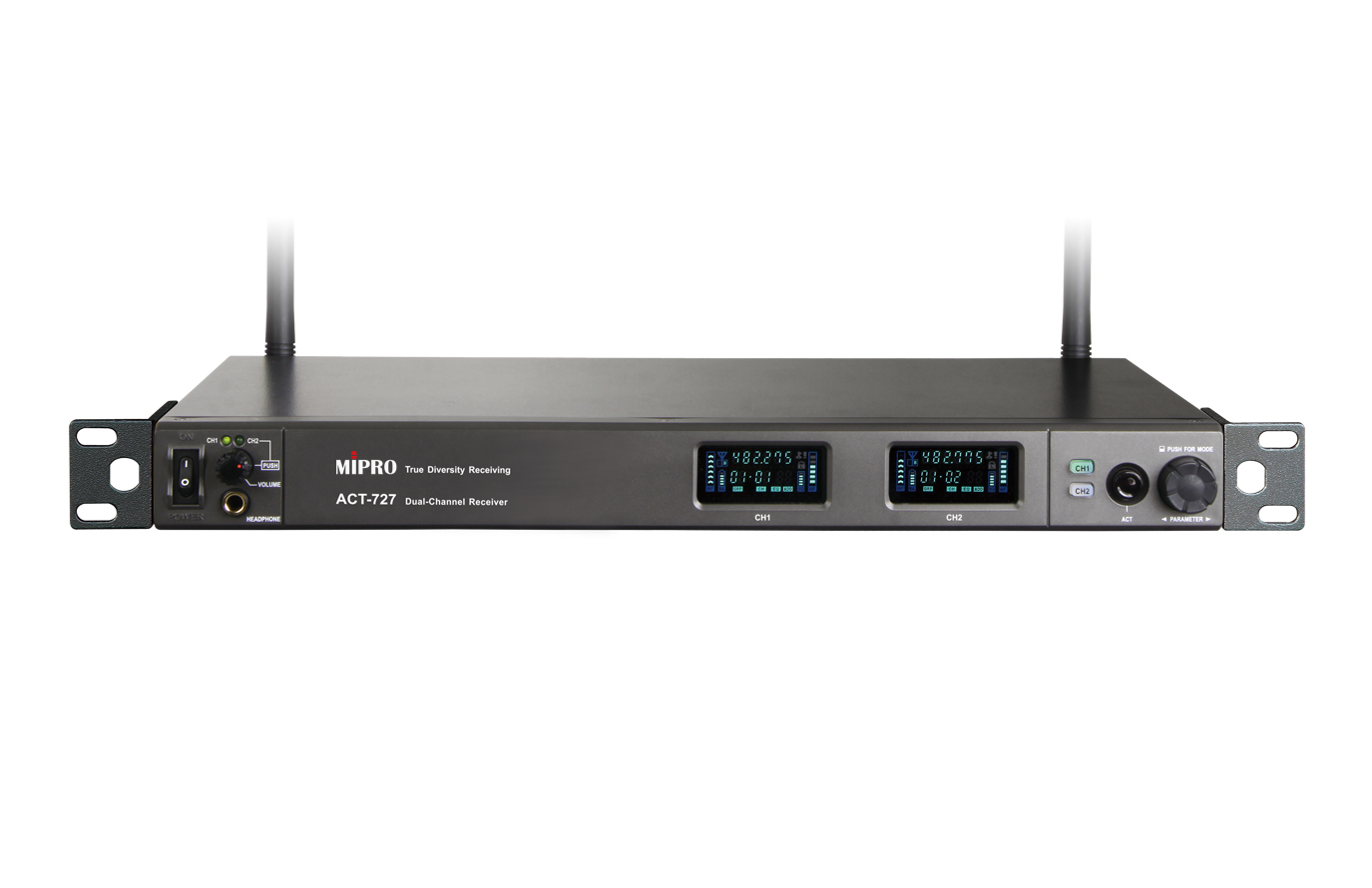

- Constructed with a durable metal chassis. The front panel features a color VFD display, headphone jack, rotary control knob, and channel selection buttons. The screen automatically adjusts brightness during reception to clearly distinguish between active and standby channels.
- Equipped with MIPRO’s proprietary 72 MHz wideband receiving circuit to maximize available channels and minimize intermodulation interference.
- Built-in true diversity reception technology ensures long-range stability with uninterrupted performance.
- Features an exclusive dual-squelch system combining pilot tone and noise-lock control. Includes a noise indicator and adjustable squelch (SQ) level to extend reception range or reduce interference.
- Supports Auto Scan and ACT frequency synchronization for fast and accurate frequency settings.
- Preset with 6 frequency groups totaling 224 channels. A 7th user-defined group allows selection of 16 channels from 2,881 available frequencies.
- Each channel supports either independent or mixed audio output, with three selectable gain levels to maintain optimal sensitivity and dynamic range while avoiding distortion.
- Optional Dante digital audio interface available.
- Compatible with MIPRO Wireless Console software for PC-based monitoring, frequency analysis, automatic setup, and interference management.
- Antenna connectors provide bias for boosters and support MIPRO’s professional antenna systems to enhance reception range and signal stability.
- Operates on an external AC 100 – 240 V switching power supply, ensuring stable performance across varying voltages.

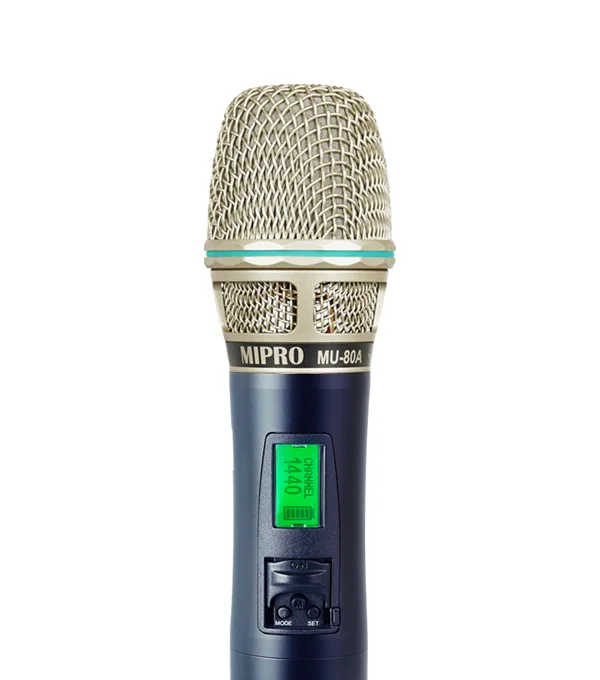

- Compatible with ACT-700 series handheld and bodypack transmitters, and also supports BC-100WT gooseneck microphone transmitters for versatile professional applications.
- Proudly designed and manufactured in Taiwan, delivering outstanding quality, professional-grade performance, and excellent cost-effectiveness.
