ACT-747

UHF Analog Wideband Quad-Channel Receiver

FEATURES & SPECIFICATION

RELATED PRODUCTS & ACCESSORIES

PRODUCT SUPPORT

Analog

True Diversity

UHF

72 MHz

VFD

ACT Sync

ACT-BUS

Dante

  • FEATURES & SPECIFICATION

  • RELATED PRODUCTS & ACCESSORIES

  • PRODUCT SUPPORT

  • FEATURES

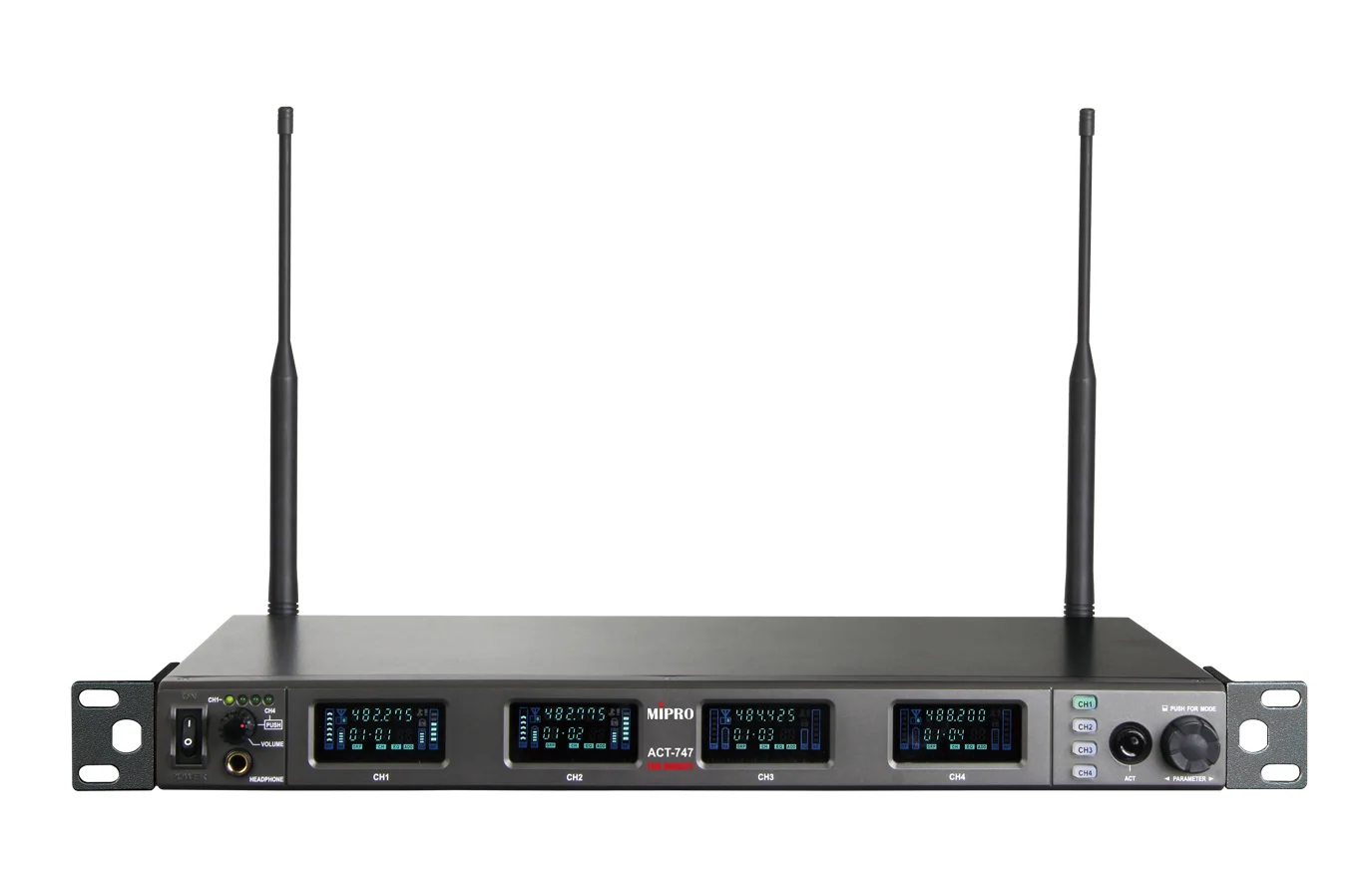

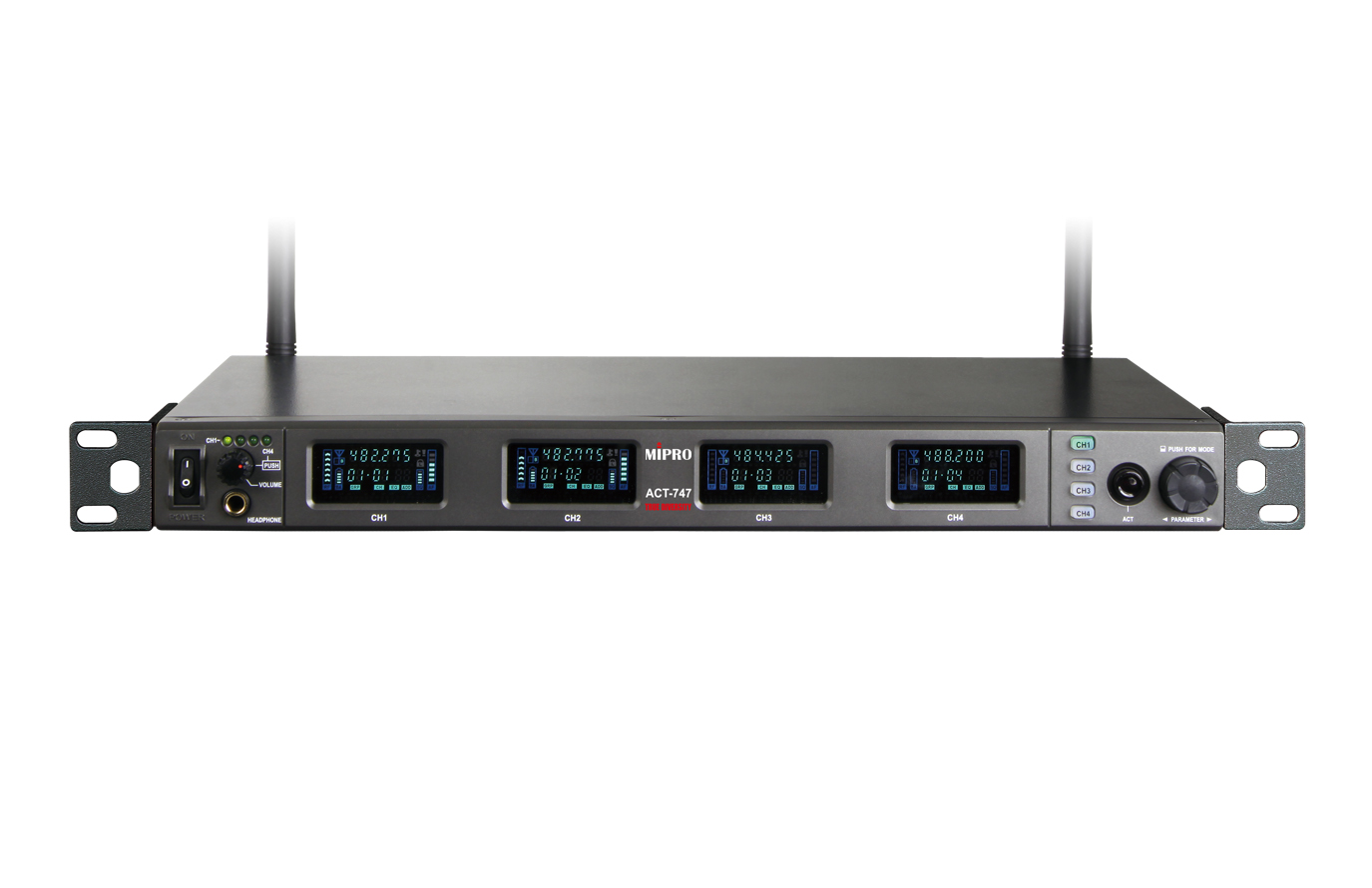

    • Constructed with a rugged metal chassis. The front panel features a color VFD display, headphone jack, rotary dial, and channel selection buttons. Screen brightness automatically adjusts during reception to clearly indicate active and standby channels.
    • Incorporates MIPRO’s proprietary 72 MHz wideband high-dynamic receiving circuit for stable performance.
    • Built-in true diversity reception technology ensures long-distance reception with uninterrupted stability.
    • Exclusive dual-squelch system combines pilot tone and noise lock control. Includes a noise indicator and adjustable SQ sensitivity to extend range or reduce interference.
    • Supports Auto Scan and ACT frequency synchronization for fast and accurate setup.
    • Preset with 6 frequency groups totaling 224 channels. A 7th user-defined group allows selection of 16 channels from 2,881 available frequencies.
    • Four-channel audio can be output independently or mixed. Features three selectable gain levels to ensure optimal transmitter sensitivity and dynamic range while preventing distortion.
    • Optional Dante digital audio interface available.
    • Compatible with MIPRO Wireless Console software for PC-based frequency analysis, automatic setup, and interference monitoring, enhancing system management efficiency.
    • Antenna connectors provide booster bias and support MIPRO’s professional antenna systems to enhance reception range and signal stability.
    • Powered by an external AC 100 – 240 V switching power supply, ensuring stable operation across varying voltages.
    • Compatible with ACT-700 series handheld and bodypack transmitters, and also supports BC-100WT gooseneck microphone transmitters for versatile professional applications.
    • Proudly developed and manufactured in Taiwan. Delivers outstanding quality, professional-grade performance, and excellent cost-effectiveness.

    SPECIFICATION

    Model

    ACT-747

    Name

    UHF Analog Wideband Quad-Channel Receiver

    Channel

    Quad

    Chassis

    Full-rack (19") metal chassis

    Frequency Range

    UHF 480–934 MHz (country dependent)

    Bandwidth

    72 MHz

    Receiving Mode

    True diversity

    Display

    Color VFD

    Control Interface

    ACT sync button, channel selection buttons and rotary knob

    Sensitivity

    6 dBμV @ S/N > 80 dB

    Frequency Response

    50 Hz–18 kHz

    Dynamic Range

    > 111 dBA

    Audio Outputs

    Balanced XLR for independent output and mixed XLR & 1/4" (6.3 mm) output with three-level gain: +16 / 0 / -6 dB (balanced), +10 / 0 / -6 dB (unbalanced)

    Monitor Output

    Monitor headphone jack with volume control

    Network Interface

    Dante or AVB (optional)

    Management Interface

    RJ-11 × 2 for PC software control (requires MIPRO DVU adapter)

    Antenna

    Detachable. 50Ω TNC female connector provides bias for the MIPRO antenna systems.

    Power Supply

    DC 12–15 V. External AC 100–240 V switching power supply

    Dimensions

    420 × 44 × 219 mm (W × H × D)

    Weight

    Approx. 2.5 kg
