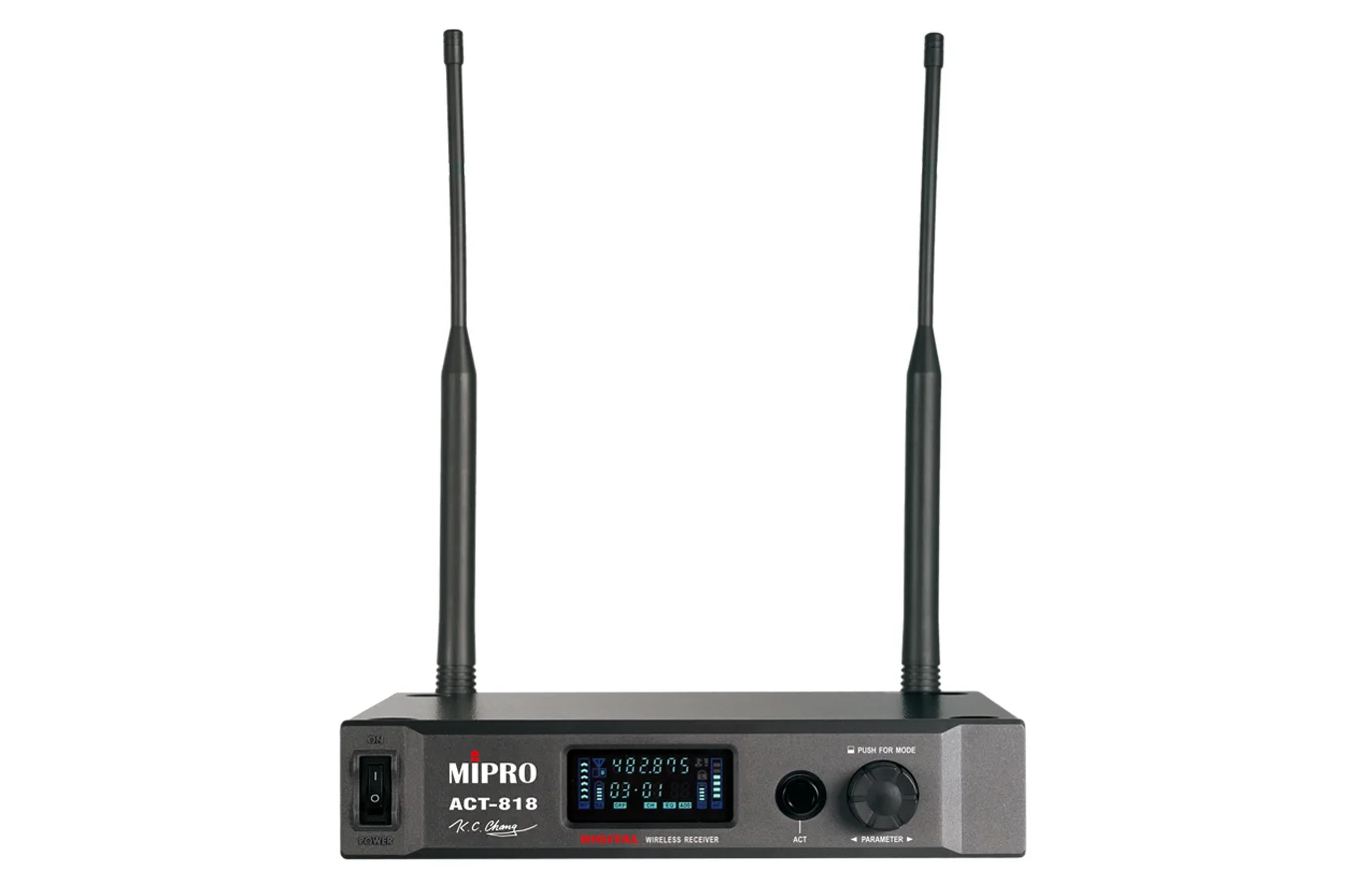

ACT-818

UHF Digital Wideband Single-Channel Receiver

DETAILS

Engineered for professional stage and broadcast use, the ACT-818 offers 72 MHz wideband reception and patented ACT synchronization for quick transmitter pairing. A high-contrast LCD clearly displays channel, RF/AF signal strength, and system status. Supports AES/EBU digital output and multiple audio interfaces, ensuring premium audio quality and flexible integration.

Engineered for professional stage and broadcast use, the ACT-818 offers 72 MHz wideband reception and patented ACT synchronization for quick transmitter pairing. A high-contrast LCD clearly displays channel, RF/AF signal strength, and system status. Supports AES/EBU digital output and multiple audio interfaces, ensuring premium audio quality and flexible integration.

FEATURES & SPECIFICATION

RELATED PRODUCTS & ACCESSORIES

PRODUCT SUPPORT

Digital

Digital Diversity

UHF

72 MHz

VFD

ACT Sync

DSP

EQ

Encryption

AES/EBU

  • FEATURES & SPECIFICATION

  • RELATED PRODUCTS & ACCESSORIES

  • PRODUCT SUPPORT

  • FEATURES

    • Built with a rugged metal chassis. The front panel features a color VFD display, rotary control knob, and intuitive operation buttons for easy navigation.
    • Rear panel includes balanced analog outputs, AES/EBU digital audio output, REMOTE control interface, and Wordclock Sync for seamless integration with professional digital audio systems.
    • Equipped with MIPRO’s proprietary 72 MHz wideband receiving circuit to increase available channels and reduce intermodulation interference.
    • Built-in digital diversity receiving technology significantly extends stable reception range while preserving consistent audio quality, regardless of signal strength or distance.
    • Features MIPRO’s exclusive 256-bit advanced encryption technology for secure signal transmission and eavesdropping prevention.
    • Incorporates high-fidelity DSP audio processing and premium D/A converters for wireless audio performance comparable to wired microphones.
    • Supports Auto Scan and ACT synchronization for fast and accurate frequency setup.
    • Preset with 6 frequency groups holding a total of 224 channels. A 7th user-defined group allows selection and storage of 16 channels from 2,881 available frequencies.
    • Audio output includes three selectable gain settings to ensure optimal transmitter sensitivity and dynamic range while preventing distortion or overload.
    • Compatible with MIPRO Wireless Console software for PC monitoring, frequency analysis, auto setup, and interference detection, streamlining system management.
    • Antenna connectors provide bias voltage for boosters and can be used with MIPRO professional antenna systems to enhance reception range and signal stability.
    • Operates with an external AC 100 – 240 V power supply, offering wide voltage tolerance for reliable system operation.
    • Compatible with ACT-800 series handheld and bodypack transmitters, as well as TA-80 digital adapters and BC-100DT gooseneck microphone bases for versatile professional applications.
    • Proudly developed and manufactured in Taiwan, delivering superior quality, excellent performance, and outstanding value.

    SPECIFICATION

    Model

    ACT-818

    Name

    UHF Digital Wideband Single-Channel Receiver

    Channel

    Single

    Chassis

    Half-rack (9.5") metal chassis

    Frequency Range

    UHF 480 – 934 MHz (country dependent)

    Bandwidth

    72 MHz

    Receiving Mode

    Digital diversity

    Display

    Color VFD

    Control Interface

    ACT sync button, channel selection buttons and rotary knob

    Sensitivity

    12 dBμV @ S/N > 100 dB

    Frequency Response

    20 Hz – 20 kHz (< -2 dB)

    Dynamic Range

    > 120 dBA

    Latency

    2.9 ms

    EQ

    Presets 10 digital audio and anti-feedback EQs

    Audio Processing

    DSP audio processor eliminates the compander noise that exists in analog systems

    Audio Outputs

    Analog balanced XLR output with 3 switchable levels: +16 dB / 0 dB / -6 dB. AES/EBU digital interface.

    Encryption

    256-bit

    Management Interface

    RJ-11 × 2 for PC software control (requires MIPRO DVU adapter); BNC Word Clock In/Out for sync.

    Antenna

    Detachable. 50Ω TNC female connector provides bias for the MIPRO antenna systems.

    Power Supply

    DC 12 – 15 V. External AC 100 – 240 V switching power supply

    Dimensions

    210 × 44 × 163 mm (W × H × D)

    Weight

    Approx. 1.0 kg

    RELATED PRODUCTS

  • All (8)

  • Wireless Systems (3)

  • Antenna Systems (5)

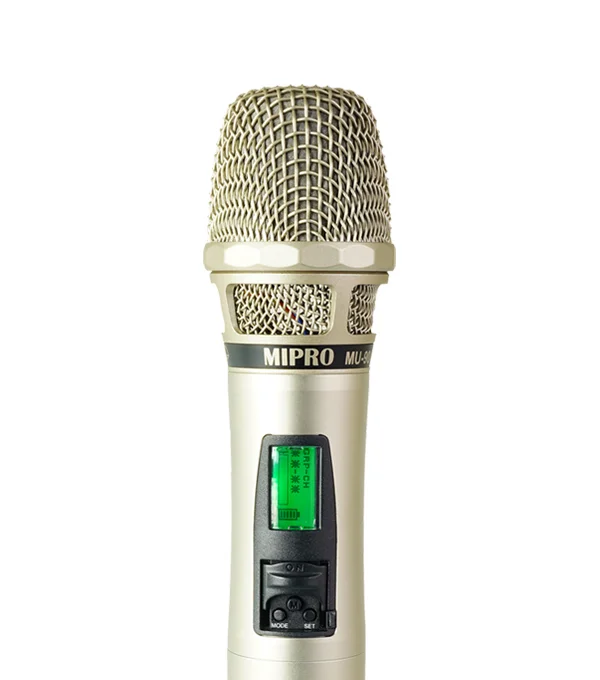

  • ACT-800H

    UHF Digital Wideband Handheld Transmitter

    COMPARE

    ACT-800T

    UHF Digital Wideband Bodypack Transmitter

    COMPARE

    AD-702

    UHF Wideband Single-Channel Auto Gain Controller

    AD-708

    UHF Wideband 4-Channel Antenna Divider with Auto Gain Controller

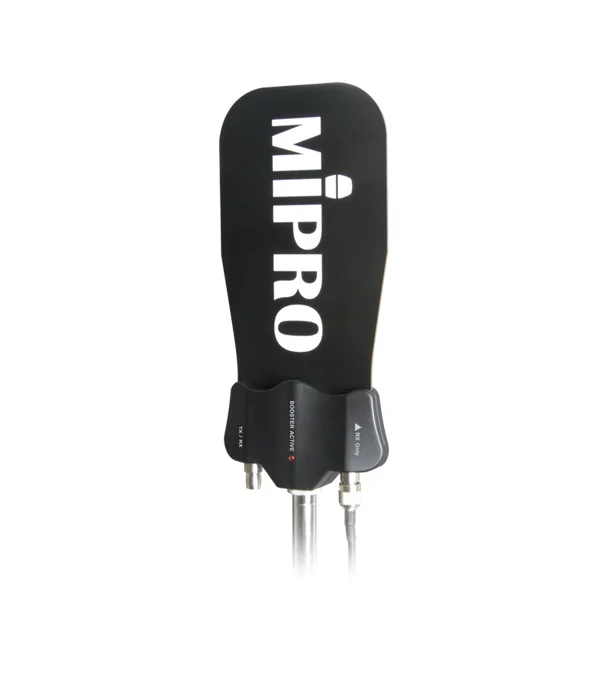

    AT-70W

    UHF Wideband Multi-function Omnidirectional Antenna

    COMPARE

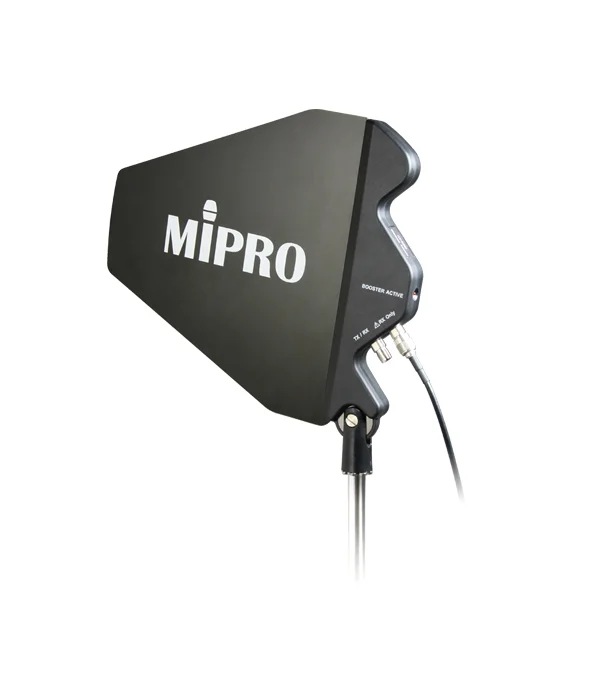

    AT-90W

    UHF Wideband Multi-function Directional Log Antenna

    COMPARE

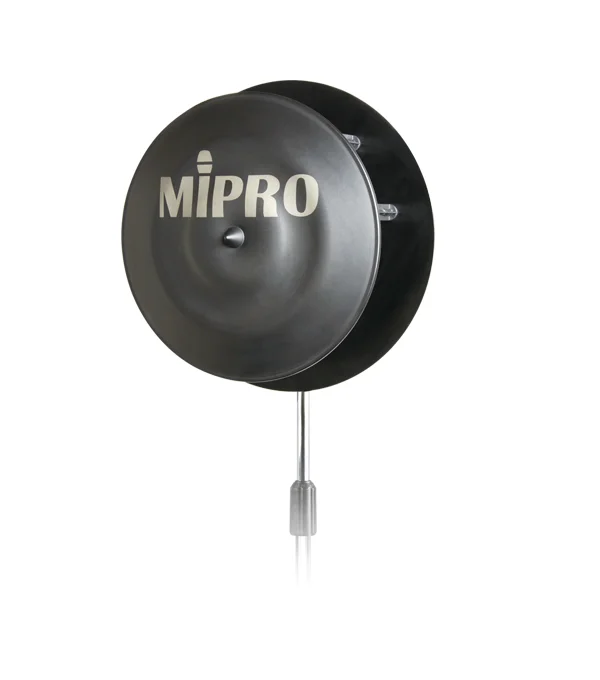

    AT-100

    UHF Wideband Multi-function Circularly Polarized Directional Antenna

    COMPARE

    TA-80

    UHF Digital Plug-on Transmitter

    ACCESSORIES

  • All (10)

  • Antennas (1)

  • Control & Interface Solutions (3)

  • Cables & Adapters (3)

  • Rack Mount Kits (3)

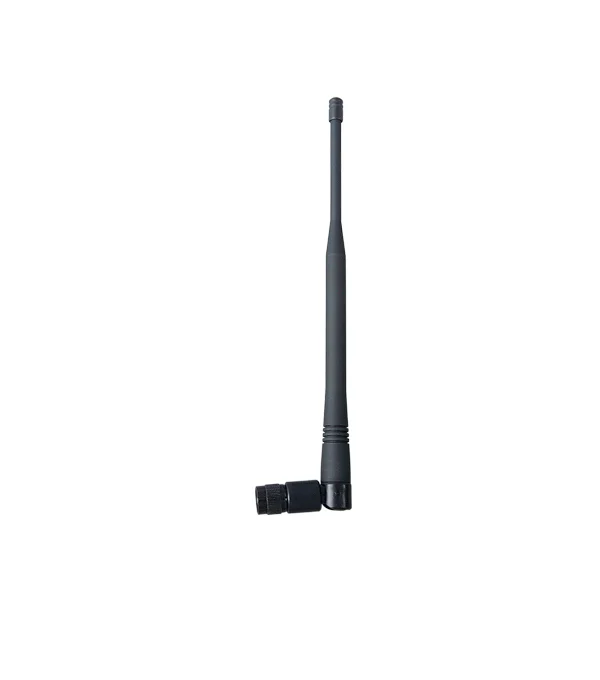

  • AT-20

    UHF Coaxial Omnidirectional Antenna

    MWC

    MIPRO Wireless Console PC Interface Management Software

    DANTE

    Dante Interface Module

    MES-100

    WebMote Bridge

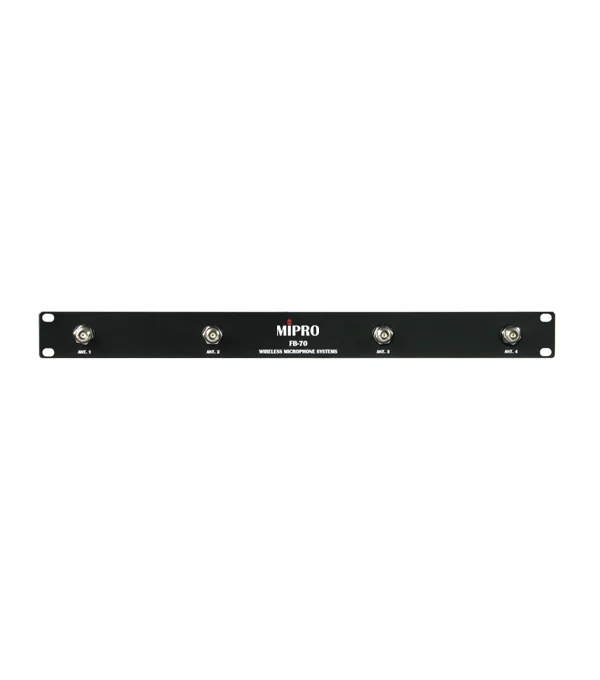

    FB-70

    Front-to-Rear Antenna Kit

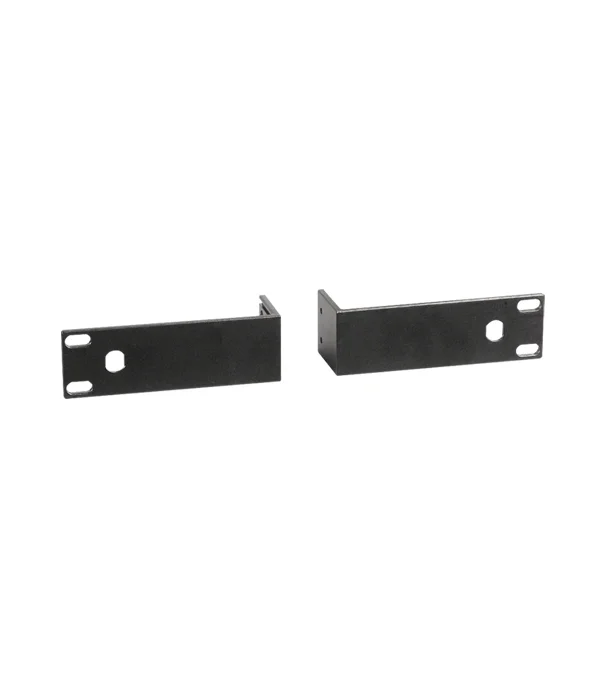

    FB-71

    Rack Mount Kits

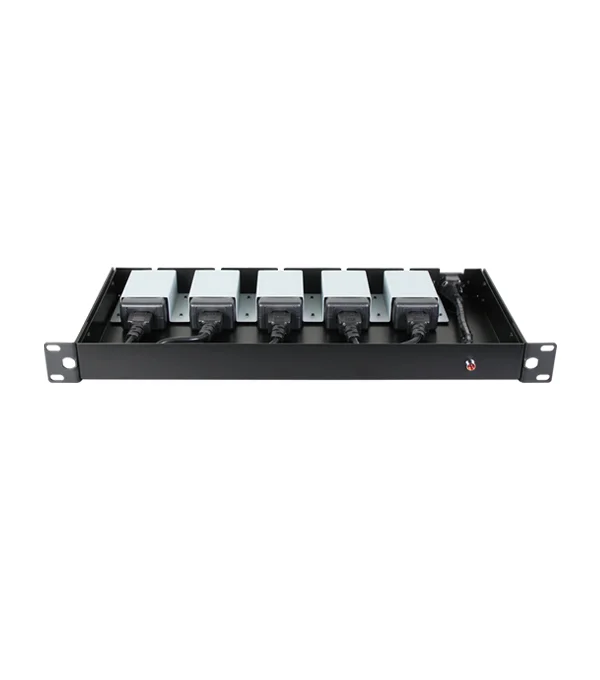

    MPC-100
