MU-506HS | Unidirectional Headworn Microphone | MIPRO

Products
Accessories
Headworn Mics
MU-506HS
mu-506hs_1
mu-506hs_1

MU-506HS

Unidirectional Headworn Microphone

PRODUCT INQUIRY

DETAILS

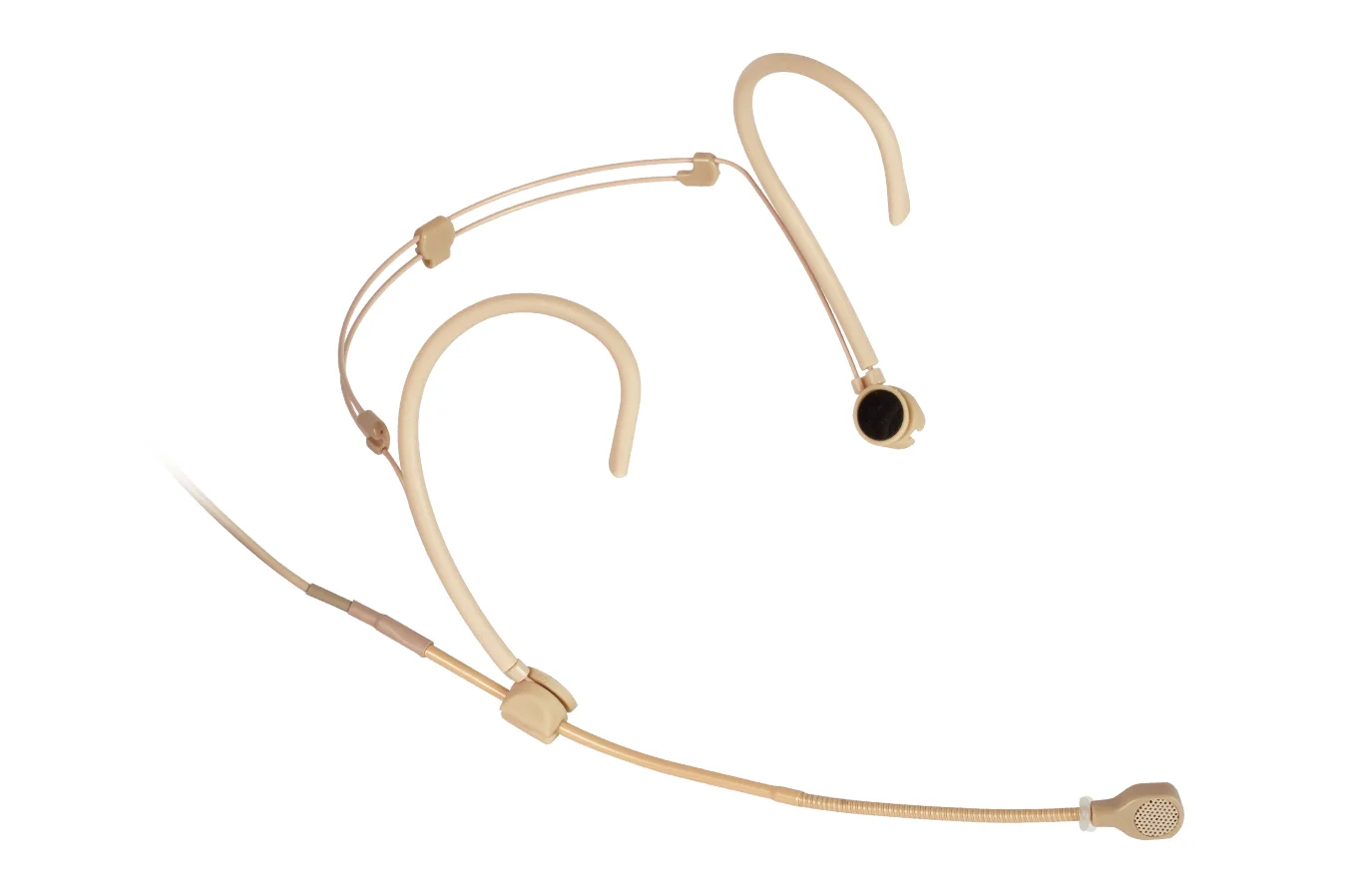

Beige cardioid headworn microphone providing accurate directional pickup with effective ambient noise control. Comfortable and secure for stage performers and users engaged in active motion.

Beige cardioid headworn microphone providing accurate directional pickup with effective ambient noise control. Comfortable and secure for stage performers and users engaged in active motion.

FEATURES & SPECIFICATION

PRODUCT SUPPORT

Cardioid

Unidirectional

Condenser

Condenser

4_Pin_Mini_XLR

4-Pin Mini XLR

mu-506hs_1
mu-506hs_1

  • FEATURES & SPECIFICATION

  • PRODUCT SUPPORT

    •

    FEATURES

    • Cardioid polar pattern effectively suppresses ambient noise, delivering clear and focused sound.
    • Dual-earhook and adjustable frame design provide stable, comfortable fit for stage or active use.
    • Wide dynamic range and low distortion faithfully reproduce natural vocals.
    • Detachable capsule mounts on either side and allows full adjustment of length, direction, and angle.
    • Sweat-repelling ring and replaceable foam windscreen protect the capsule and extend service life.

    SPECIFICATION

    Model

    MU-506HS

    Name

    Unidirectional Headworn Microphone

    Type

    Condenser

    Polar Pattern

    Cardioid

    Capsule Size

    6 mm

    Sensitivity

    -49 dBV/Pa

    Frequency Response

    50 Hz – 18 kHz

    Max SPL

    135 dB

    Connector

    MIPRO 4-Pin Mini XLR

    Cable Length

    150 cm

    Color

    Beige

    Weight

    Approx. 24 g (frame included)

    DOWNLOADS

  • USER GUIDE

  • SPEC SHEET

    •
    TITLE
    FILES
    SIZE
    DOWNLOAD
    Headworn Microphones
    MU-506H / MU-506HS Headworn Microphone (Ver.2023)
    1.39 MB
    MU-506HS
    Unidirectional Headworn Microphone (Ver.2024)
    201.49 KB
