AD-90A

UHF Wideband RF Power Amplifier

PRODUCT INQUIRY

DETAILS

The AD-90A is a UHF wideband RF power amplifier that boosts transmitter output across 470–960 MHz, extending transmission range and enhancing signal stability. It works with various UHF transmitting antennas and is suitable for stage and long-distance applications.

The AD-90A is a UHF wideband RF power amplifier that boosts transmitter output across 470–960 MHz, extending transmission range and enhancing signal stability. It works with various UHF transmitting antennas and is suitable for stage and long-distance applications.

FEATURES & SPECIFICATION

RELATED PRODUCTS & ACCESSORIES

PRODUCT SUPPORT

UHF、ISM

UHF

ad-90a_1
ad-90a_2
ad-90a_1
ad-90a_2

  • FEATURES & SPECIFICATION

  • RELATED PRODUCTS & ACCESSORIES

  • PRODUCT SUPPORT

    •

    FEATURES

    • Covers UHF 470 – 960 MHz frequency range and amplifies transmitter output power for long-distance transmission.
    • Delivers up to +30 dBm (1 W) maximum output power, ideal for extended range applications.
    • Compatible with MI-909T, MT-92A, MTS-100 transmitters and AD-90S splitter to boost system performance and coverage.
    • Pairs with AT-70W, AT-90W, and AT-100 antennas to strengthen wireless transmission distance and stability.

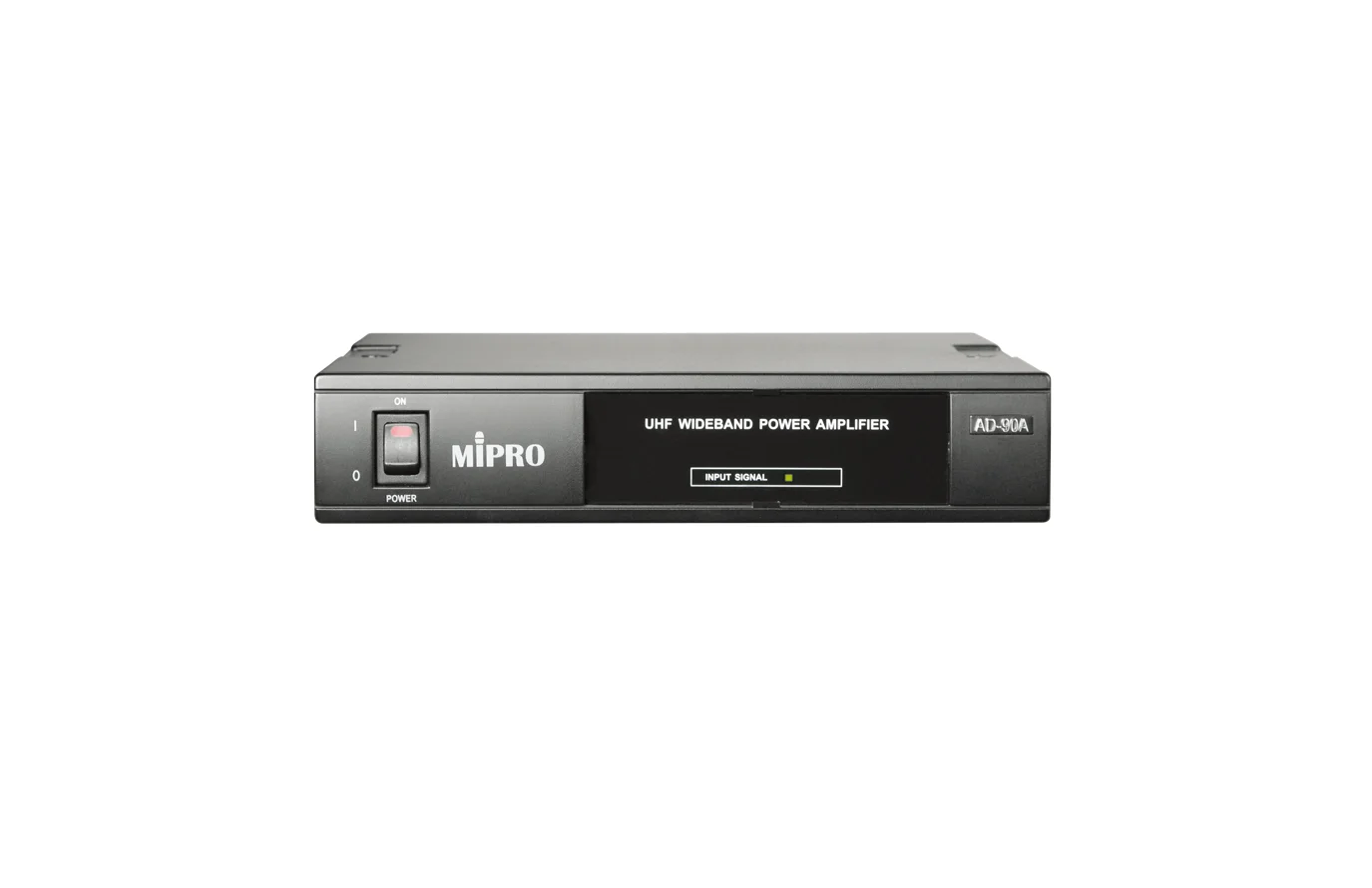

    • Front panel LED indicators illuminate when input power reaches the set level, allowing easy signal status monitoring.

    SPECIFICATION

    Model

    AD-90A

    Name

    UHF Wideband RF Power Amplifier

    Frequency Range

    UHF 470 – 960 MHz

    Gain

    8 ± 1 dB

    Max. RF Power Output

    +30 dBm (1 W)

    System Impedance

    50 Ω

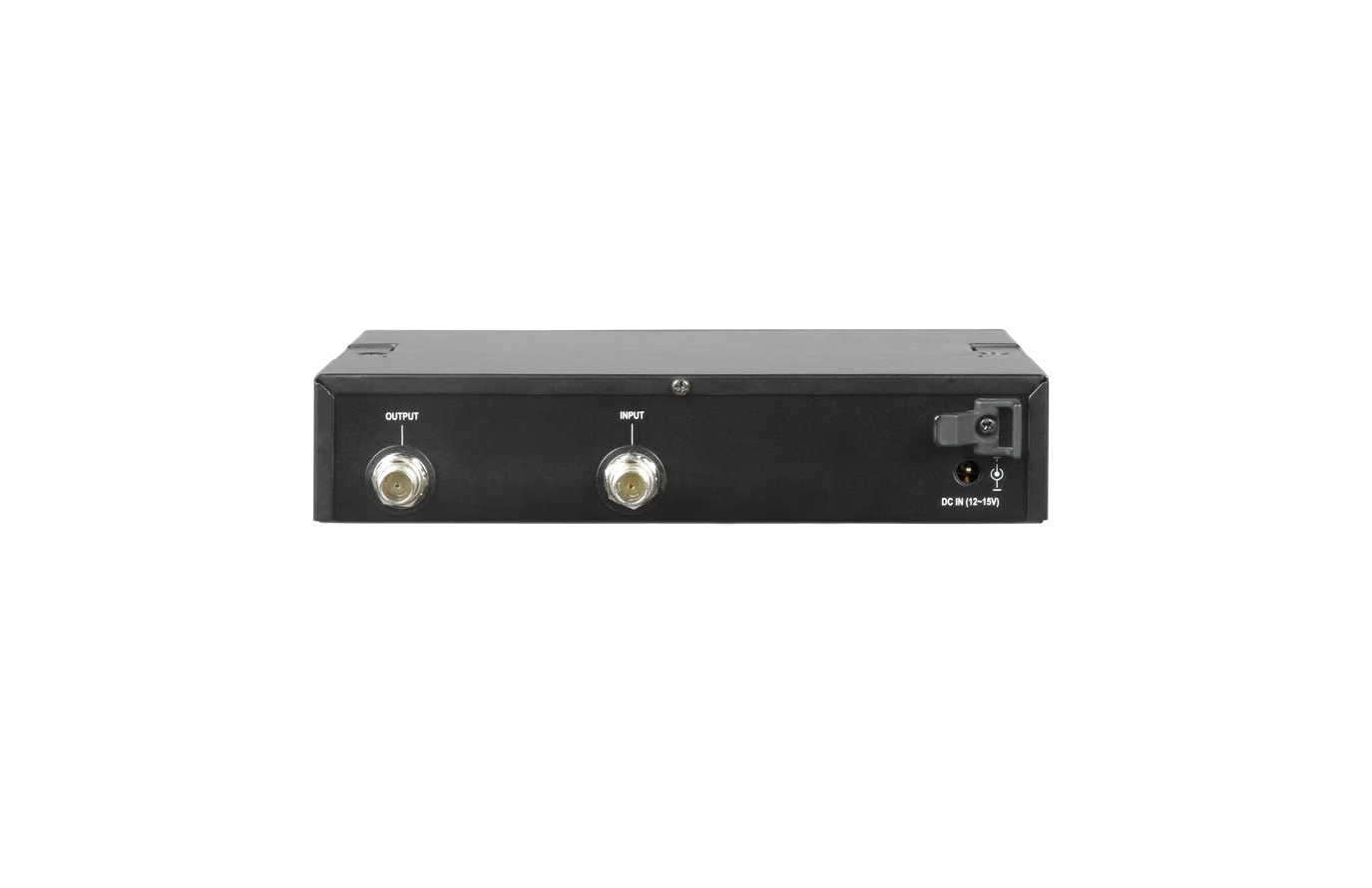

    Input Connector

    TNC × 1

    Output Connector

    TNC × 1

    Power Supply

    DC 12 – 15 V, AC 100 – 240 V

    Dimensions

    210 × 44 × 204 mm (W × H × D)

    Weight

    Approx. 1.0 kg
