- Half-rack metal chassis with a built-in high-efficiency active antenna on the front panel for a compact, streamlined design.
- High-contrast graphic OLED display provides clear system information and wide viewing angles for easy operation.
- Operates in the 5.8 GHz ISM band, avoiding frequency overlap with conventional UHF and 2.4 GHz wireless systems.
- Group A offers 12 channels, while Group B provides 24 channels across B1 and B2. The two groups cannot be used simultaneously.
- Each channel supports 64 standard ID codes and one special ID to help prevent unintended audio reception between nearby systems.
- Built-in Channel Scan detects RF activity to help identify channels with less interference for reliable operation.
- MIPRO's ACT synchronization technology enables quick and accurate frequency pairing between the receiver and transmitter.
- True Diversity reception with dual tuners minimizes signal dropouts for reliable performance. Group B offers ultra-low latency of less than 1.5 ms.
- 48 kHz / 24-bit digital audio processing delivers an extended 18 Hz–23 kHz frequency response and over 120 dBA dynamic range.
- Balanced XLR and unbalanced 6.3 mm audio outputs with adjustable output gain from -10 to +20 dB.
- External AC 100–240 V switching power supply supports operation across different mains voltages.
- Compatible with MIPRO 5.8 GHz digital wireless transmitters, including handheld, bodypack, and other supported models.
- Designed and manufactured in Taiwan, delivering professional wireless performance and excellent value.

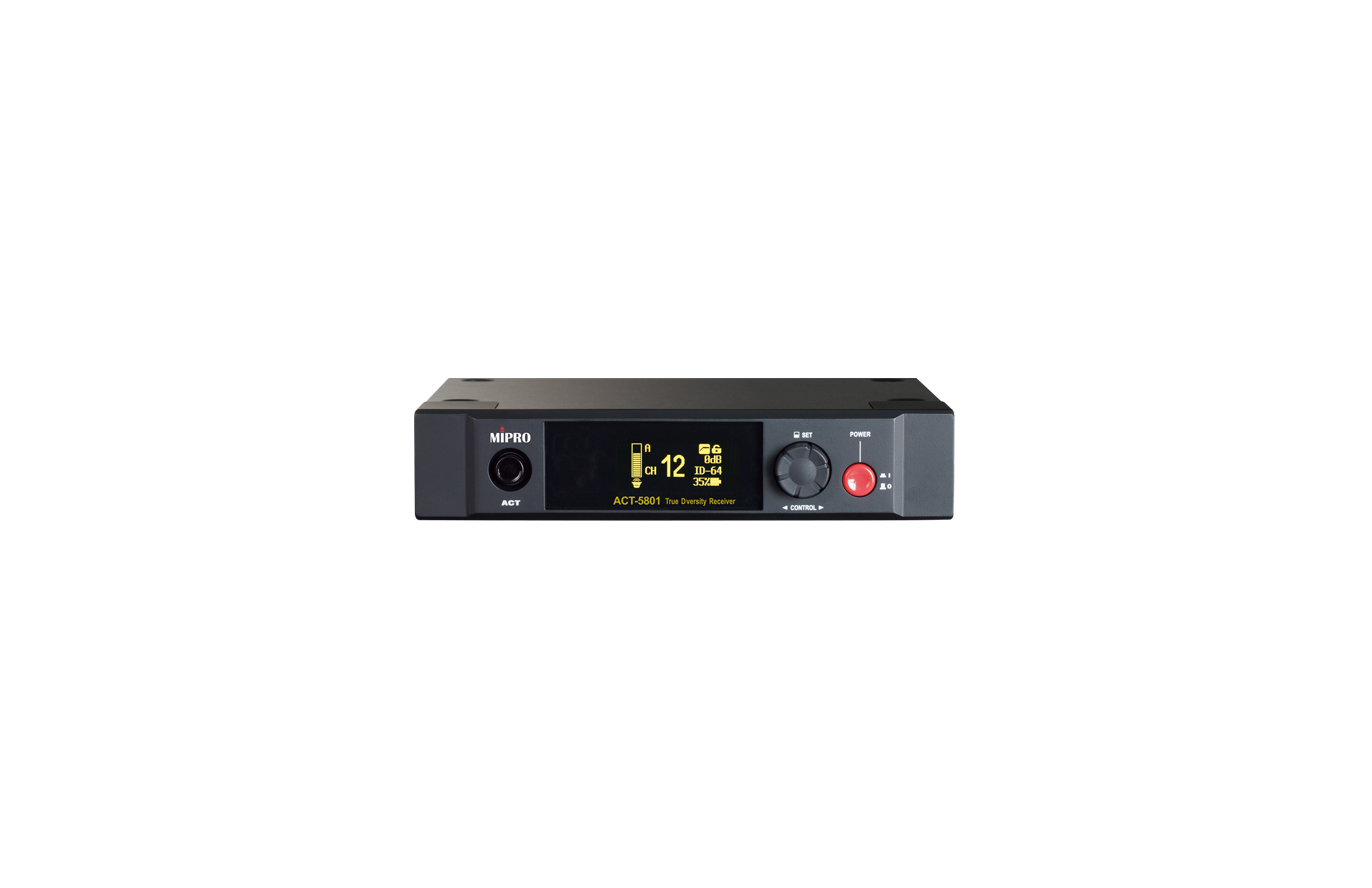

The ACT-5801 is a single-channel 5.8 GHz digital receiver operating in the ISM band to avoid UHF and 2.4 GHz interference. With true diversity reception and 48 kHz / 24-bit audio, it delivers stable and pristine sound for professional use.
