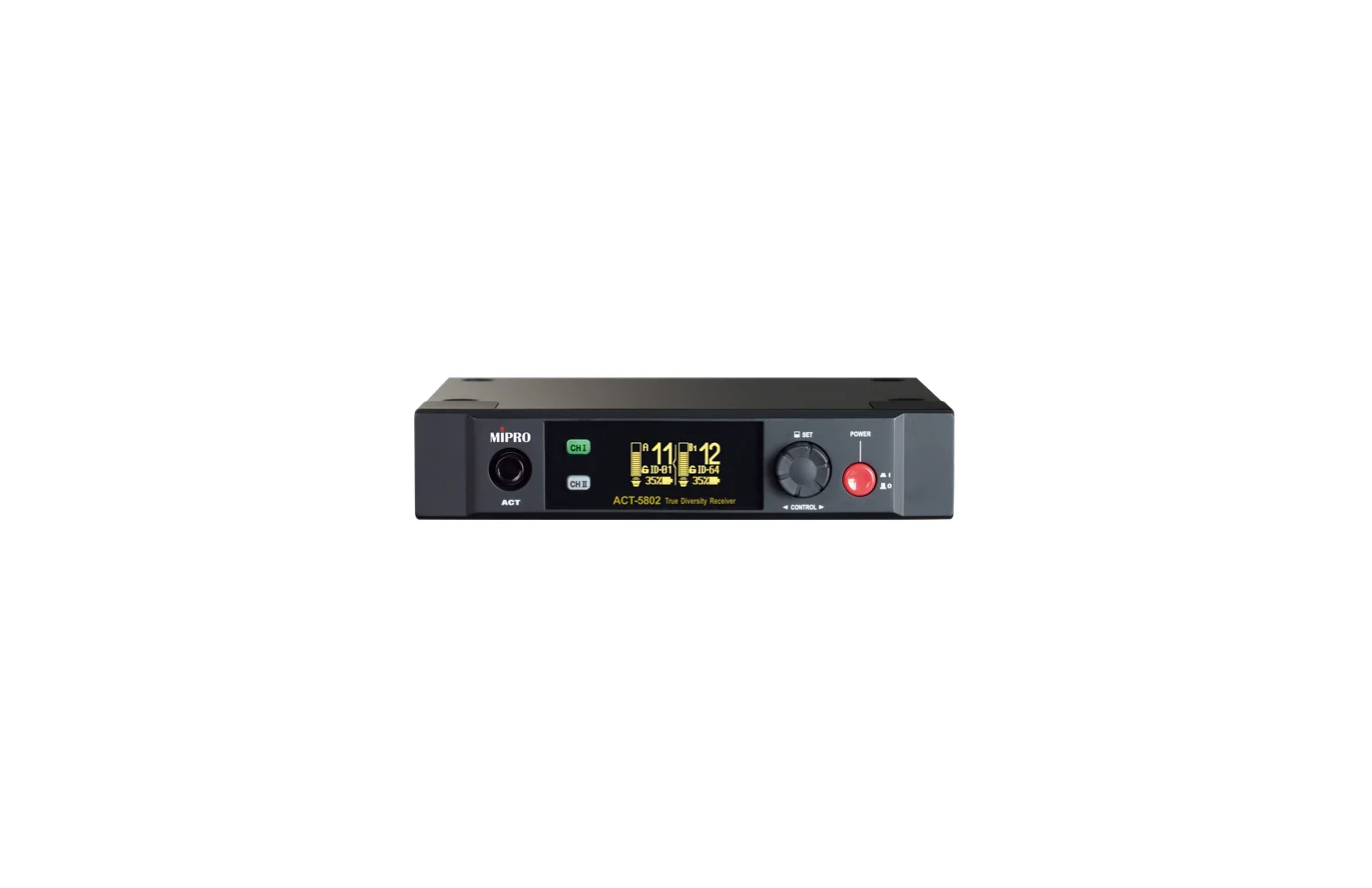

ACT-5802

5 GHz Digital Dual-Channel Receiver

DETAILS

The ACT-5802 is a dual-channel 5.8 GHz digital receiver featuring true diversity reception and 48 kHz / 24-bit audio. Operating in the ISM band, it provides stable and interference-free performance for professional environments.

The ACT-5802 is a dual-channel 5.8 GHz digital receiver featuring true diversity reception and 48 kHz / 24-bit audio. Operating in the ISM band, it provides stable and interference-free performance for professional environments.

FEATURES & SPECIFICATION

RELATED PRODUCTS & ACCESSORIES

PRODUCT SUPPORT

Digital

Digital

rx-mode

True Diversity

UHF、ISM

ISM

Frequency_Range

5.8 GHz

Low_Latency

Low Latency

VFD

OLED

ACT_Sync

ACT Sync

act-5802_1
act-5802_1
  • FEATURES & SPECIFICATION

  • RELATED PRODUCTS & ACCESSORIES

  • PRODUCT SUPPORT

  • FEATURES

    • Half-rack metal chassis with a built-in high-efficiency active antenna on the front panel for a compact, streamlined design.
    • High-contrast graphic OLED display provides clear information for both receiver channels and wide viewing angles for easy operation.
    • Operates in the 5.8 GHz ISM band, avoiding frequency overlap with conventional UHF and 2.4 GHz wireless systems.
    • Group A offers 12 channels, while Group B provides 24 channels across B1 and B2. The two groups cannot be used simultaneously.
    • Each channel supports 64 standard ID codes and one special ID to help prevent unintended audio reception between nearby systems.
    • Built-in Channel Scan detects RF activity to help identify channels with less interference for reliable operation.
    • MIPRO's ACT synchronization technology enables quick and accurate frequency pairing between each receiver channel and its corresponding transmitter.
    • True Diversity reception with dual tuners minimizes signal dropouts for reliable performance. Group B offers ultra-low latency of less than 1.5 ms.
    • 48 kHz / 24-bit digital audio processing delivers an extended 18 Hz–23 kHz frequency response and over 120 dBA dynamic range.
    • Provides independent balanced XLR outputs, plus unbalanced 6.3 mm outputs with selectable independent or mixed modes. Output gain is adjustable from -10 to +20 dB.
    • External AC 100–240 V switching power supply supports operation across different mains voltages.
    • Compatible with MIPRO 5.8 GHz digital wireless transmitters, including handheld, bodypack, and other supported models.
    • Designed and manufactured in Taiwan, delivering professional wireless performance and excellent value.

    SPECIFICATION

    Model

    ACT-5802

    Name

    5 GHz Digital Dual-Channel Receiver

    Channel

    Dual

    Chassis

    Half-rack (9.5") metal chassis

    Frequency Range

    ISM 5.8 GHz

    Bandwidth

    125 MHz

    Receiving Mode

    True Diversity

    Display

    Graphic OLED

    Control Interface

    ACT sync button, channel selection buttons and rotary knob

    Sensitivity

    12 dBμV @ S/N > 100 dB

    Frequency Response

    18 Hz–23 kHz

    Dynamic Range

    > 120 dBA

    Latency

    < 1.5 ms (Group B)

    EQ

    Lo-Cut / Flat

    Audio Processing

    48 kHz / 24-bit

    Audio Outputs

    2 × balanced XLR (independent), 2 × unbalanced 6.3 mm (independent/mixed); adjustable output gain: -10 to +20 dB

    Antenna

    Built-in

    Power Supply

    DC 12–15 V; external AC 100–240 V switching power supply

    Dimensions

    210 × 44 × 162 mm (W × H × D)

    Weight

    Approx. 0.8 kg
