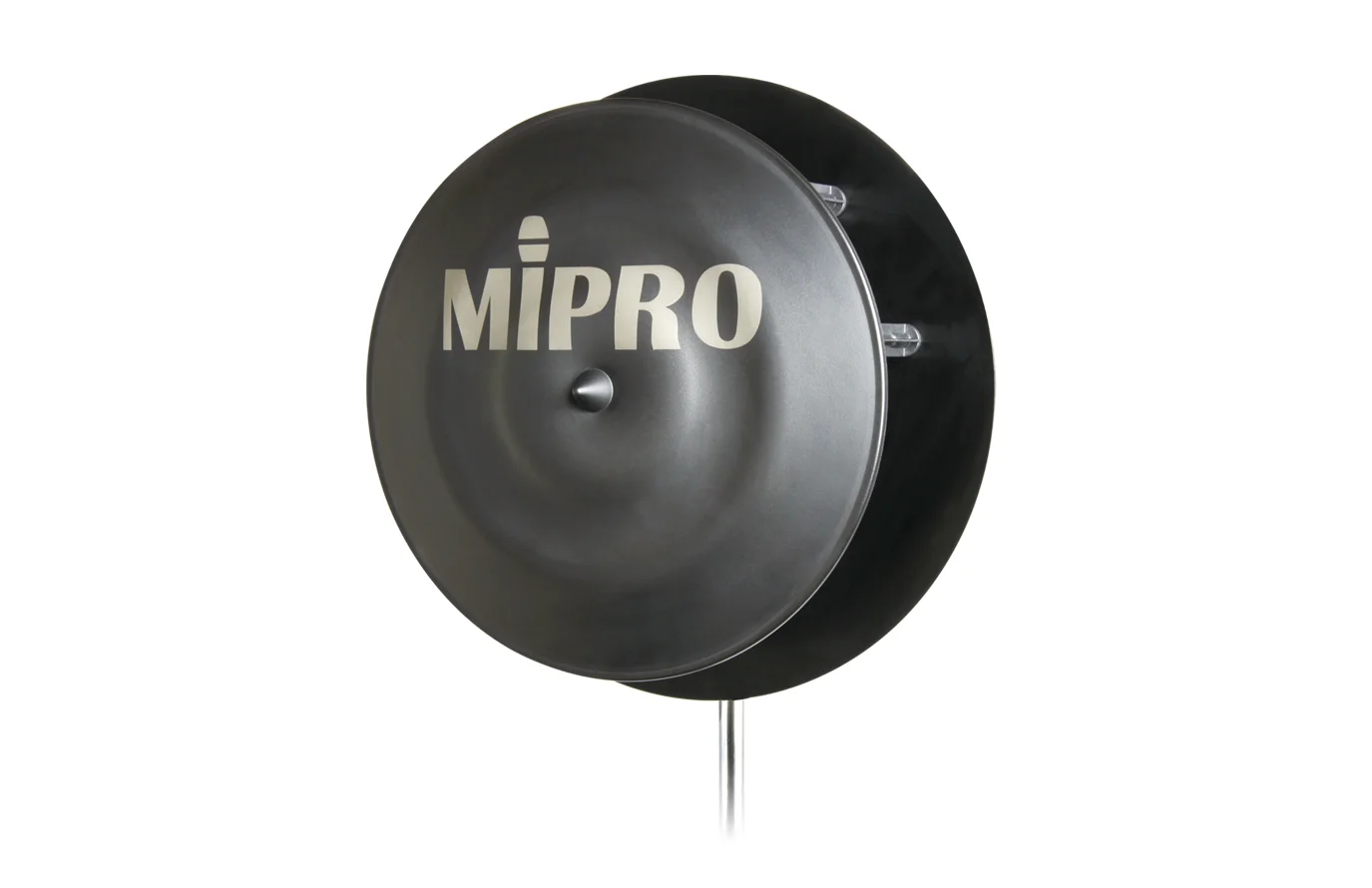

AT-100

UHF Wideband Multi-function Circularly Polarized Directional Antenna

PRODUCT INQUIRY

FEATURES & SPECIFICATION

RELATED PRODUCTS & ACCESSORIES

PRODUCT SUPPORT

UHF

  • FEATURES & SPECIFICATION

  • RELATED PRODUCTS & ACCESSORIES

  • PRODUCT SUPPORT

    •

    FEATURES

    • Dual-mode design supports both transmission and reception in the UHF 470 – 1000 MHz frequency range.
    • 6 – 8 dBi gain and circular polarized directional design ensure stable long-distance wireless performance.
    • Circular polarization minimizes signal loss due to polarization mismatch and multipath reflection, enhancing consistency and interference resistance.
    • RX Only port features a built-in adjustable booster (0 – 12 dB), powered via bias voltage, to boost reception sensitivity.
    • Compatible with MPB-30 antenna booster or AD-12 distributor for increased range and system efficiency.

    SPECIFICATION

    Model

    AT-100

    Name

    UHF Wideband Multi-function Circularly Polarized Directional Antenna

    Frequency Range

    UHF 470 – 1000 MHz

    Antenna Gain

    6 – 8 dBi

    Type

    Directional

    Booster

    Built-in 0 – 12 dB gain controllable booster

    Connectors

    2 × TNC (TX/RX and RX Only)

    Power Supply

    DC 8 – 15 V bias via RX Only connector

    Impedance

    50 Ω

    Dimensions

    350 × 225 mm (Ø × H)

    Weight

    Approx. 1.5 Kg
