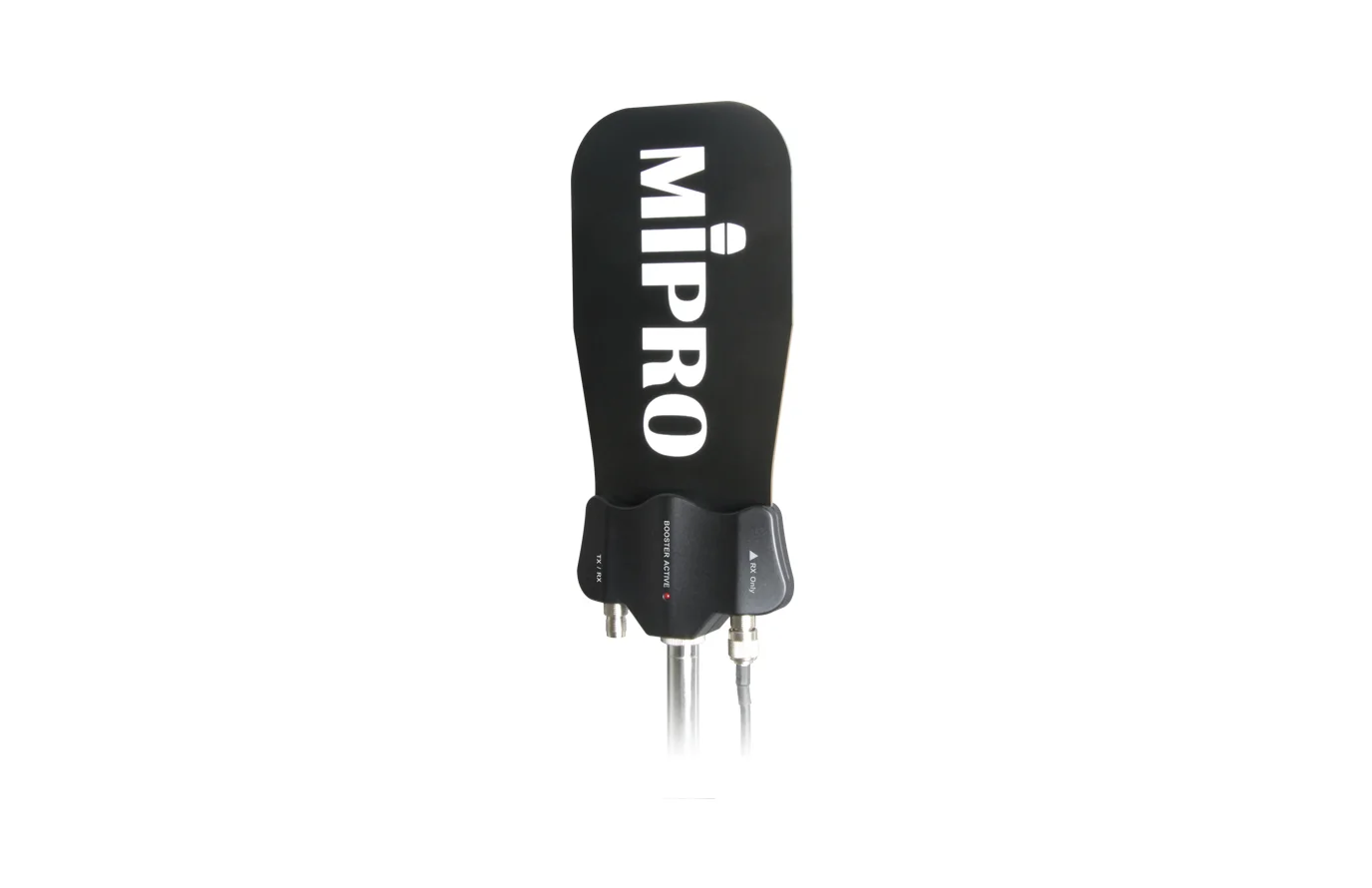

AT-70W

UHF Wideband Multi-function Omnidirectional Antenna

PRODUCT INQUIRY

FEATURES & SPECIFICATION

RELATED PRODUCTS & ACCESSORIES

PRODUCT SUPPORT

UHF、ISM

UHF

at-70w_1
at-70w_1

  • FEATURES & SPECIFICATION

  • RELATED PRODUCTS & ACCESSORIES

  • PRODUCT SUPPORT

    •

    FEATURES

    • Dual-mode design supports both transmission and reception in the UHF 470 – 1000 MHz frequency range.
    • 2 – 4 dBi gain ensures high-efficiency performance for long-distance wireless applications.
    • Omnidirectional design provides consistent radiation patterns in both vertical and horizontal planes, enhancing system stability and coverage.
    • RX Only port features a built-in adjustable booster (0 – 12 dB), powered via bias voltage, to improve reception sensitivity and reliability.
    • Compatible with MPB-30 antenna booster and AD-12 antenna distributor to extend reception range and system coverage.

    SPECIFICATION

    Model

    AT-70W

    Name

    UHF Wideband Multi-function Omnidirectional Antenna

    Frequency Range

    UHF 470 – 1000 MHz

    Antenna Gain

    2 – 4 dBi

    Type

    Omnidirectional

    Booster

    Built-in 0 – 12 dB gain controllable booster

    Connectors

    2 × TNC (TX/RX and RX Only)

    Power Supply

    DC 8 – 15 V bias via RX Only connector

    Impedance

    50 Ω

    Dimensions

    120 × 257 × 32 mm (W × H × D)

    Weight

    Approx. 220 g
