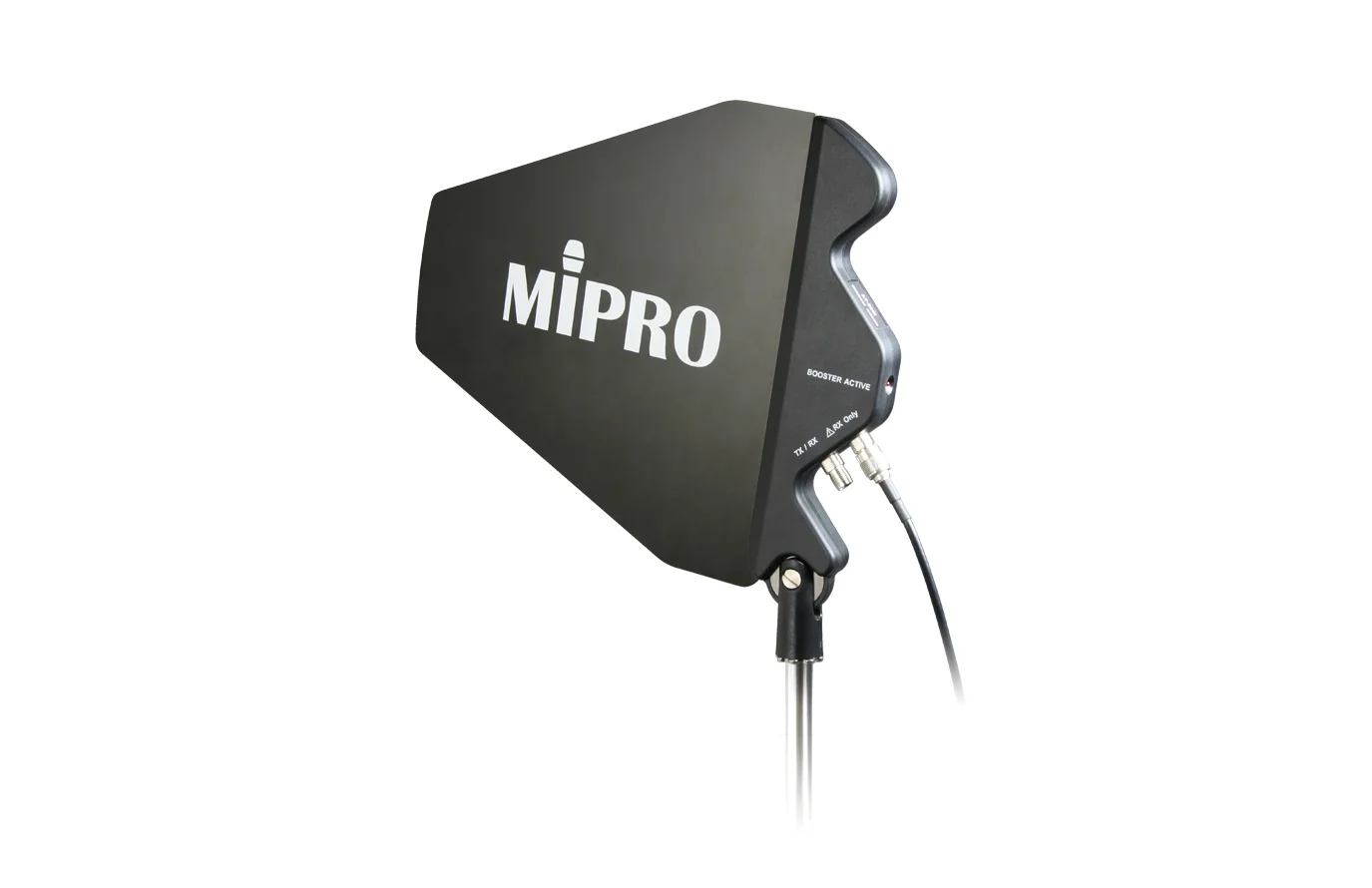

AT-90W

UHF Wideband Multi-function Directional Log Antenna

PRODUCT INQUIRY

FEATURES & SPECIFICATION

RELATED PRODUCTS & ACCESSORIES

PRODUCT SUPPORT

UHF、ISM

UHF

at-90w_1
at-90w_1

  • FEATURES & SPECIFICATION

  • RELATED PRODUCTS & ACCESSORIES

  • PRODUCT SUPPORT

    •

    FEATURES

    • Dual-mode design supports both transmission and reception in the UHF 470 – 1000 MHz frequency range.
    • 4 – 6 dBi gain enables efficient signal performance over medium to long distances.
    • Log-periodic directional structure delivers excellent front-to-back ratio and side-lobe suppression, focusing on target signals while minimizing rear interference.
    • RX Only port features a built-in adjustable booster (0 – 12 dB), powered via bias voltage, to enhance reception sensitivity and stability.
    • Compatible with MPB-30 antenna booster and AD-12 antenna distributor for extended system coverage and optimized wireless performance.

    SPECIFICATION

    Model

    AT-90W

    Name

    UHF Wideband Multi-function Directional Log Antenna

    Frequency Range

    UHF 470 – 1000 MHz

    Antenna Gain

    4 – 6 dBi

    Type

    Directional

    Booster

    Built-in 0 – 12 dB gain controllable booster

    Connectors

    2 × TNC (TX/RX and RX Only)

    Power Supply

    DC 8 – 15 V bias via RX Only connector

    Impedance

    50 Ω

    Dimensions

    319 × 270 × 25 mm (W × H × D)

    Weight

    Approx. 480 g

    RELATED PRODUCTS

  • All (4)

  • Antenna Systems (4)

    • ad-702_s

    AD-702

    UHF Wideband Single-Channel Auto Gain Controller

    ad-708_s

    AD-708

    UHF Wideband 4-Channel Antenna Divider with Auto Gain Controller

    ad-12_s

    AD-12

    UHF Passive Antenna Divider / Combiner

    mpb-30_s

    MPB-30

    UHF Gain-Controllable Antenna Booster
