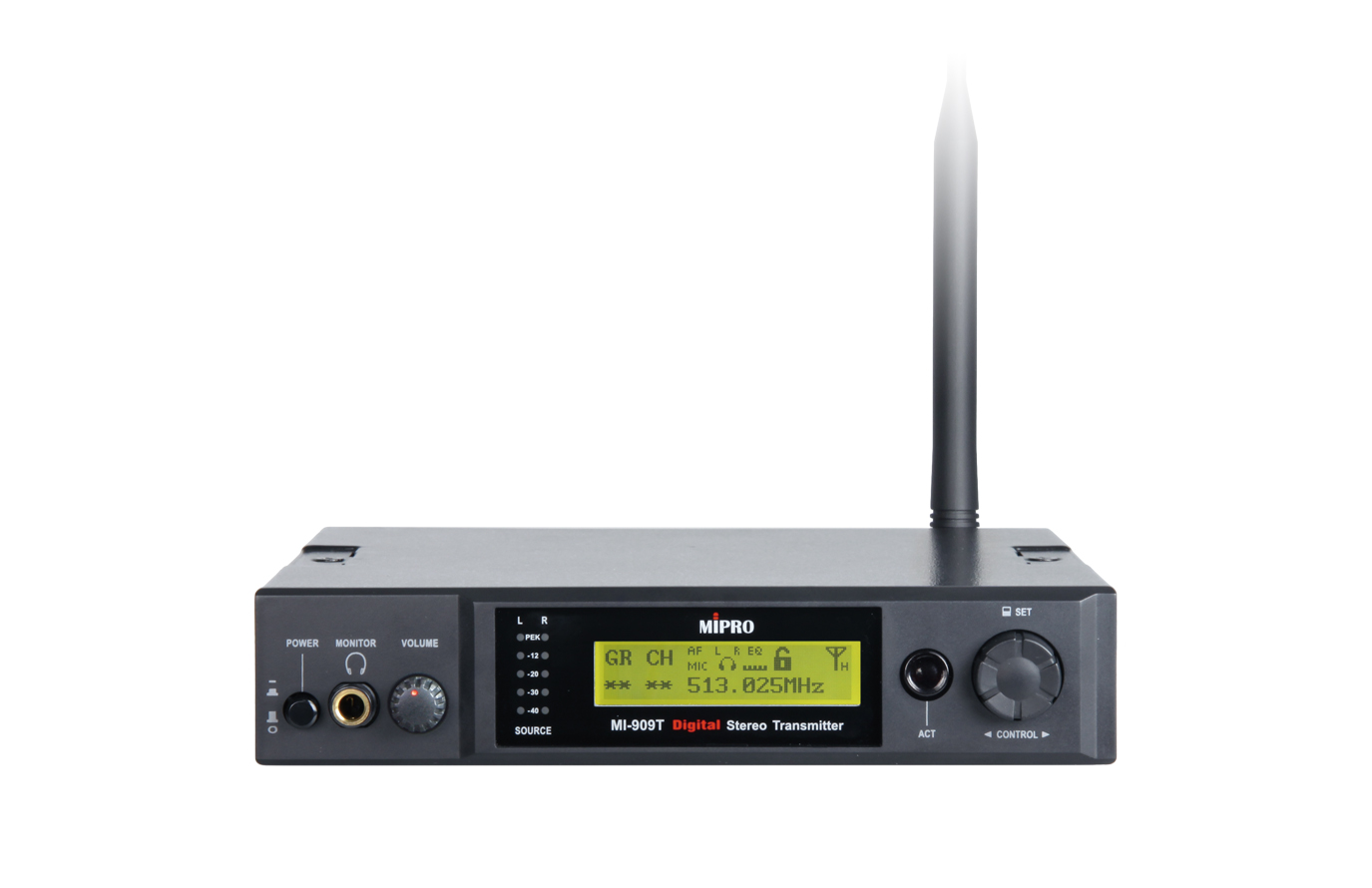

MI-909T

UHF Digital Stereo Transmitter

FEATURES & SPECIFICATION

RELATED PRODUCTS & ACCESSORIES

PRODUCT SUPPORT

Digital

UHF

LCD

ACT Sync

ACT-BUS

TEC Nominee

  • FEATURES & SPECIFICATION

  • RELATED PRODUCTS & ACCESSORIES

  • PRODUCT SUPPORT

  • FEATURES

    • Designed for large-scale professional productions, the MI-909T delivers uncompressed UHF digital transmission for pristine audio quality and ultra-low latency.
    • Supports MIPRO’s ACT automatic pairing, enabling instant, one-touch synchronization with the receiver.
    • Selectable LOW / HIGH / OFF RF power settings—up to 100 mW—accommodate varying stage distances and regional regulations.
    • Factory-preset with 16 groups and 216 channels, with user access to an extended pool of 2,560 frequencies for complex multi-system deployments.
    • XLR / 6.3 mm combo input supports balanced and unbalanced sources, with a high dynamic range to integrate seamlessly with professional mixers and consoles.
    • Built-in 3-step ±9 dB EQ allows fine adjustment to match source characteristics and application needs.
    • Digital rotary knob and backlit LCD screen ensure fast, intuitive operation with clear status visibility.
    • Static and dynamic digital encryption can be assigned by group or channel, securing transmission against unauthorized access.

    SPECIFICATION

    Model

    MI-909T

    Name

    UHF Digital Stereo Transmitter

    Chassis

    Half-rack (9.5") metal chassis

    Display

    Backlit LCD & L/R Input LED Bar

    Control Interface

    Rotary knob, ACT sync button and earphone volume control

    Frequency Response

    20 Hz – 15 kHz (stereo)

    Channels

    Presets 16 groups and 216 frequencies

    Encryption

    Static & Scroll

    Modulation Type

    Digital modulation

    Audio Sampling

    24-bit

    RF Power Output

    LOW: < 10 mW, HIGH: < 100 mW (country dependent)

    Dynamic Range

    112 dBA (ADC spec.)

    EQ

    3 settings (LOW / MID / HI ±9 dB) or FLAT

    THD

    Approx. < 0.1% @1 kHz

    Max. Input Level

    > +26 dBu, selectable Line / Mic Level

    Audio Inputs

    2 × XLR / 6.3 mm TRS combo socket

    Audio Outputs

    2 × 6.3 mm TRS (Loop Out)

    Earphone Jacks

    1 × 6.3 mm TRS

    Management Interface

    RJ-11 × 2

    Antenna Output

    50Ω TNC female connector

    Power Supply

    DC 12–15 V. External AC 100–240 V switching power supply

    Dimensions

    210 × 44 × 206 mm (W × H × D)

    Weight

    Approx. 1.1 kg

    RELATED PRODUCTS

  • All (3)

  • Antenna Systems (3)

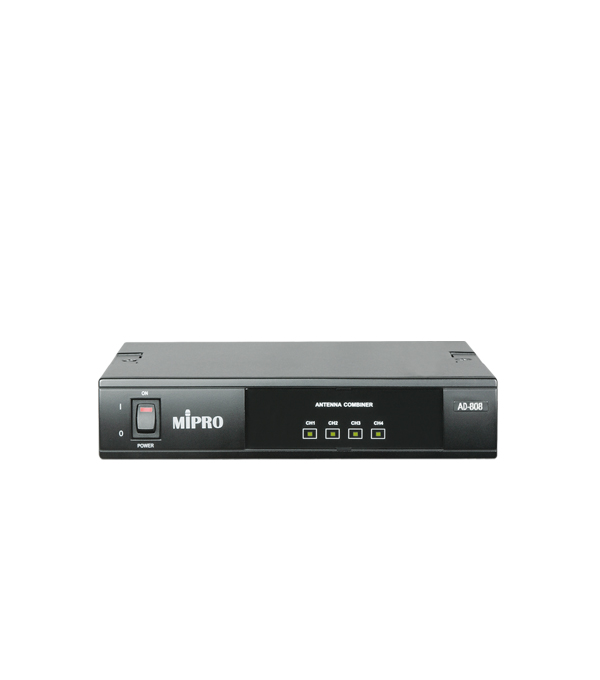

  • AD-808

    UHF 4-Channel Transmitting Antenna Combiner

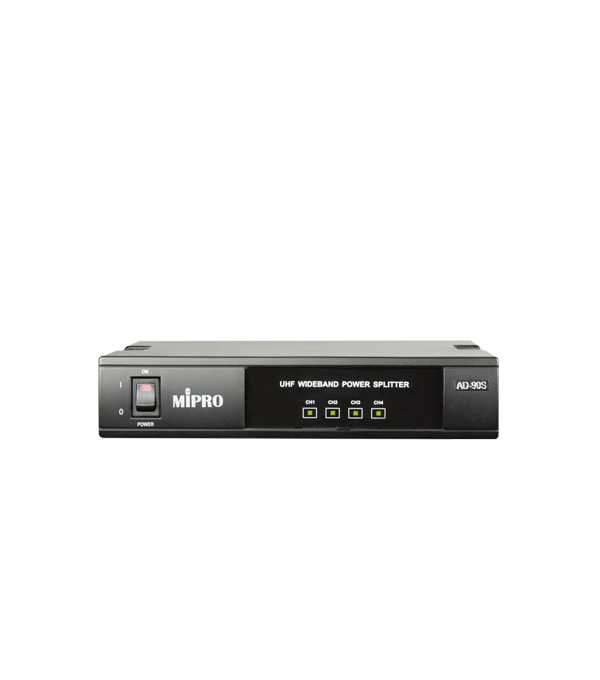

    AD-90S

    UHF Wideband RF Power Splitter

    AD-90A

    UHF Wideband RF Power Amplifier

    ACCESSORIES

  • All (2)

  • Control & Interface Solutions (1)

  • Rack Mount Kits (1)

  • MES-100

    WebMote Bridge

    FB-71

    Rack Mount Kits

    DOWNLOADS

  • BROCHURE

  • USER GUIDE

  • SPEC SHEET

  • DOC

  • TITLE
    FILES
    SIZE
    DOWNLOAD
    MI-909 Series
    Digital Wireless Stereo IEM System (MI-909R / MI-909T)
    3.1 MB
    MI-909T
    Digital Stereo Rack Transmitter (Ver.2018)
    2.89 MB
    MI-909T
    UHF Digital Stereo Transmitter (Ver.2024)
    242.05 KB
    MI-909T
    UHF Digital Stereo Transmitter
    505.06 KB
