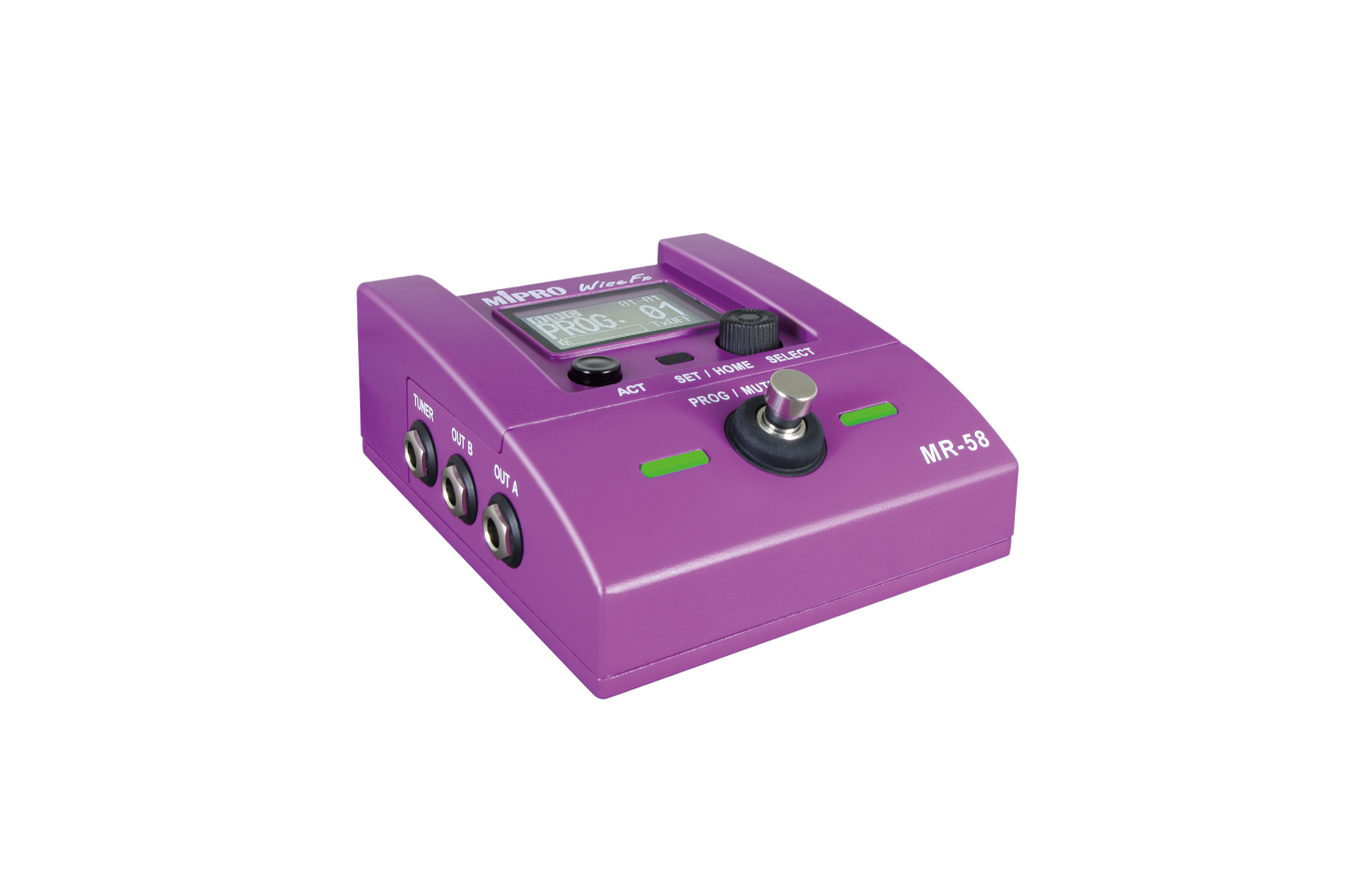

MR-58

5 GHz Digital Wireless Pedal Receiver

PRODUCT INQUIRY

FEATURES & SPECIFICATION

RELATED PRODUCTS & ACCESSORIES

PRODUCT SUPPORT

Digital

Digital

rx-mode

True Diversity

UHF、ISM

ISM

Frequency_Range

5.8 GHz

VFD

LCD

ACT_Sync

ACT Sync

RedDot

Red Dot Award

mr-58_1
mr-58_1

  • FEATURES & SPECIFICATION

  • RELATED PRODUCTS & ACCESSORIES

  • PRODUCT SUPPORT

    •

    FEATURES

    • Rugged metal pedal-style housing with built-in ISM 5 GHz digital wireless instrument receiver for low-latency, interference-resistant performance.
    • Operates outside congested 2.4 GHz and UHF bands for exceptional signal stability and audio clarity.
    • MIPRO patented uncompressed digital audio technology preserves instrument dynamics and tonal accuracy.
    • Three audio outputs (XLR, 6.3 mm OUT A/B, TUNER OUT) for flexible routing to amps, tuners, and effects pedals.
    • Large high-contrast LCD displays channel, connection status, and battery level for easy monitoring.
    • Customizable 8-color LED indicators enable fast on-stage preset recognition.
    • Footswitch-controlled PROG/MUTE ensures seamless, hands-free operation during live performance.
    • microSD card slot for quick firmware updates and backup of custom settings.
    • Pairs with MIPRO 5 GHz digital transmitters for an ultra-stable, low-latency wireless instrument transmission solution.

    SPECIFICATION

    Model

    MR-58

    Name

    5 GHz Digital Wireless Pedal Receiver

    Frequency Range

    ISM 5.8 GHz

    Modulation Type

    Digital modulation

    Receiving Mode

    True diversity

    Channel Setting

    ACT sync

    Sample Rate

    48 kHz / 24-bit

    Frequency Response

    18 Hz – 23 kHz

    Latency

    < 1.7 ms

    S/N Ratio

    > 120 dBA

    THD

    0.04 % @ 1 kHz

    Sensitivity

    -95 dBm

    Display

    Graphic LCD, color LED

    Control Interface

    ACT sync button, SET/HOME button, rotary knob, PROG/MUTE footswitch

    Audio Output

    3 × 6.3 mm TRS, 1 × XLR

    Extention Interface

    microSD slot

    Power Supply

    DC 9–12 V / 0.3 A

    Dimensions

    110 × 50 × 130 mm (W × H × D)

    Weight

    Approx. 840 g

    RELATED PRODUCTS

  • All (10)

  • Wireless Systems (1)

  • Instrument Systems (9)

    • act-580t_s

    ACT-580T

    5 GHz Digital Bodypack Transmitter

    COMPARE

    mr-58dc_s

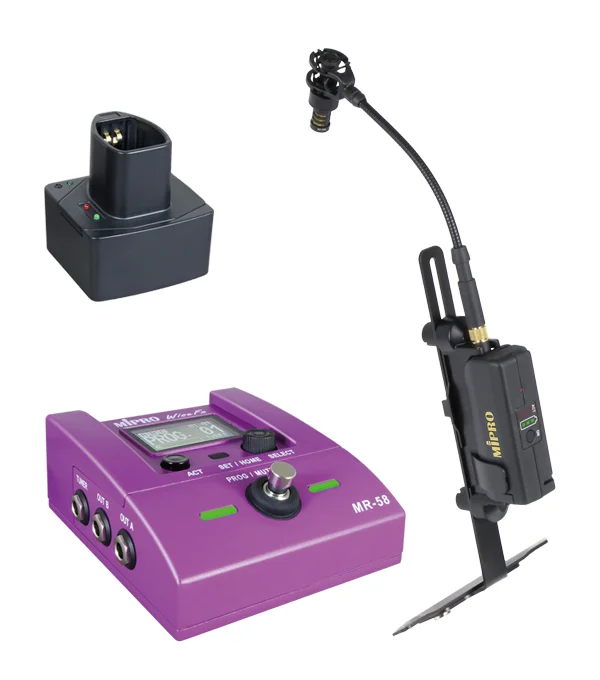

    MR-58DC

    Wireless Cajon Set

    mr-58vl_s

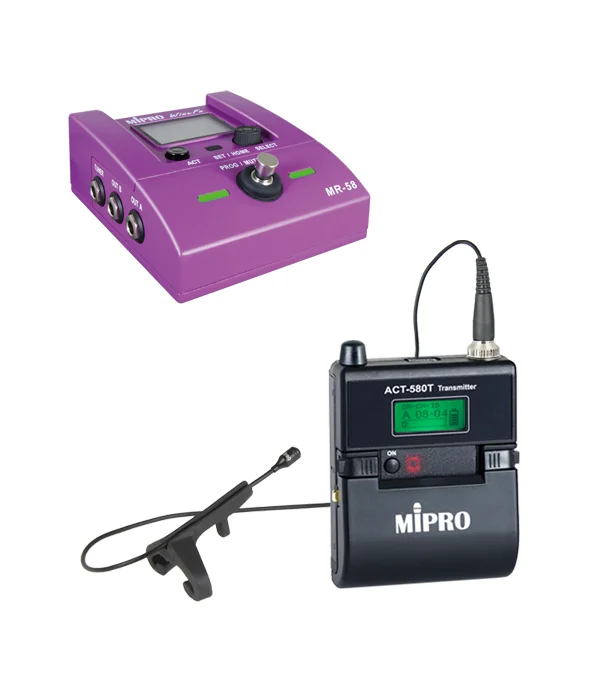

    MR-58VL

    Violin / Viola Transmitter Set

    mr-58vd_s

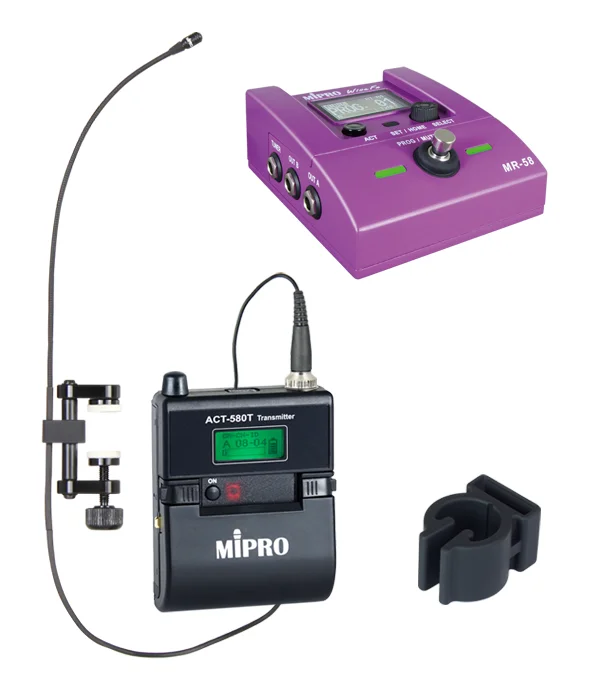

    MR-58VD

    Double Bass Transmitter Set

    mr-58ce_s

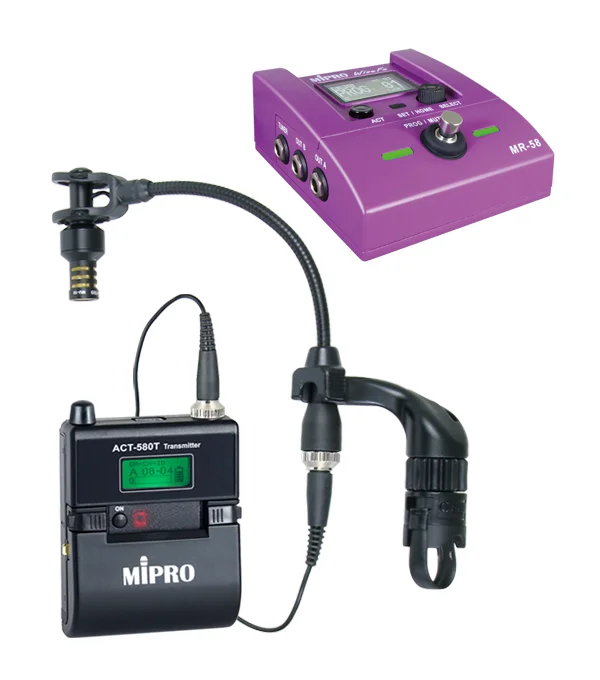

    MR-58CE

    Erhu Transmitter Set

    mr-58ge_s

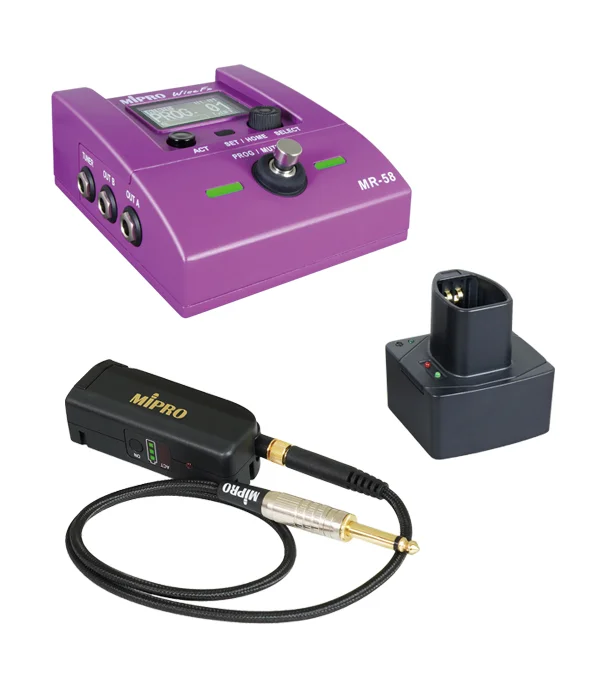

    MR-58GE

    Electric Guitar / Bass Transmitter Set

    mr-58ss_s

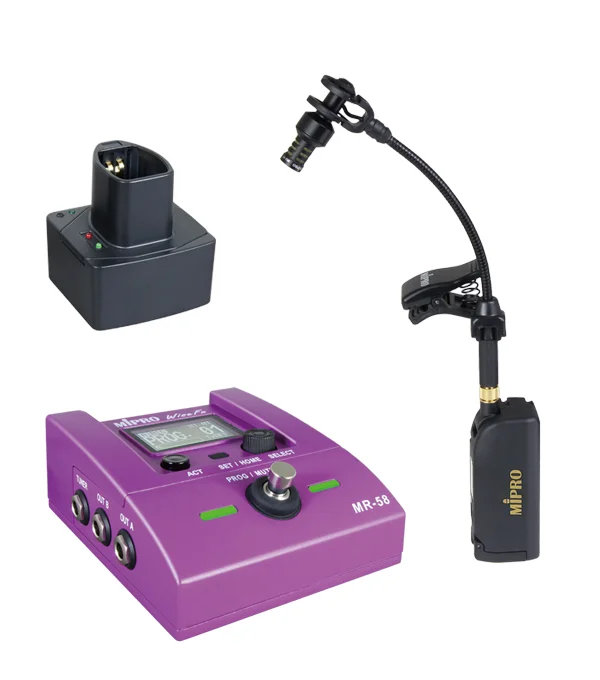

    MR-58SS

    Soprano Saxophone Transmitter Set

    mr-58sa_s

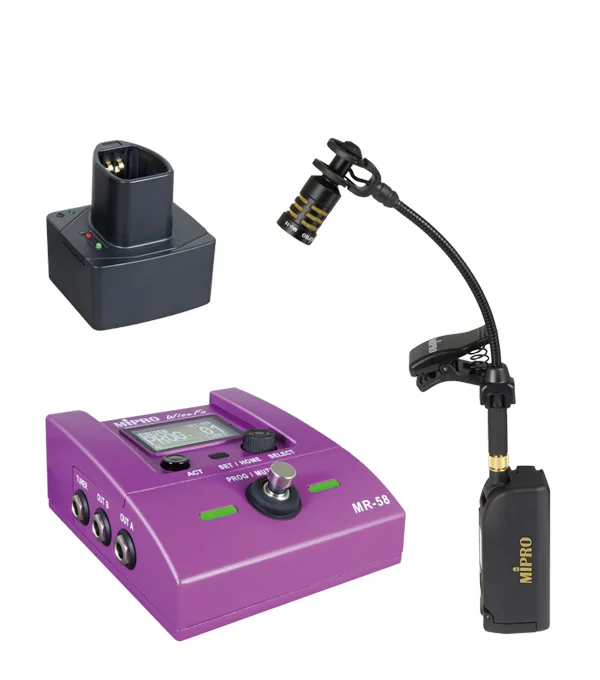

    MR-58SA

    Alto Saxophone Transmitter Set

    mr-58st_s

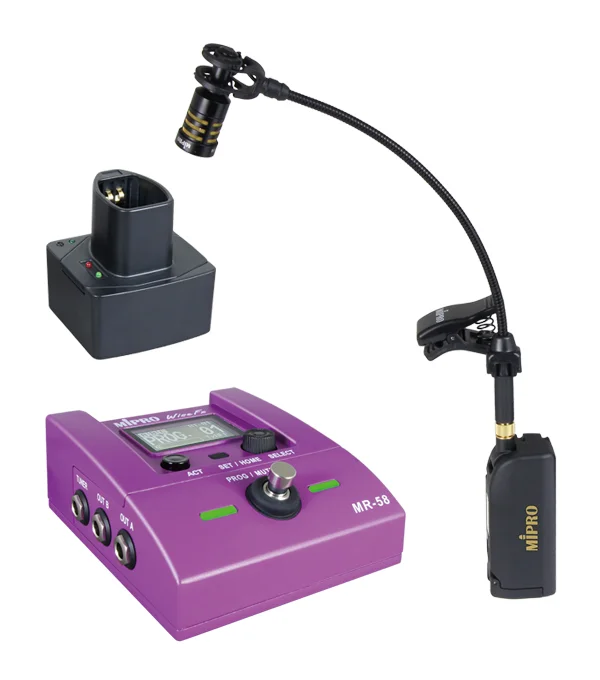

    MR-58ST

    Tenor Saxophone Transmitter Set

    mr-58sb_s

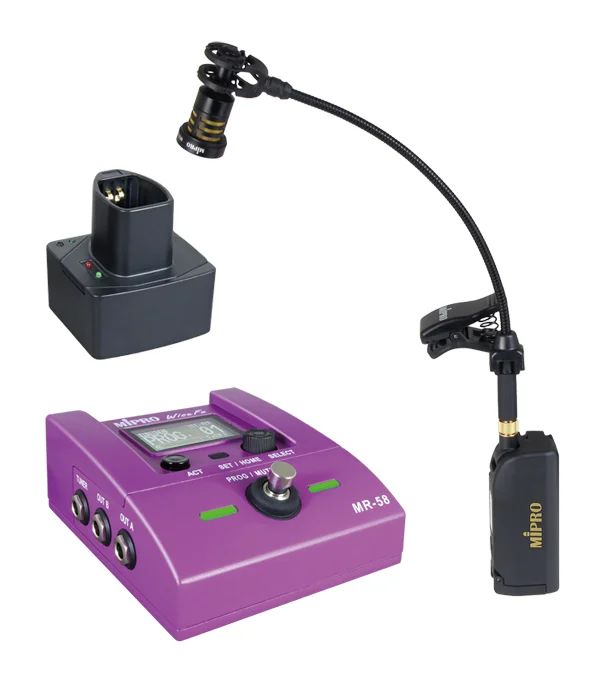

    MR-58SB
