MA-808 | Portable Wireless PA System | MIPRO

COMPARE

MA-808

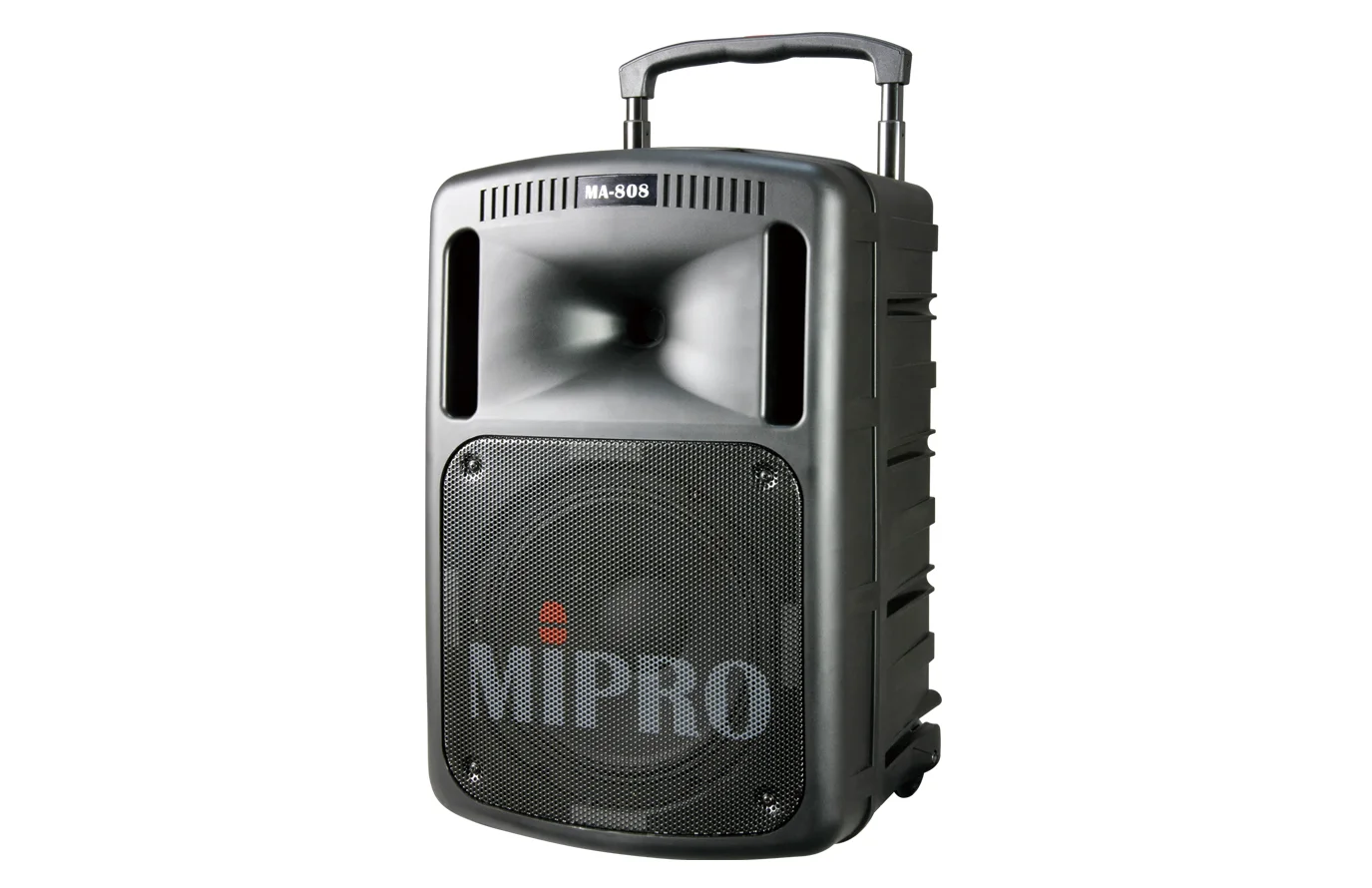

Portable Wireless PA System

FEATURES & SPECIFICATION

RELATED PRODUCTS & ACCESSORIES

PRODUCT SUPPORT

UHF

ISM

SD

VOP

Li-ion

Lead-acid

Record

CD Player

Bluetooth

USB

ECHO

Handle

Red Dot Award

  • FEATURES & SPECIFICATION

  • RELATED PRODUCTS & ACCESSORIES

  • PRODUCT SUPPORT

  • FEATURES

    • High-efficiency Class-D + Class-AB amplifier powers a two-way speaker system, delivering rich and powerful sound for medium to large indoor and outdoor events and performances.

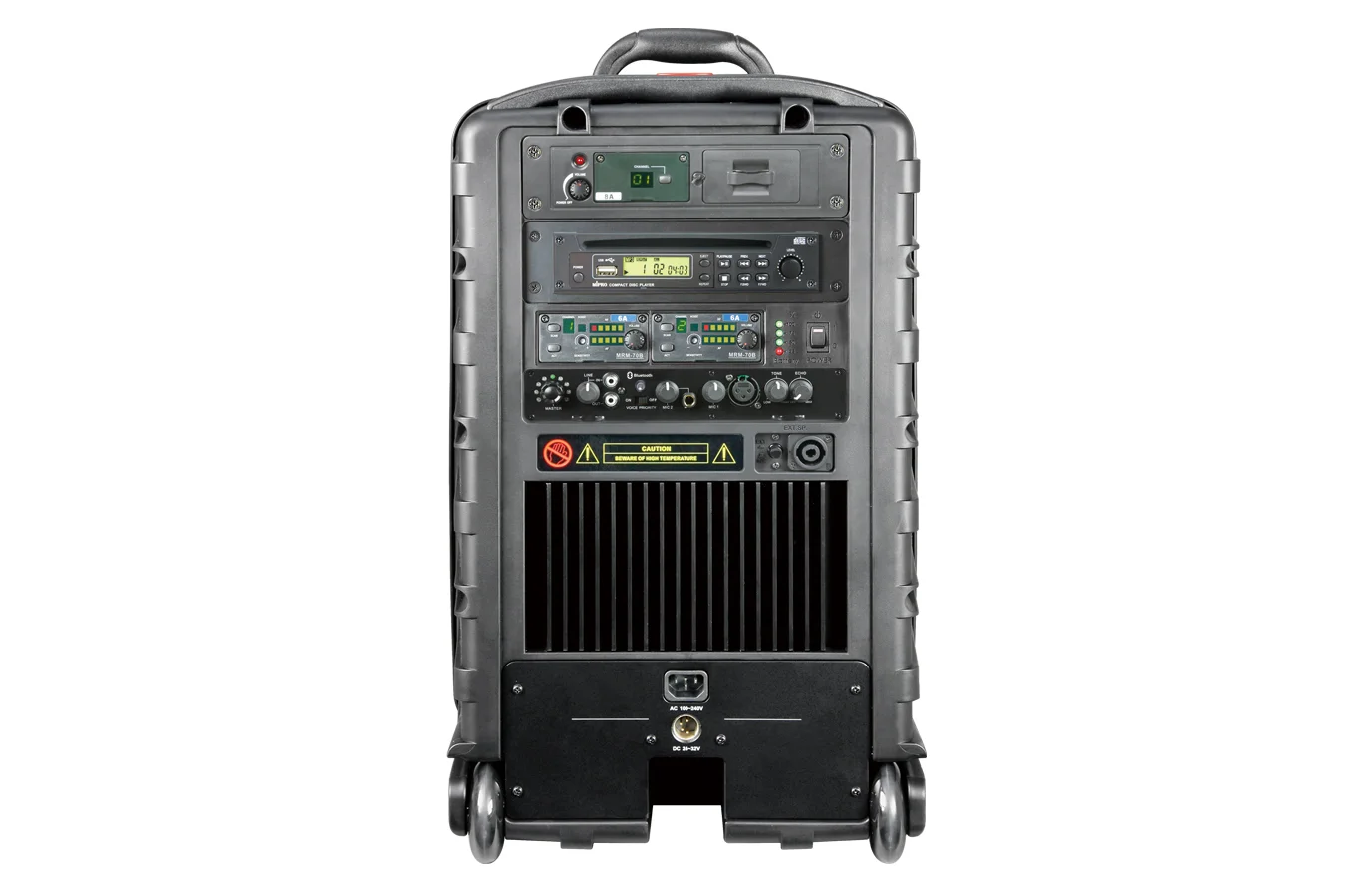

    • Modular design supports receiver, transmitter, and player modules, with independent volume control for external sources and wired microphones.
    • Receiver module offers multiple frequency band options and can be expanded to up to 4 sets to meet multi-microphone requirements.
    • Compatible with ACT-32HR handheld microphone for remote master volume control.
    • Built-in Bluetooth and TWS stereo technology ensure stable wireless connectivity and stereo music playback.
    • External speaker output allows connection to the MA-808EXP passive speaker, or use with an optional transmitter module to link another MA-808 for wider coverage.
    • Equipped with retractable handle, wheels, and microphone storage compartment for easy transport, plus tripod mount for flexible setup.
    • Features Voice Priority (VOP), microphone echo, and tone control functions, meeting diverse professional application needs.
    • Supports both AC power and rechargeable battery operation for long-lasting, stable performance.

    SPECIFICATION

    Model

    MA-808

    Name

    Portable Wireless PA System

    Max SPL

    116 dB SPL

    Speaker System

    1.5" Tweeter & 10" Woofer (Active Crossover)

    Output Power

    267 W RMS, 465 W peak

    Frequency Response

    50 Hz – 18 kHz

    Amplifier

    Class D & Class AB

    Audio Processing

    Tone, Echo control on mics

    Built-in Features

    Remote-controllable master volume, VOP

    Audio Inputs

    MIC IN (XLR & 6.3 mm), LINE IN (RCA)

    Audio Outputs

    LINE OUT (RCA), EXT SP. (Speakon)

    Receiver Module

    UHF / 2.4 GHz / 5 GHz, up to 4 (optional)

    Transmitter Module

    UHF / 2.4 GHz / 5 GHz (optional)

    Player Module

    Bluetooth, CD/USB/SD player & recorder (optional)

    Power Supply

    AC 100 – 240 V or DC 24 – 32 V

    Battery Type

    Built-in two Lead-acid battery packs (MB-70)

    Battery Indicator

    4-level LED indicator for battery level and charging status

    Standby Time

    Up to 6 hours

    Accessories

    SC-808 dust cover, MS-70 tripod stand (optional)

    Dimensions

    360 × 558 × 350 mm (W × H × D)

    Weight

    Approx. 21.4 kg (battery included)

    ACCESSORIES

  • All (11)

  • Receiver Modules for Portable PA (3)

  • Playback Modules for Portable PA (3)

  • Extension Speakers (1)

  • Rechargeable Batteries (2)

  • Stands & Mounts (1)

  • Carrying Bags & Dust Covers (1)

  • MRM-24

    2.4 GHz Digital Receiver Module

    MRM-58

    5 GHz Digital Receiver Module

    MRM-70

    UHF Analog Receiver Module

    CDM-2

    CD/USB Playback Module

    CDM-3A

    CD/USB Recording & Playback Module

    DPM-3P

    SD/USB Digital Recording & Playback Module

    MA-808EXP

    Passive Extension Speaker

    MB-70

    Rechargeable Lead-Acid Battery

    MB-80

    Li-ion Battery Case

    MS-70

    Tripod Speaker Stand

    SC-808

    Dust Cover

    DOWNLOADS

  • USER GUIDE

  • SPEC SHEET

  • DOC

  • TITLE
    FILES
    SIZE
    DOWNLOAD
    MA-808
    Portable Wireless PA System (Ver.2023)
    5.6 MB
    MA-808
    Portable Wireless PA System (Ver.2025)
    7.94 MB
    MA-808
    Portable Wireless PA System
    9.09 MB
    MA-808
    Portable Wireless PA System (Ver.2024)
    340.39 KB
    MA-808
    Portable Wireless PA System
    390.39 KB
